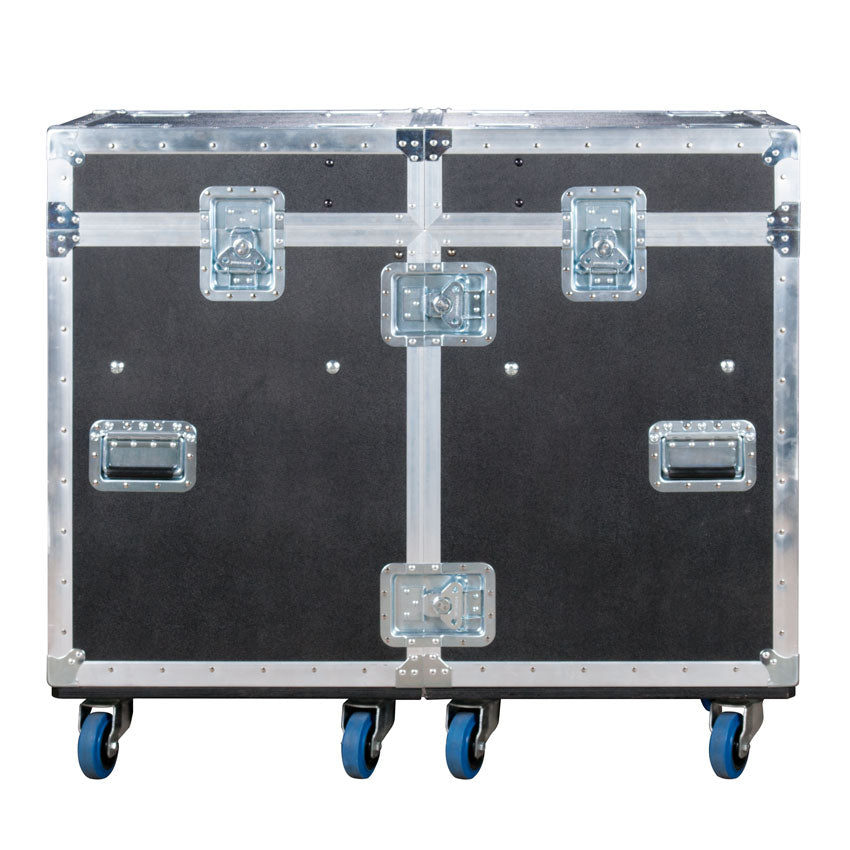

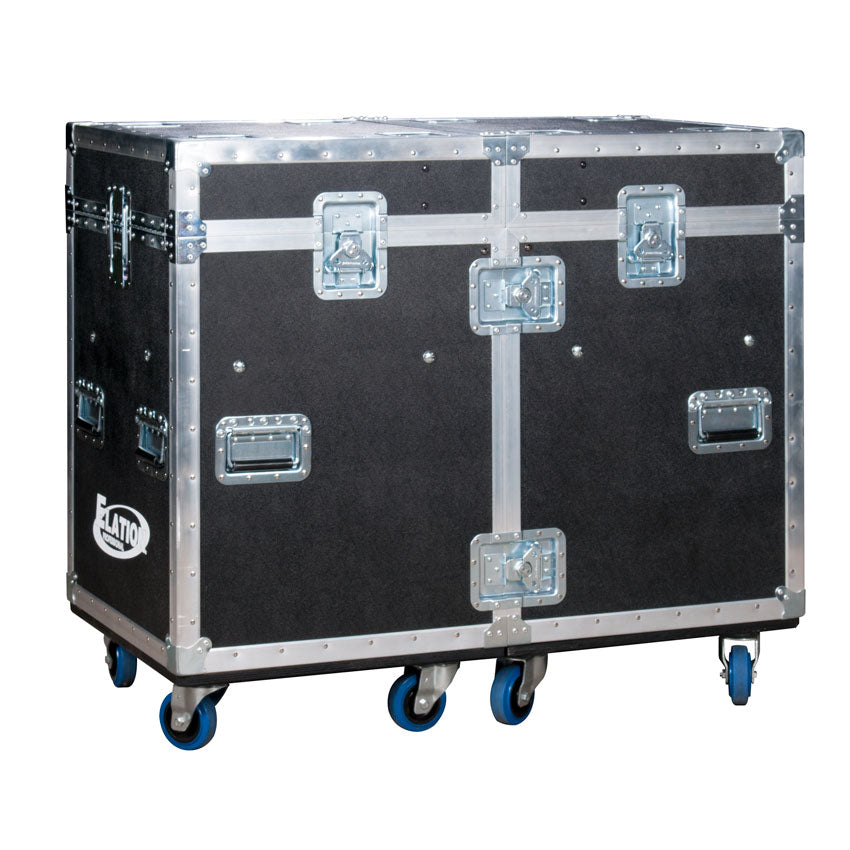

PLATINUM FLX TOURING ROAD CASE
Platinum FLX Touring Road Case is a professional-grade lighting solution. The Platinum FLX Touring Case is a durable tour ready road case that easily transports (2) Elation Platinum FLX fixtures.
PLATINUM FLX TOURING ROAD CASE
The Platinum FLX Touring Case is a durable tour ready road case that easily transports (2) Elation Platinum FLX fixtures. Manufactured in the USA, features include ATA approved flush mount hardware, 1/2" plywood walls, ABS exterior finish, tongue and groove sealing extrusion, dual split side loading design, dual hinged foamed lids for base compression, support blocks for flipping case, 3/4" plywood base plate, 2" thick foam, high impact blue casters, spring loaded handles, high impact flat corners, stacking cups, a piano hinge. The case is compatible for truck pack 90" box truck, 45" half pack, or 22.5 quarter pack, and weighs approx 325 lbs. (148 kg) fully loaded.
- Holds (2) Platinum FLX™ Units
- Dual Split Case Design
- Dual Hinged Foamed Lids for Base Compression
- Side Loading
- Support Blocks for Flipping Case
- Fixtures Are Loaded Inverted
- Truck Pack for 90" Box Truck: 45" Half Pack / 22.5" Quarter Pack
Specifications
1/2" Plywood Walls - ABS Exterior Finish
Tongue and Groove Sealing Extrusion
3/4" Plywood base plate
2" Thick Foam
(8) 300# Rated High Impact Blue Casters
(6) High Impact Recessed Spring Latches
(8) Spring Loaded Handles
(8) High Impact Flat corners
(8) Stacking Cups
(1) Piano Hinge
SIZE / WEIGHT
Length: 45.75” (1137mm)
Width: 24.0” (610mm)
Vertical Height: 39.25” (997mm)
Weight: 167 lbs. (75.8 kg) EMPTY / 325+ lbs. (148+ kg) LOADED*
*Actual weight may vary depending on cables and accessories added.
Manufactured in the U.S.A.
Specifications and documentation subject to change without notice.
