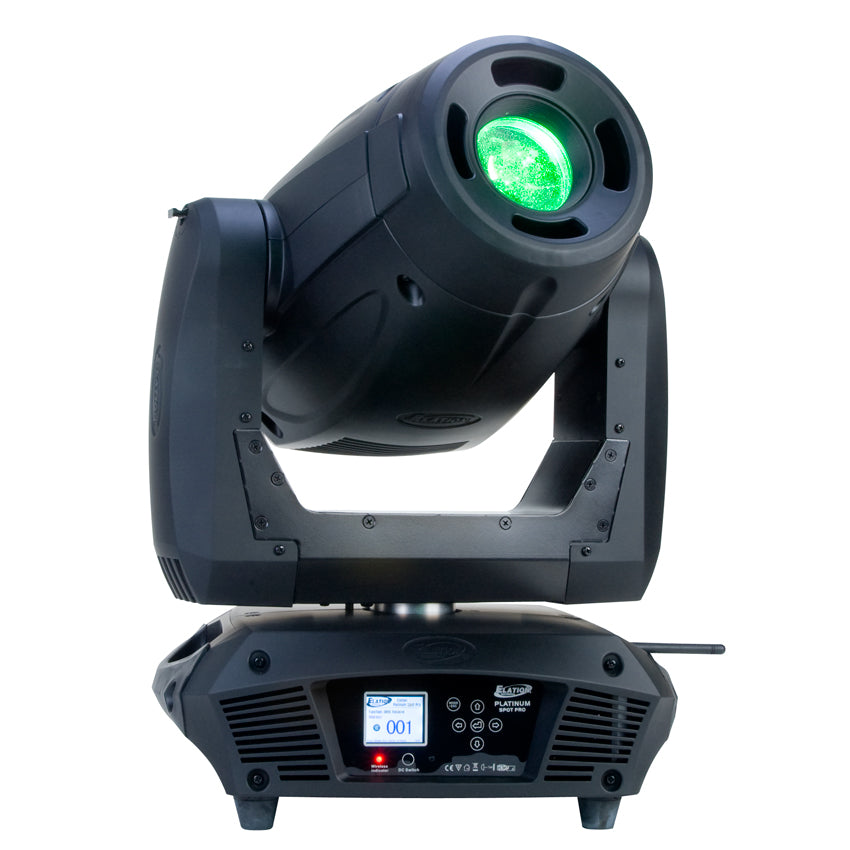

PLATINUM SPOT 5R PRO
Platinum Spot 5R PRO is a professional-grade lighting solution. The Platinum Spot 5R PRO is an expanded PRO model of our successful Platinum Spot 5R, with added features of CMY color mixing, motorized optical zoom, pan / tilt lock, power in/out, and Elation's Wireless DMX receiver built in. The Platinum Spot 5R PRO operates from a multi-voltage electronic power supply at 120v-240v 50/60hz. Control data input is via 3pin and 5 pin DMX data first in and out connections.

PLATINUM SPOT 5R PRO
The Platinum Spot 5R PRO is an expanded PRO model of our successful Platinum Spot 5R, with added features of CMY color mixing, motorized optical zoom, pan / tilt lock, power in/out, and Elation's Wireless DMX receiver built in. This unit is comparable to a 575W fixture but more than double the lamp life. The Platinum Spot 5R PRO also features increased speed on all motors and is double the output of the 250 fixture. This unit is compact, 1/2 the size of a 575 fixture and 1/3 smaller than a 250 fixture. Additional features include superior optics for a flat and even light field and improved output. The Platinum Spot 5R PRO is powered by a Phillips MSD Platinum 5R lamp providing up to 2,000 hours estimated lamp life. The Platinum Spot 5R PRO operates from a multi-voltage electronic power supply at 120v-240v 50/60hz. Control data input is via 3pin and 5 pin DMX data first in and out connections.
- CMY Color Mixing System 16bit
- Variable Zoom ( 4 to 1)
- Comparable To 575 Fixture And More Than The Lamp Life
- EWDMX Wireless DMX Receiver Built In
- Double the Output of 250 Fixture
- Increased Speed On All Motors
- Compact"¦ 1/2 The Size Of 575 Fixture - 1/3rd Smaller Than A 250
- Less Weight"¦ 1/2 The Weight Of 575 Fixture
- Energy Efficient"¦ Less Than 1/2 The Power Consumption Of A 575
- Superior Optics Flat / Even Light Field And Improved Output
- Hybrid Technology - Spot / Wash
- Featuring New Philips MSD Platinum 5R Lamp
Specifications
8 Dichroic Colors
22 Gobos
8 Rotating Replaceable Rotating / Indexing Gobos
14 Static Gobos
Gobo Size 14mm OD / 8mm ID
3 Facet Rotating Prism
Motorized Iris
11° to 42° Variable Zoom Beam Angle
Variable Frost Filter (Hybrid Effect for Wash)
Motorized Focus
Variable speed Shutter / Strobe
Mechanical Dimmer 0-100%
EWDMX Wireless DMX receiver built in (Not Compatible with E-FLY)
Pan/Tilt: 540/630 x 265
23/21/34 3 x DMX Channel Modes
3-pin amp; 5-pin DMX
Power: 350W MAX / 120v-240V 50/60hz
6,350 LUX / 590 FC @ 16’
Weight: 42 lbs
Dimensions: (LxWxH) 14.6” x 14.5” x 18.4”
Lamp: Philips MSD Platinum 5R
3,000 Hour Average Life*
*Applies to Philips™ 5R lamps with a production date of February 25, 2015, or later. Actual lamp life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.
Specifications and documentation subject to change without notice.
