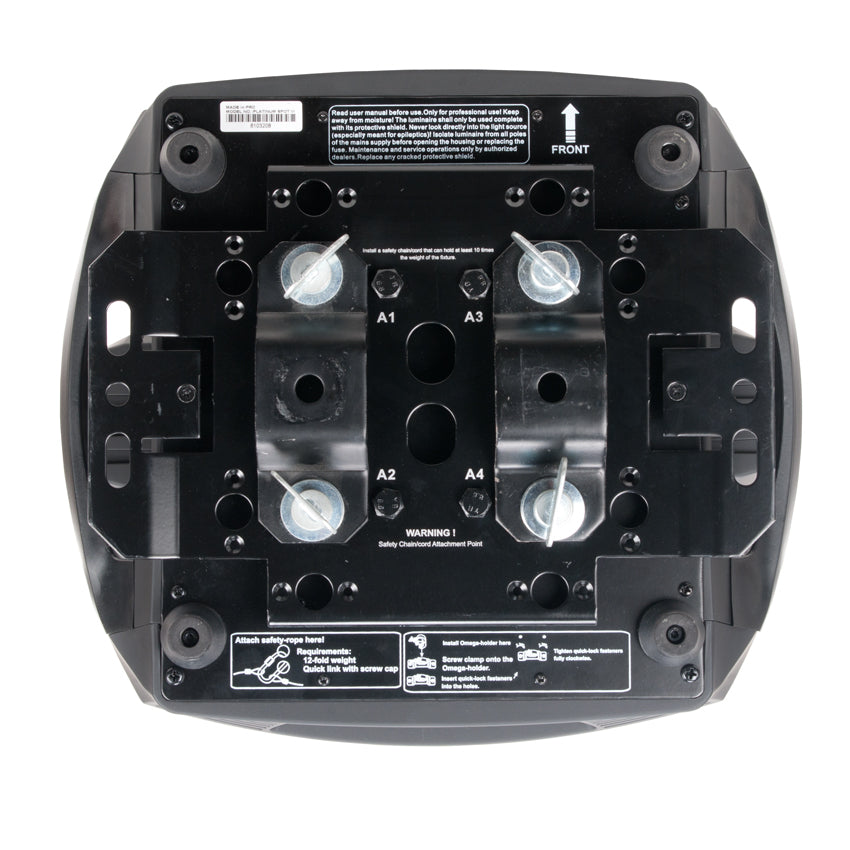

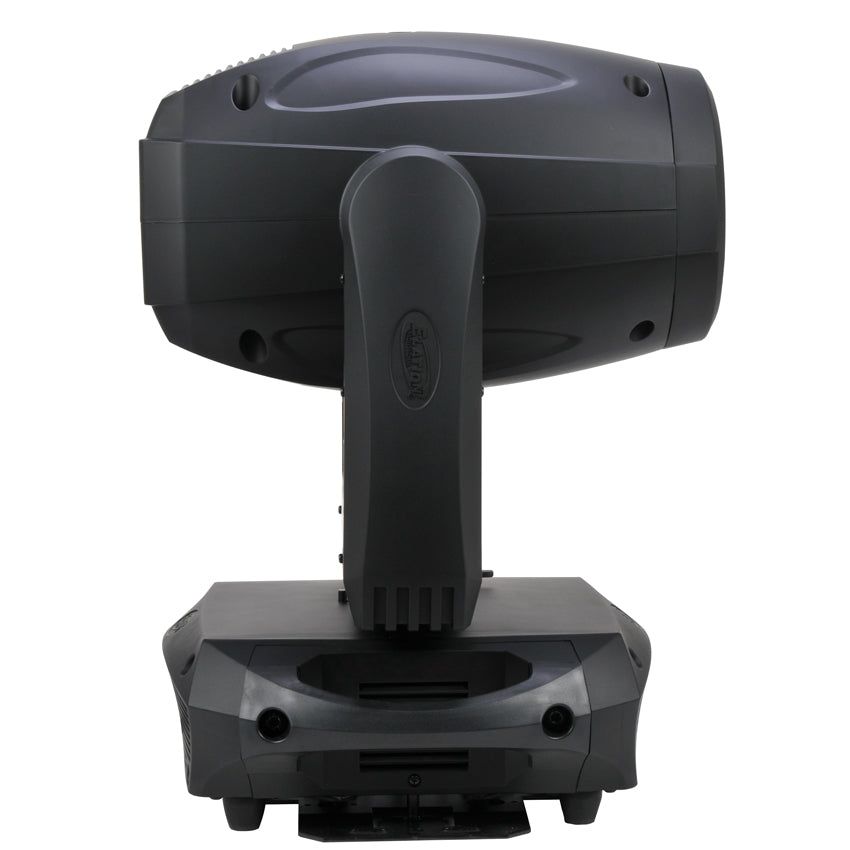

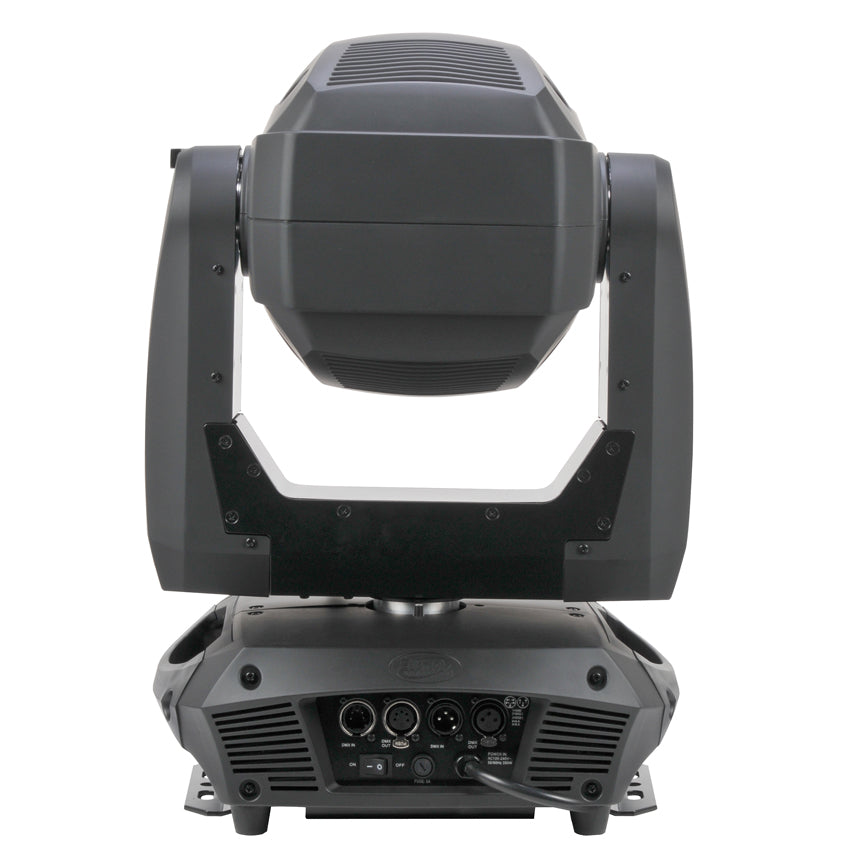

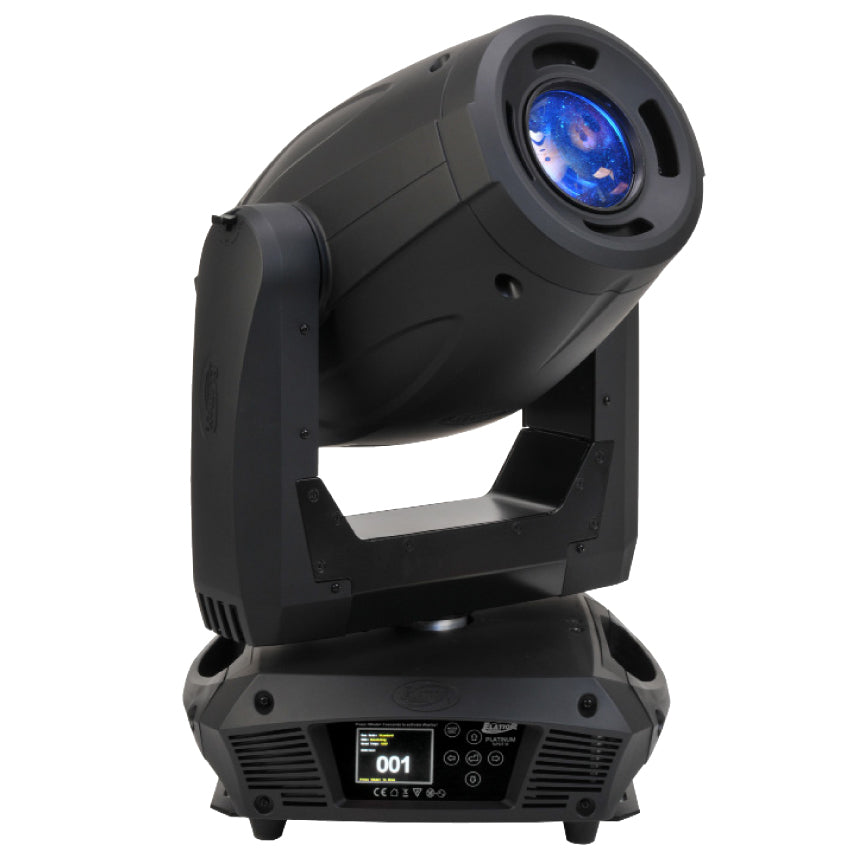

PLATINUM SPOT III
Platinum Spot III is a professional-grade lighting solution.
PLATINUM SPOT III
The Platinum Spot LED III™ features a new 230W 8,500K >79CRI Cool White LED engine, delivering total 7,200 lumens, 16° to 32° zoom, 8 dichroic colors, 7 rotating-interchangeable glass and 7 static-stamped metal gobos, a bi-directional variable speed animation wheel, 3-facet rotating prism, frost filter, motorized iris and focus, variable dimming curves, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, RDM (Remote Device Management), full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
- Cool White LED Spot Luminaire
- 230W, 8,500K, >79CRI, 7,200 Lumen, 60,000 Hours
- 16° to 32° Motorized Zoom, 8 Dichroic Colors
- 7 Rotating-Interchangeable and 7 Static-Stamped Gobos
- Bi-Directional Variable Speed Animation Wheel
- 3-Facet Rotating Prism and Frost Filter
- High Speed Mechanical Shutter and Strobe
- Motorized Iris and Focus and Variable Dimming Curves
- Low Heat, Quiet Operation, Hibernation Mode
- Flicker Free Operation For Broadcast TV and FILM
Specifications
230W Cool White LED Engine
60,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
8,500K, gt;79CRI, gt;7,200 Lumens
17,500 LUX 1,626 FC @8.2’ (2.5m) (16° Full ON)
5,373 LUX 499 FC @8.2’ (2.5m) (32° Full ON)
EFFECTS
16° - 32° Motorized Zoom
Bi-Directional Variable Speed Animation Wheel
3-Facet Rotating Prism and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Zoom, Iris and Focus
High Speed Mechanical Shutter and Strobe
Variable Dimming Curves
COLOR
8 Dichroic Colors
GOBOS
7 Interchangeable-Rotating / Indexing Glass Gobos
7 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (18 / 20 / 27)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin amp; 5pin DMX In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.8” (375mm)
Width: 15.1” (384mm)
Vertical Height: 23.7” (601mm)
Weight: 46 lbs. (20.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
350W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)
APPROVALS / RATINGS
CE | IP20
Specifications and documentation subject to change without notice.
