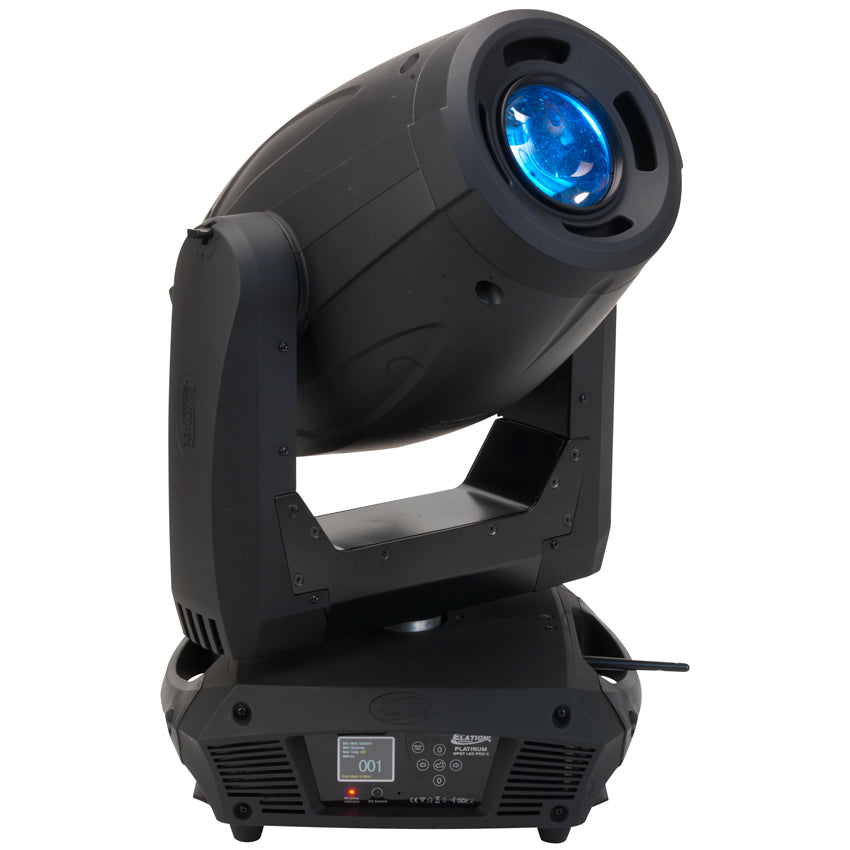

PLATINUM SPOT LED PRO II
Platinum Spot LED PRO II is a professional-grade lighting solution.

PLATINUM SPOT LED PRO II
The Platinum Spot LED PRO II™ features an extremely bright 170W Cool White LED engine, 15° to 33° motorized zoom, 7 dichroic colors plus white, 7 rotating, interchangeable, glass and 7 static metal gobos, frost filter hybrid wash effect, 3-facet rotating prism with 16 prism macros, motorized iris, focus, and dimming, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, internal wireless DMX receiver, RDM (Remote Device Management), full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, a multi-voltage universal auto switching power supply (100-240v), and flicker free operation for TV and FILM.
The Platinum Spot LED PRO II™ features an extremely bright 170W Cool White LED engine, 15° to 33° motorized zoom, 7 dichroic colors plus white, 7 rotating, interchangeable, glass and 7 static metal gobos, frost filter hybrid wash effect, 3-facet rotating prism with 16 prism macros, motorized iris, focus, and dimming, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, internal wireless DMX receiver, RDM (Remote Device Management), full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, a multi-voltage universal auto switching power supply (100-240v), and flicker free operation for TV and FILM.
- FEATURES
- Extremely Bright Cool White LED Spot Illuminare
- Low Heat, Quiet Operation, and Hibernation Mode
- 15° - 33° Motorized Zoom
- Frost Filter Hybrid Wash Effect
- Internal EWDMX Wireless DMX Receiver
- Flicker Free Operation For Broadcast TV and FILM
Specifications
170W Cool White LED Engine
60,000 Hour Average LED Life
PHOTOMETRIC DATA
6,500K, gt;85CRI
12,200 LUX 1,113 FC @8.2’ (2.5m) (15°Min Zoom Full ON)
3,110 LUX 289 FC @8.2’ (2.5m) (33° Max Full ON)
EFFECTS
Frost Filter Hybrid Wash Effect
3-Facet Rotating Prism and Prism Macros
Motorized Focus and Dimming 0% - 100%
Iris: 5% - 100%
Strobe: 1-18fps
COLOR
7 Dichroic Colors + White (Open)
GOBOS
7 Interchangeable / Rotating / Indexing Gobos
Gobo Size: OD 1.06” (27mm) / ID 0.86” (22mm)
7 Static / Indexing Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 15 / 22)
RDM (Remote Device Management)

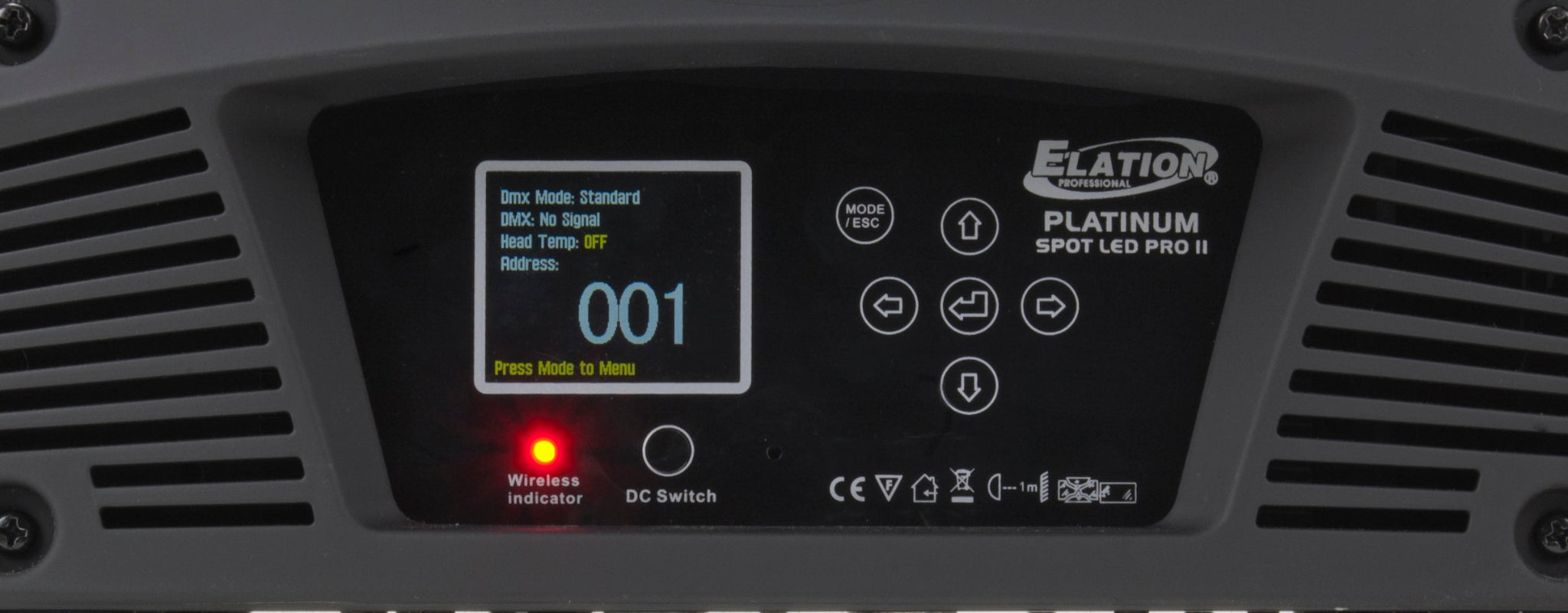

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
Internal EWDMX Wireless DMX Receiver

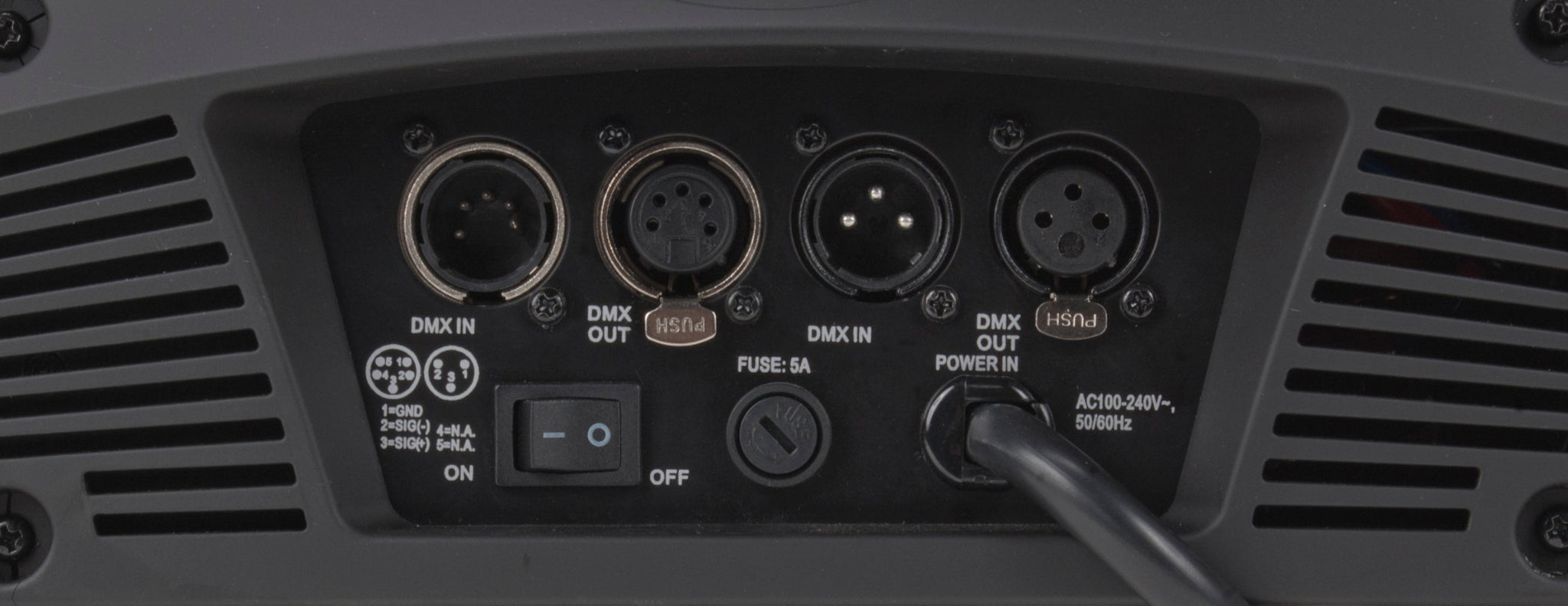

3pin amp; 5pin DMX In/Out
SIZE / WEIGHT
Length: 15.1” (384mm)
Width: 14.8” (375mm)
Vertical Height: 23.7” (601mm)
Weight: 46.3 lbs. (21 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
290W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)
APPROVALS / RATINGS
CE Approved
cETLus Approved
RoHs Compliant
IP20 Rated
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
Omega Brackets
3pin DMX Cable
OPTIONAL ACCESSORIES:
CLAMPS(click for more info)
ROAD CASES(click for more info)
PRO CABLES(click for more info)
DMX SOLUTIONS(click for more info)
Specifications and documentation subject to change without notice.
