PROTEUS ATLAS

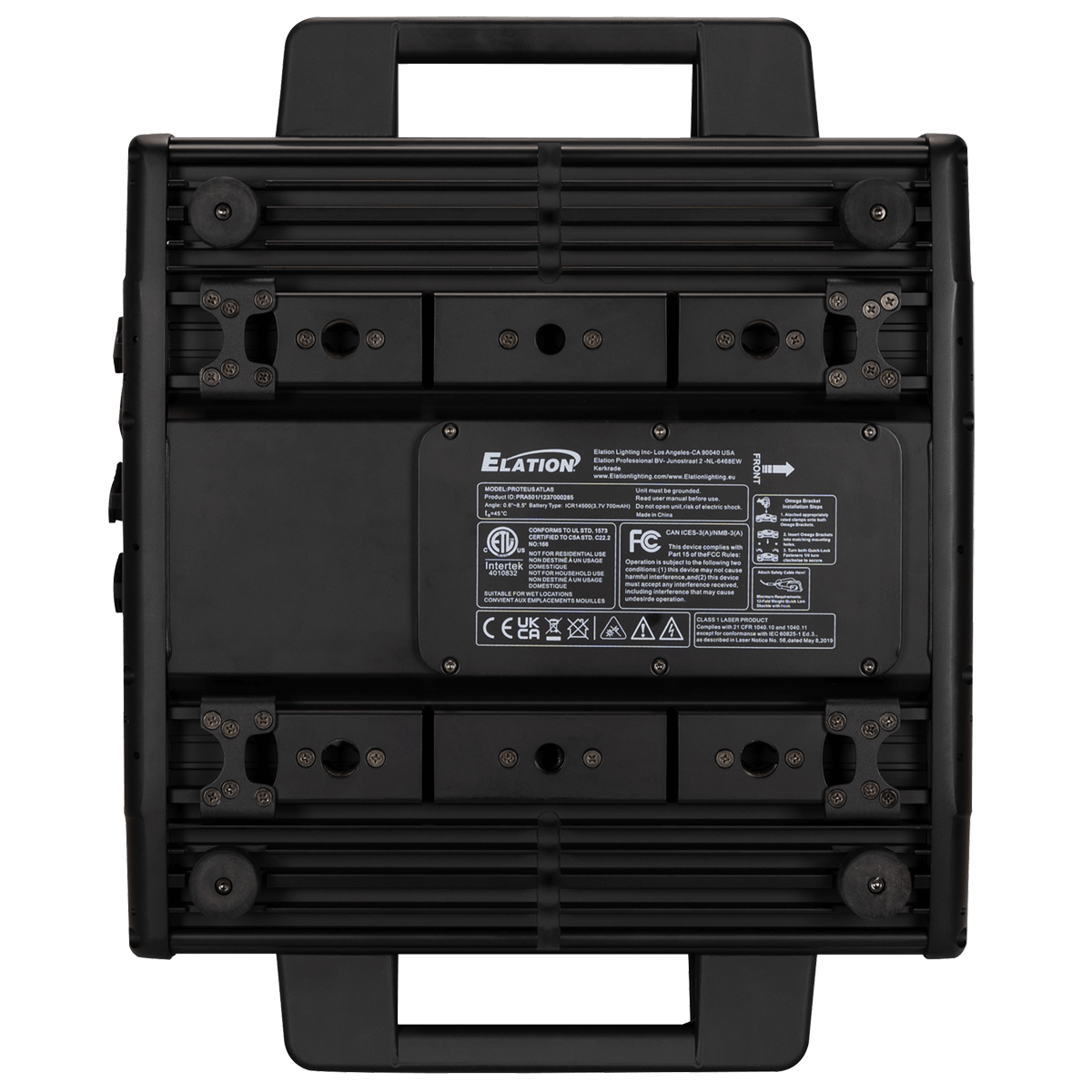

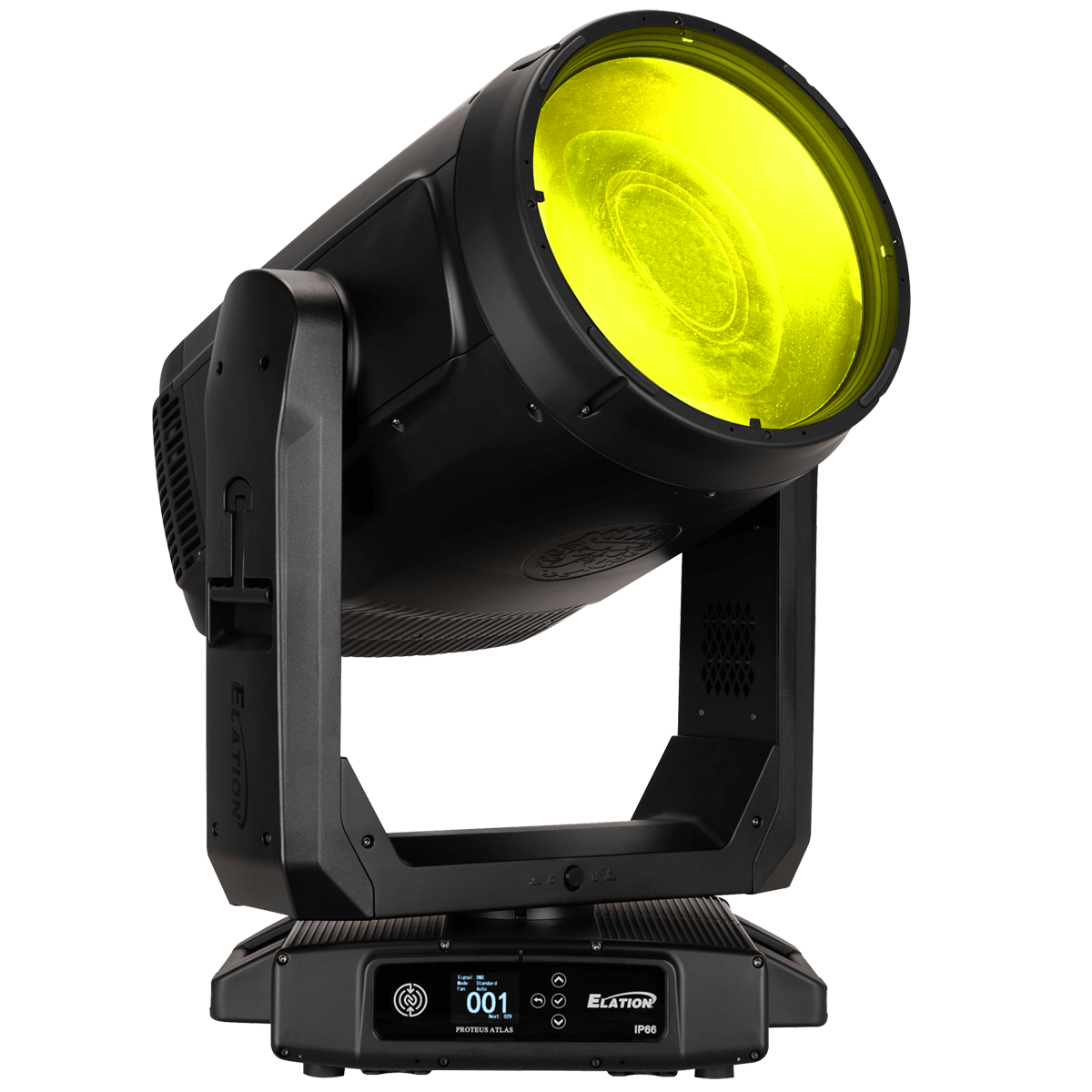

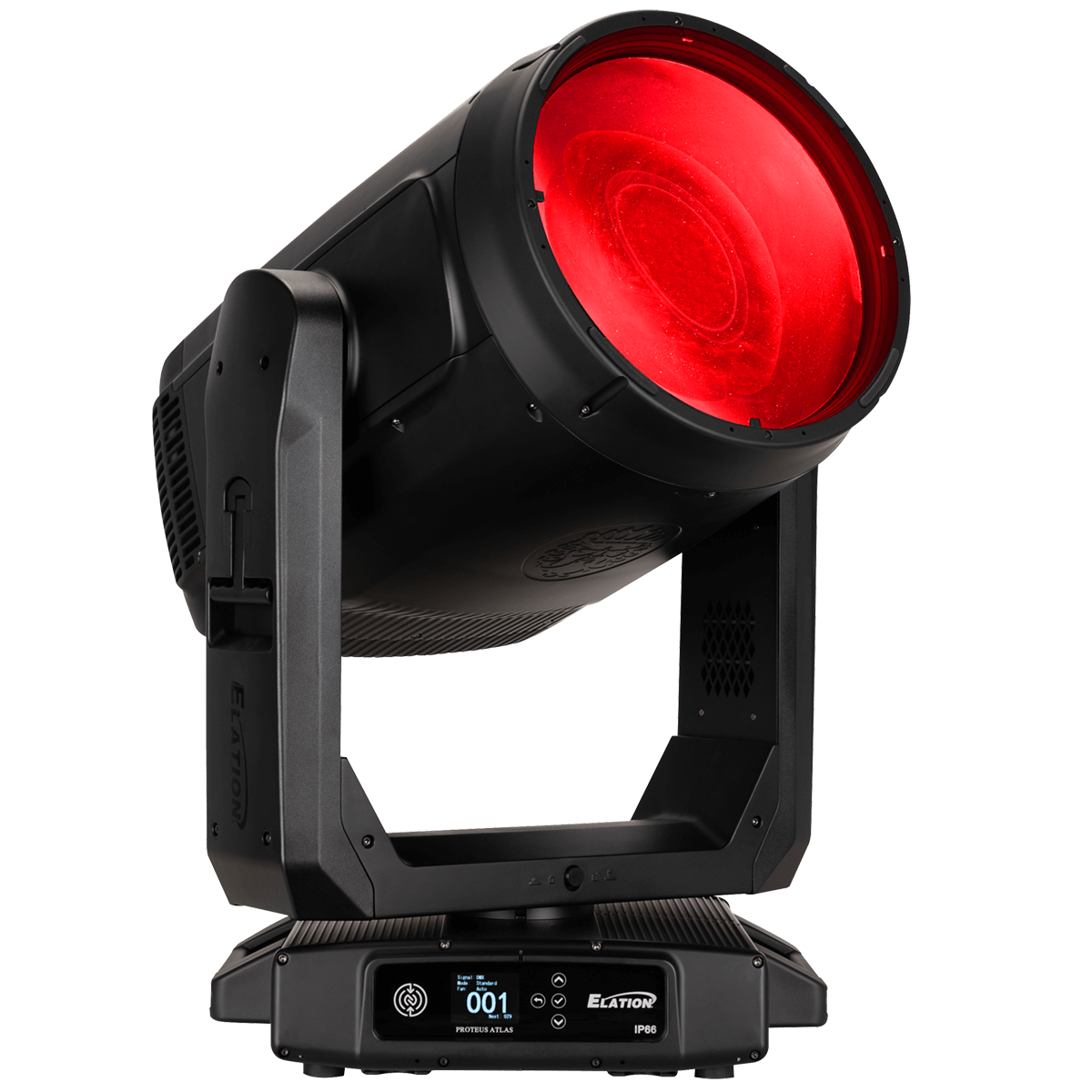

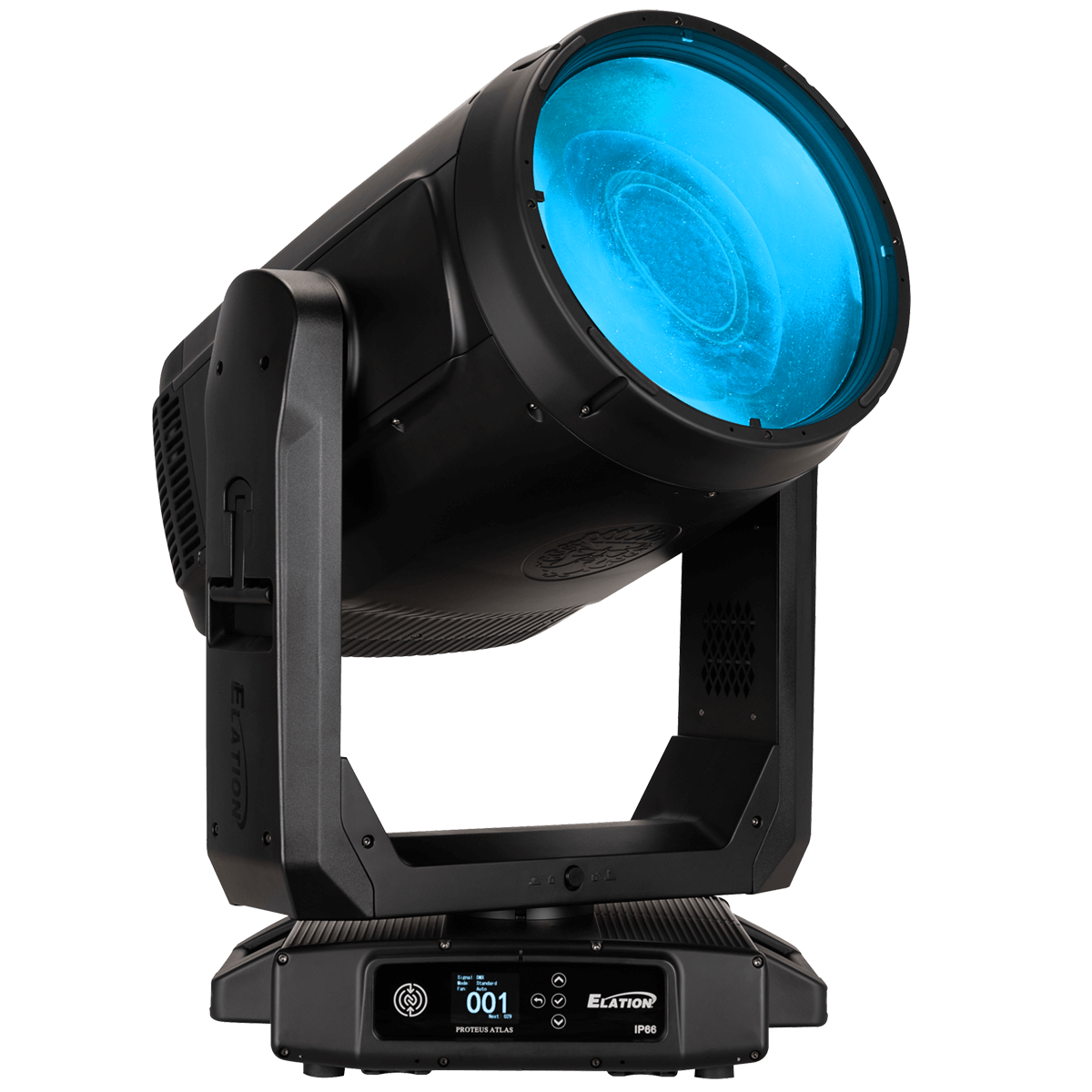

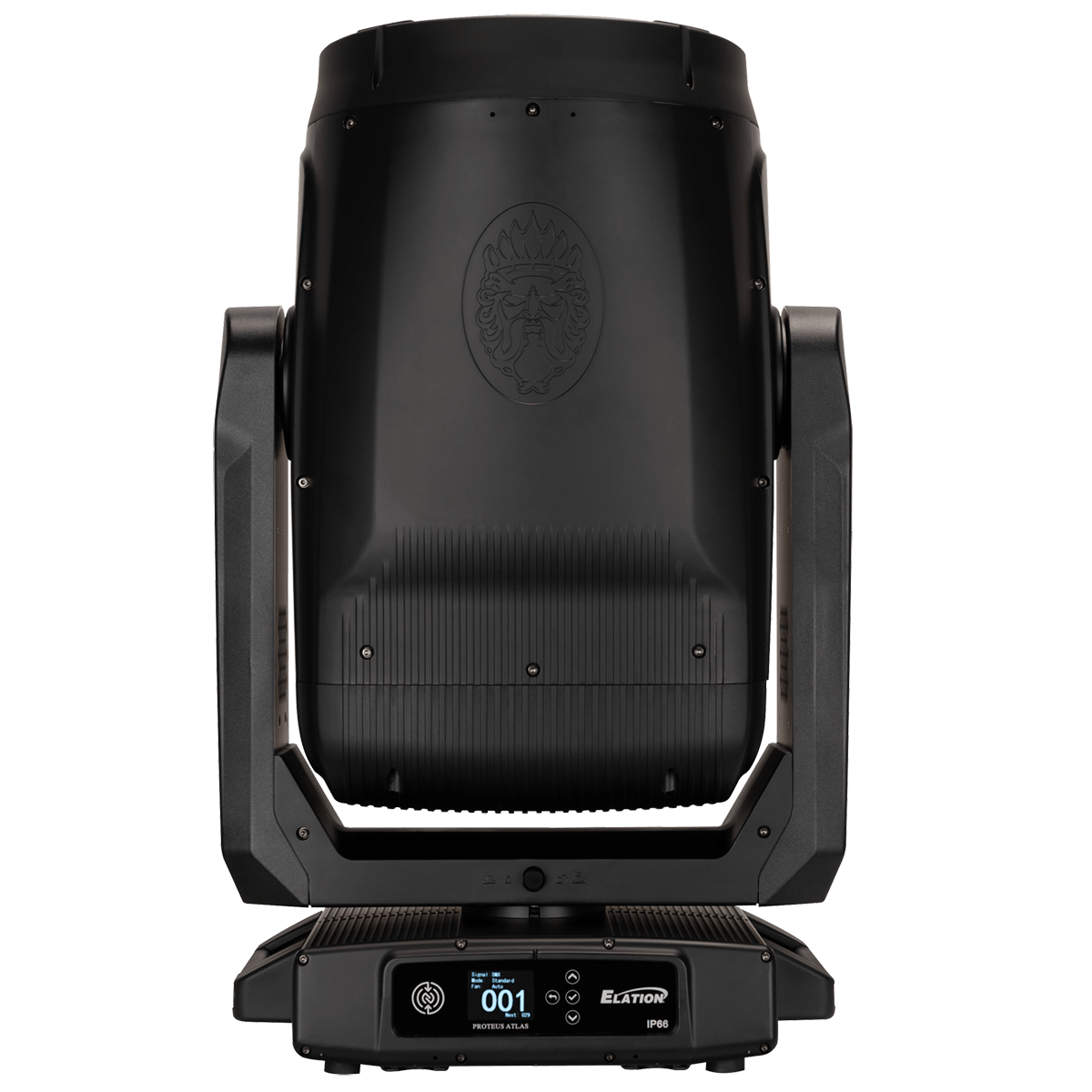

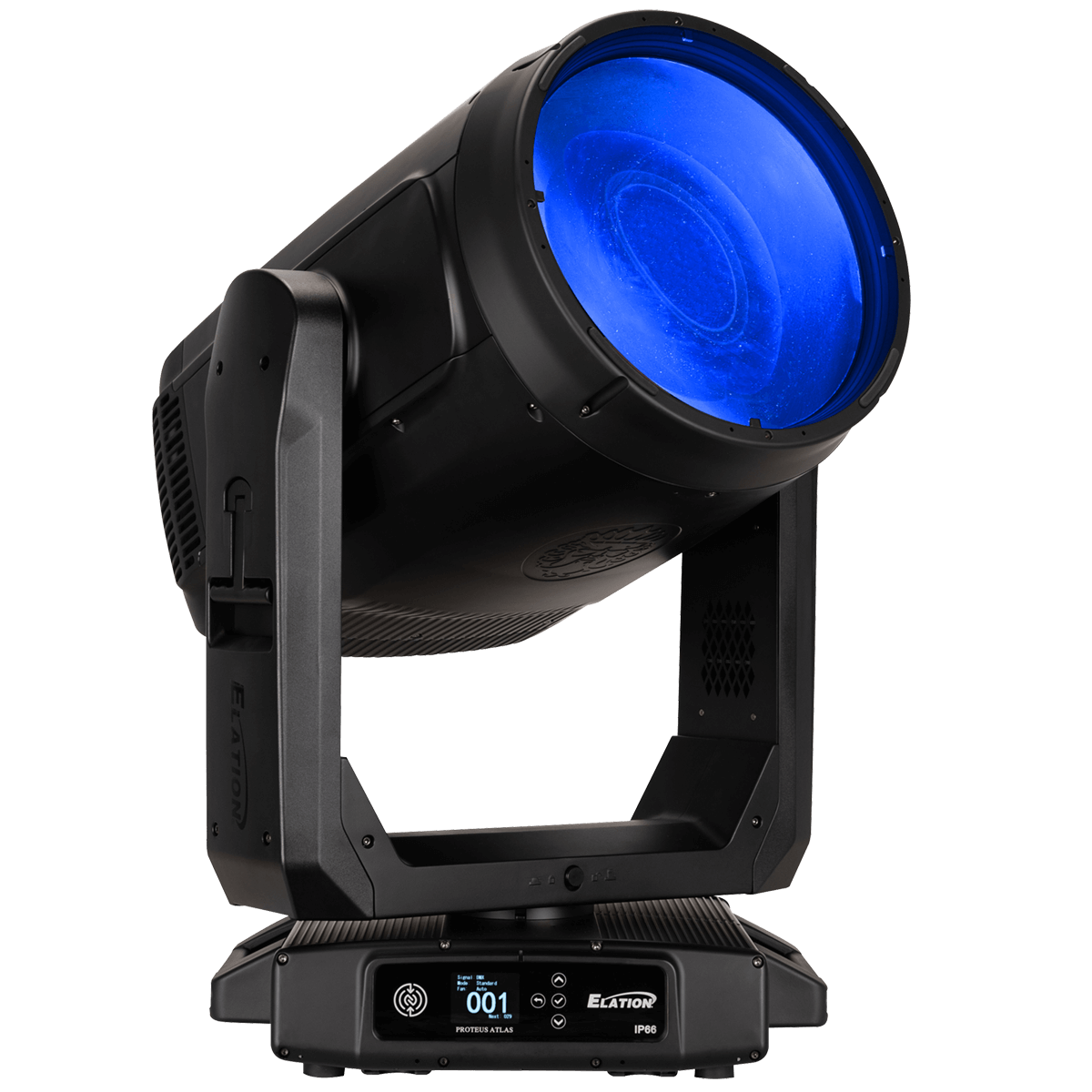

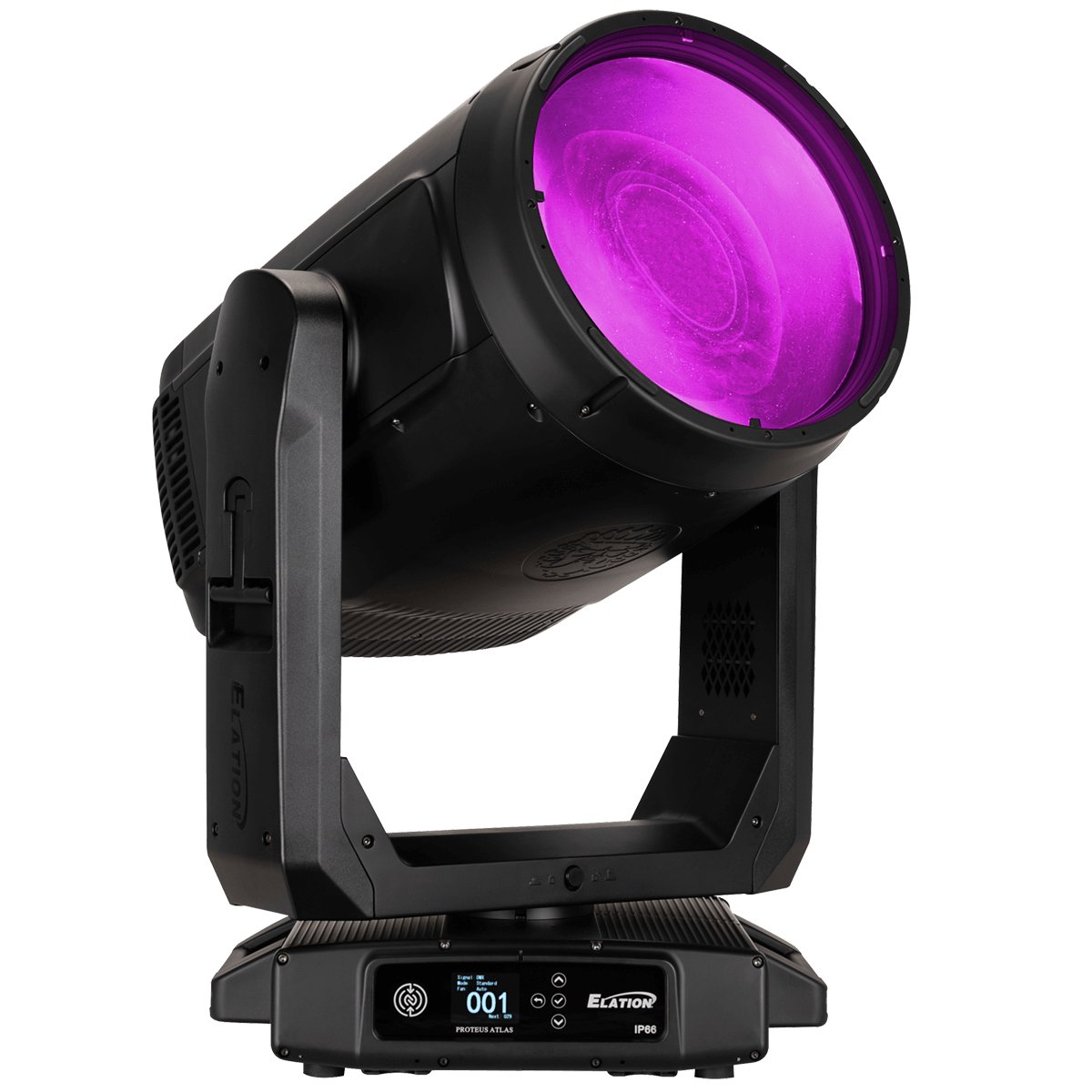

Command the heavens with Elation’s PROTEUS ATLAS, built to deliver otherworldly light for large-scale productions and permanent outdoor installations. With 1 million LUX at 20 meters, LILI technology, and a massive 320mm lens, Atlas cuts through the sky with bold, focused beams that evoke the power of traditional Xenon fixtures.
PROTEUS ATLAS
500W LILI (Laser Illuminated Lighting Instrument)
IP66 housing
Ultra Long Throw Beam FX
Continuous 360 Pan Movement
CMY Color Mixing
FX Package with rotating, fixed gobos, prisms and dual frost
Sky Motion Standalone System
Specifications
(1120) 1.5W RGB LEDs
(400) 5W CW Strobe LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output
Integrating Sphere
All LED: 22,614 Lumens
CW LED: 25,191 Lumens
RGB LED: 8,434 Lumens
CRI: TBD
Beam Angle: TBD
Field Angle: TBD
EFFECTS
40 Zones of RGB Plate LEDs (20 x 2)
40 Zones of CW Strobe LEDs (20 x 2)
20 Zones of RGB StrobeLine LED's (20 x 1)
1- 20Hz Strobe Rate
Library of Customizable RGB and CW Strobe Effects
Variable Dimming Modes and Curves
COLOR
RGB Color Array
CONTROL / CONNECTIONS
9 DMX Channel Modes (3ch, 11ch, 22ch, 52ch, 92ch, 234ch, 132ch, 242ch, 220ch)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)

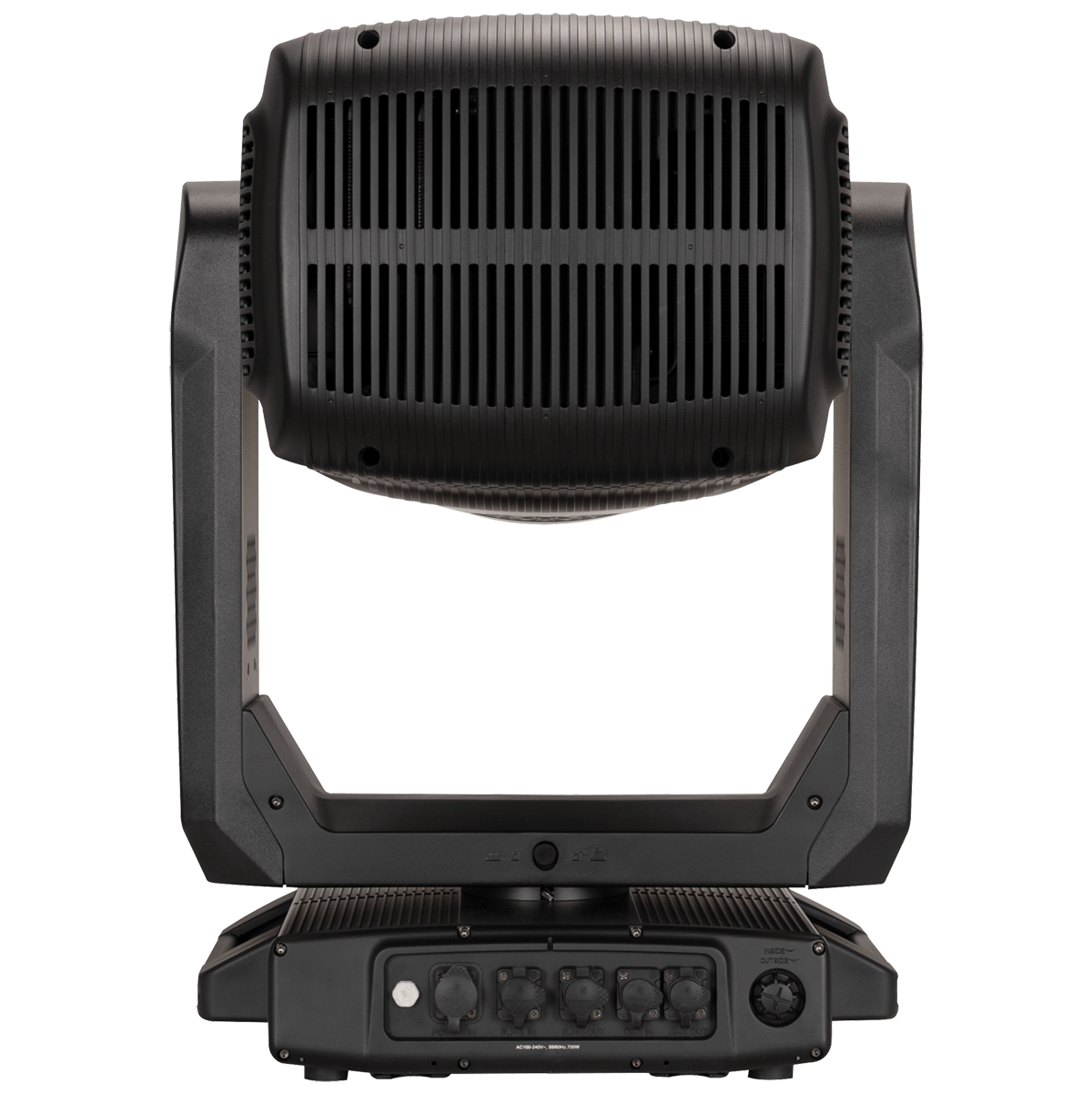

IP65 5pin XLR DMX In/Out
IP65 Locking Power Cable In
SIZE / WEIGHT

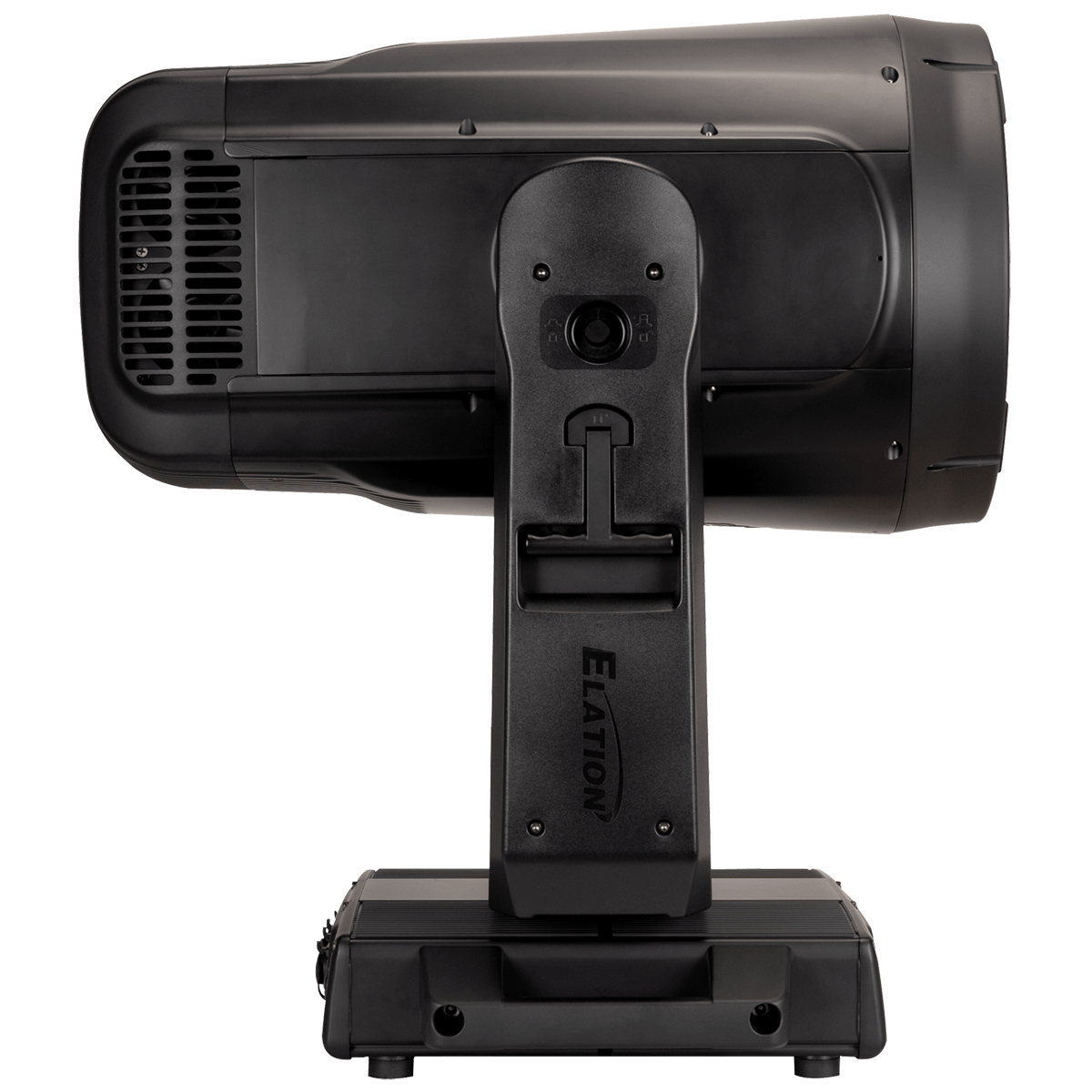

Length: 39.4” (1000mm)
Width: 6.9" (176mm)
Vertical Height: 8.1” (205mm)
Weight: 27.55 lbs (12.5kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 1300W
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 4433
INCLUDED ITEMS
Safety Cable
IP65 Locking Power Cable
Fixture Interconnect Splice
OPTIONAL ITEMS
BAR L NSP Lens (BLL021)
BAR L WFL Lens (BLL061)
BAR L XFL Lens (BLL101)
BAR L L140 Lens (BLL141)
BAR L L1060 Lens (BLL161)
BAR L Frost (BLL001)
BAR L Dome Frost Lens (BLL181)
BAR L Black Lens (BLL125)
# 8050000053 - Omega Bracket (Qty.2)
Fixture Interconnect Splice Package (FISP06)
L-Track to M10 Adapter,70mm (LTR001)
L-Track to M10 Adapter, 44.5mm (LTR008)
L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)
Interconnect Clamp Adapter (FICA01)
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
FIRMWARE UPDATE
Current Update: V1.04
Click HERE for software update
Specifications and documentation subject to change without notice.
