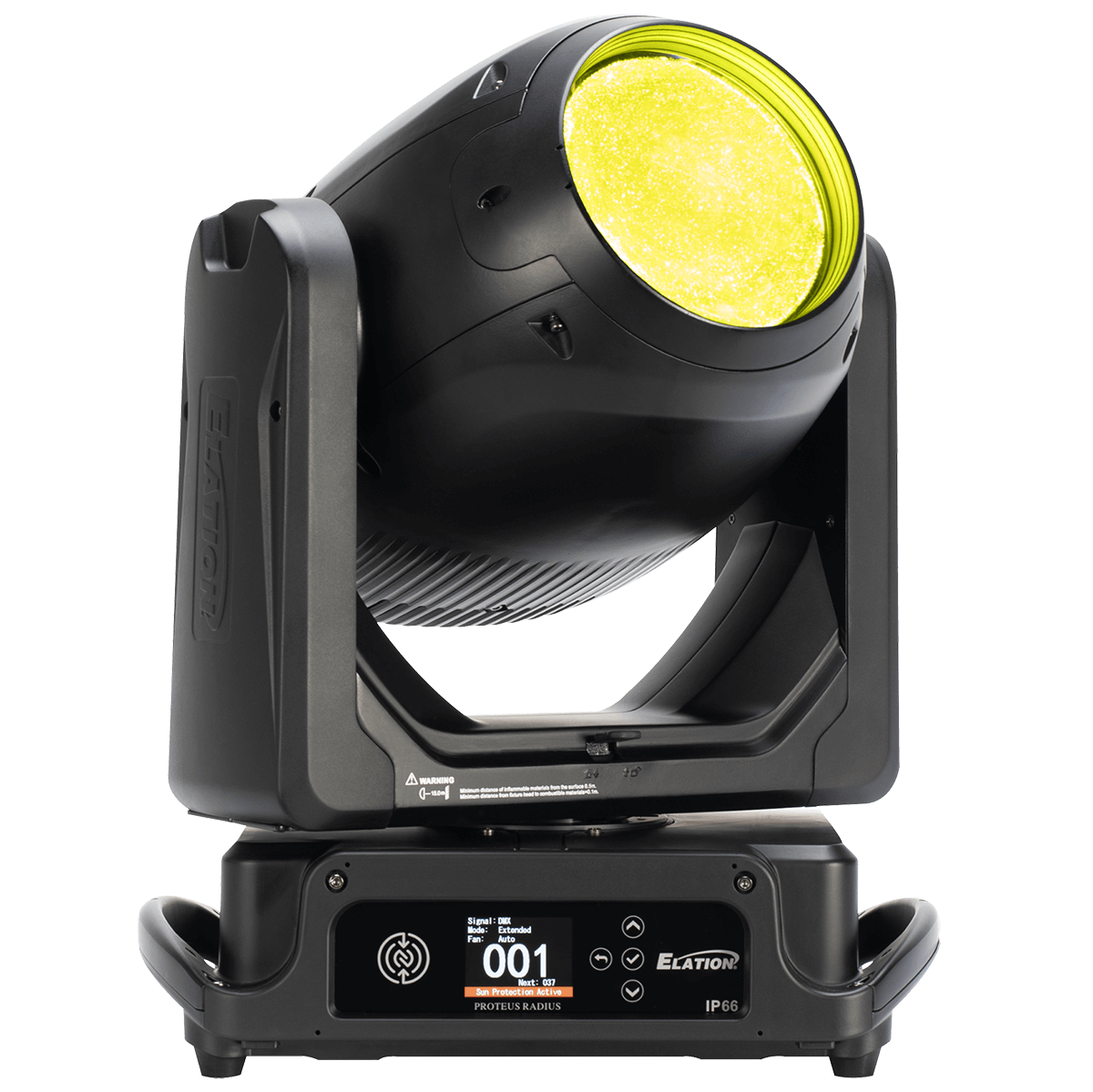

PROTEUS RADIUS
100W Laser Illuminated Lighting Instrument (LILI) Beam FX Fixture
PROTEUS RADIUS is a professional-grade lighting solution. Add to that CMY color mixing, customizable gobos, prisms, and frost effects, and you have a versatile tool that empowers lighting designers to create stunning aerial visuals.
PROTEUS RADIUS

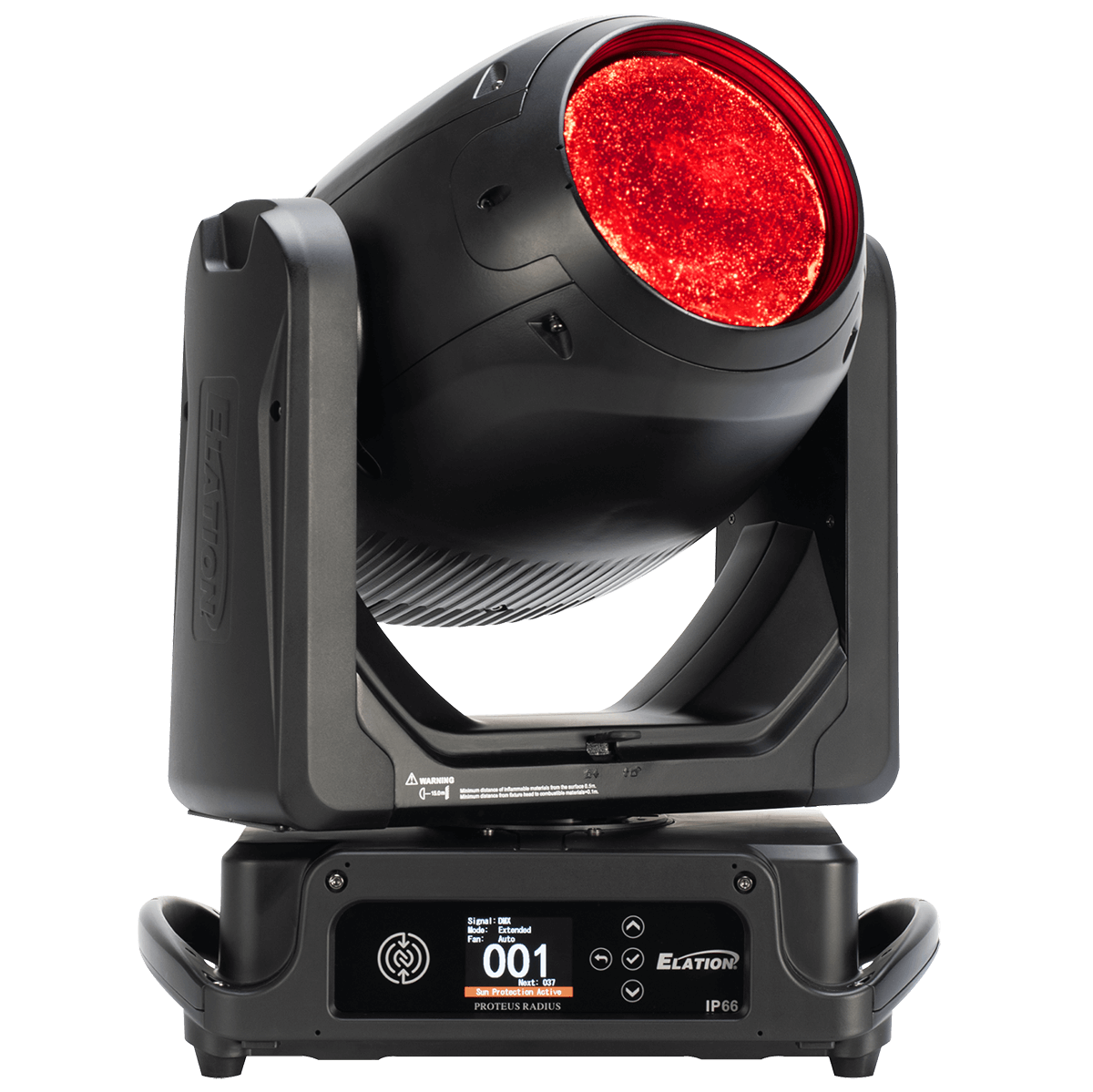

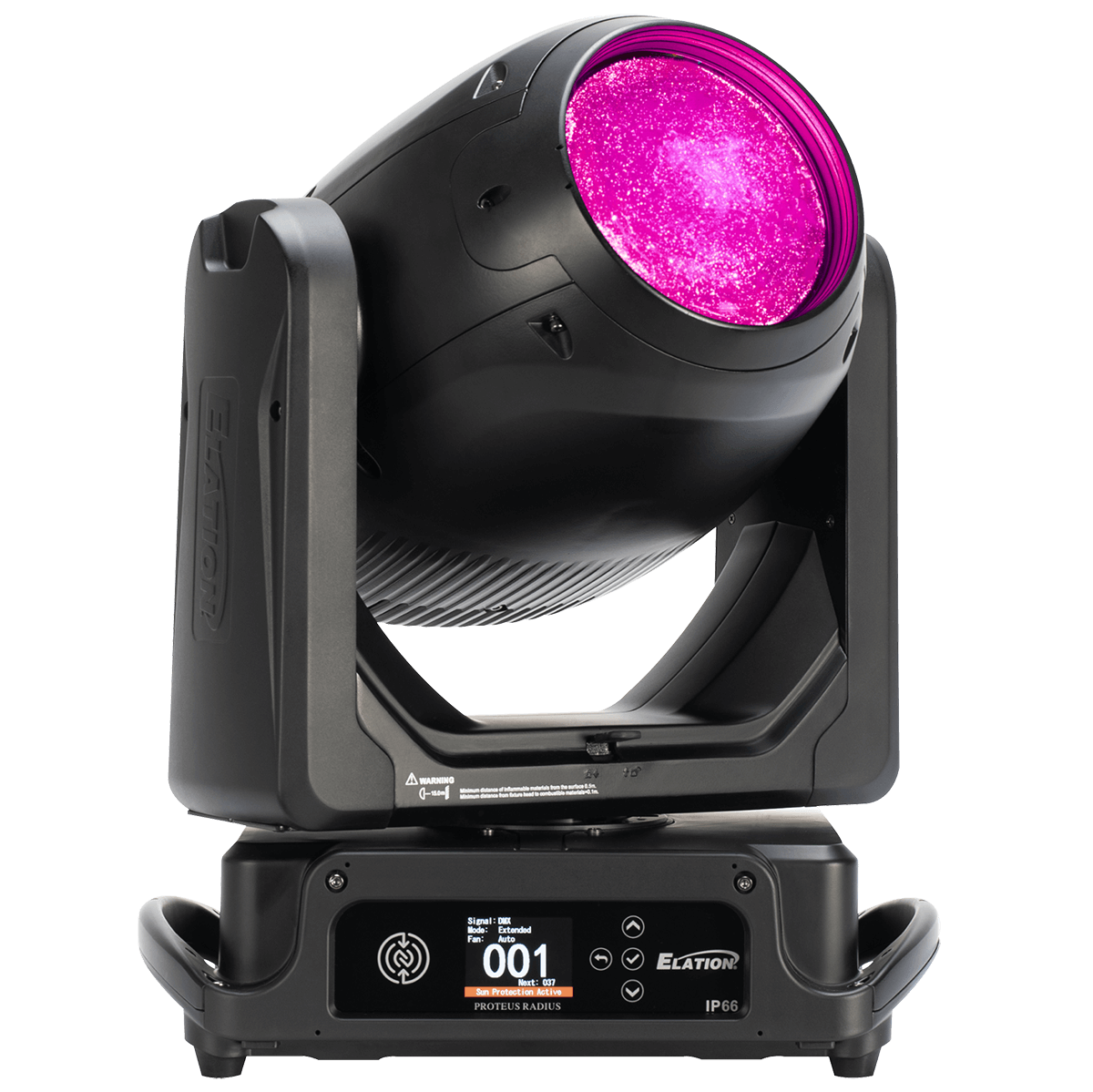

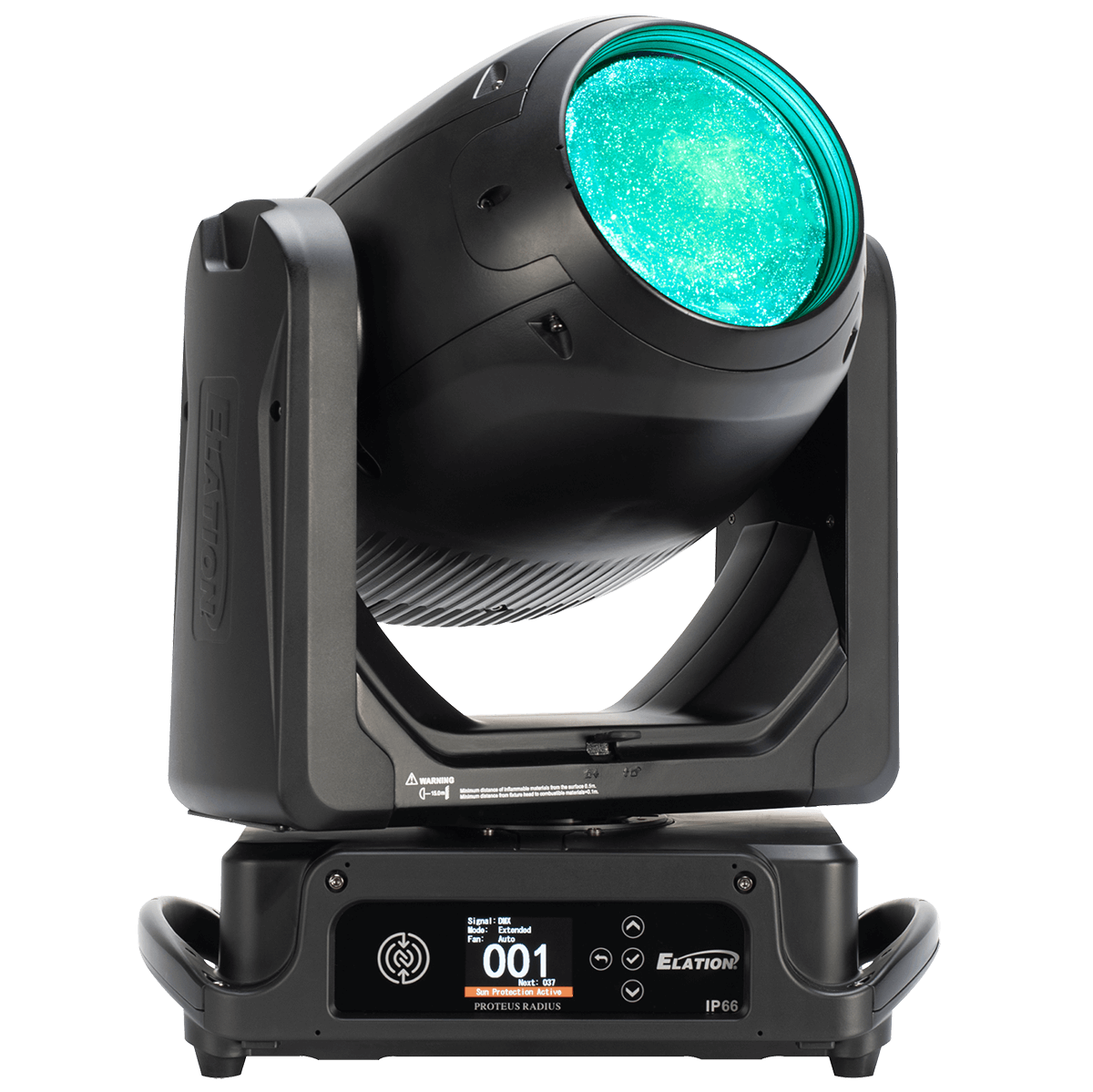

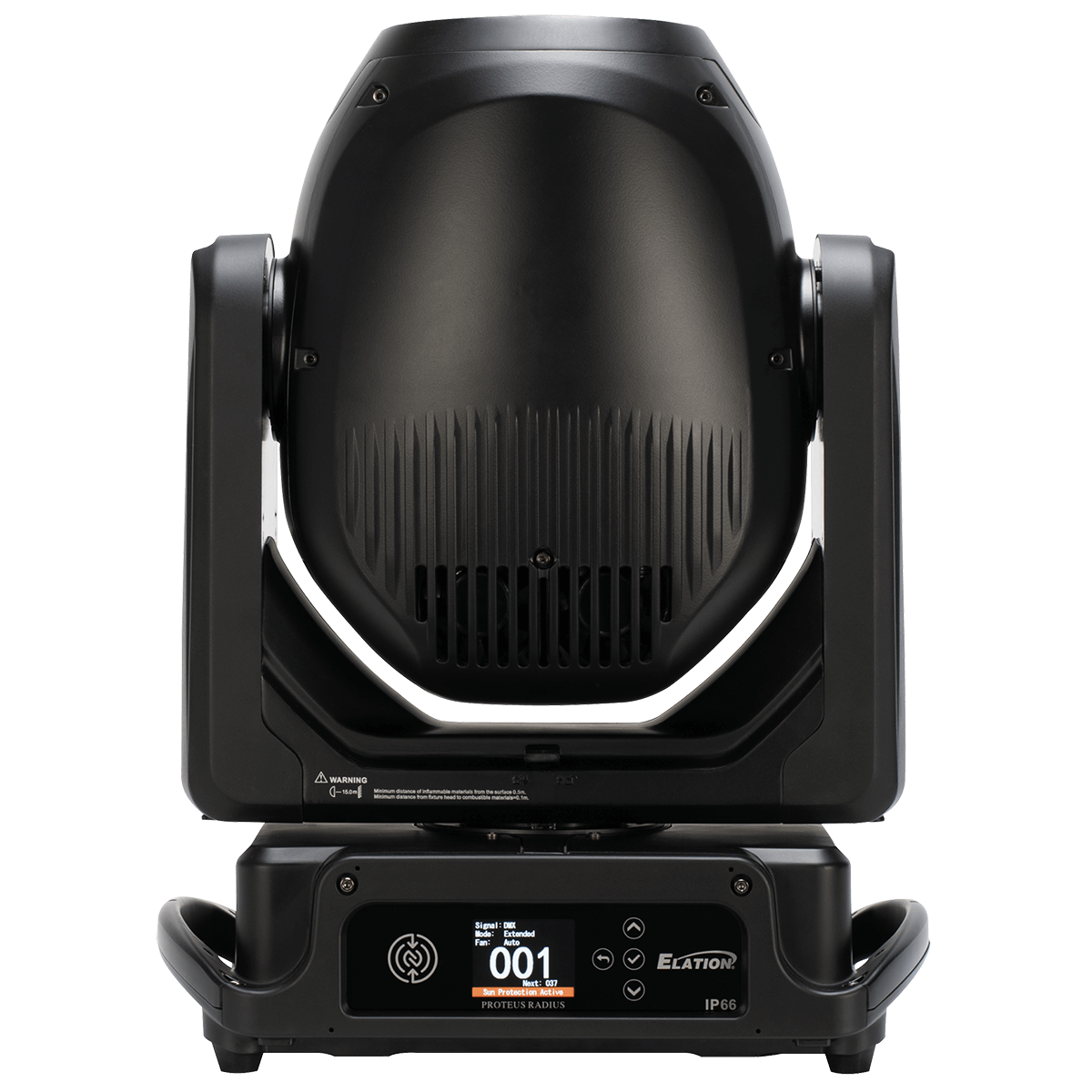

The PROTEUS RADIUS is an IP66-rated Laser Illuminated Lighting Instrument (LILI) that combines cutting-edge technology with a compact design. It uses a 100W light engine to project narrow, powerful beams that reach incredible distances with precision. Its standout feature is ultra-fast 360-degree continuous rotation on both axes, allowing for bold and dynamic beam animations. Add to that CMY color mixing, customizable gobos, prisms, and frost effects, and you have a versatile tool that empowers lighting designers to create stunning aerial visuals.
The PROTEUS RADIUS is available as a Class 1 Risk Group 2 Laser Product, meaning it requires no federal operator variance for use in the United States1. Whether for concerts, competitions, or high-profile events, the PROTEUS RADIUS is built to deliver when it matters most.
- 100W Laser Illuminated Light Engine
- Compact and lightweight IP66 housing
- Ultra Intense 0.9° Beam
- Endless High-Speed 360 Pan and Tilt Movements
- CMY Color Mixing CMY
- FX Package with rotating, fixed gobo, four prisms, and dual frost
- NFC Support
- FIL (Foam In Lay) Polyurethane Foam Packaging Included
Colors and Gobos
Color Flags
- Cyan
- Magenta
- Yellow
Color Wheel
- Cyan
- Cyan 2
- Green
- Green 2
- Kelly Green
- Red
- Blue
- Blue 2
- Deep Blue
- Orange
-
UV
-
High CRI
- Yellow
- Yellow Green
- Magenta
-
CTO
-
CTB
- Light Blue
- Pink
- Wine Pink
-
RYBG
- Light Yellow
- Deep Yellow
- Lavender
- Amber
Gobo Wheel 1
Gobo Wheel 2
Specifications
SOURCE
100W Laser Illuminated Light Engine
6000K, CRI 70
10,000 Hour Lamp Life
PHOTOMETRIC DATA
2700 Lumen Total Fixture Output
Beam Angle 0.9˚
EFFECTS
Dual Frost
4 Prisms on Dual Planes
CMY Color, Gobo, Prism Macros
Motorized Focus
Digital Shutter and Strobe
COLOR
Full CMY Color Mixing System
25 Position Color Wheel
GOBOS
2 Gobo Wheels
13 Interchangeable-Rotating / Indexing Metal Gobos
24 Static-Stamped Metal Gobos

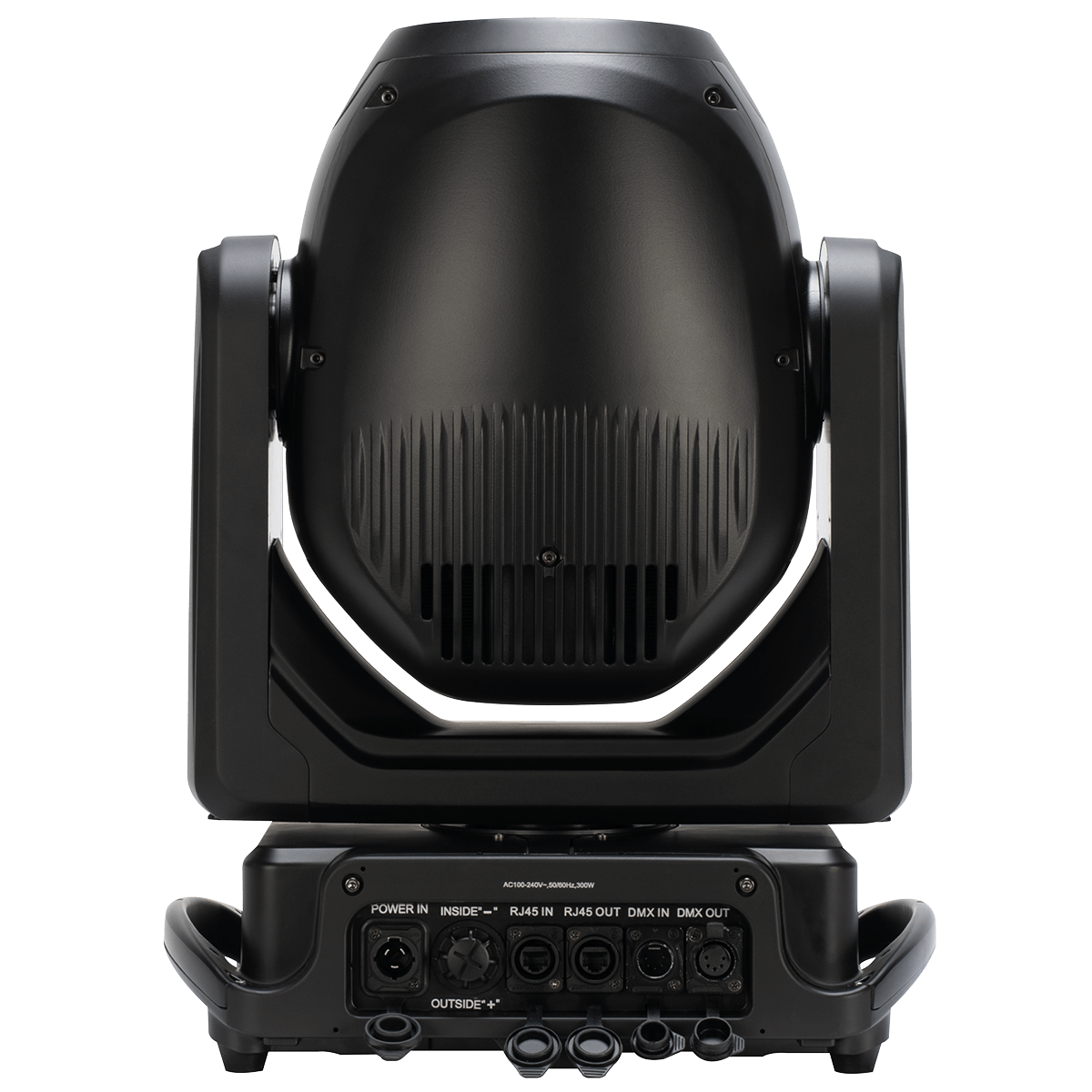

CONTROL / CONNECTIONS
2 DMX Channel Modes
(4) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net and sACN Protocol Support
IP65 5pin DMX In/Out
IP65 RJ45 Ethernet In/Out
IP65 Locking Power In
SIZE / WEIGHT
Length: 10.6” (270mm)
Width: 15.5” (395mm)
Height: 20.3” (516mm)
Weight: 45.0 lbs. (20.4kg)
Center-to-Center: 18.0" (456mm)
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
300W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP66 | FCC
FIRMWARE UPDATES
FIRMWARE@ELATIONLIGHTING.COM
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
- Proteus Radius - 2D Cad Drawing
- Proteus Radius - FIL Foam 3D Cad
- Proteus Radius FIL - 2D Cad Drawing
- Proteus Radius 3D Cad
Dimensional drawings
Dmx traits
Specification sheet
User manual

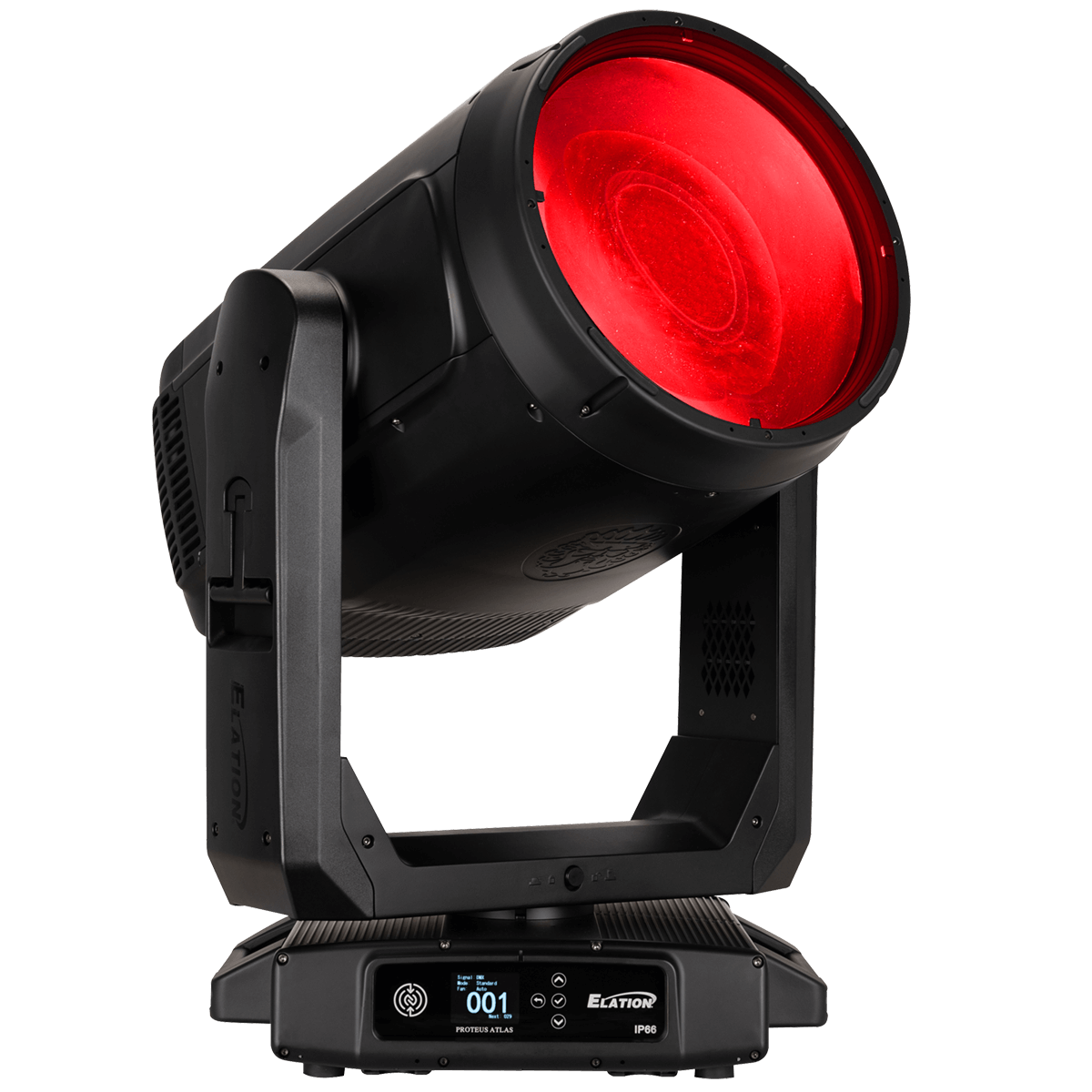

How do they compare?
Find the option that is right for you and your production.
2700
100
500
0° - 0.9°
0.6° - 8.5°
66
66
45.0 lbs
124.1 lbs
300
670
10.6 x 15.5 x 20.3
14.6 x 20 x 31.5
