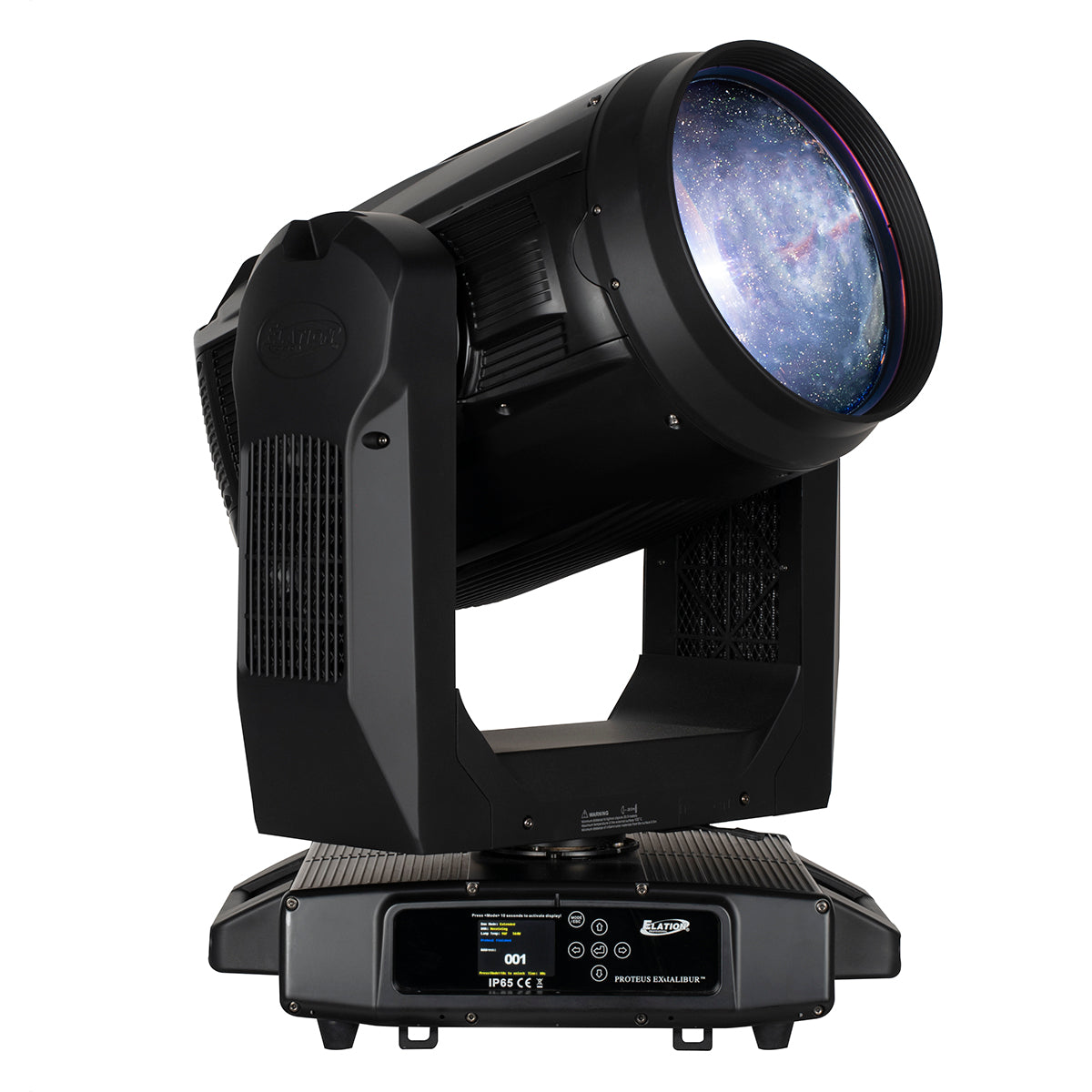

PROTEUS EXCALIBUR OPS

The PROTEUS EXCALIBUR OPS is the brightest IP66 fully featured beam fixture ever created with incredible light output from a surprisingly compact fixture body. Rivaling existing Xenon searchlights or skytrackers, the extremely narrow 0.8° Beam ensures the fixture cuts effortlessly through the sky and is visible at great distances. The intense beam of the PROTEUS EXCALIBUR projects from the ultra-wide 260mm front Lens as a massive column of light that stuns the audience.
 A wide array of gobos and prism overlays allow animating the sky, and with its incredible light intensity all CMY colors remain strong and vibrant even when fully saturated. Beam control is provided through a precise internal focus lens, providing crisp projection without optical errors. Dual variable frosts allow to soften the beam when required. A remote-controlled Expander lens allows widening the beam to approximately 3.5 degrees. The fixture is ideally suited for theme parks, cruise ships, outdoor special events, large scale shows and concerts, and any situation where a massive beam or very powerful prism and flower effects are required. With its compact size and low power consumption the PROTEUS EXCALIBUR OPS can be utilized in almost any application.
The PROTEUS EXCALIBUR OPS includes the innovative Sky Motion system to operate the fixture as an impactful searchlight effect without the need for a dedicated lighting controller. Multiple fixtures can be interconnected, and with the simple assignment of IDs the fixture provides immediate access to a variety of movement patterns that are easily adjustable in size, speed, and color directly from the display. Comparable in output to large 2000 or 4000W Xenon fixtures the PROTEUS EXCALIBUR OPS operates at a fraction of the power, supports a wide range of 100-240V, has a much smaller footprint, lower weight and is fully IP66 rated.
The Sky Motion system allows standalone operation for events and applications and is easy to set up and adjust directly from the display of the fixture even for "non-lighting" users and expands the usability of the fixture beyond traditional show lighting applications.
  • Powerful 0.8° Beam Angle
  • 3.5° Beam Expander
  • CMY Color Mix
  • Dual overlapping prisms
  • Ultra-wide 260mm / 10" Front Lens
  • IP65 rating protects from water and dirt
  • 4000h Long Life 550W Lamp
  • Sky Motion System for powerful searchlight and skytracker animations
  • CX Extreme Marine Grade Coating

Specifications

SOURCE
Philips MSD Platinum 500L Flex 550W Lamp

Variable Lamp Power

Automated Lamp Hibernation with Instant Recovery

 Up to 4,000 Hour Lamp Life*

 *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.


PHOTOMETRIC DATA

0.8° Beam Angle

1.6° Field Angle

3.5° Beam Expander Lens

20,000 Total Lumen Output
7000K. CRI 77+

335000 LUX @15m (31100 fc @ 49ft)
7500 LUX @100m (700 fc @ 330ft)


EFFECTS

Beam Expander
Focus

Dual Rotating Prisms and Prism Macros

Dual Frost Filter Hybrid Wash Effect

High Speed Mechanical Shutter and Strobe

Pan Angle: 540°/630°

Tilt Angle: 250°


COLOR
16 Dichroic Colors Including CTO and UV
Full CMY Color Mixing


GOBOS
8 Interchangeable Rotating / Indexing Glass Gobos
17 Static-Stamped Metal Gobos


CONTROL / CONNECTIONS
Single DMX Mode (26ch.)

Sky Motion Standalone mode for searchlight and skytracker animations

16-bit Pan, Tilt, and Dimming Control

Motorized Focus

DMX, RDM Protocol Support

NFC Support

4 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

Hibernation Mode (Power Save)

10' (3m) DMX In/Out combo cable

10' (3m) Power cable


SIZE / WEIGHT
Length: 19.4" (493mm)

Width: 15.1" (383mm)

Vertical Height: 27.4" (697mm)

Center Spacing: 23.3" (592.8mm)

Weight: 108lbs (49kg)


EXTERIOR FINISH

RAL9016 (custom colors available on request)

CX Extreme Marine Grade Coating

Stainless Steel 316 Fasteners


ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
800W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)


APPROVALS / RATINGS
CE | cETLus | IP66 | FCC | UKCA
