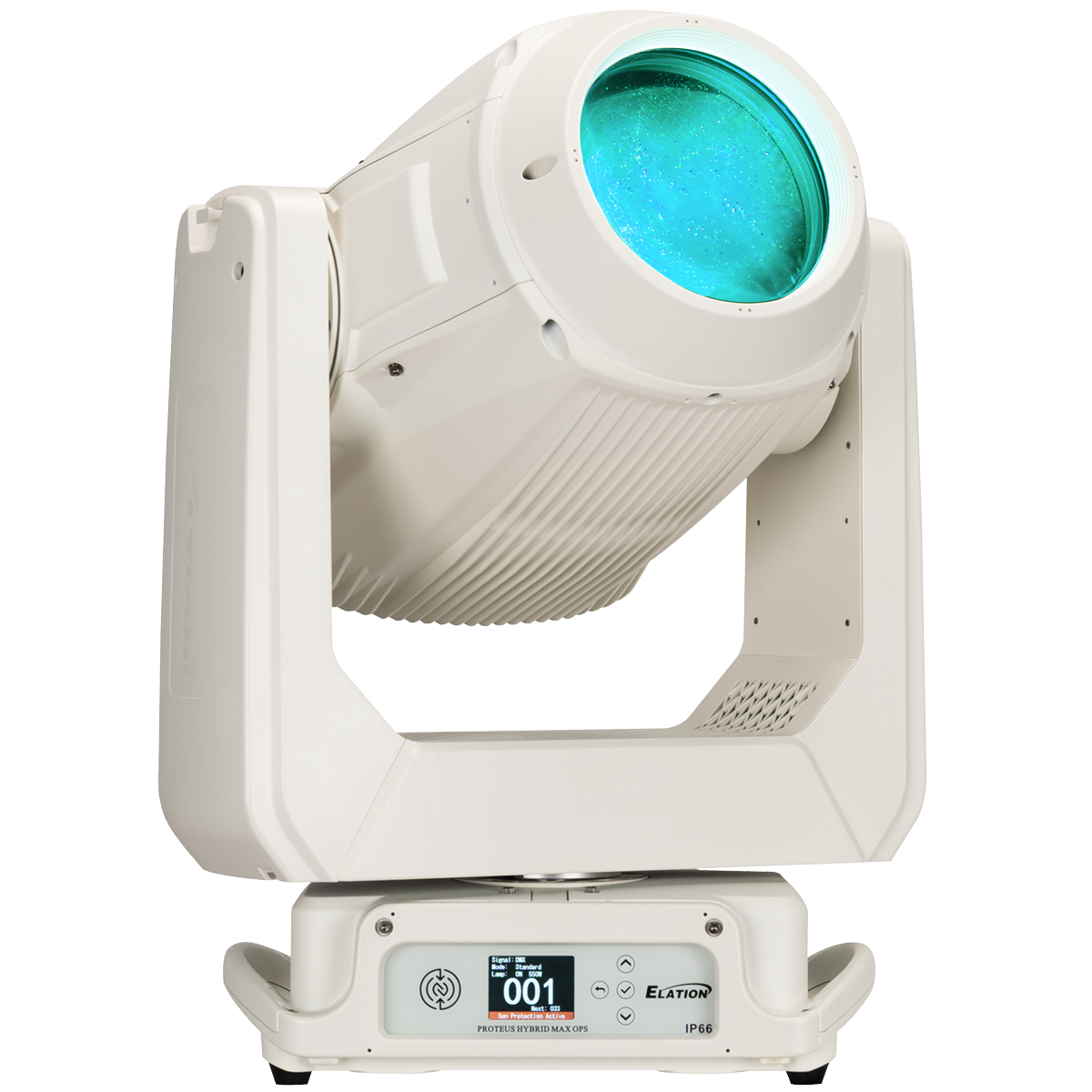

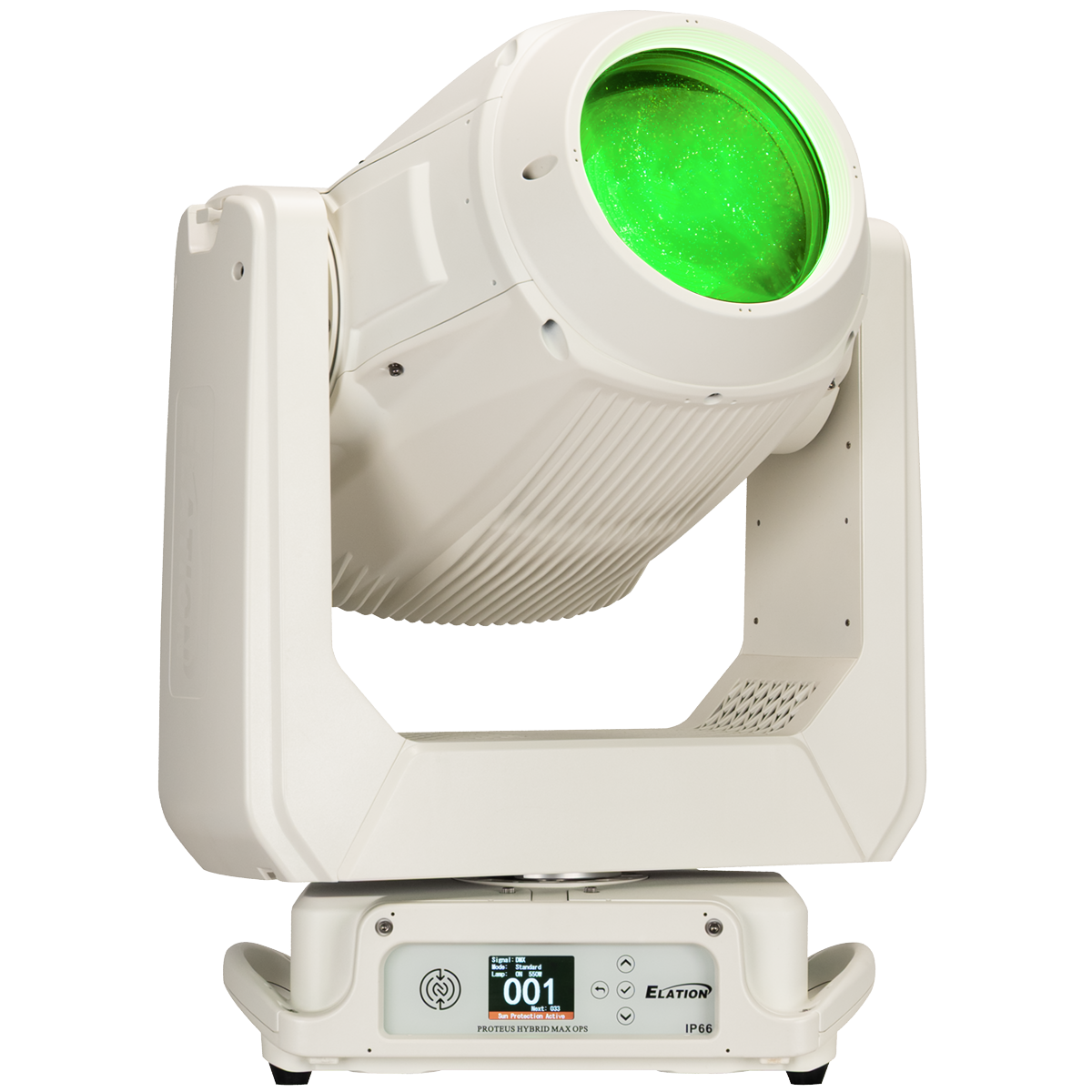

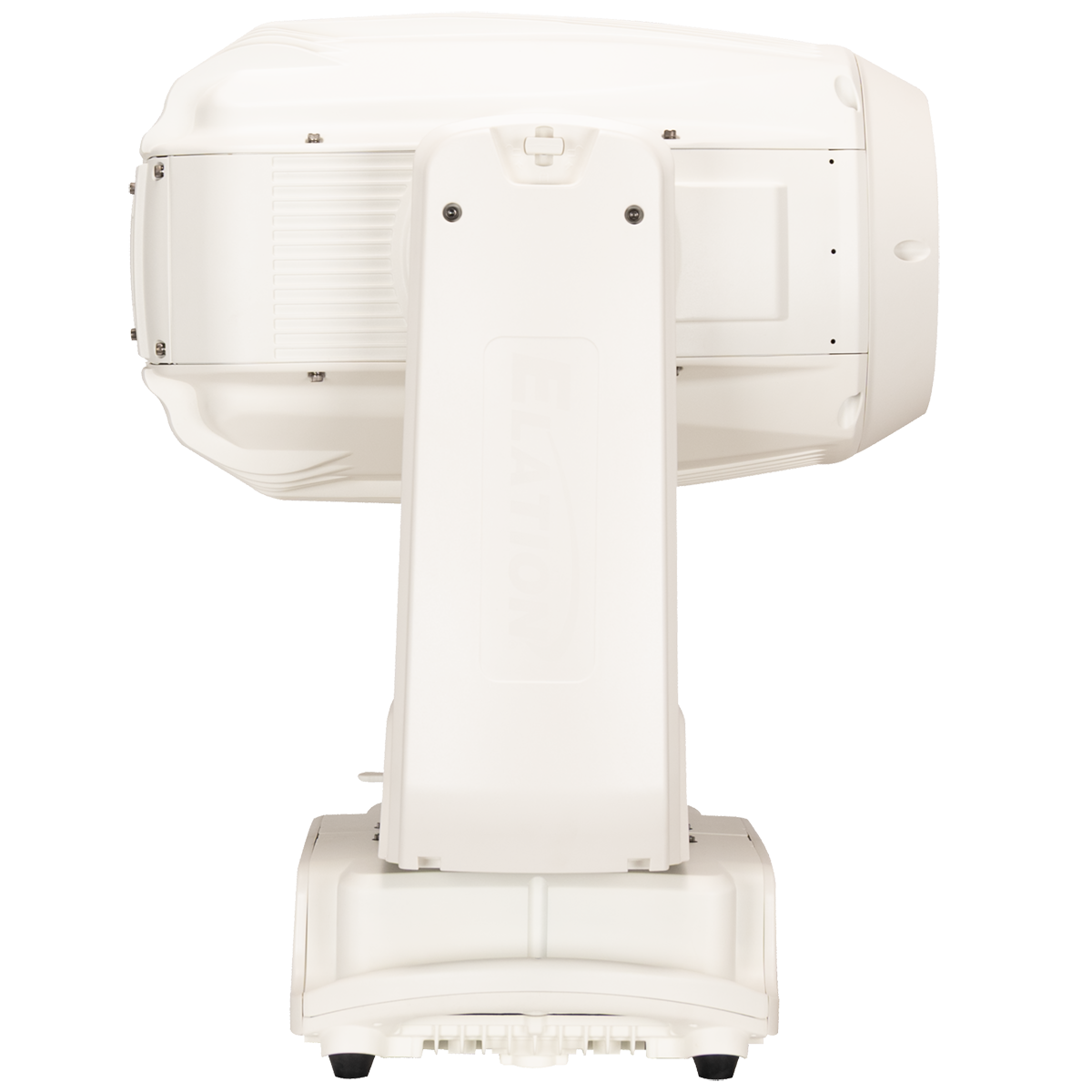

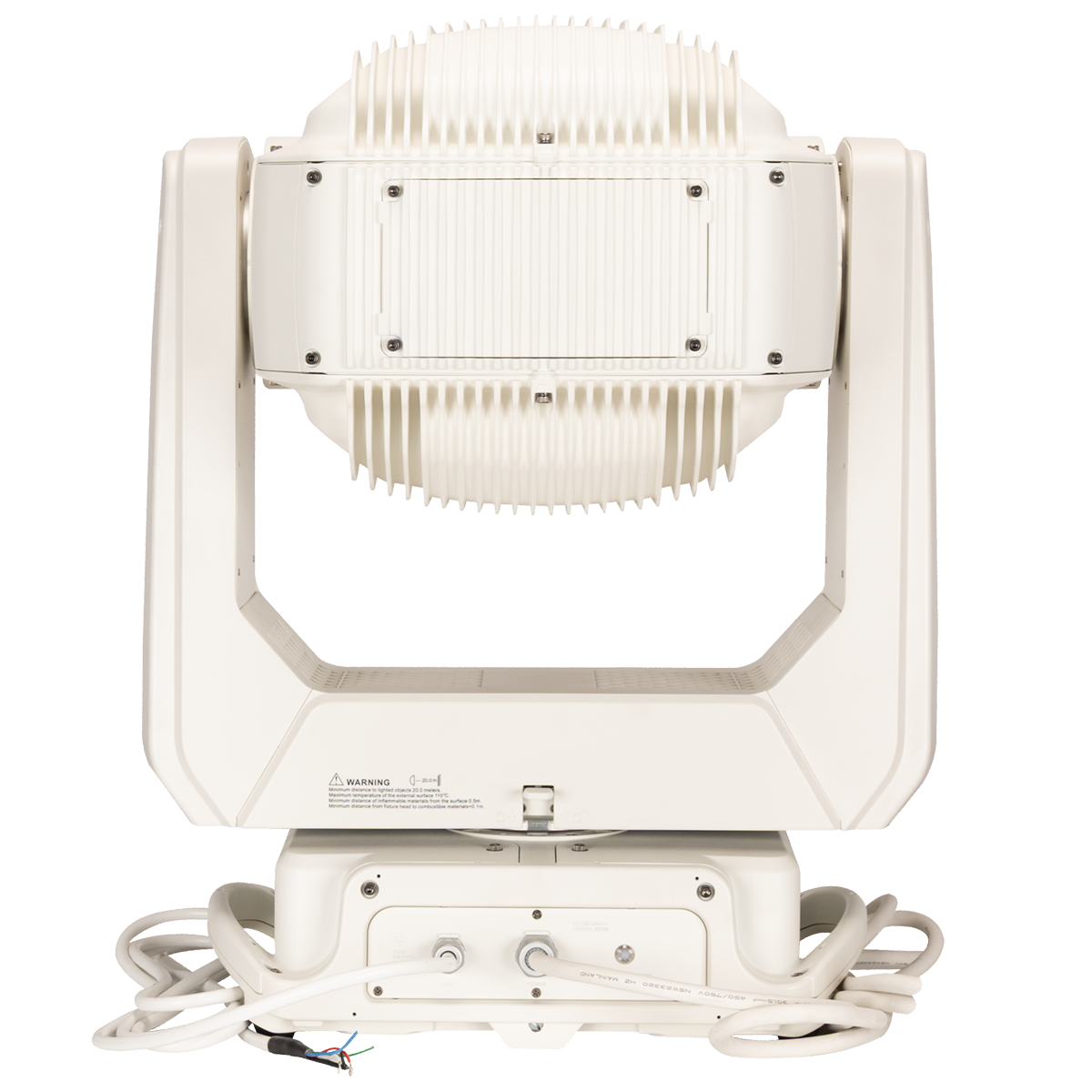

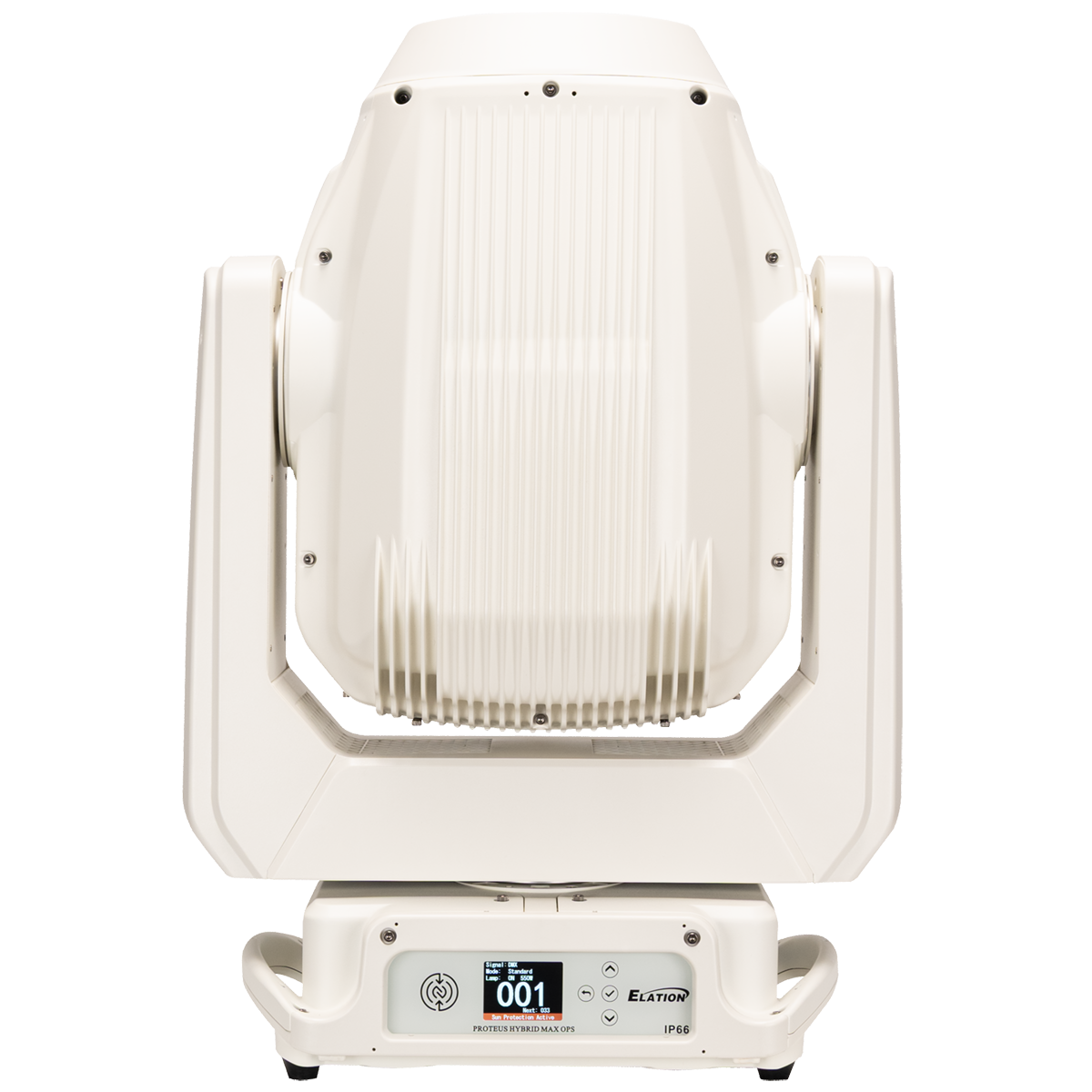

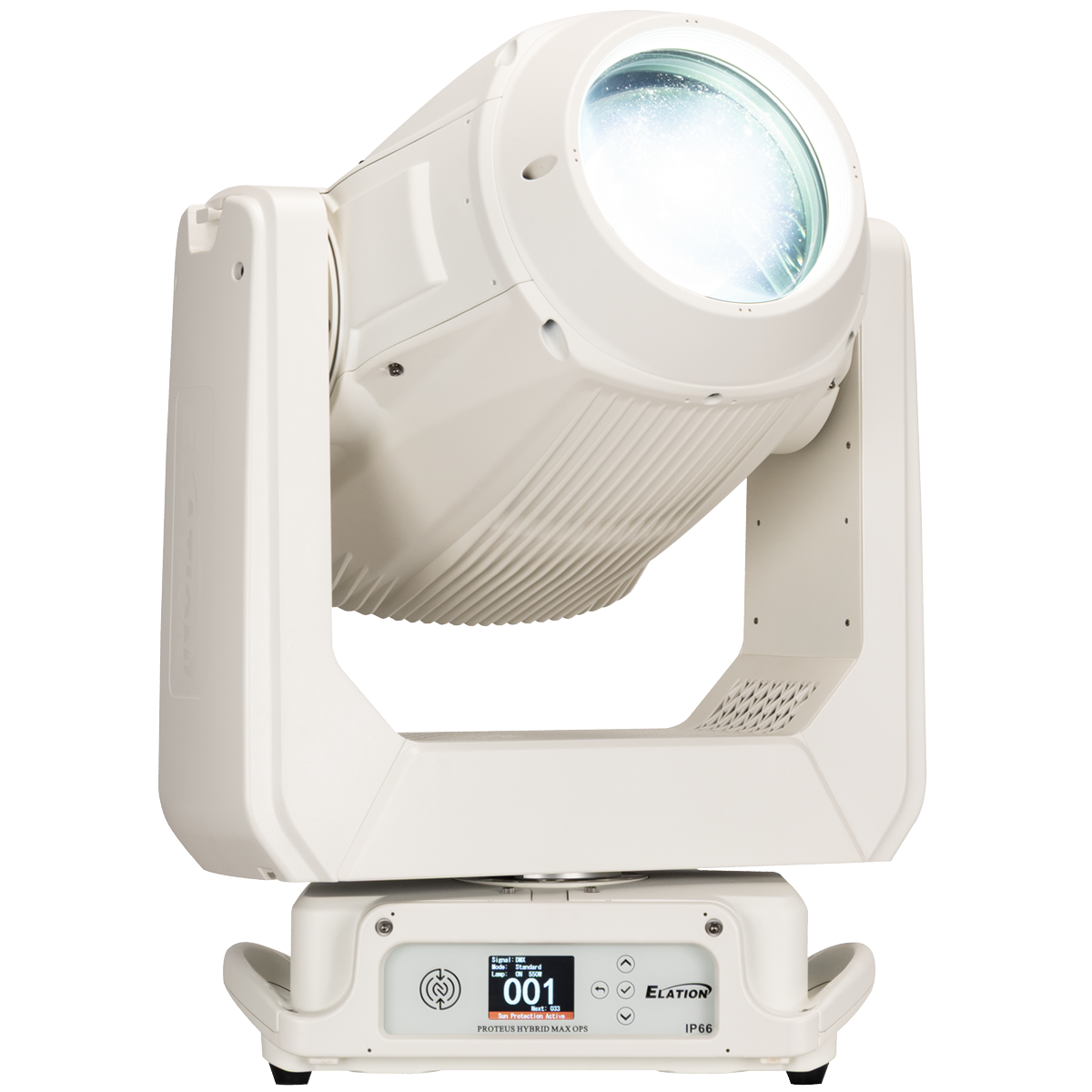

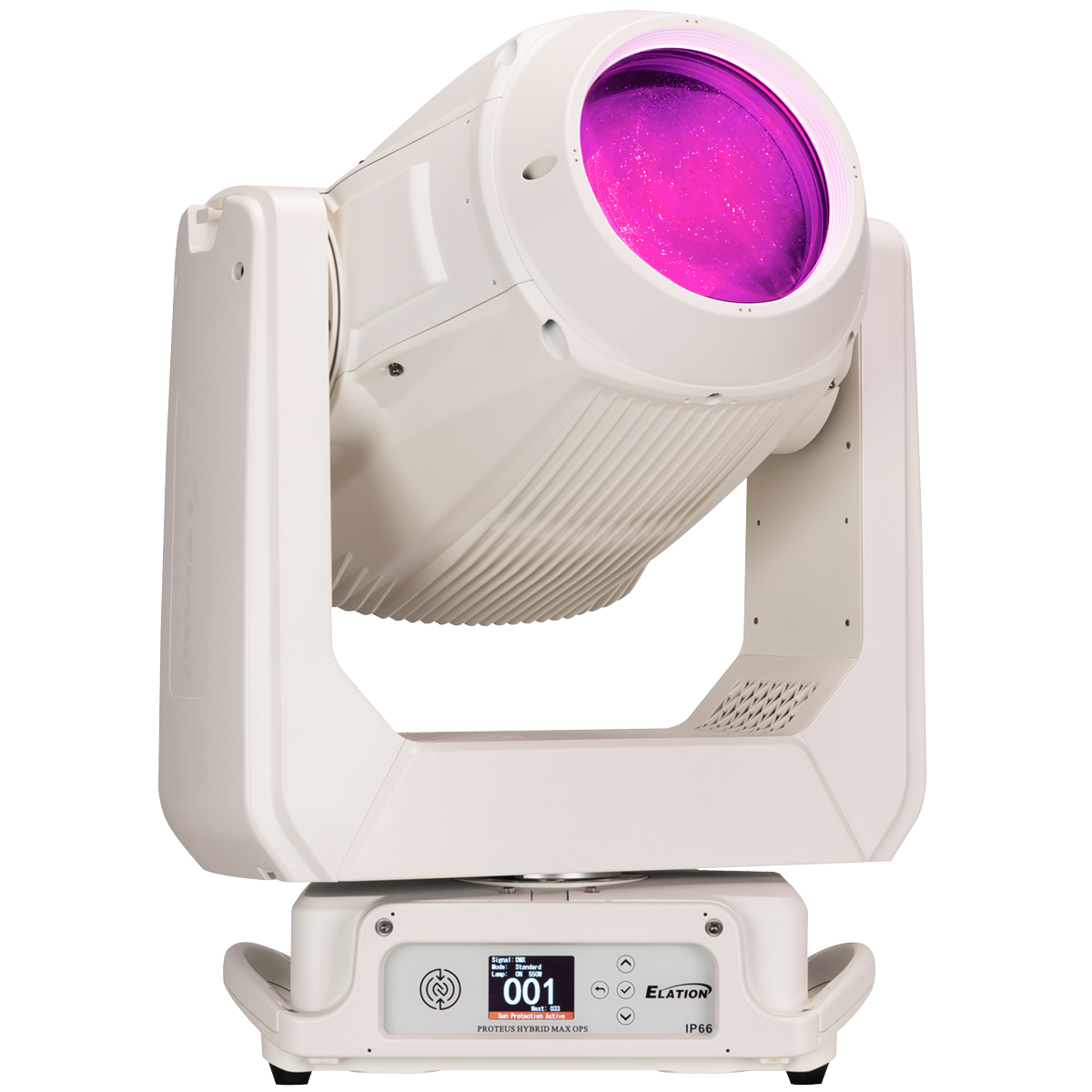

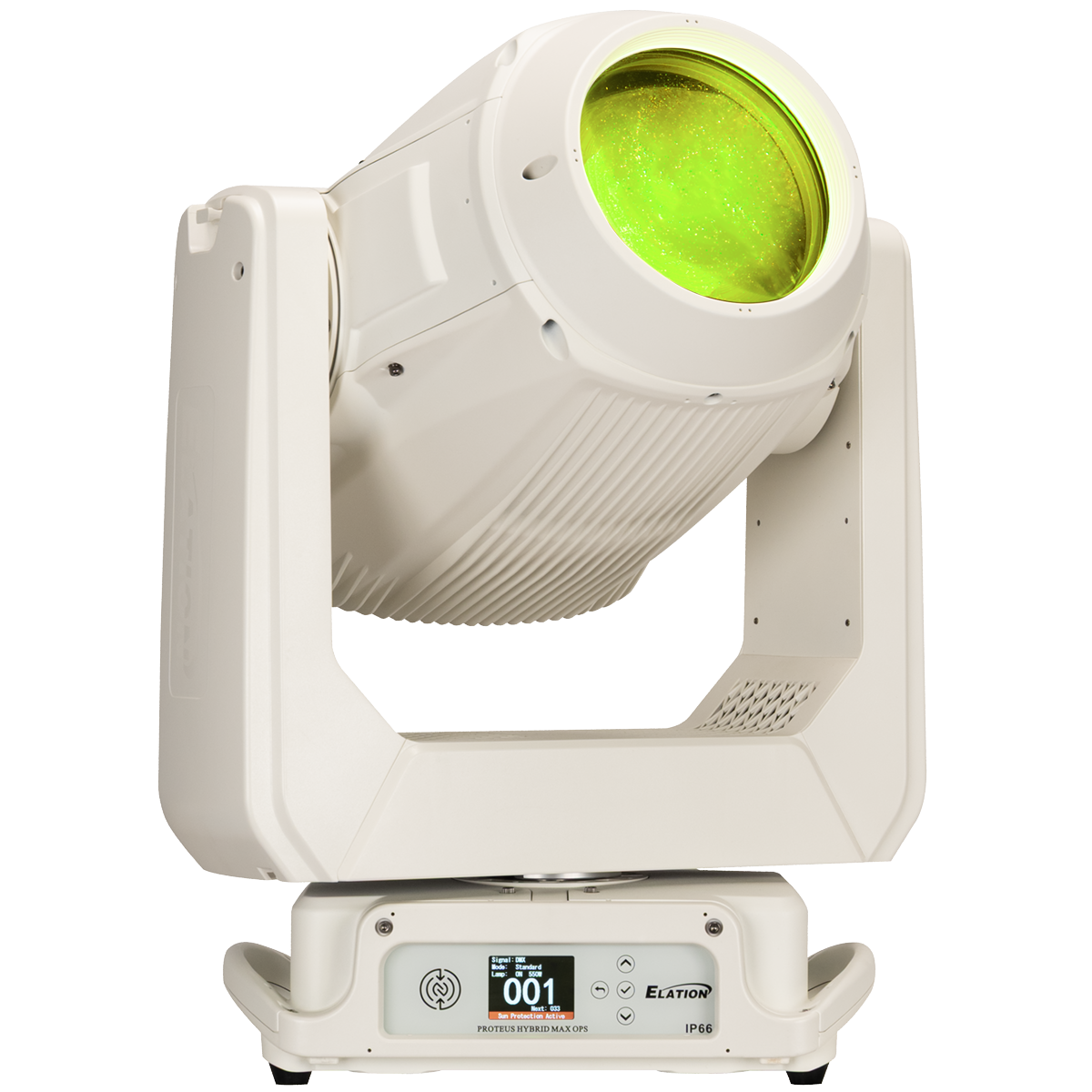

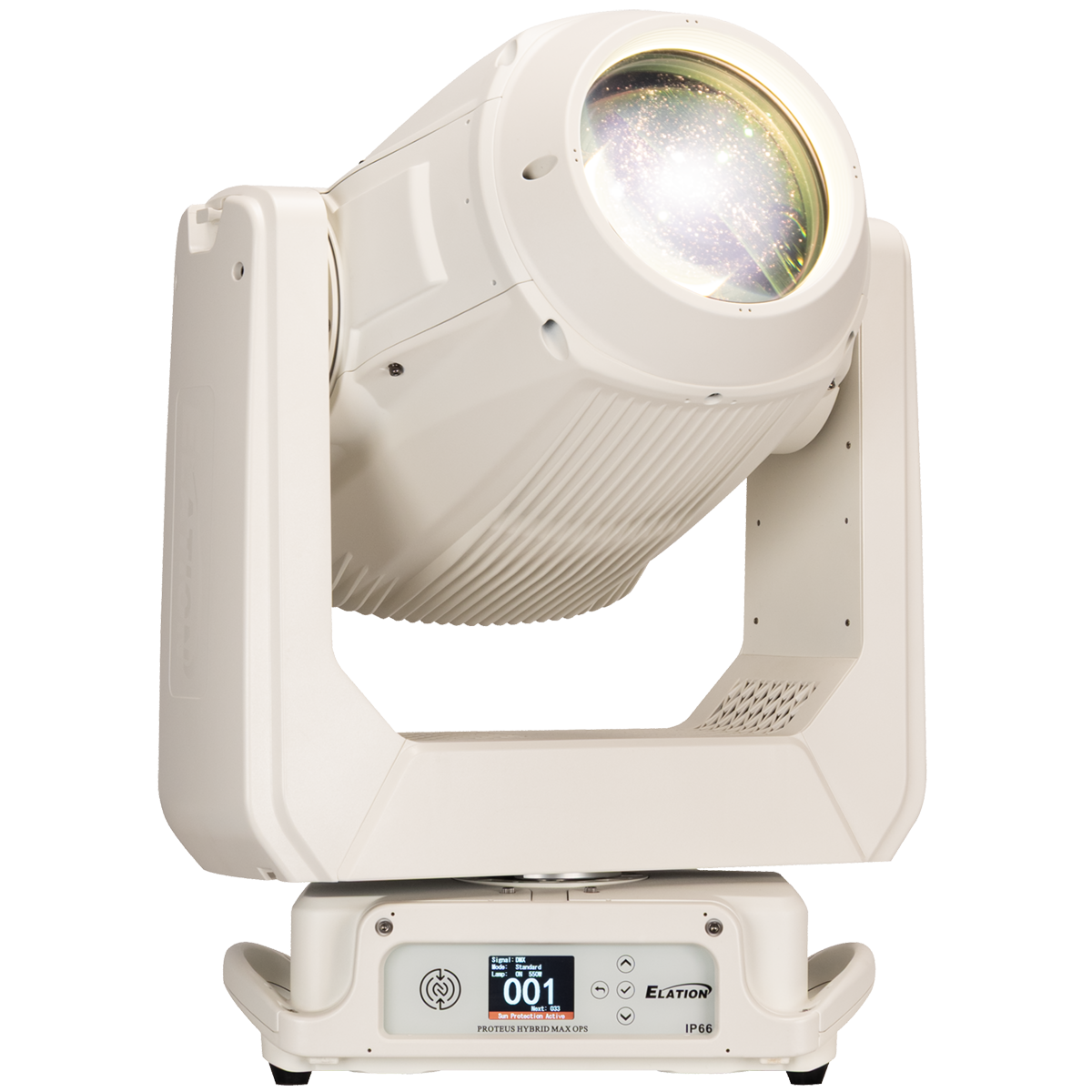

PROTEUS HYBRID MAX OPS
The PROTEUS HYBRID MAX™ OPS combines high output and long lamp life in a feature packed compact IP66 Hybrid fixture. PROTEUS HYBRID MAX OPS is the Extreme Output Hybrid featuring the innovative Philips MSD Platinum FLEX 500 lamp.
PROTEUS HYBRID MAX OPS
Rated at 550W and up to 4,000 hours smart lamp life the HYBRID MAX includes CMY and variable CTO plus a full complement of projection and effects options.
Four prisms on two planes, dual frosts plus dual gobo wheel and three tracks of animation patterns round out the comprehensive FX package in a compact and lightweight housing. For extra impact the fixture features a fast continuous pan rotation.
Delivering 22,000 lumens from its large 170mm front aperture, the PROTEUS HYBRID MAX OPS has a crisp output for extremely powerful beams, sharp gobos and bright washes, making it a flexible fixture for almost any application, while providing an excellent return on investment.
Flex Lamp Technology 550W plus Smart Hibernation with up to 4,000 Hour Lamp Life
Full CMY Color Mixing System, Variable CTO, Color Wheel
Creative FX Package: 8 Rotating and 16 Static Gobos, Dual and Single-Track Animation, Iris, 4x Prism on Dual Planes, 2x Frost
Ultra-Fast Zoom
360˚ Endless Pan Motion
IP66 rating protects from water and dirt
Sky Motion System for powerful searchlight and skytracker animations
CX Extreme Marine Grade Coating
Specifications
SOURCE
Philips MSD Platinum 500 Flex 550W Lamp
Variable Lamp Power
Automated Lamp Hibernation with Instant Recovery
Up to 4,000 Hour Lamp Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
22,000+ Lumen Total Fixture Output
Zoom Range 1.8˚ - 45˚
EFFECTS
Beam, Spot and Wash Modes
Motorized Zoom
Dual Frost Filter for Light Frost/ Full Wash
4 Prisms on Dual Planes
Iris
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 250°
COLOR
Full CMY Color Mixing System
Variable CTO
16 Position Color Wheel
GOBOS
2 Gobo Wheels
8 Interchangeable-Rotating / Indexing Glass Gobos
16 Static-Stamped Metal Gobos plus Animation Track
Dual Track Animation Wheel
CONTROL / CONNECTIONS
2 DMX Channel Modes (32, 43)
DMX and RDM Protocol Support
NFC Support
10' (3m) DMX In/Out combo cable
10' (3m) Power cable
SIZE / WEIGHT
Length: 11.3” (287.5mm)
Width: 18.8” (476.8mm)
Height: 26.7” (677mm)
Weight: 78.3 lbs. (35.5 kg)
Center to Center Spacing: 21.3" (540.8)
Exterior Finish
RAL9016 (custom colors available on request)
CX Extreme Marine Grade Coating
Stainless Steel 316 Fasteners
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
800 W Max Power Consumption
-4° to 113°F (-20°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP66
FIRMWARE UPDATES
Current Version: V1.3.6
Click HERE for software update
Specifications and documentation subject to change without notice.
