PROTEUS HYBRID WMG
470W Discharge IP65 Beam/Spot/Wash Hybrid Fixture, White Marine Grade Housing
PROTEUS HYBRID WMG is a professional-grade lighting solution. PROTEUS HYBRID WMG™ is an all white exterior IP65 rated 3-in-1 hybrid moving head beam, spot, and wash luminaire with the Philips™ MSD Platinum 21R 470W 80 CRI 8,000K lamp producing up to14,000.
Replaced By
PROTEUS HYBRID WMG
PROTEUS HYBRID WMG™ is an all white exterior IP65 rated 3-in-1 hybrid moving head beam, spot, and wash luminaire with the Philips™ MSD Platinum 21R 470W 80 CRI 8,000K lamp producing up to14,000. Features include an advanced optical system with motorized zoom from 2° in beam mode to 38° in spot mode or 40° in wash mode, an advanced internal thermal cooling system, full CMY and linear CTO color mixing, 14 dichroic colors including CTB, CTO, and UV, 8 rotating glass interchangeable and 14 static-stamped metal gobos, full 360° bi-directional animation wheel, 8-facet and linear rotating prisms and frost filter, motorized focus and auto-focus, high speed mechanical shutter and strobe, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, Elation's E-FLY™ internal wireless DMX transceiver (optional), IP rated 5pin XLR and RJ45 ethernet in/out connections, powerCON TRUE1 power in, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).
- IP65 Rated 3-in-1 Hybrid Beam, Spot, Wash Luminaire
- All White Exterior
- Philips™ MSD 21R 470W 80CRI 8,000K Lamp and Advanced Optics

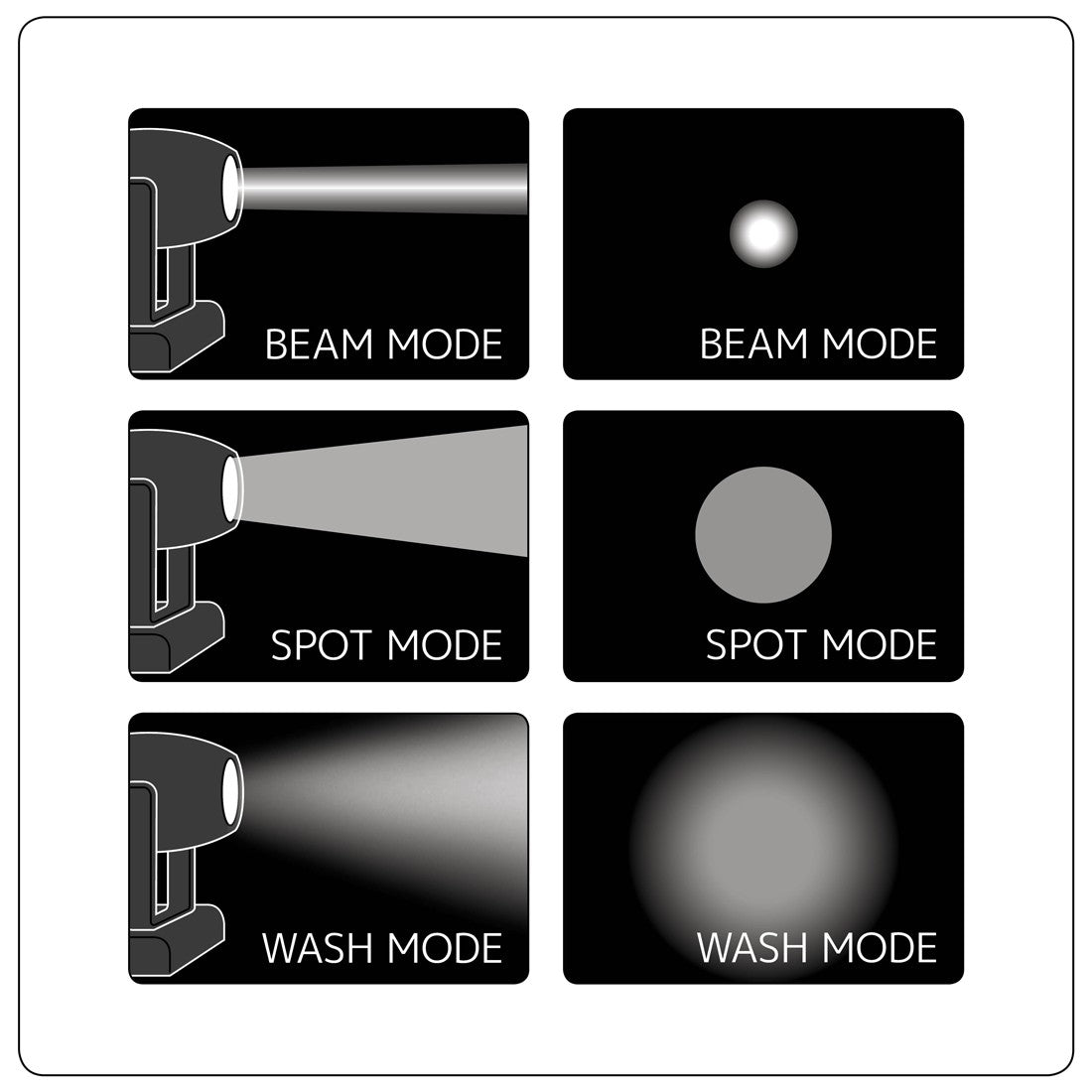

- Motorized Zoom, Beam and Spot Modes
- Advanced Internal Thermal Cooling System
- Full CMY Color Mixing and Linear CTO Color Correction
- 14 Dichroic Colors Including CTB, CTO, and UV
- 8 Rotating Interchangeable and 14 Static-Stamped Metal Gobos
- Full 360° Bi-Directional Animation Wheel
- Rotating 8-Facet and Linear Prisms and Frost Filter
- Motorized Focus and Auto-Focus
- High Speed Mechanical Shutter and Strobe
- DMX, RDM, Art-NET, and sACN Protocol Support
Specifications
SOURCE
Philips MSD 21R 470W 8,000K Lamp
1,000 Hour Average LAMP Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
80CRI | 14,000 Lumens
13,375 LUX 1,243 FC @49.2’ (15m) (3.0° Spot)
233,000 LUX 21,646 FC @49.2’ (15m) (2.0° Beam)
11,500 LUX 1,068 FC @16.4’ (15m) (4.0° Wash)
Zoom Range
Beam 2.1° - 21.5°
Spot: 2.8° - 28.6°
Wash: 4° - 31.2°
EFFECTS
Full 360° Bi-Directional Animation Wheel
Rotating Prisms and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe
COLOR
14 Dichroic Colors Including CTB, CTO, and UV
Full CMY Color Mixing and Linear CTO Color Correction
GOBOS
8 Interchangeable Rotating / Indexing Glass Gobos
14 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
3 DMX Channel Modes (24 / 26 / 37)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver (optional)
IP65 5pin DMX In/Out
IP65 RJ45 etherCON In/Out
IP65 Locking Power In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 18.45" (465mm)
Width: 22.5" (572mm)
Vertical Height: 37.1" (805mm)
Center-to-Center Spacing: 26.4" (671mm)
Weight: 84.0 lbs. (38 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
