PROTRON ECLYPSE
96x 10W RGBW LED IPX4 Hybrid Blinder/Strobe/Wash Fixture
PROTRON ECLYPSE is a professional-grade lighting solution. The PROTRON ECLYPSE™ is a versatile high powered 1000W air cooled IPX4 outdoor rated color blinder, strobe, wash luminaire.
PROTRON ECLYPSE

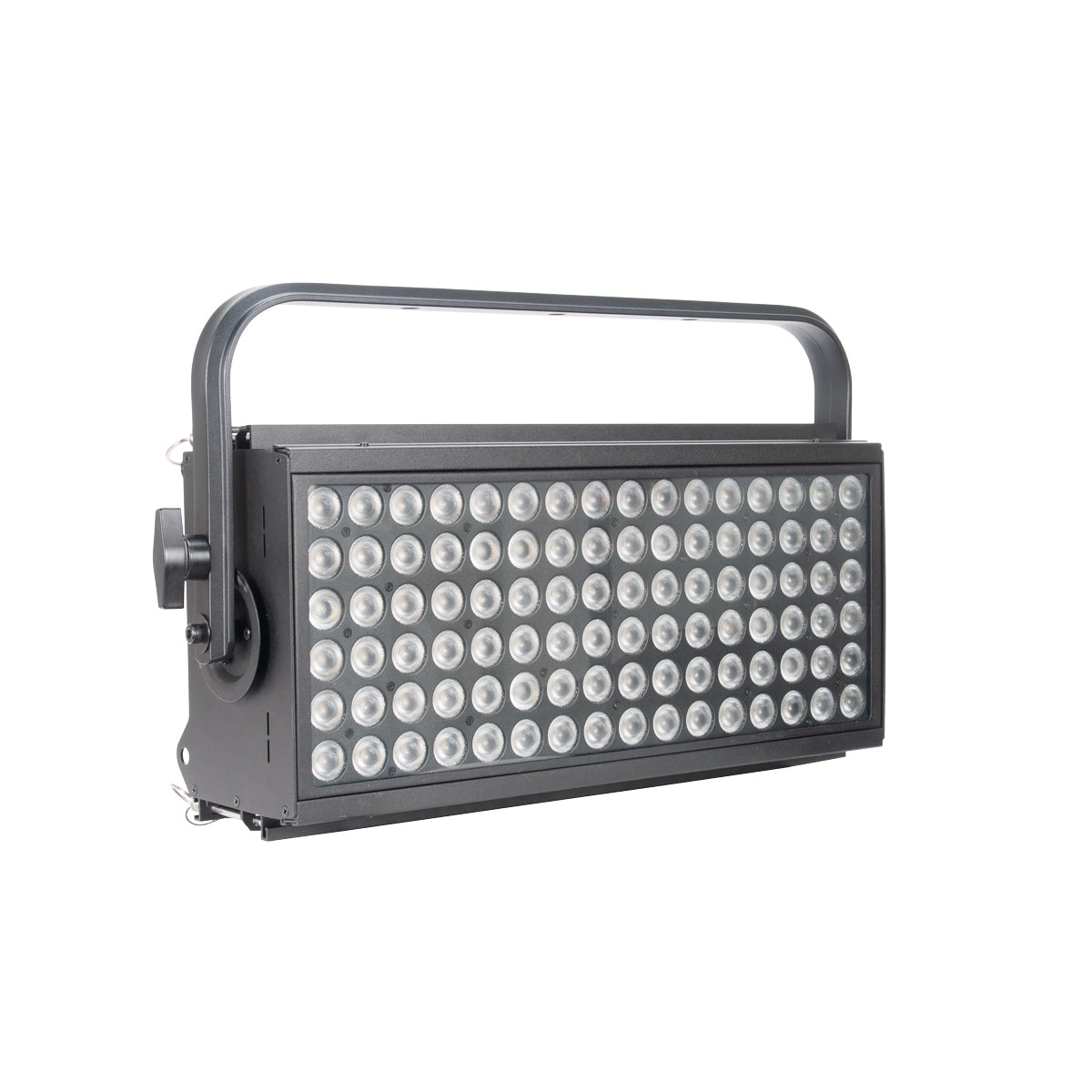

The PROTRON ECLYPSE™ is a versatile high powered 1000W air cooled IPX4 outdoor rated color blinder, strobe, wash luminaire. Features include (96) 10W CREE RGBW 4-in-1 LEDs, 31° beam / 63° field angles, 27,000+ total lumen output, brilliant eye candy effects, selectable pixel mapping zones, strobe intensity, duration, rate, and FX control, super high speed (1-25fps) adjustable strobe, DMX, RDM, Kling-NET, and Art-NET protocol support, 8/16 bit RGB and RGBW smooth color mixing modes, adjustable/removable yoke bracket with 3-position holes, interlocking system for multiple unit matrix designs, IP65 3/5pin DMX, RJ45 ethernet, IP65 Locking power in/out connections, 4-button control pane with OLED menu display, and a multi-voltage universal auto switching power supply (100-240v).
- Versatile Color Blinder, Strobe, Wash Luminaire

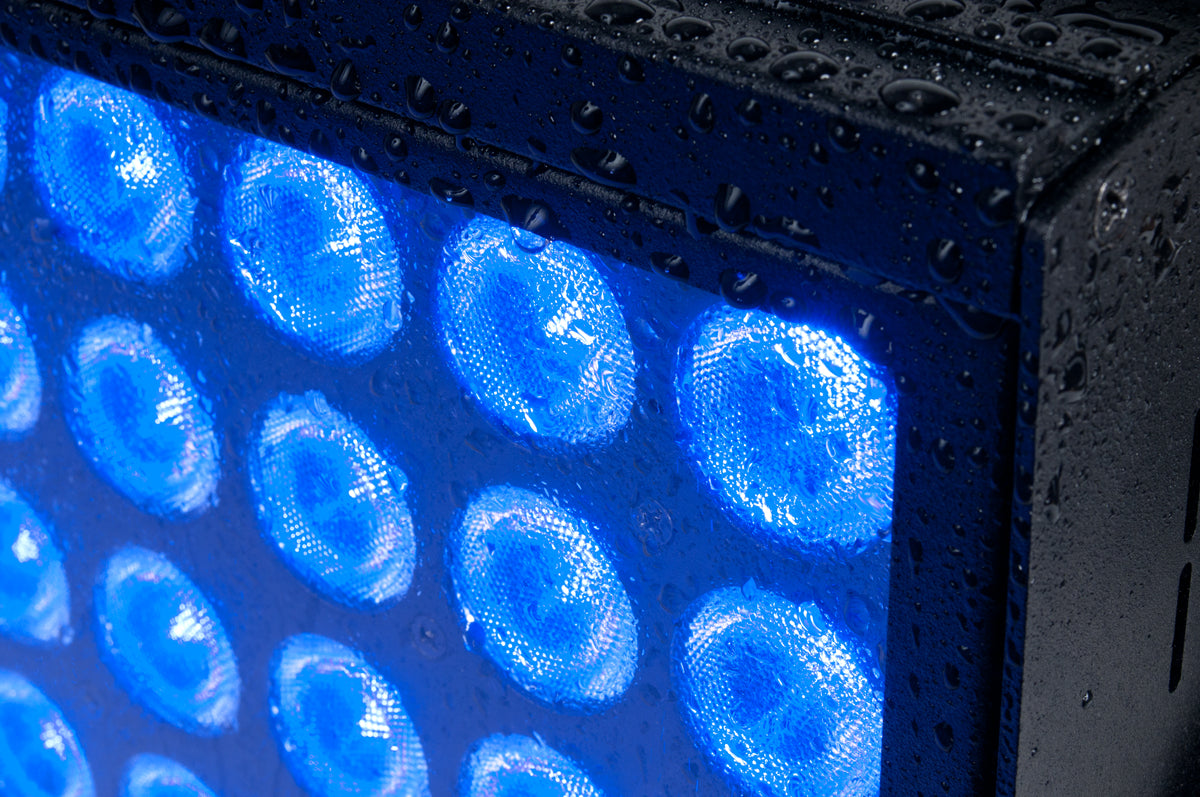

- High Powered 1000W Air Cooled IPX4 Outdoor Rated
- 96 10W CREE RGBW 4-in-1 LEDs
- 31° Beam / 63° Field Angles
- 27,000+ Total Lumen Output
- Brilliant Eye Candy Effects
- Selectable Pixel Mapping Control Zones
- Strobe Intensity, Duration, Rate, and FX Control
- Super High Speed (1-25fps) Adjustable Strobe
- DMX, RDM, Kling-NET and Art-NET Protocol Support
- 8/16 Bit RGB and RGBW Smooth Color Mixing Modes

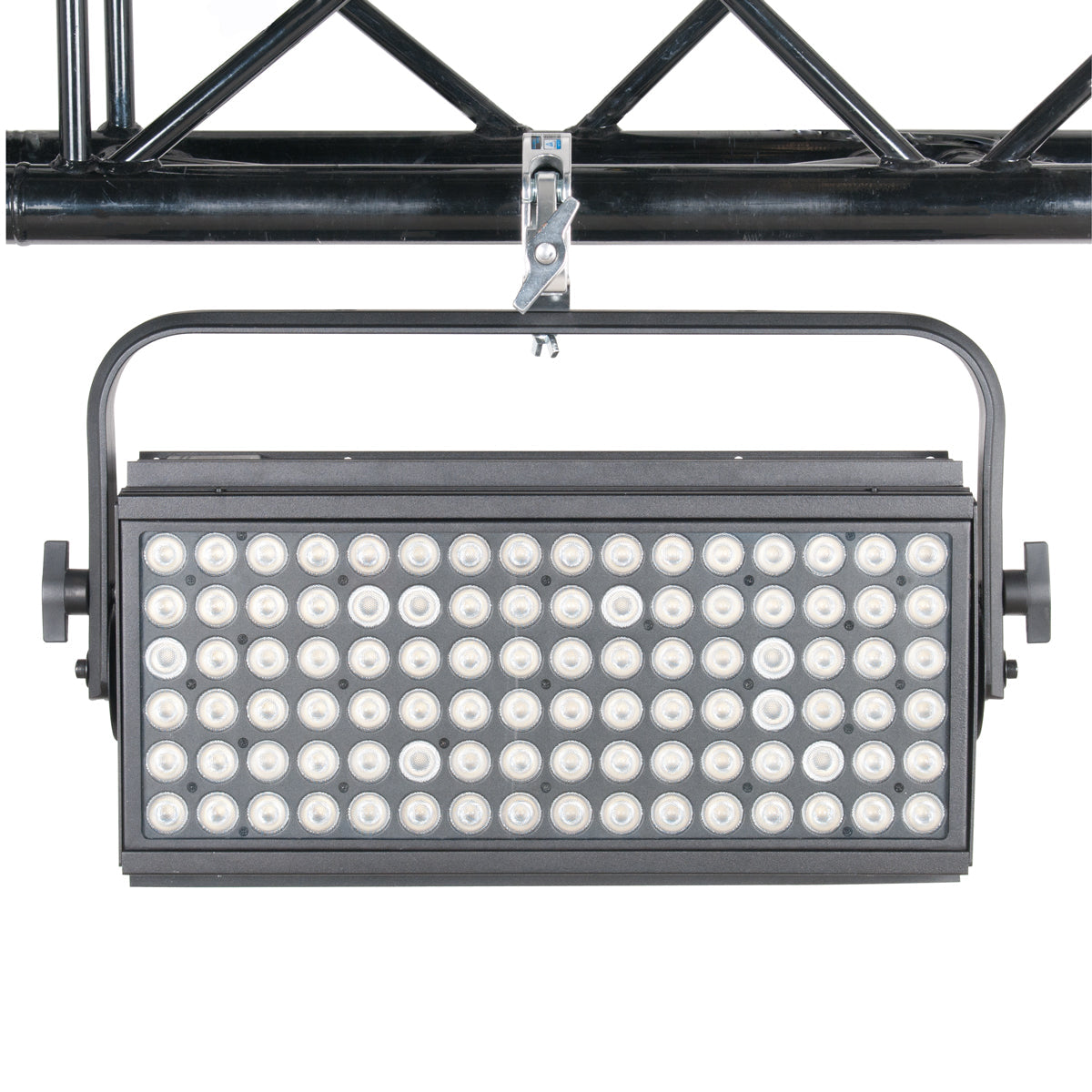

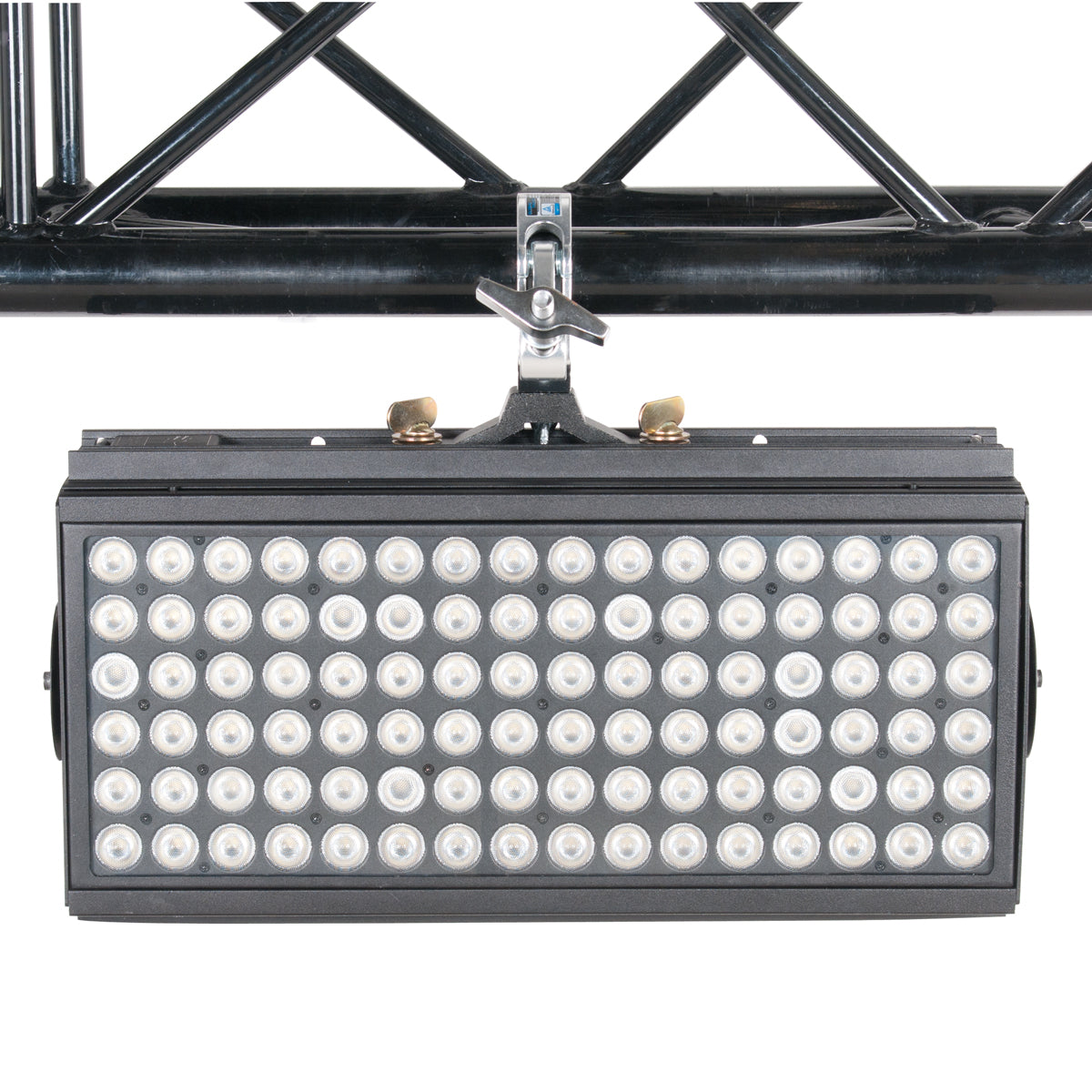

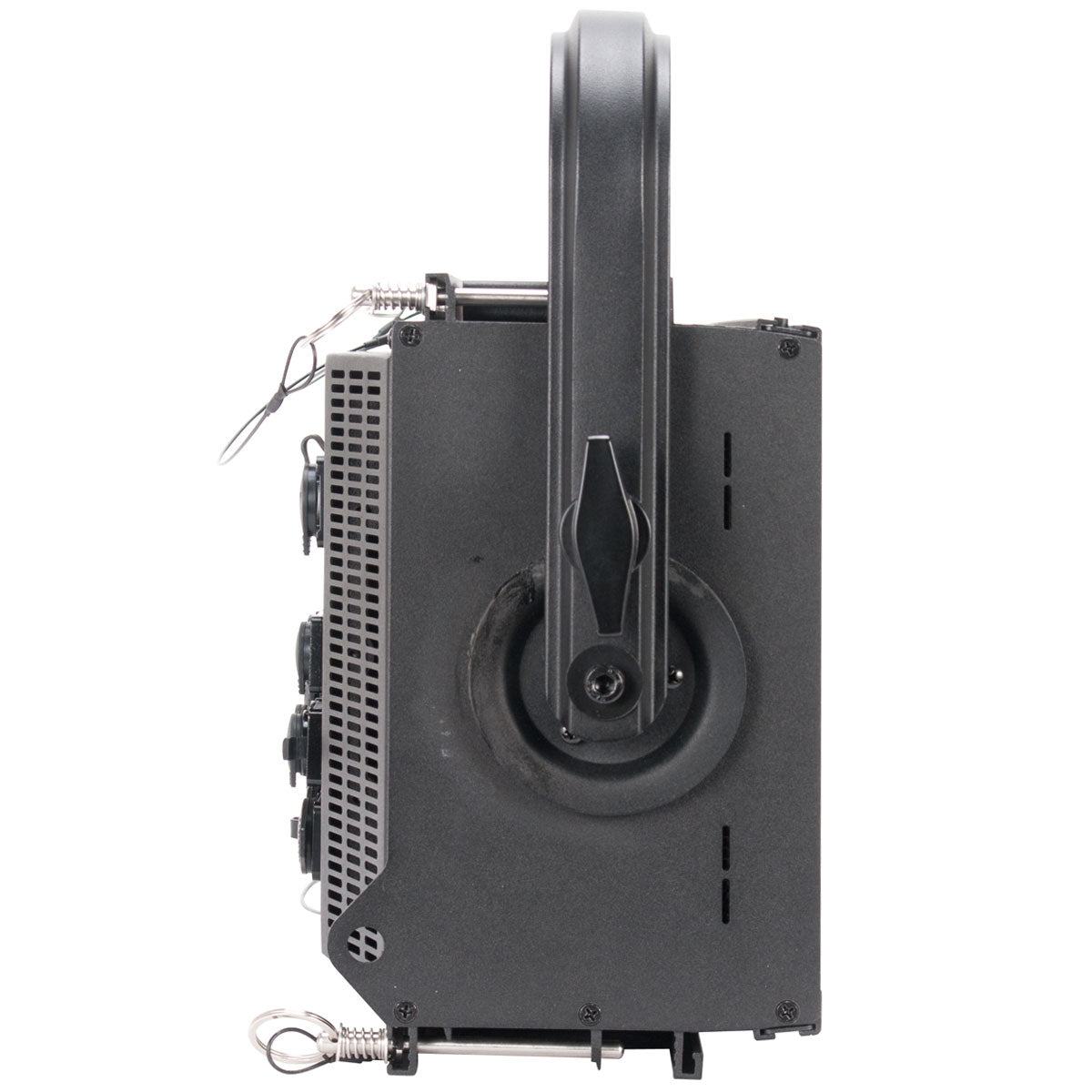

- Adjustable/Removable Yoke Bracket w/3-Position Holes
- Interlocking System for Multiple Unit Matrix Designs
Specifications
SOURCE
(96) 10W CREE 4-in-1 RGBW LEDs
15,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
31° Beam / 63° Field Angles
27,000+ Total Lumen Output
EFFECTS
Color Blinder, Strobe, and Wash
Brilliant Eye Candy Effects
Selectable Pixel Mapping Control Zones
Strobe Intensity, Duration, Rate, and FX Control
Super High Speed (1-25fps) Adjustable Strobe
8/16 Bit RGB and RGBW Smooth Color Mixing Modes
COLOR
RGBW
CONTROL / CONNECTIONS
Multiple DMX Channel Modes (24 total channels)
4 Button Touch Control Panel with OLED Menu Display
DMX, RDM, Kling-NET, and Art-NET Protocol Support

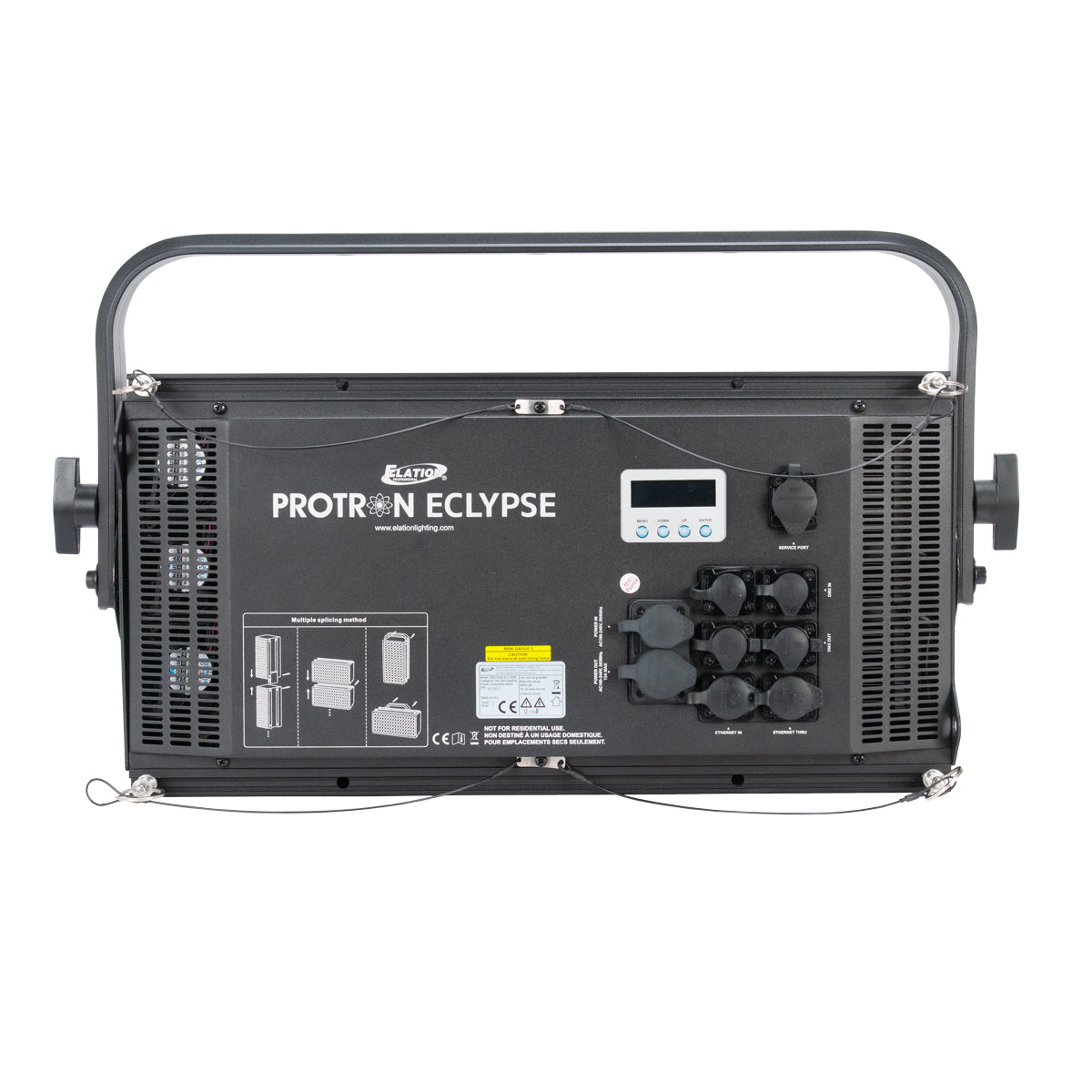

IP65 3/5pin DMX and RJ45 ethernet In/Out
IP65 Locking Power In/Out
Fixture-to-Fixture Interlocking Alignment Pins/Locks
SIZE / WEIGHT
Length: 24.9” (633mm)
Width: 7.0” (177.5mm)
Vertical Height: 14.4” (364.8mm)
Weight: 34.6 lbs. (15.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
843W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 2874.63
APPROVALS / RATINGS
CE | IPX4
FIRMWARE UPDATES
Current Version: V1.5
Click HERE for software updates
Specifications and documentation subject to change without notice.
