RACKHOG 4

Discontinued

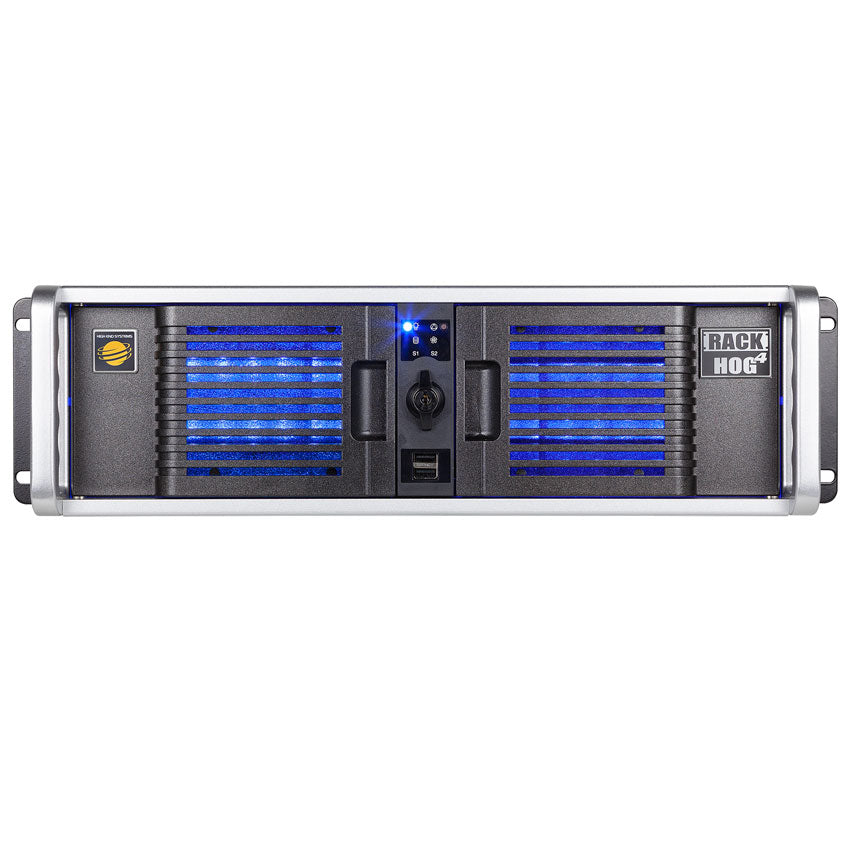

RackHog 4 is a professional-grade lighting solution. RackHog 4 has all the power of a Hog 4 console condensed into a 3U rack mount unit making it the ideal solution for fixed install applications such as cruise ships, theme parks, and architectural installations. Plug a Nano Hog 4 into the RackHog 4 , add a touch screen and you have a powerful control system ready to take on any show. Perfect for those applications where permanent hardware interfaces are not necessary this Hog is perfect for program and leave situations.

UPC: 837874002331SKU: HOG669

RACKHOG 4

A Hog in a box! RackHog 4 has all the power of a Hog 4 console condensed into a 3U rack mount unit making it the ideal solution for fixed install applications such as cruise ships, theme parks, and architectural installations. RackHog 4 is also perfectly suited to operate as a backup to any Hog 4 family console.

Plug a Nano Hog 4 into the RackHog 4, add a touch screen and you have a powerful control system ready to take on any show. Perfect for those applications where permanent hardware interfaces are not necessary this Hog is perfect for program and leave situations.

RackHog 4, like the other consoles in the Hog 4 family, runs on Linux and is compatible with all of the same peripheral hardware. RackHog 4 has no limits, and is fully expandable in conjunction with DMX Processor 8000's.

  • Robust Hog 4 Operating Software
  • Unlimited Number of Simultaneous Crossfades
  • Built in DMX Processor 8000
  • Hog-Net Ethercon Connector
  • Fixture-Net Ethercon Connector
  • (4) USB Ports for Wholehog Wings and External Touchscreens
  • Auto-Ranging Mains Input (90-250VAC)
  • Keyboard and Mouse Included
  • Solid State Hard Drive

Specifications

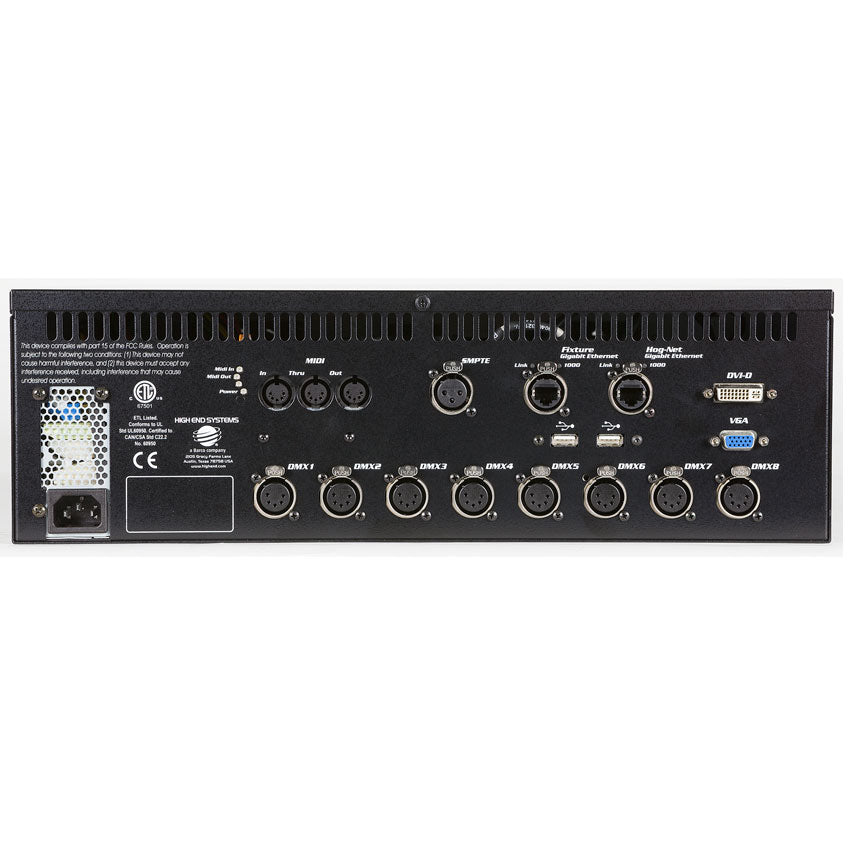

CONNECTIVITY
Unlimited DMX channels and Art-Net and E1.3.1 (sACN) Universes via Ethernet DPs

Onboard MIDI Input/Output, MIDI Show Control and MIDI Time Code and LTC Input

Multiple LTC Inputs via Multiple SMPTE / LTC USB Widgets

Connectivity with Many Visualizers via Ethernet

Total Networking with Multiple Wholehog Console Systems

Remote Focus Capabilities via Open Sound Control

Connectivity to Remote Windows PCrsquo;s running Hog 4PC Software

Supports USB Playback and Expansion Wings


SIZE / WEIGHT
Length: 19.09" (485.03mm)
Width: 16.59" (421.5mm)
Vertical Height: 5.21" (132.36mm)

Weight: 21 lbs (9.52kg)


Specifications and documentation subject to change without notice.
