Rayzor Q12
Discontinued

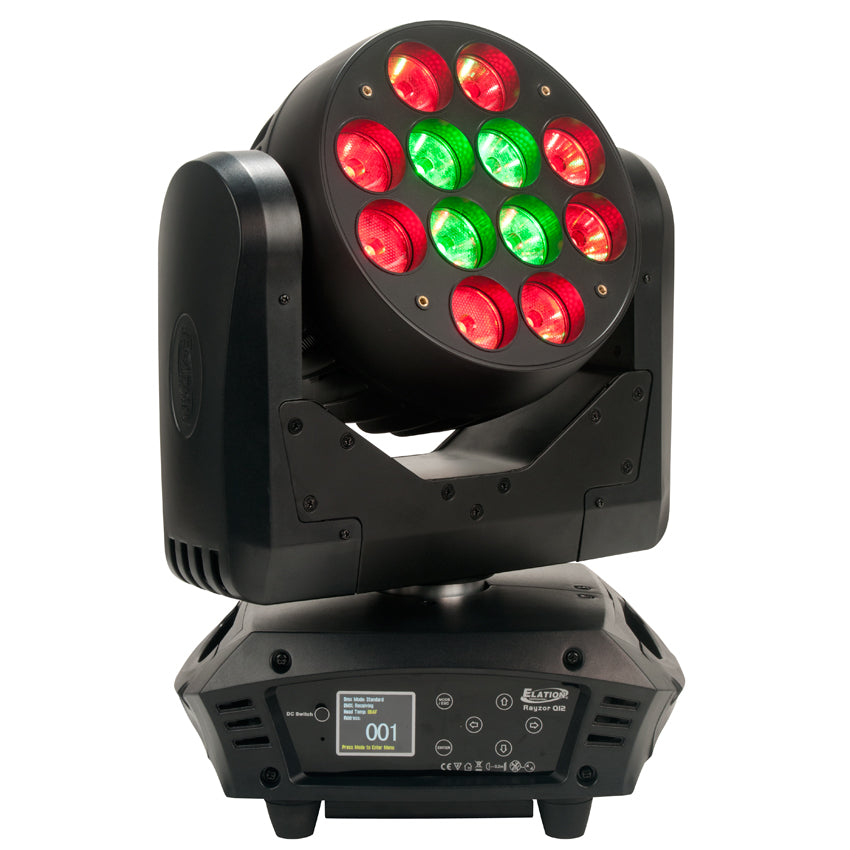

Rayzor Q12 is a professional-grade lighting solution. The new Rayzor Q12 features (12) 15W Quad Color RGBW LEDs, high speed 16-bit resolution movement, color mixing, rainbow effect, a 7° to 14° field angle range, 6 zone chase effects, 8 auto program chase effects, flicker free operation for TV and Film, 5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

Rayzor Q12
Sale price$0.00
Rayzor Q12
The new Rayzor Q12 features (12) 15W Quad Color RGBW LEDs, high speed 16-bit resolution movement, color mixing, rainbow effect, a 7° to 14° field angle range, 6 zone chase effects, 8 auto program chase effects, flicker free operation for TV and Film, 5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v). Optional accessories for the Rayzor Q12 include a snoot lens cover and diffusion filter holder.
The new Rayzor Q12 features (12) 15W Quad Color RGBW LEDs, high speed 16-bit resolution movement, color mixing, rainbow effect, a 7° to 14° field angle range, 6 zone chase effects, 8 auto program chase effects, flicker free operation for TV and Film, 5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v). Optional accessories for the Rayzor Q12 include a snoot lens cover and diffusion filter holder.
FEATURES
Pan: 540° / 630°/ 540° - 90° Offset
Tilt: 270° / 240°
High Speed Adjustable 16-Bit Resolution Movement
6 Zone Chase Effects
8 Auto Program Chase Macros

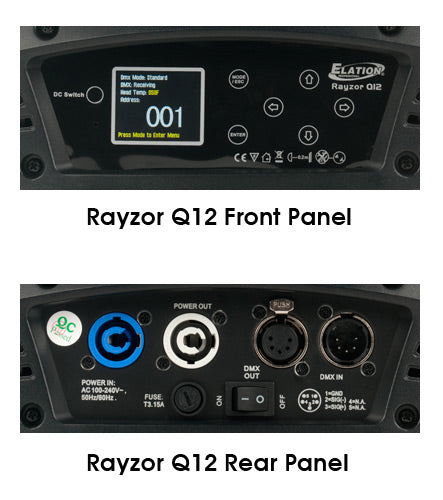

6 Button Touch Control Panel
Omega Bracket Mounting (2x 107mm)
Flicker Free Operation for TV and Film
Full Color 180° Reversible Menu Display
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Primary/Secondary Function
Software Upload via Optional External DMX Accessary
The new Rayzor Q12 features (12) 15W Quad Color RGBW LEDs, high speed 16-bit resolution movement, color mixing, rainbow effect, a 7° to 14° field angle range, 6 zone chase effects, 8 auto program chase effects, flicker free operation for TV and Film, 5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v). Optional accessories for the Rayzor Q12 include a snoot lens cover and diffusion filter holder.
FEATURES
Pan: 540° / 630°/ 540° - 90° Offset
Tilt: 270° / 240°
High Speed Adjustable 16-Bit Resolution Movement
6 Zone Chase Effects
8 Auto Program Chase Macros
6 Button Touch Control Panel
Omega Bracket Mounting (2x 107mm)
Flicker Free Operation for TV and Film
Full Color 180° Reversible Menu Display
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Primary/Secondary Function
Software Upload via Optional External DMX Accessary
Specifications
SOURCE
(12) 15W RGBW QUAD COLOR LED
100,000 Hours Average Life
PHOTOMETRICS
Max 5,840 LUX @5M
7° to 14° Field Angle Range
EFFECTS
Color Mixing
Rainbow Effect
Dimming: 0% - 100% + Blackout for All Four Colors
Strobe: 1 – 18 Flashes Per Second
Pulse Effect
CONTROL / CONNECTIONS
3 DMX Channel Modes (15/17/37)
5pin DMX In/Out
Locking Power In/Out
SIZE / WEIGHT
Length: 11.7” (295.5mm)
Width: 8.5” (214mm)
Vertical Height: 15.7” (397mm)
Weight: 22 lbs. (10kg)
ELECTRICAL / THERMAL
240W Max Power
AC 100-240V - 50/60Hz
-10°C/14°F to 45°C/113°F
APPROVALS / RATINGS
CE | cETLus | RoHs | IP20

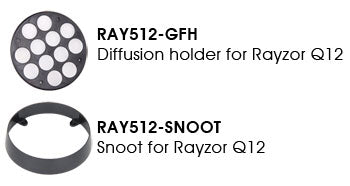

OPTIONAL ACCESSORIES:
RAY512-SNOOT - Snoot Lens Cover
RAY512-GFH - Diffusion Filter Cover
CLAMPS (click for more info)
PRO CABLES (click for more info)
DMX SOLUTIONS (click for more info)
Specifications and documentation subject to change without notice.
