RDM 10
RDM 10 is a professional-grade lighting solution.
RDM 10

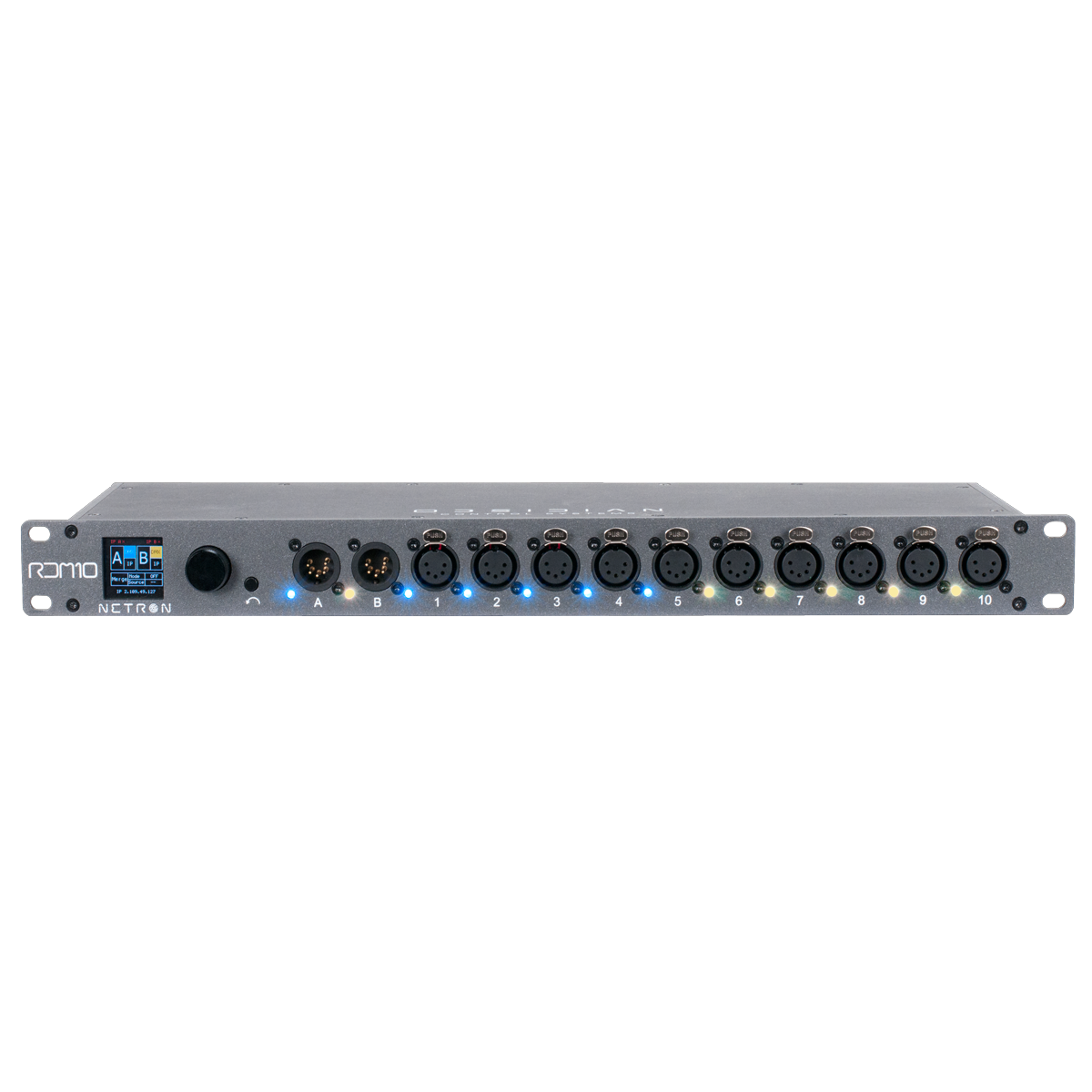

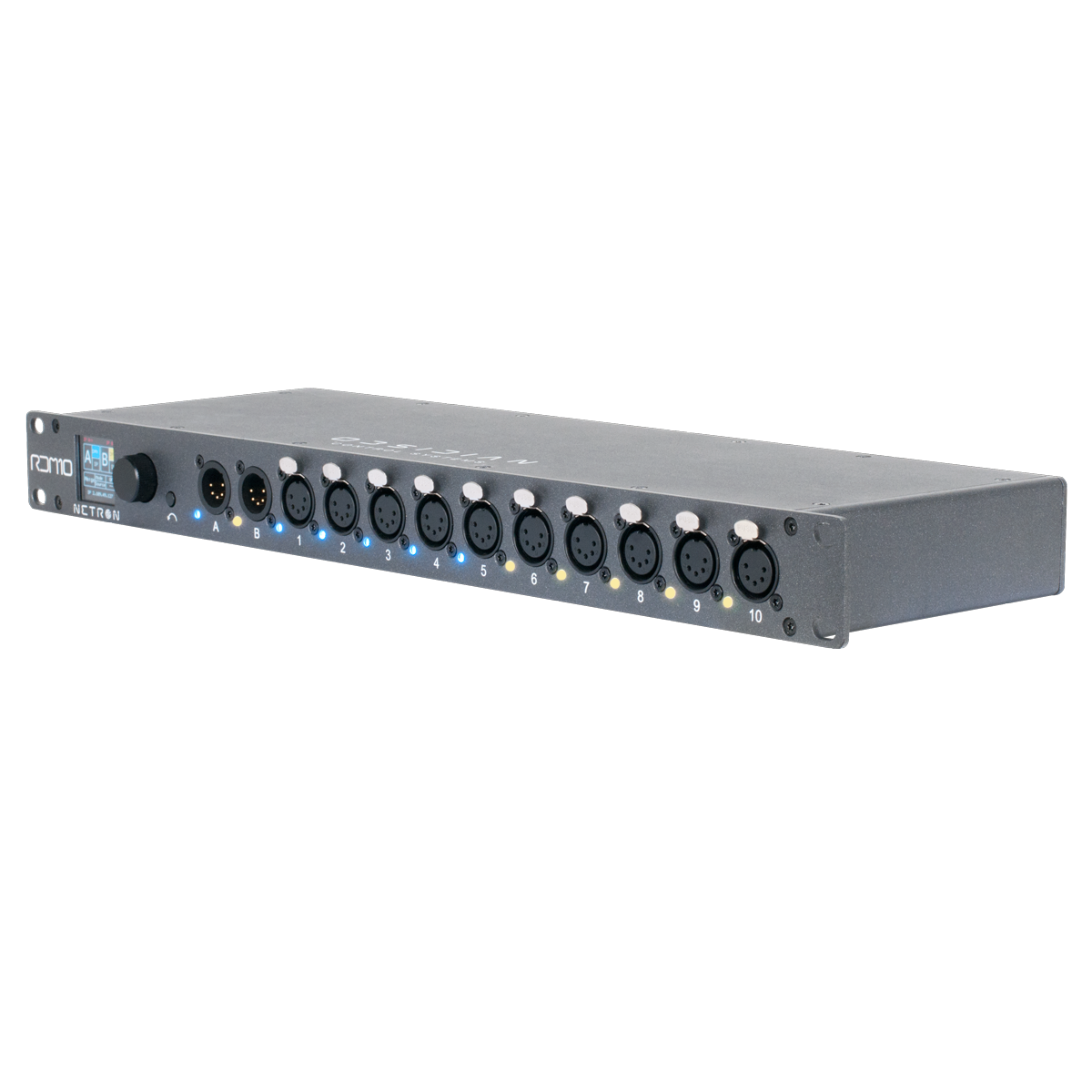

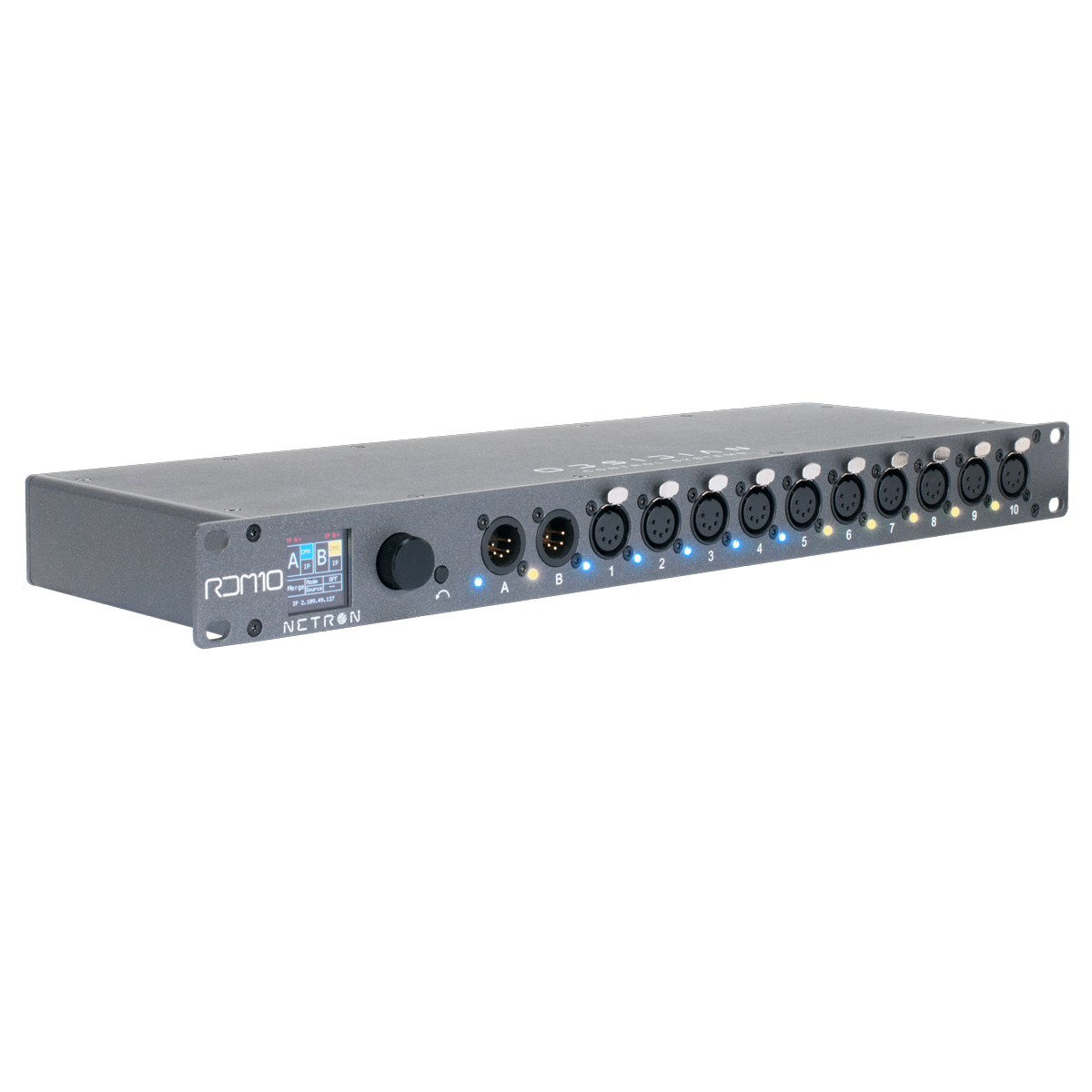

The NETRON RDM 10 is a first of its kind hybrid splitter. A dual-DMX Input, 10 port RDM Splitter, Merger and EtherDMX Gateway are unified into the RDM10, with an advanced feature set to cover a wide variety of applications. 99 internal cues, factory and user presets plus external contact closures provide a unique combination of multiple devices to solve many required tasks in one powerful unit.
- Key Features
- 10 assignable DMX outputs
- Integrated 2 Universe Artnet/sACN node
- Configurable DMX refresh rate
- Dual DMX Inputs for backup and signal loss options
- Remote configuration via internal webpage
- 1.8" OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
- For technical details and documentation of NETRON devices please visit
- https://obsidiancontrol.com/netron
Specifications
(2) 5pin DMX Input
(10) 5pin Opto-Isolated DMX Outputs
Full color OLED display
Encoder w. Push to Select / Exit Button
(2) 5pin DMX Input (parallel with front)
(2) 5pin DMX Through
(2) Locking RJ45 Ethernet Network In
(10) Contact Closures (Terminal Block) \
Locking Power In/Thru
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs)
POE 802.3af
Downloads
Software
Specification sheet
User manual
Generic
RDM 10 Parts & Service
Our RDM 10 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your RDM 10. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
RDM 10 Parts & Service
