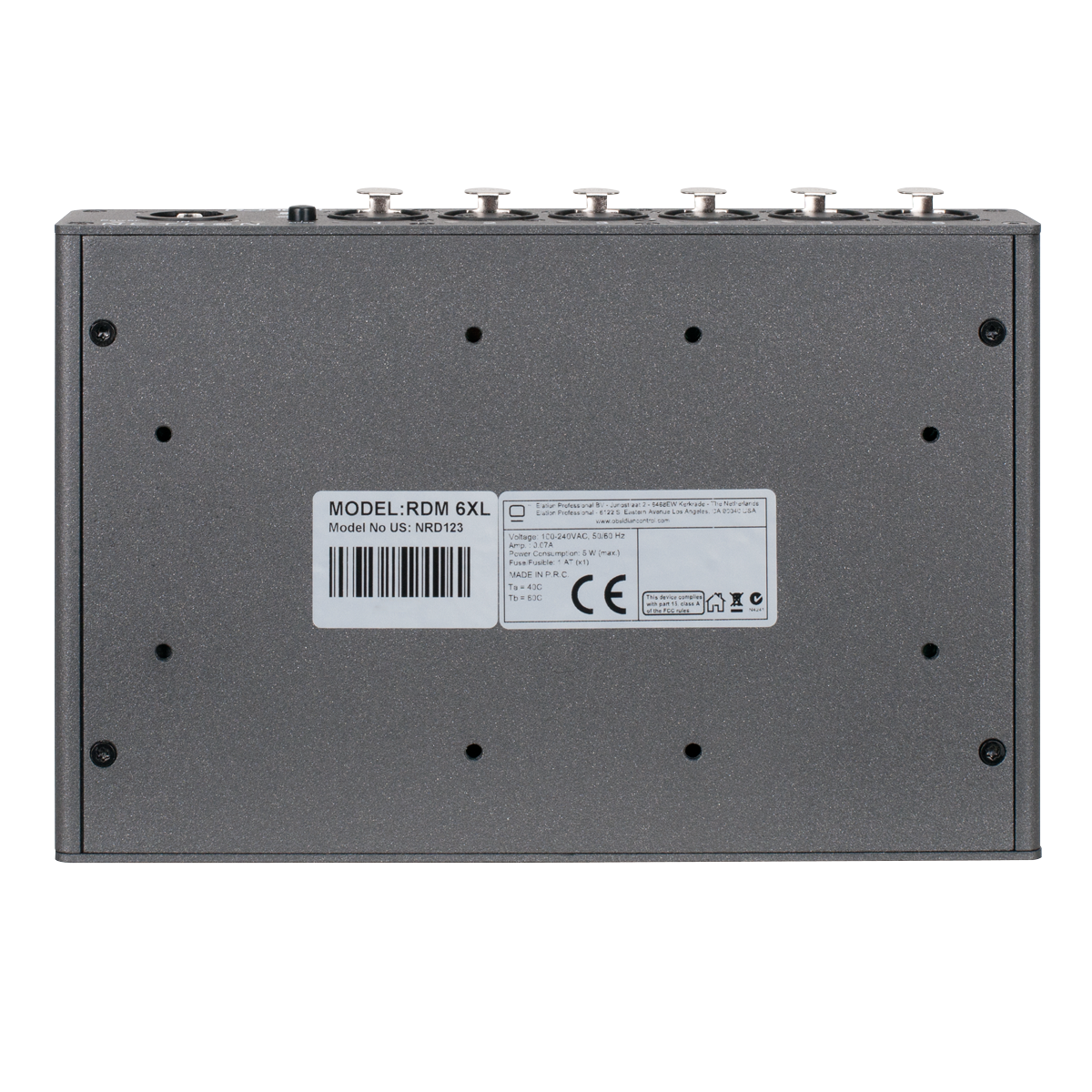

RDM 6XL
The Netron RDM 6XL is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated 5pin XLR outputs and flexible mounting options to cover any situation.
- (6) XLR 5pin outputs
- DMX and RDM compliant
- Optically isolated ports
- Power / DMX Through connectors
- Powder-coated aluminum ½ rack housing
Specifications
Mounting
- Standalone

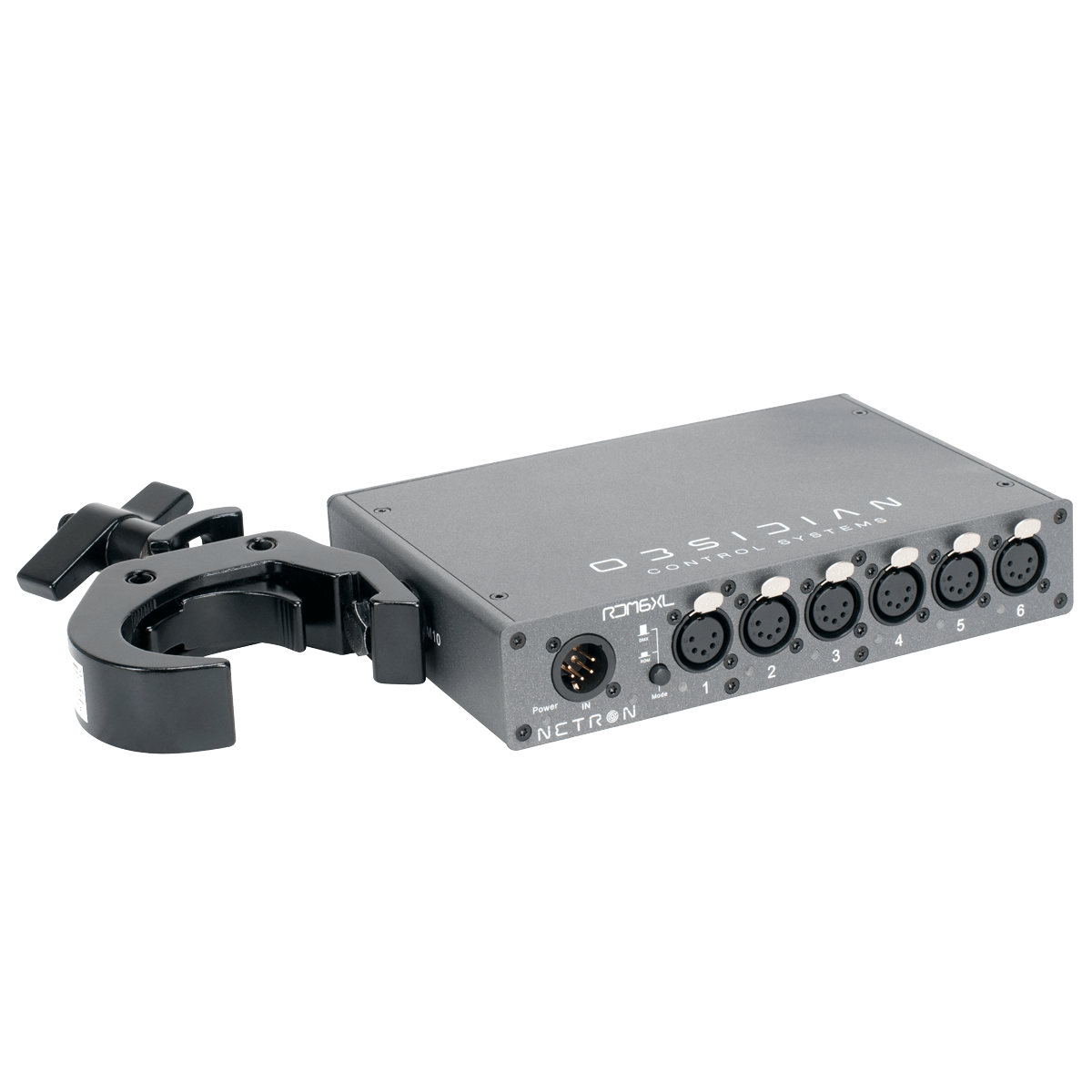

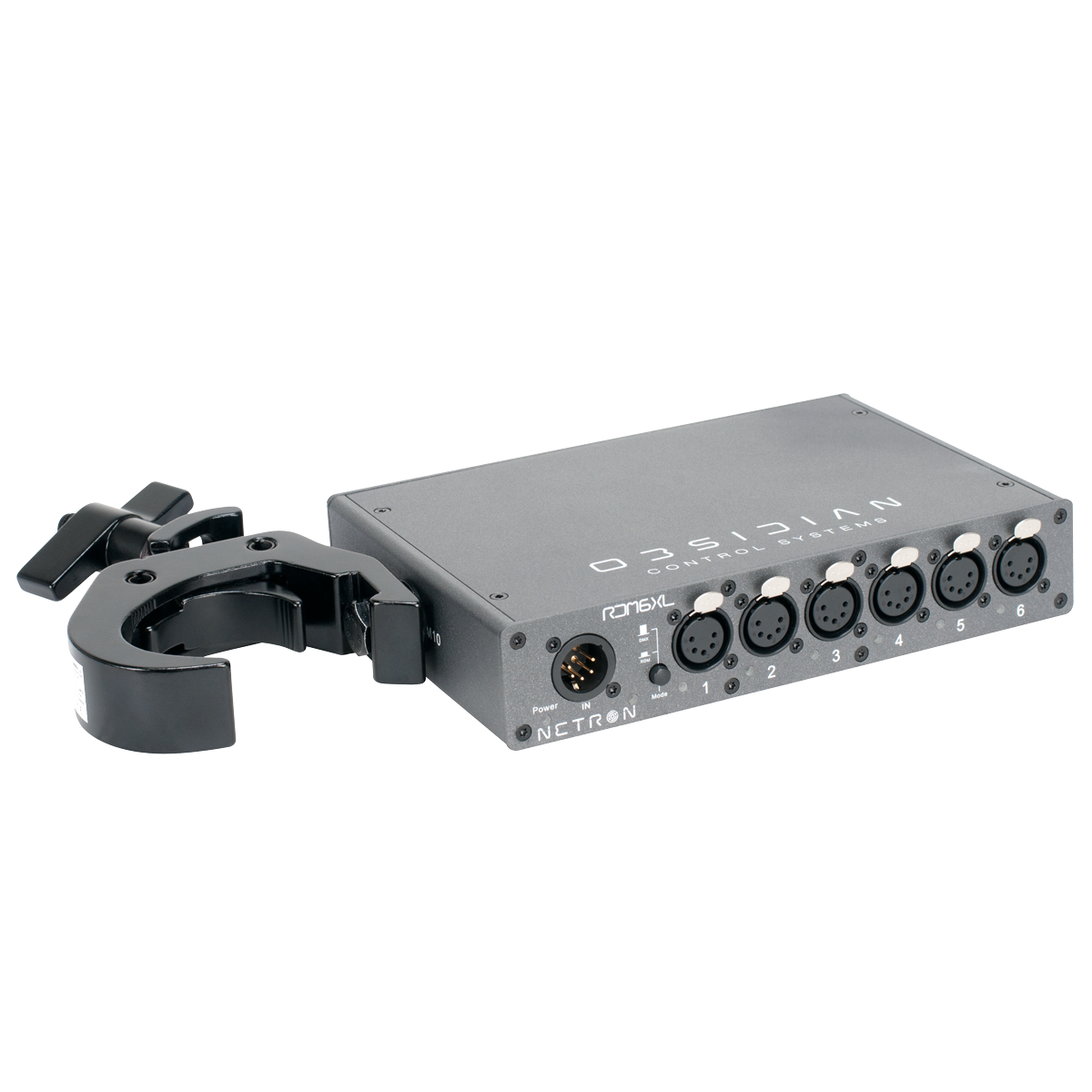

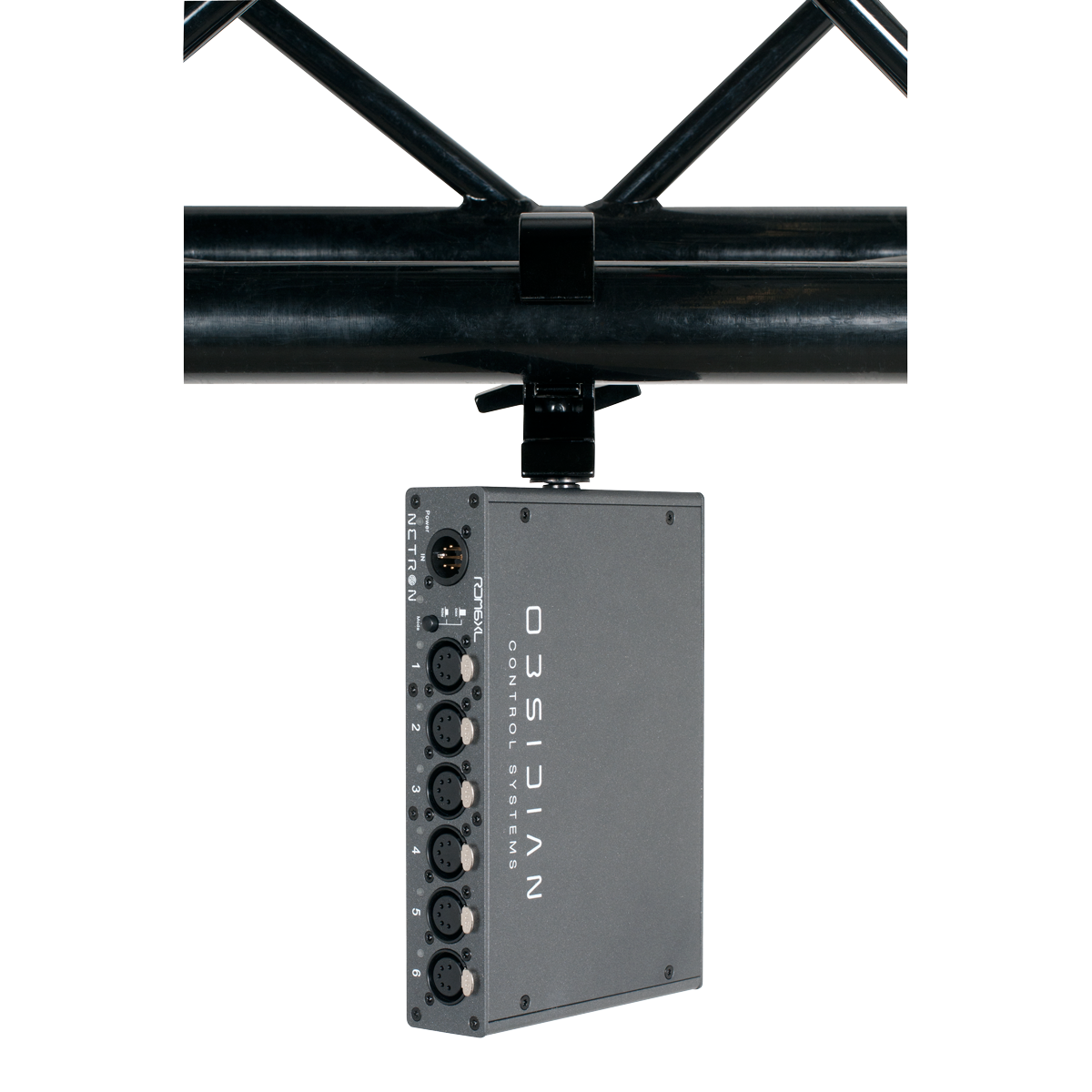

- Truss-mount (M10 or M12 mounting hole)

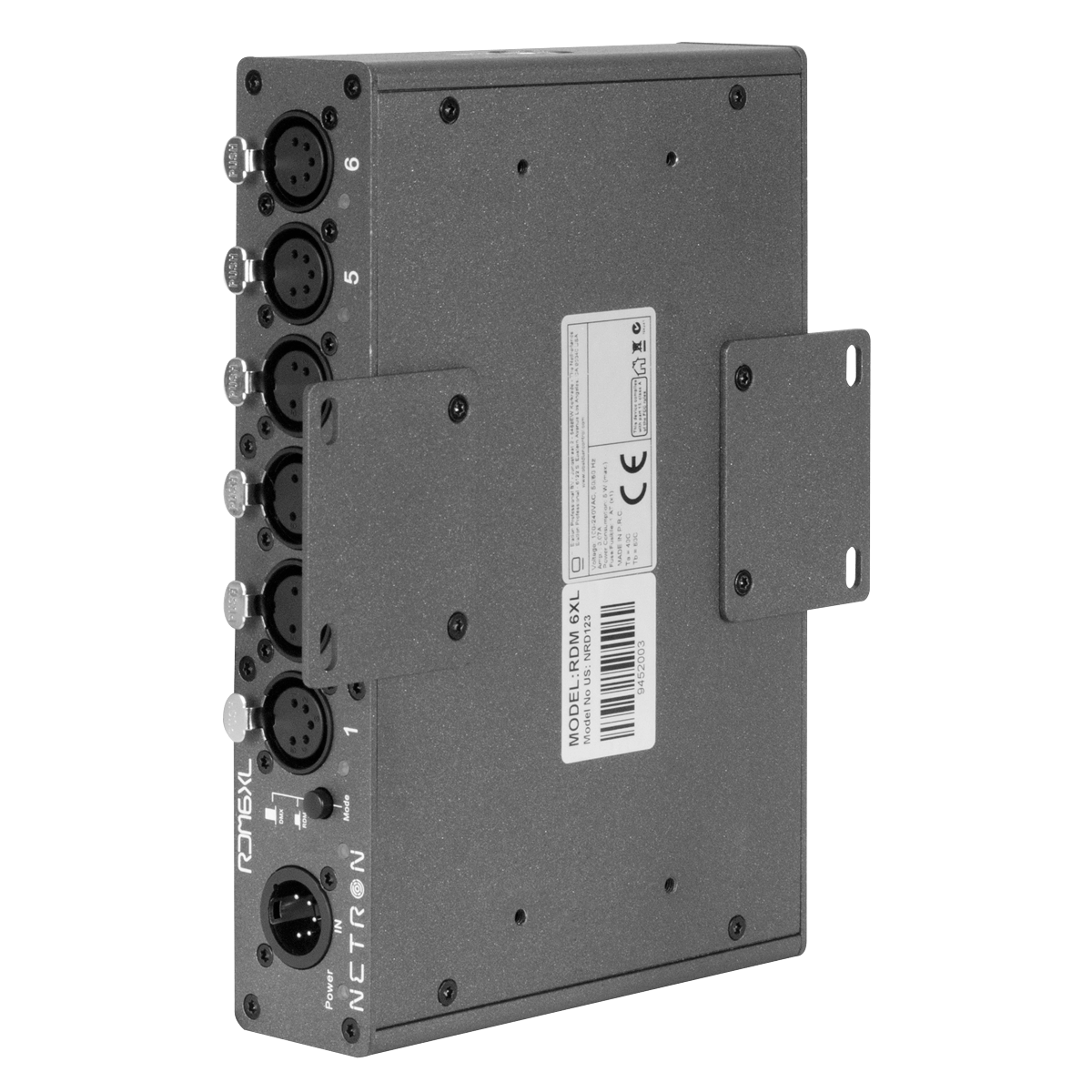

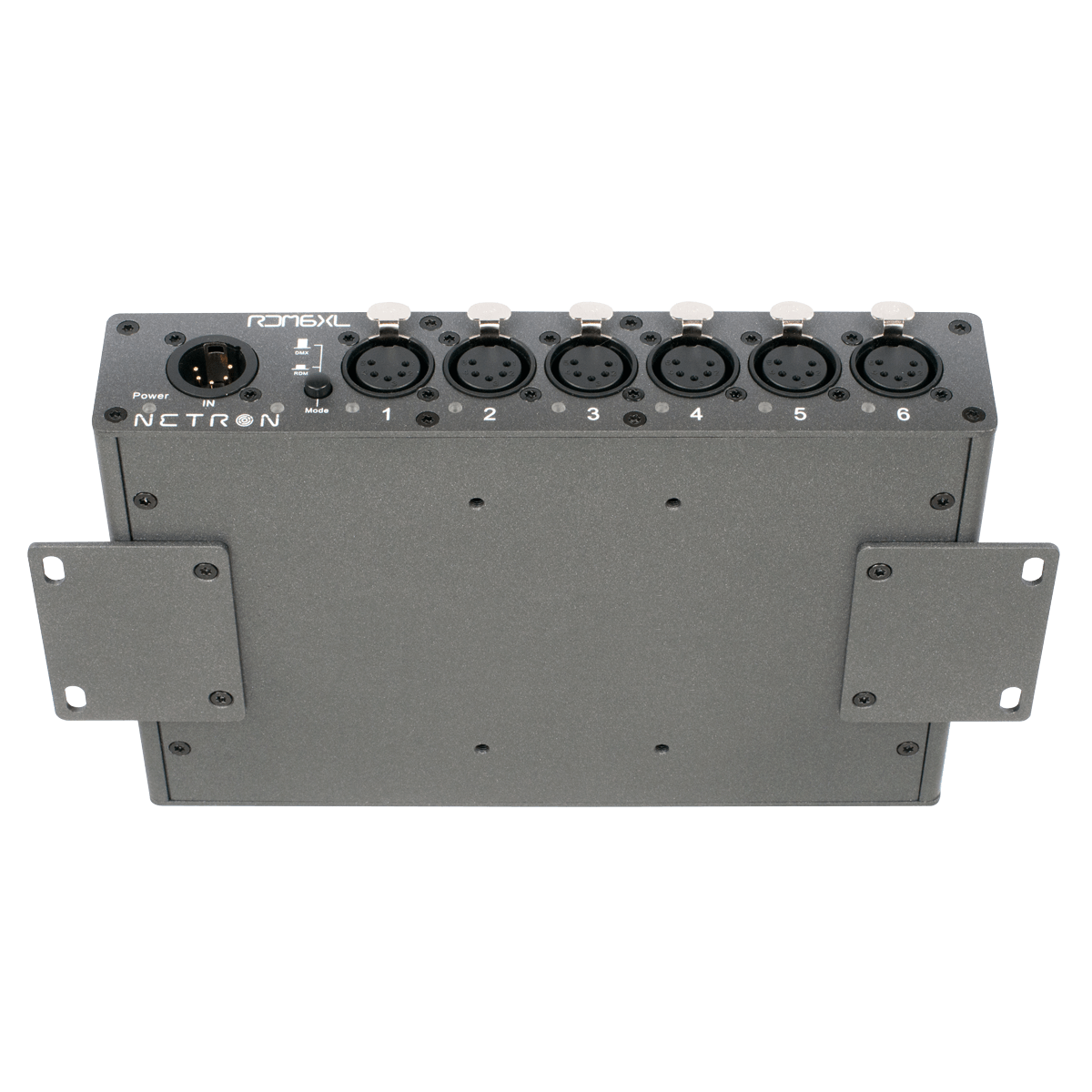

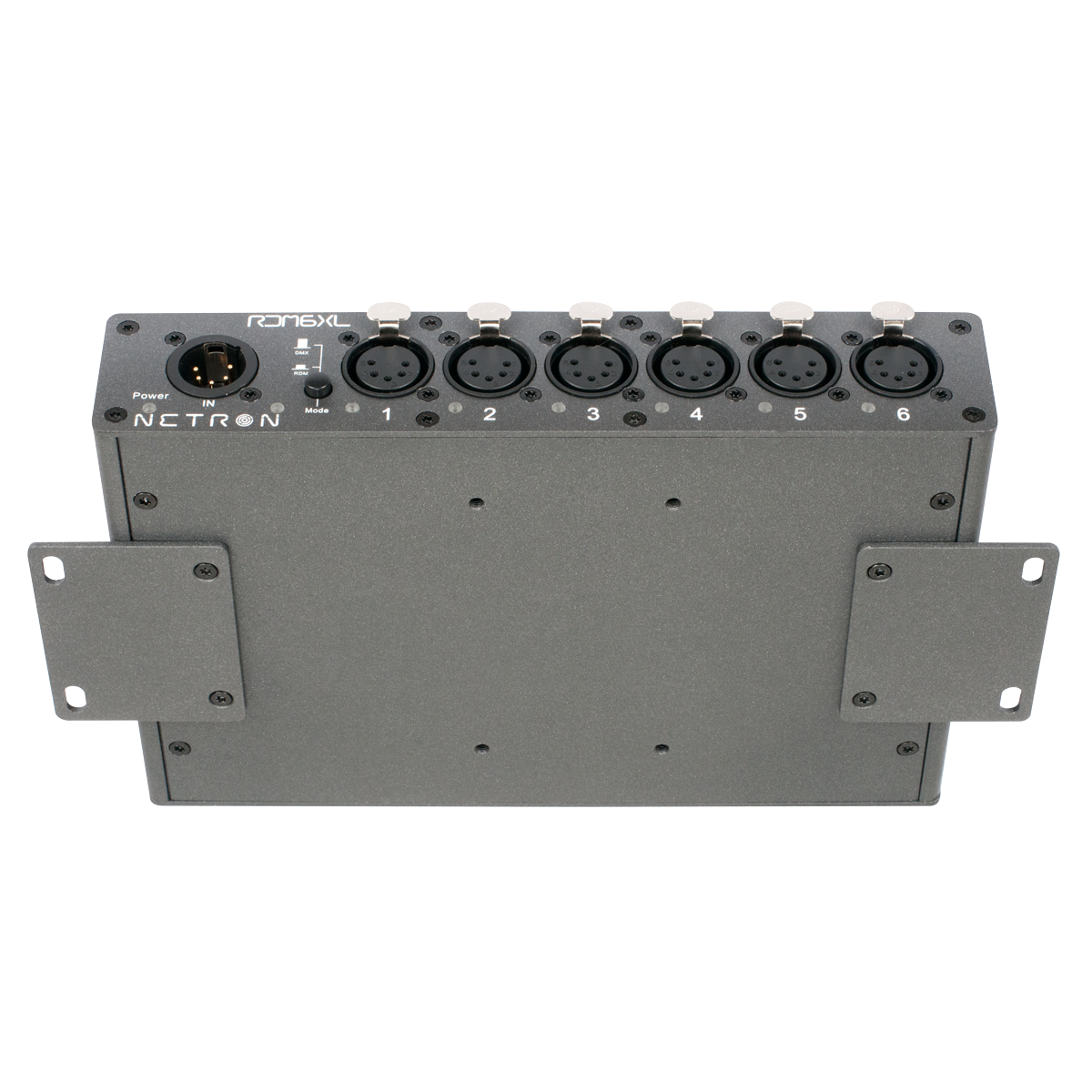

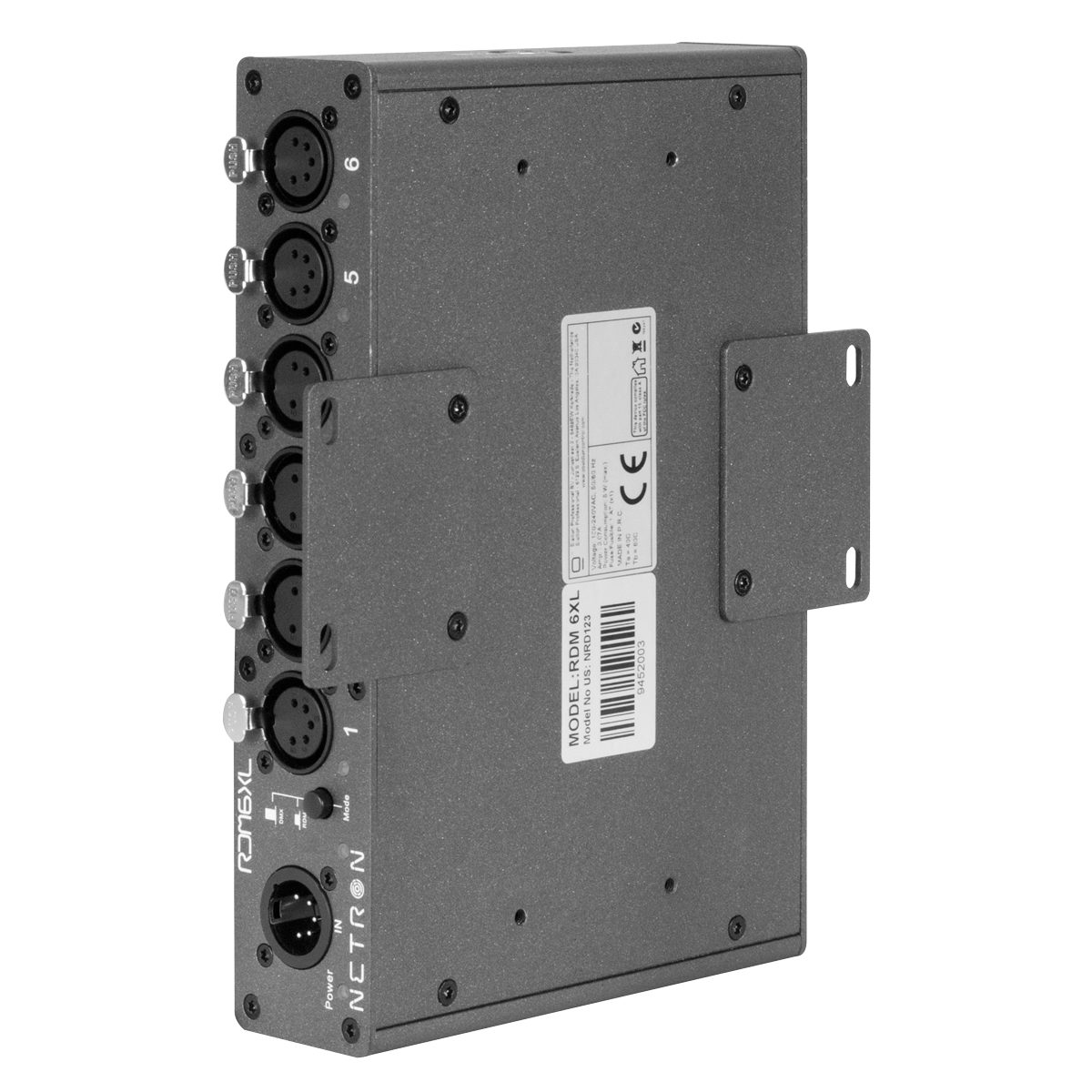

- Wall-mount horizontal or vertical (included)

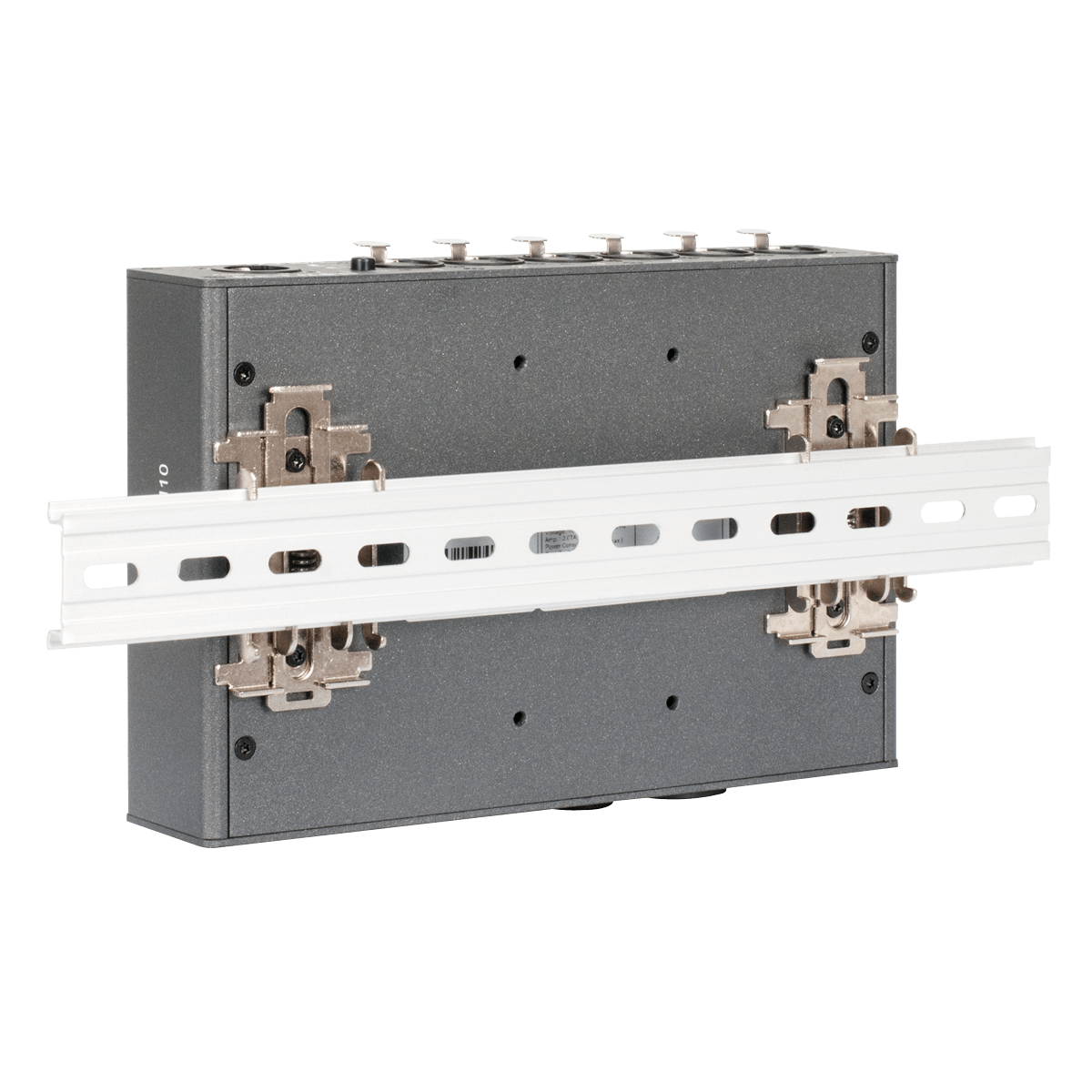

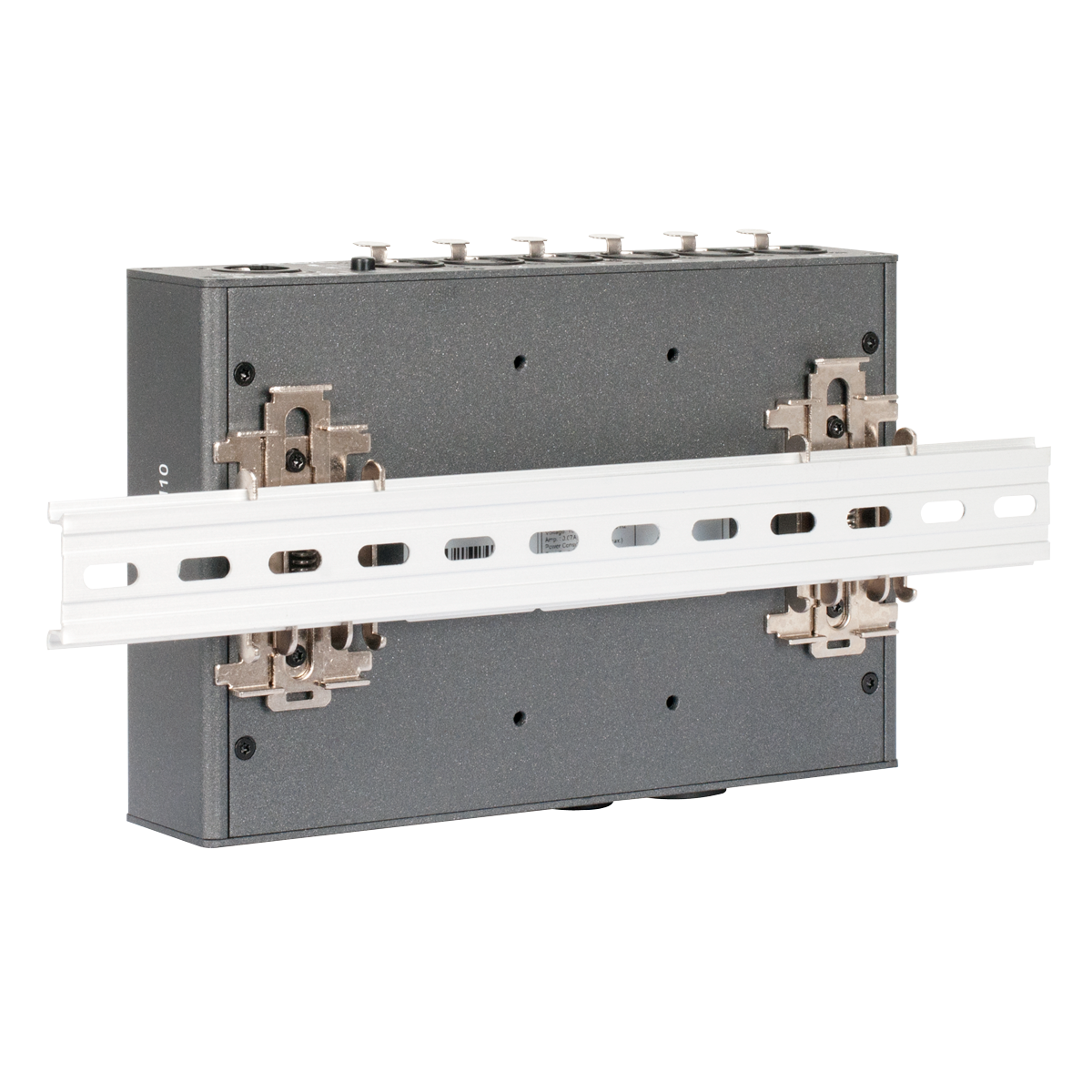

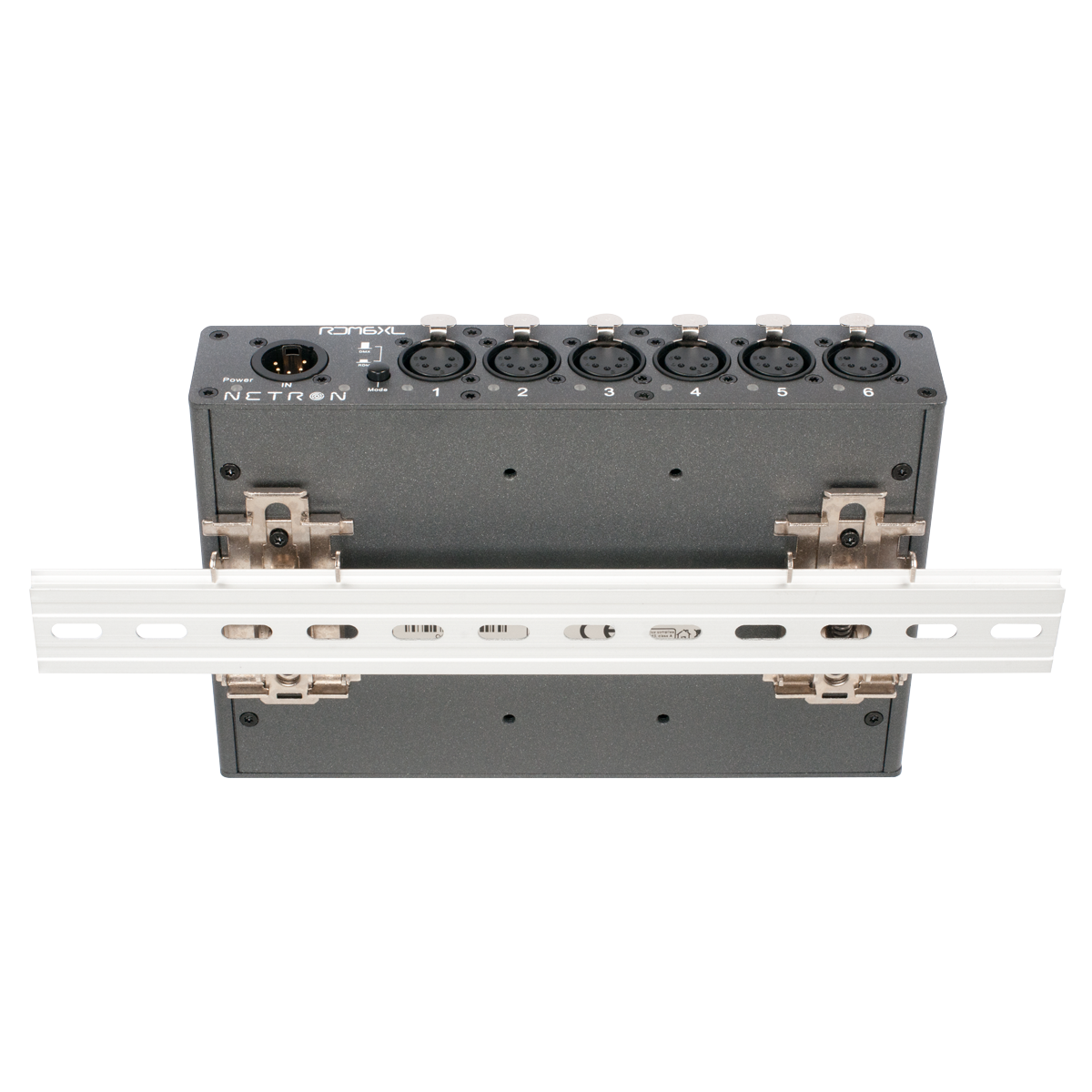

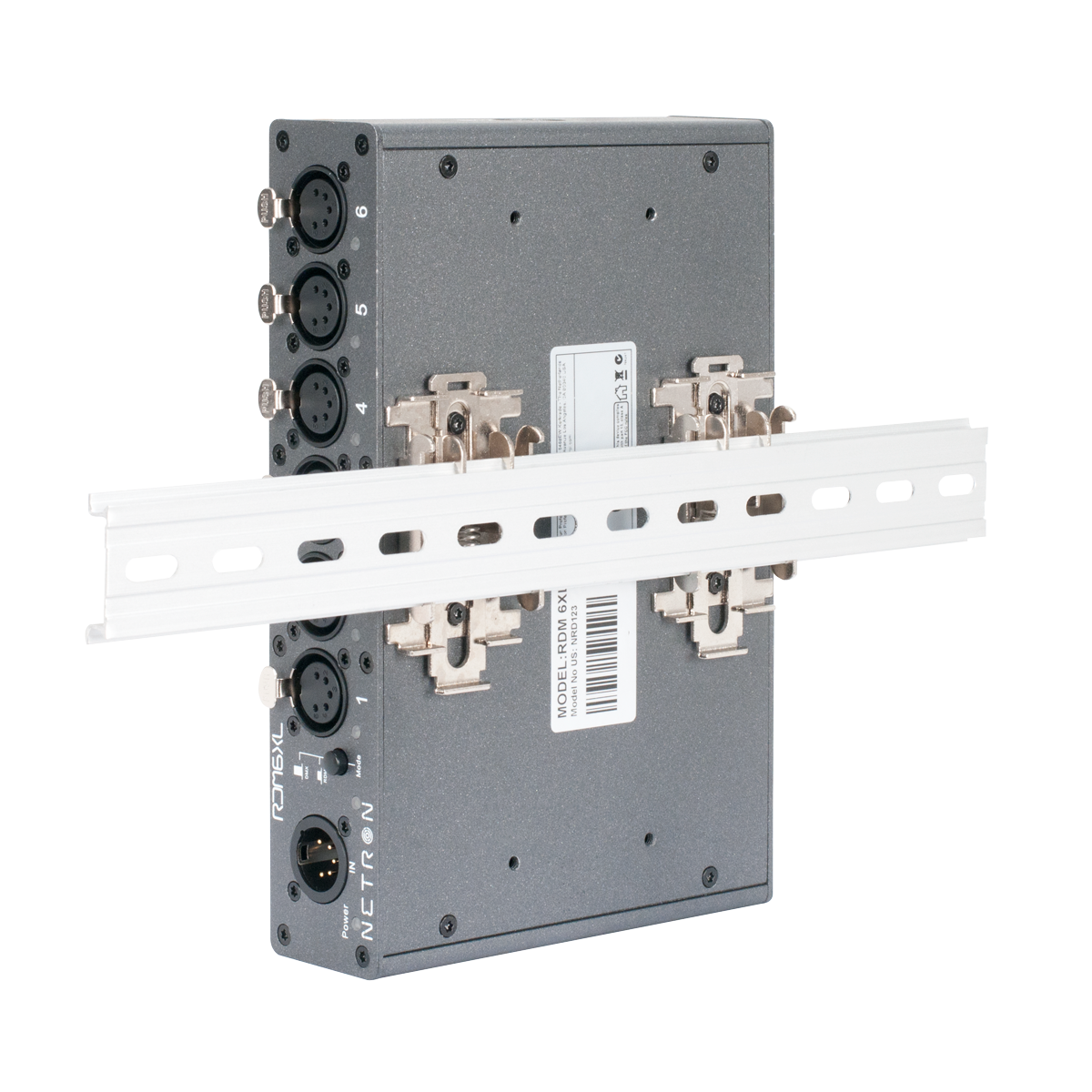

- DIN Rail horizontal or vertical (included)

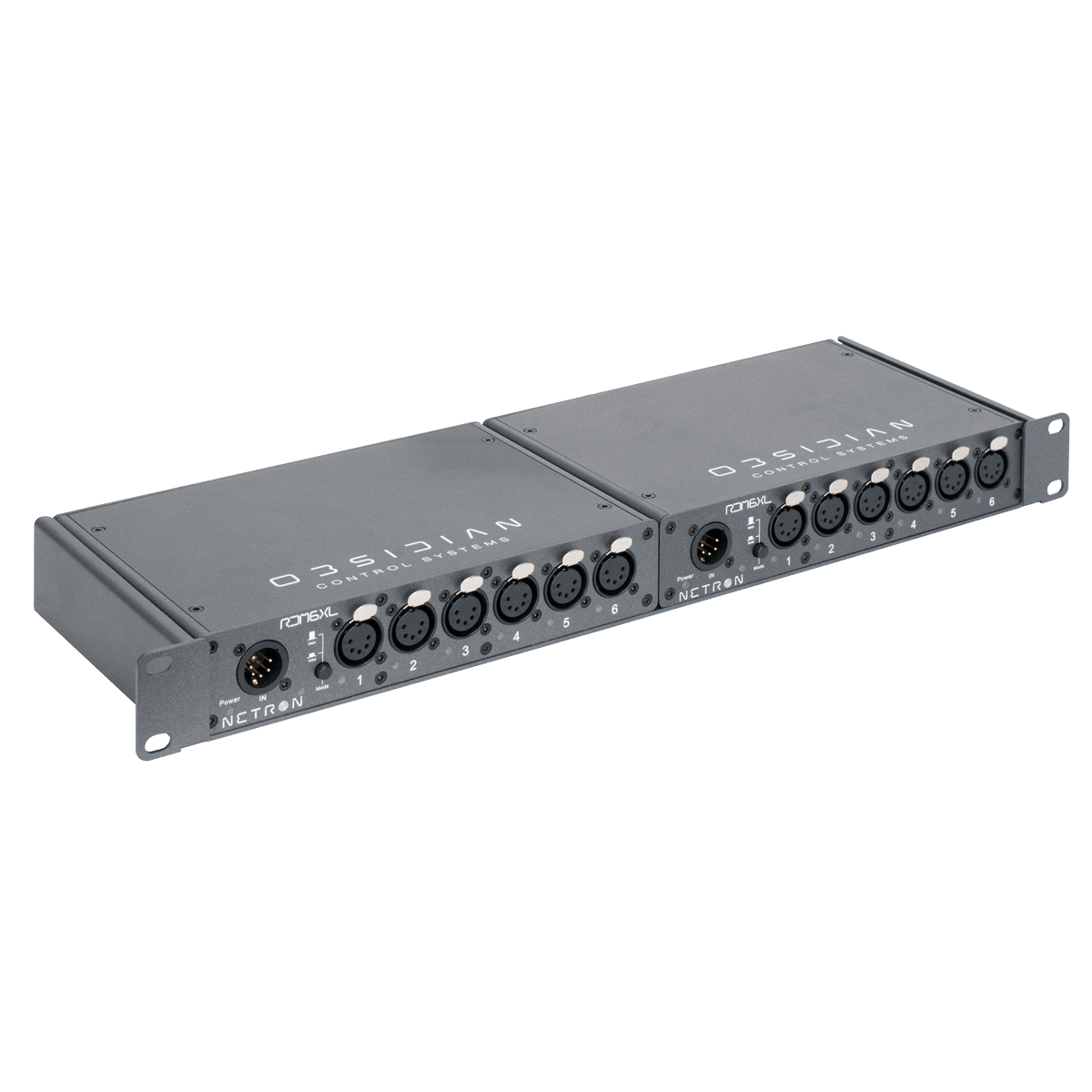

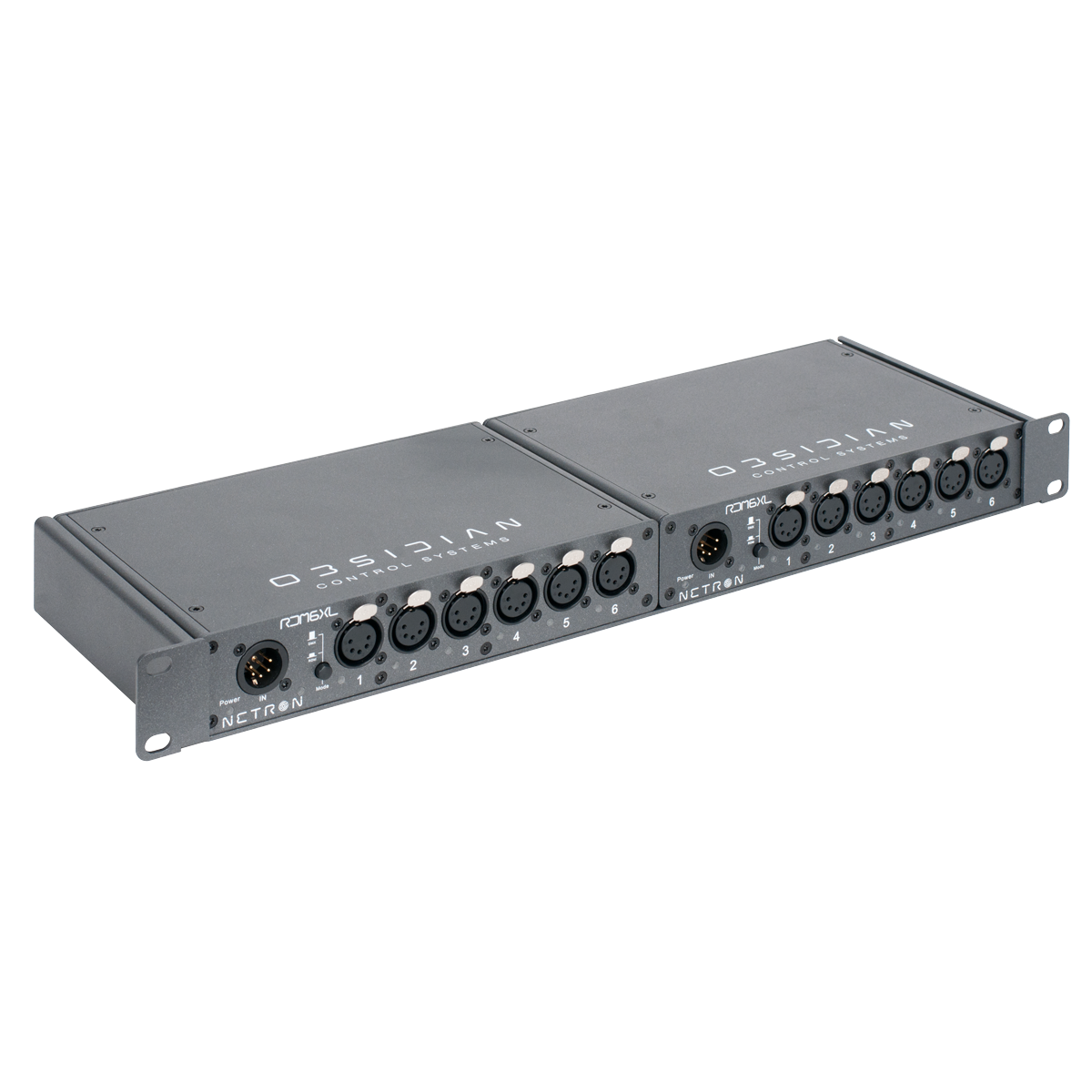

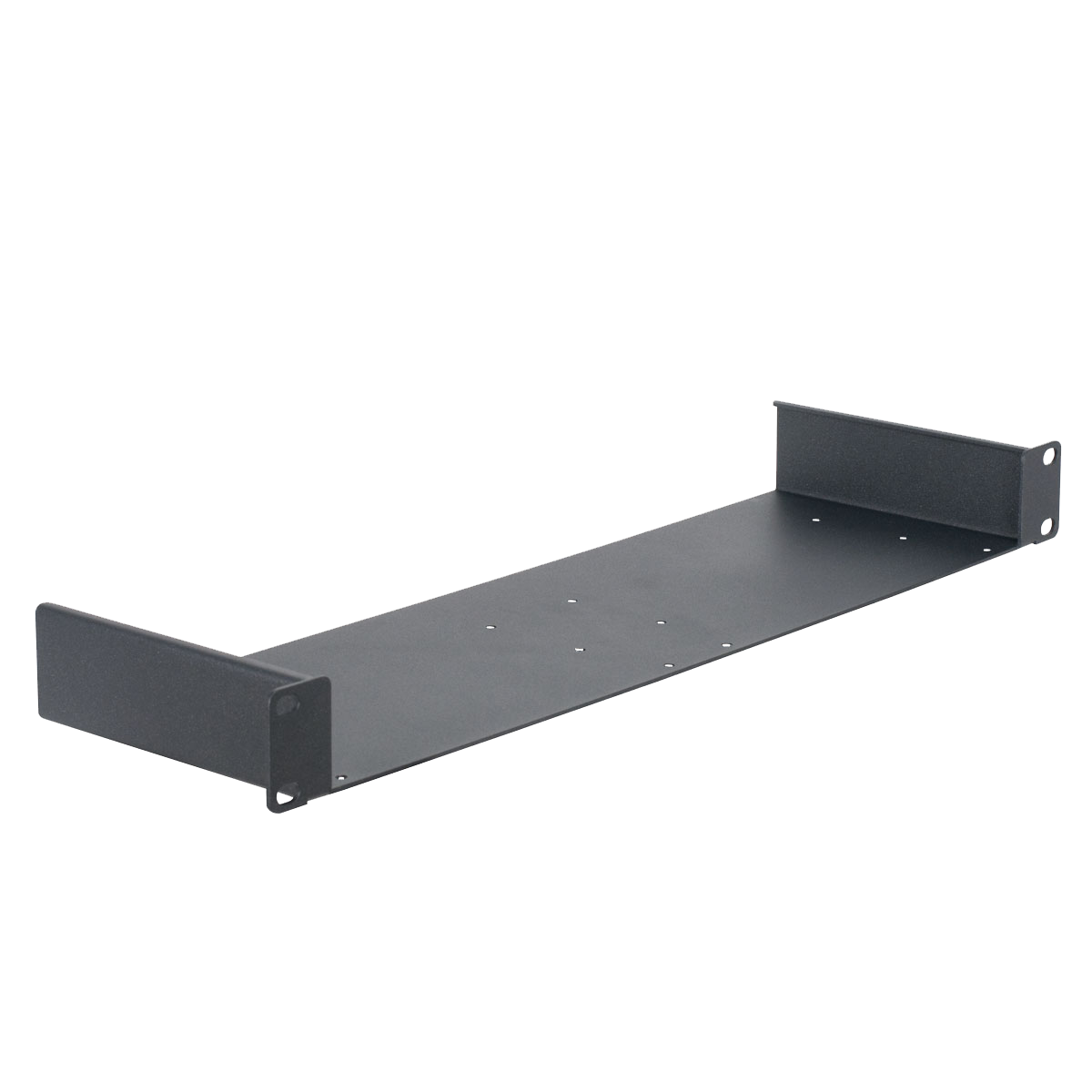

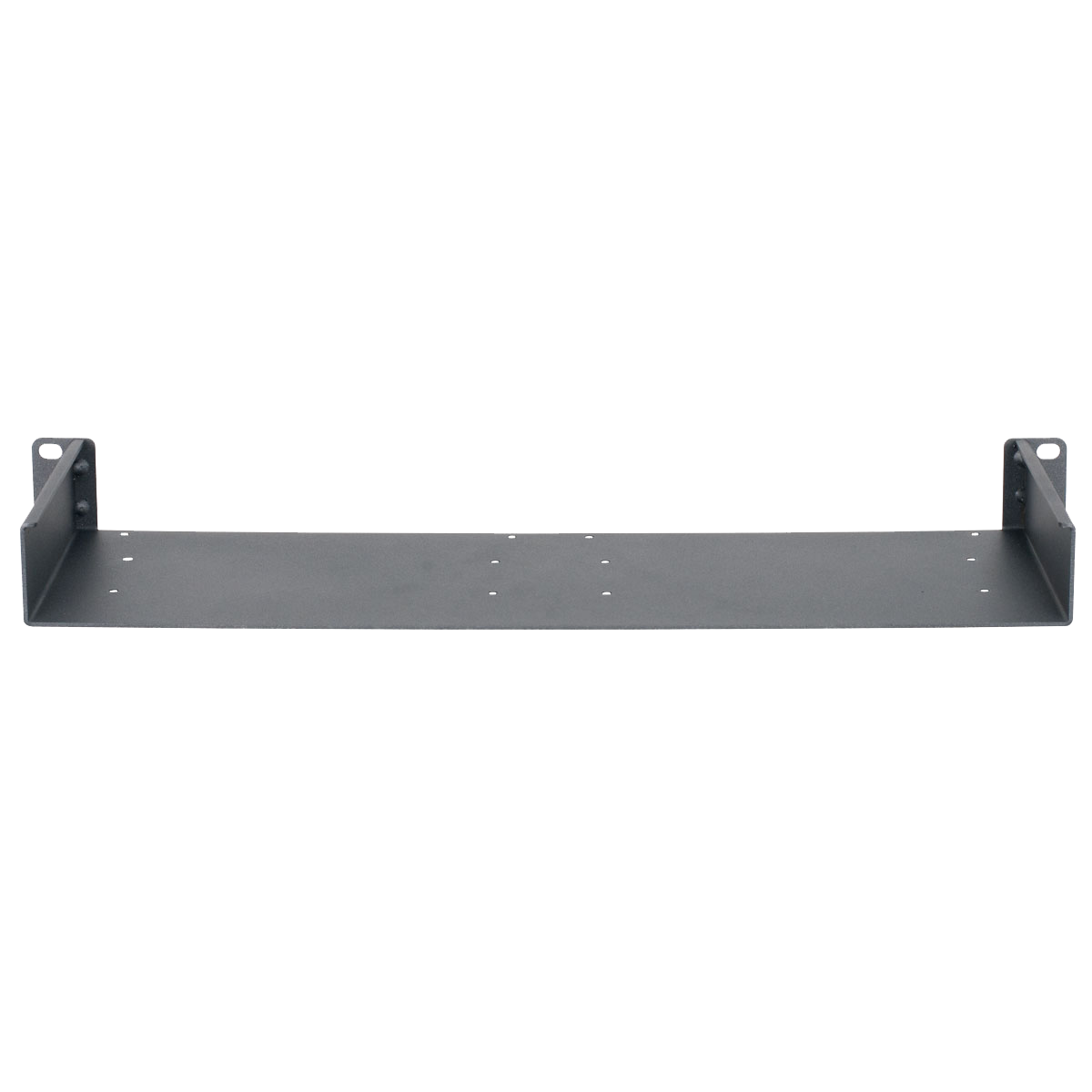

- Rack-mount option (requires NET Shelf)
Connections

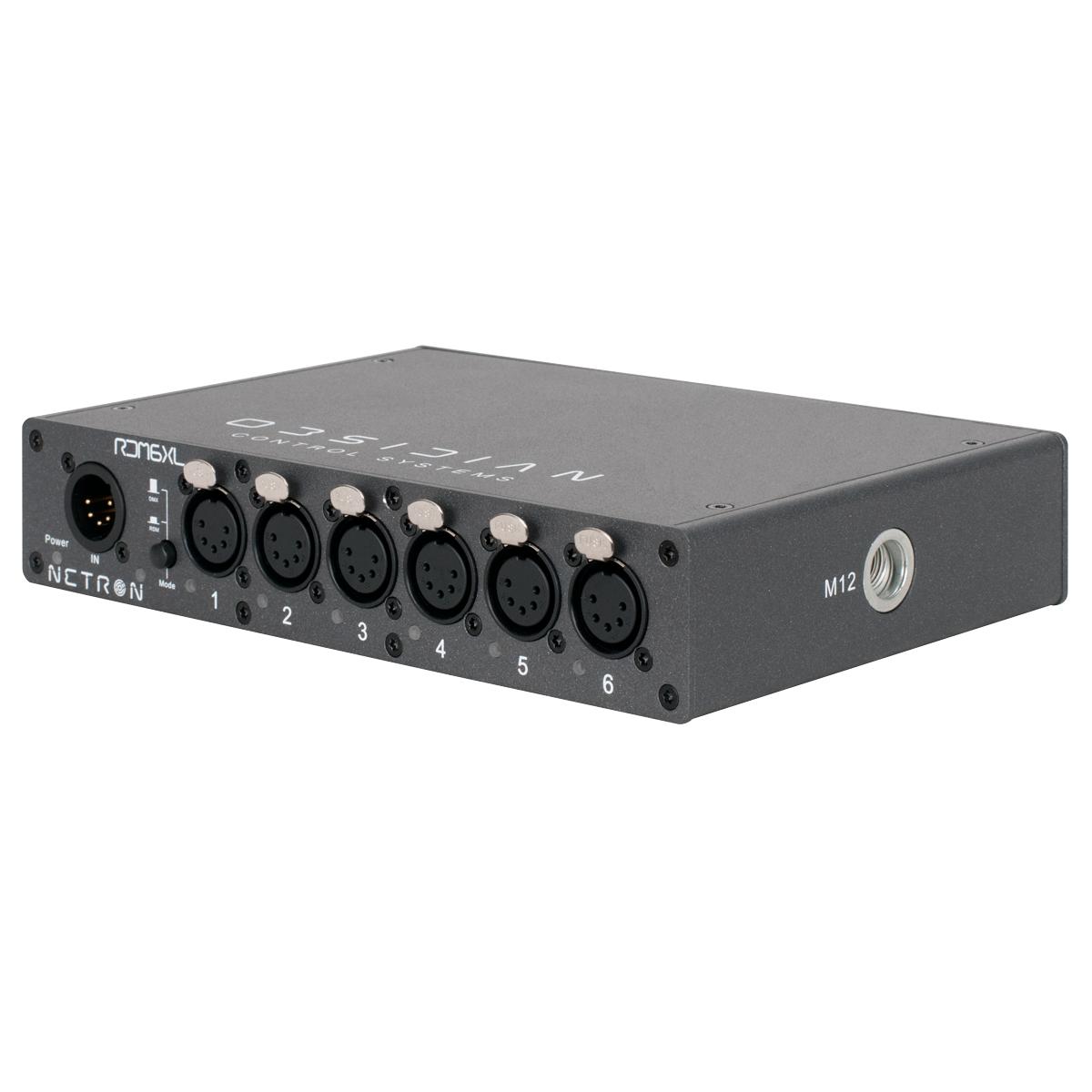

Front
- 5pin DMX Input
- (6) 5pin Opto-Isolated DMX Outputs
- RDM Enable

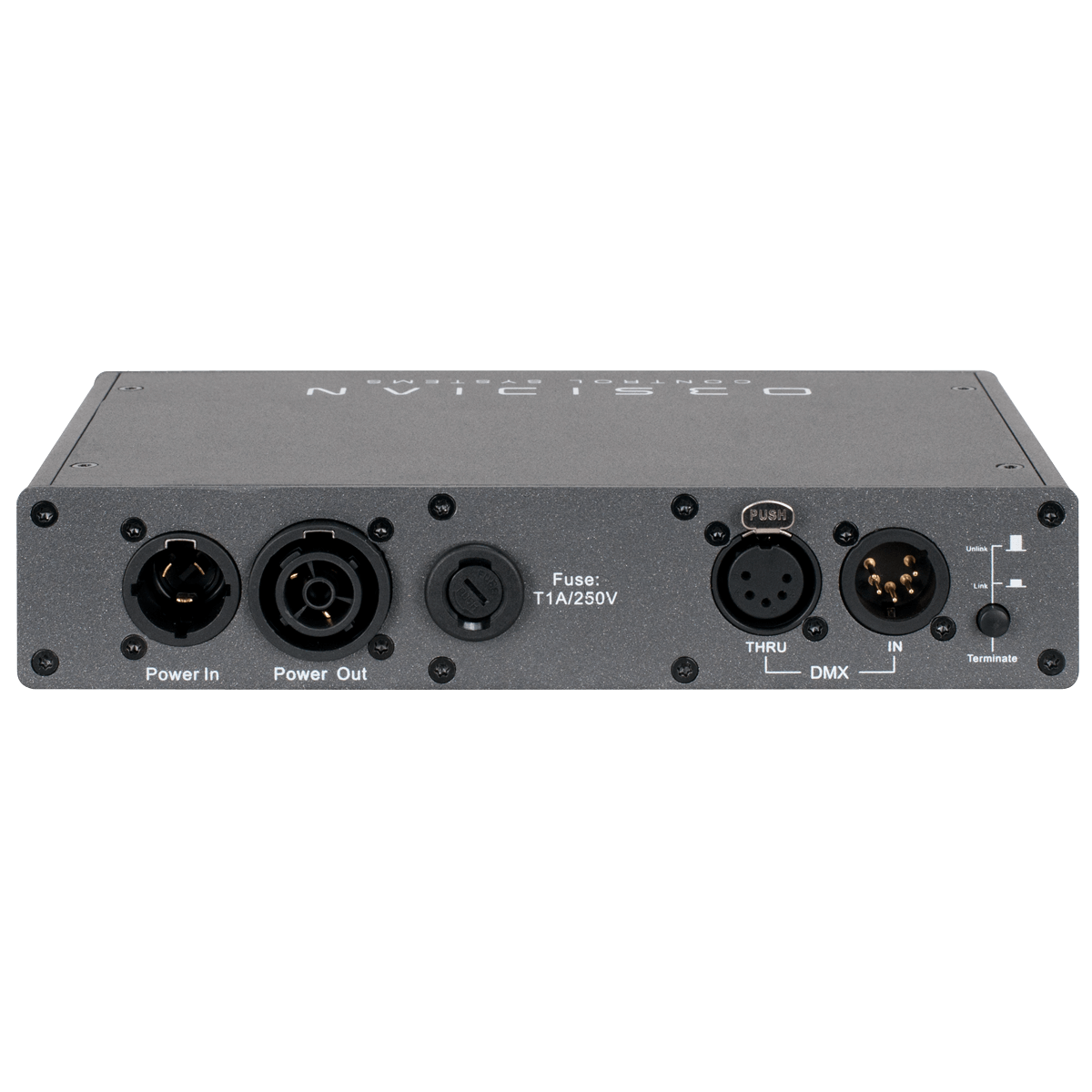

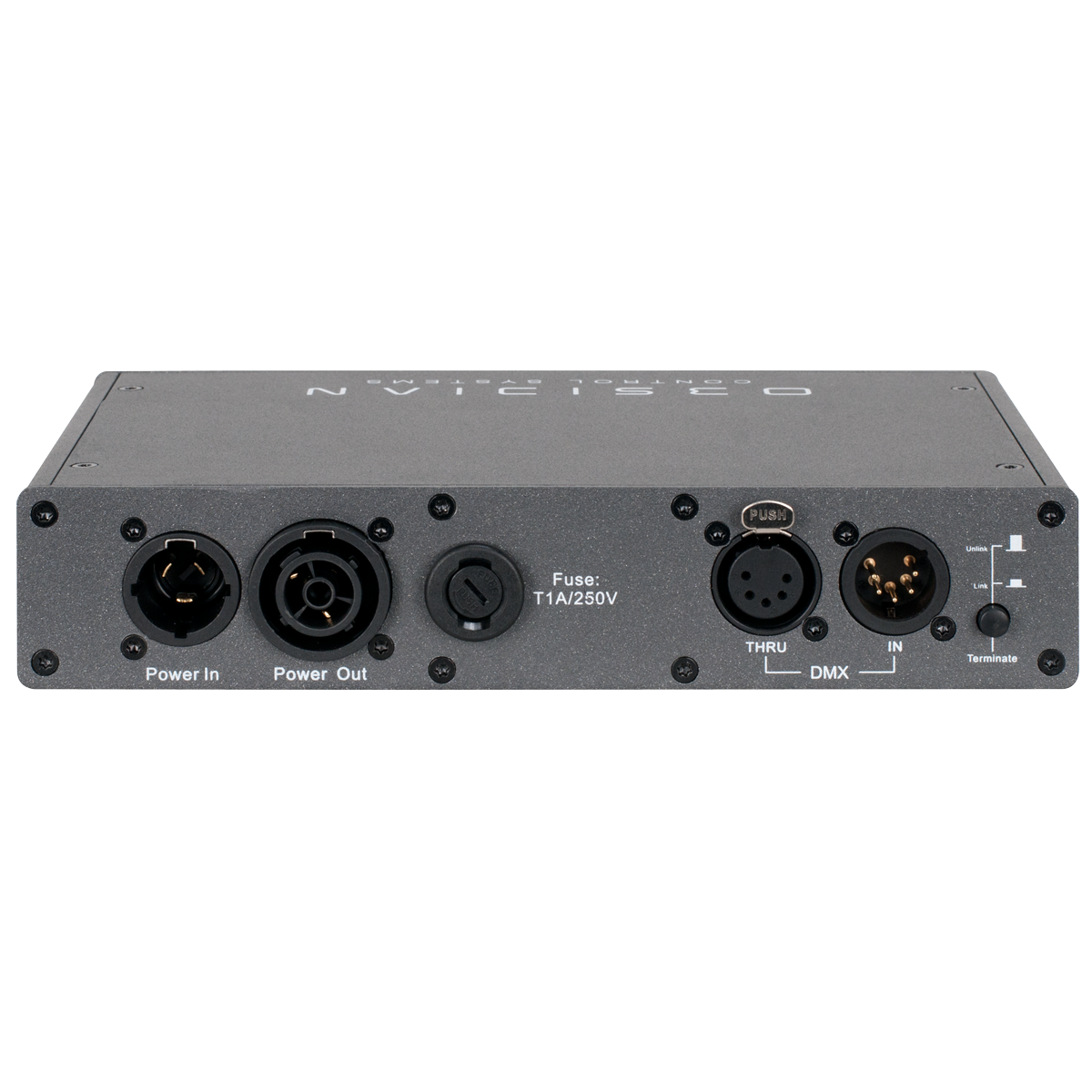

Back
- 5pin DMX Input (parallel with front)
- 5pin DMX Through
- Terminate
- Locking Power In/Thru
Specifications
Physical
- Length: 215 mm (8.5 in.)
- Width: 139 mm (5.5 in.)
- Height: 42 mm (1.65 in.)
- Weight: 1 kg (2.2 lbs)
Electrical
- 100-240 V nominal, 50/60 Hz, 10W
- cETLus / CE / IP20
Ordering
Included Items
- 1.5m Locking power cable (EU or US version)
- (2) Wallmount plates
- (2) DIN-Rail clamps
SKU
- US #: NRD123
- EU #: 1330000061
Downloads
Cad drawing
Installation guide
Specification sheet
