RDMS6
Discontinued
RDMS6 is a professional-grade lighting solution.
RDMS6
Sale price$0.00
RDMS6

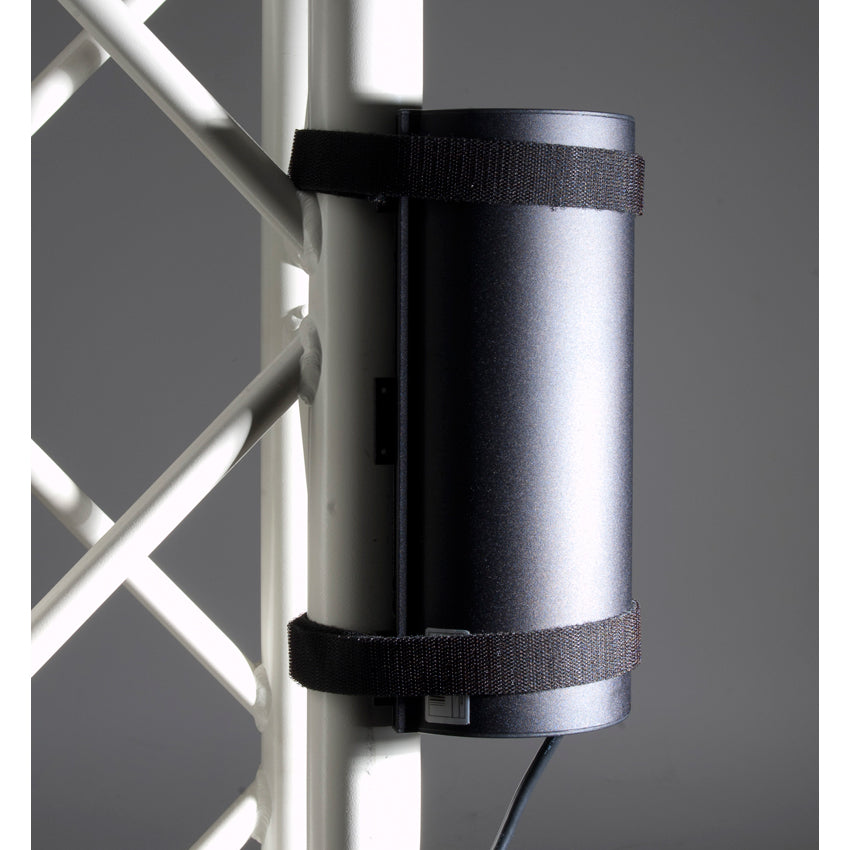

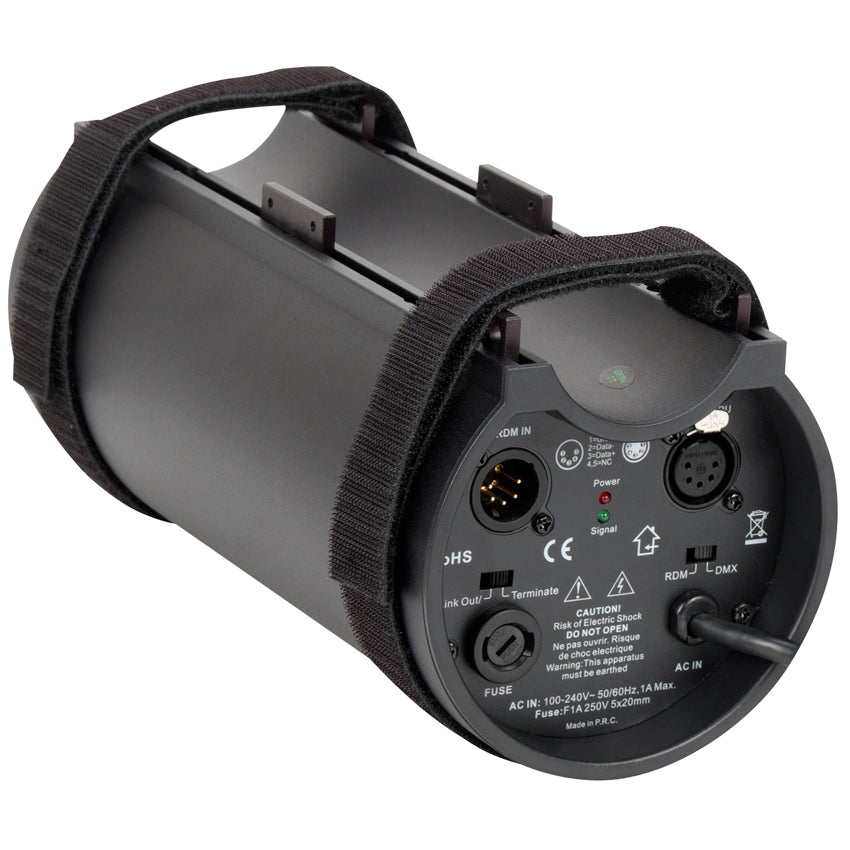

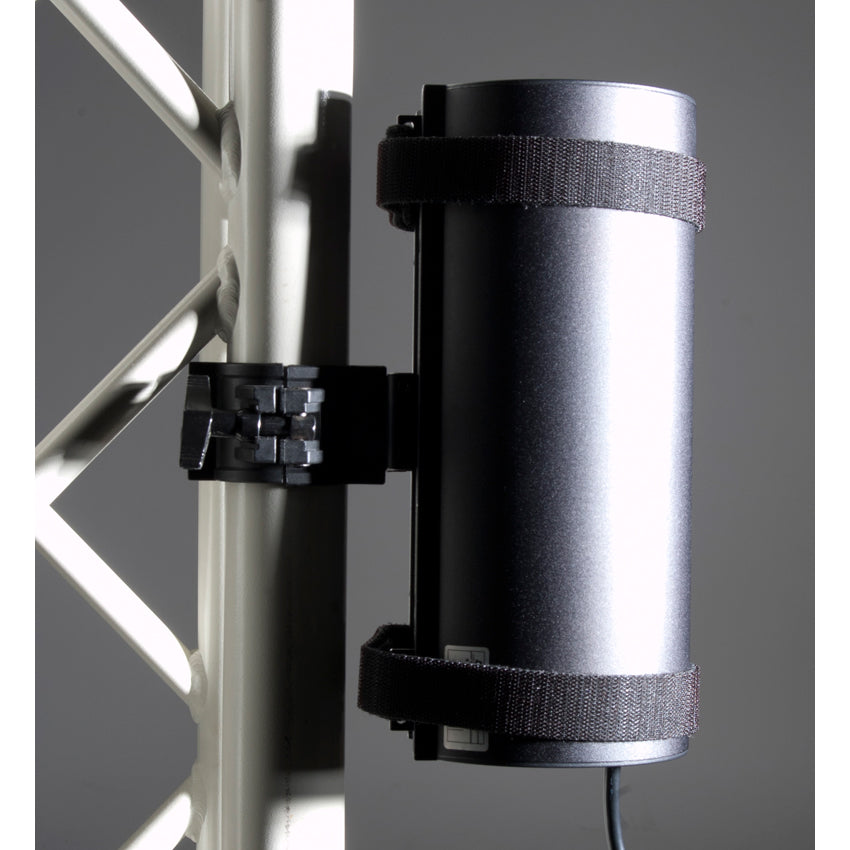

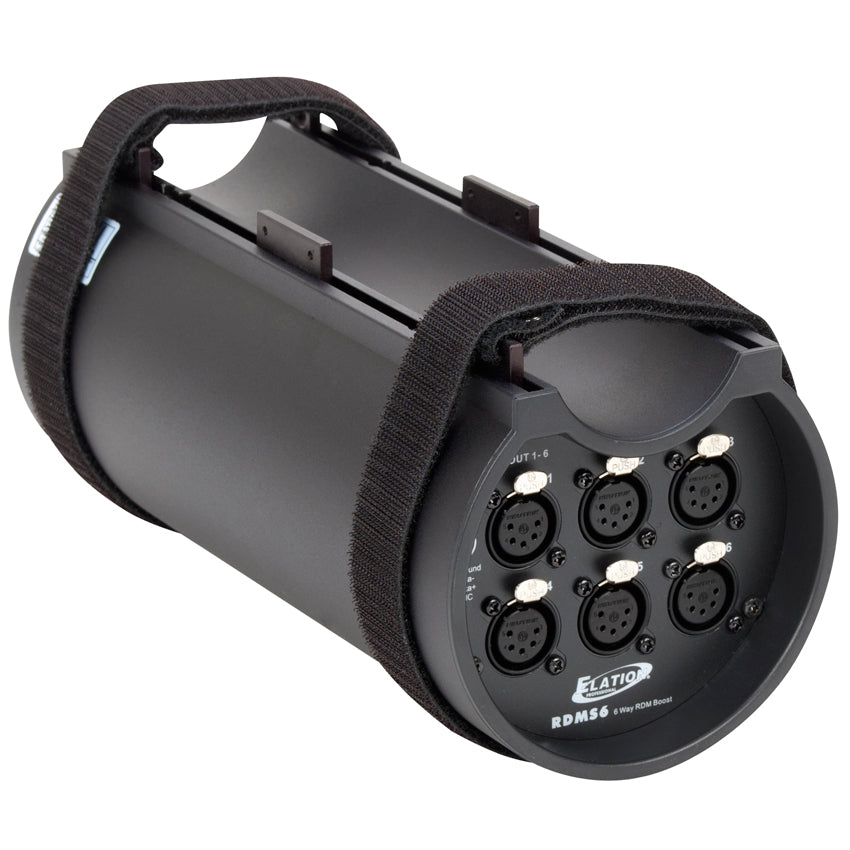

6-way RDM / DMX Truss Mount Data Splitter FEATURES RDM / DMX data splitter Opto and electrical isolation between input and outputs Meets RDM E1.20-2006 & USITT DMX-512 (1990) protocol standards Each output features an independent driver to boost signal Includes 2 hook and loop straps for easy pipe mounting and a Clamp bracket for c-clamp truss mount RDM/DMX switch and Linkout/Terminate switch for easy operation
Specifications
SPECIFICATIONS
POWER INPUT: 100-240VAC, 50/60Hz
FUSE: F1A, 250V , 5x20mm
OUTPUT: 5-pin XLR female socket x 6pcs.
DATA IN amp; THRU: 5-pin XLR connectors
HOUSING: Extruded aluminum
IP RATING: IP 20
CONTROL STANDARD: RDM E1.20-2006 amp; DMX-512 protocols
LISTING: RoHS, CE co mpliant
OPERATING TEMPERATURE: -10degC to +50degC
STORAGE TEMPERATURE: -20degC to +70degC
DIMENSIONS: 264mm x 120mm x 113mm (10.4" x 4.7" x 4.4")
WEIGHT: 0.57kg. (1.3lbs)
OPTIONAL ACCESSORIES:
CLAMPS(click for more info)
PRO CABLES(click for more info)
Specifications and documentation subject to change without notice.
