S-500XL SILENT SNOW MACHINE
S-500XL Silent Snow Machine is a professional-grade lighting solution.
S-500XL SILENT SNOW MACHINE

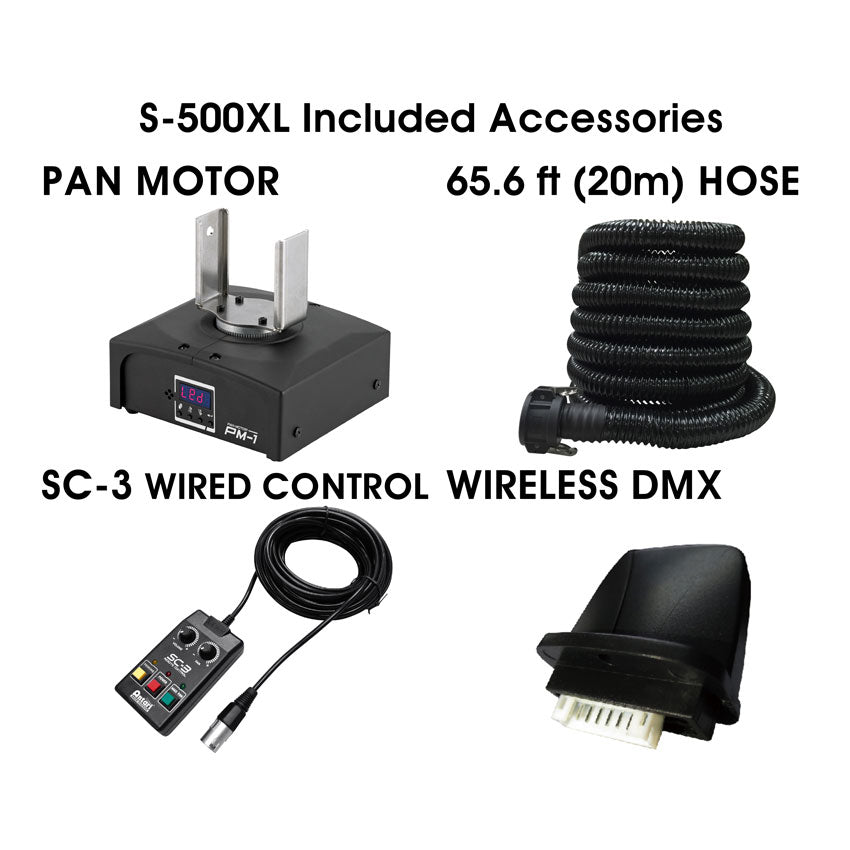

The Antari S-500XL™ is an enhanced version of the S-500 large capacity "œSilent"operation DMX controllable snow machine packaged with the following included accessories:
65.6 ft (20m) Air Hose and Nozzle
Wireless DMX Control
S-3 Wired Remote Control
PM-1 Pan Motor
The Antari S-500XL™, is housed in a durable road case with wheels and features a 5.2 gallon (20 Liter) capacity fluid tank, a 65.6 foot (20 meter) long air hose for easy rigging on a stand or truss, and adjustable wind volume and flow rates. The road case features a small access door for the air hose so can the case can closed when in use for "Silent" operation.
- S-500 packaged with the following included accessories:
- 65.6 ft (20m) Air Hose and Nozzle
- Wireless DMX Control
- S-3 Wired Remote Control
- PM-1 Pan Motor
Specifications
400 ml / min
TANK CAPACITY
5.2 gal (20 Liter)
WORKING NOISE LEVEL
66 db Full On @ 3.3 ft (1m)
CONTROL / CONNECTIONS
Wired Remote and Wireless DMX
(2) DMX Channel Modes (1 / 2)
3pin/5pin XLR In/Out
powerCON In
SIZE / WEIGHT
Length: 22.3” (592mm)
Width: 21.7” (551mm)
Vertical Height: 25.6” (651mm)
Weight: 82 lbs. (37.2 kg)
ELECTRICAL
AC120V / 60Hz
1,200W Max Power Consumption
INCLUDED ITEMS
powerCON Cable
5.2 gallon (20 Liter) Fluid Tank and Feed Tube
65.6 ft (20m) Air Hose and Nozzle
Wireless DMX Control
S-3 Wired Remote Control
PM-1 Pan Motor
PM-1 PAN MOTOR SPECIFICATIONS
120 Degree Pan Movement | LED Control Display with 4 Buttons
Metal Chassis with Plastic Cover
CONTROL / CONNECTIONS
(2) DMX Channels | 3pin XLR DMX In/Out
INCLUDED ITEMS
Motor, Power Cord, Omega Bracket (for clamp mounting)
SIZE / WEIGHT
Length: 6.7” (169mm)
Width: 6.1” (154mm)
Vertical Height: 5.9” (151mm)
Weight: 4 lbs. (1.8 kg)
ELECTRICAL
AC120-240V 50/60Hz
11W Max Power Consumption
OPTIONAL ACCESSORIES
Wireless Remote Control Add On Kit - SKU# WTR-20
Specifications and documentation subject to change without notice.
