SATURA SPOT CMY PRO
Satura Spot CMY PRO is a professional-grade lighting solution.
SATURA SPOT CMY PRO

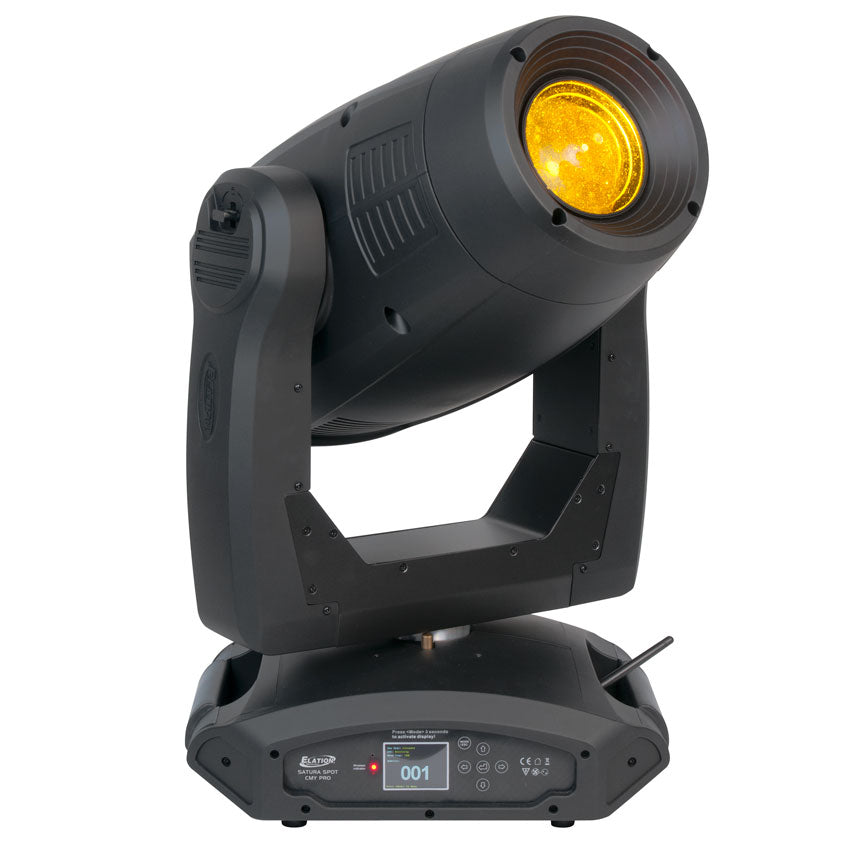

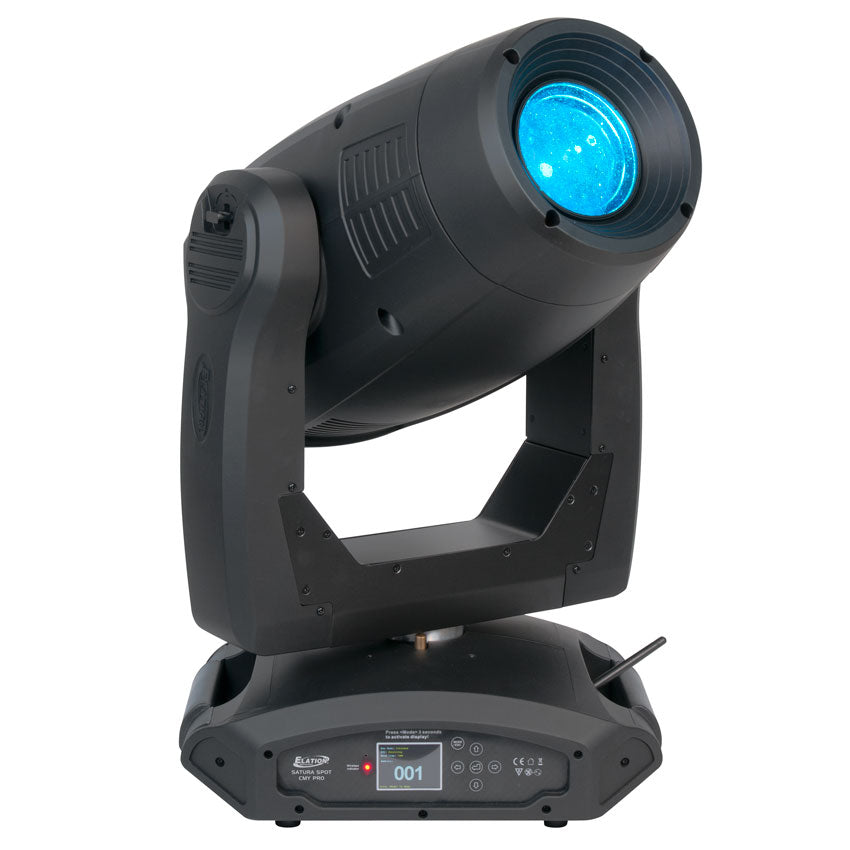

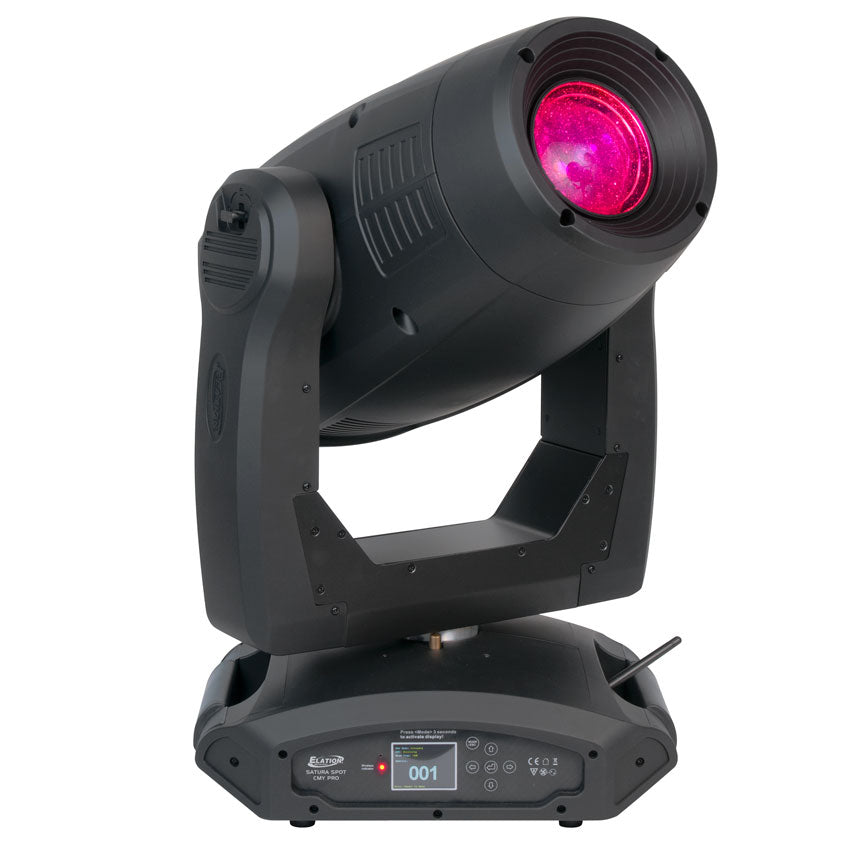

The Satura Spot CMY™ is a high powered LED spot luminaire featuring a 320W LED engine delivering comparable color output to a 575W fixture, 11,700 total lumens output, 14° to 36° motorized zoom, CMY color mixing, 7 dichroic colors, 6 rotating interchangeable and 7 static-stamped gobos, 5 variable dimming curve modes, zoom, focus, and iris, 3-facet rotating prism, Art-NET (DMX over Ethernet) support, 3 and 5 pin DMX, EtherCON (RJ45) in/out, and powerCON connections, an internal EWDMX wireless DMX receiver, (6) button control full color 180° reversible menu display, 500W max power consumption, and a multi-voltage universal auto switching power supply (100-204v).
- 14° - 36° High Powered 320W LED Spot Luminaire
- Comparable Color Output to a 575W Fixture
- CMY Color Mixing and CTO Color Correction
- Art-NET (DMX Over Ethernet) Support
- Internal EWDMX Wireless DMX Receiver
- Flicker Free Operation For Broadcast TV and FILM
Specifications
320W LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
11,700 Total Lumens, 8,000K
27,430 LUX 2,548 FC @8.2rsquo; (2.5m) (14deg; Zoom Full ON)
4,735 LUX 440 FC @8.2rsquo; (2.5m) (36deg; Zoom Full ON)
EFFECTS
Frost Filter
3-Facet Rotating Prism
Iris: 5% - 100%
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curve Modes
COLOR
7 Dichroic Colors + White (Open)
CMY Color Mixing + CTO
GOBOS
2 Gobo Wheels
6 Interchangeable / Rotating / Indexing Gobos
7 Static-Stamped / Indexing Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (22 / 24 / 33)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180deg; Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

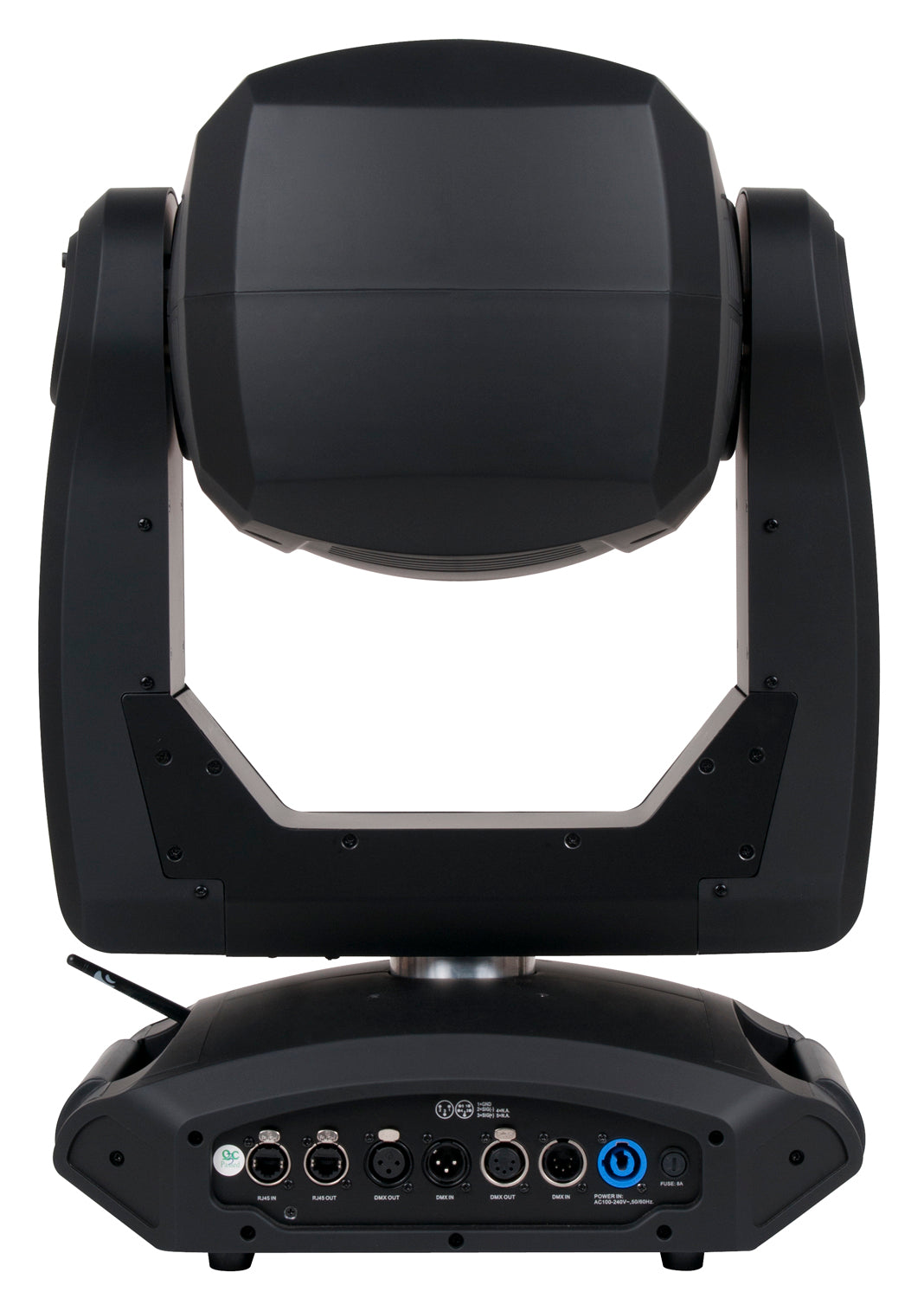

3pin amp; 5pin DMX In/Out
etherCON (RJ45) In/Out (Art-NET)
powerCON Power In
SIZE / WEIGHT
Length: 20.0" (508mm)
Width: 16.9" (430mm)
Vertical Height: 28.6" (727mm)
Weight: 66.1 lbs. (30 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
-13deg;F to 113deg;F (-25deg;C to 45deg;C)
APPROVALS / RATINGS
CE | IP20
INCLUDED ITEMS
(2) Omega Brackets
(1) 3pin DMX Cable
(1) Safety Cable
(1) powerCON Cable
Specifications and documentation subject to change without notice.
