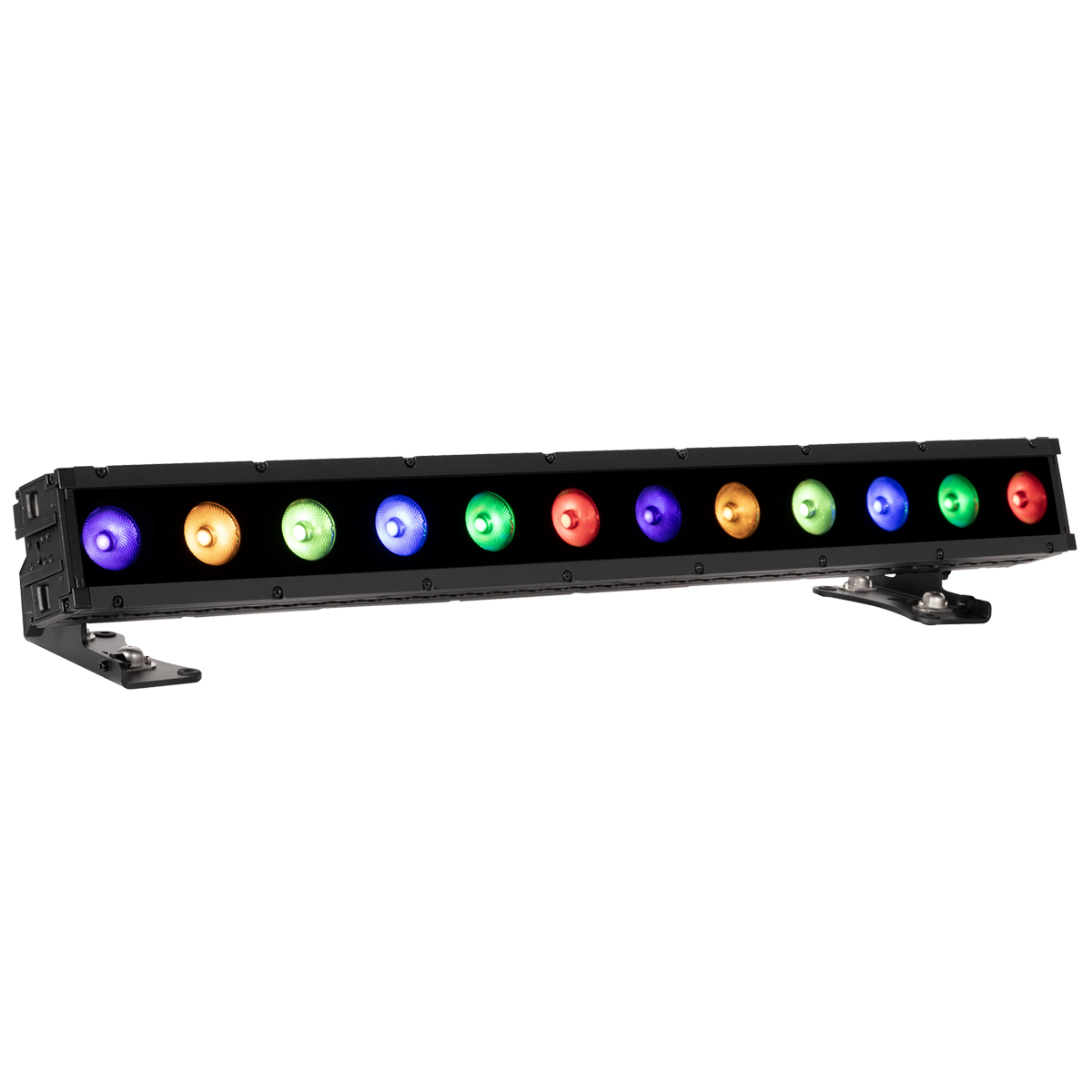

SIX+ BAR L

Unleash the full potential of LED batten lighting and ignite your creative spark with the new SIX+ BAR L!

The SIX+ BAR L represents an innovative line of creative LED batten solutions that harmonizes the latest in LED color technology with versatile design for greater artistic expression. An upgrade of Elation's beloved SixBar 1000, the SIX+ BAR L raises the bar with more output, a broader color spectrum and an overall superior quality of light.

Equipped with 20W RGB+Lime+Amber+UV LEDs and boasting an impressive CRI of 92.3, the SIX+ BAR L offers a stunning array of colors, ensuring a beautifully homogenized wash of light with high-quality color reproduction. Its meticulously engineered optical system ensures even light distribution, and the proprietary RGBLA+UV engine delivers high-fidelity whites and intense primaries with homogenized color blending. Extra-large 50 mm lenses make it ideal for direct view applications and individual cell control opens up for a myriad of design possibilities.

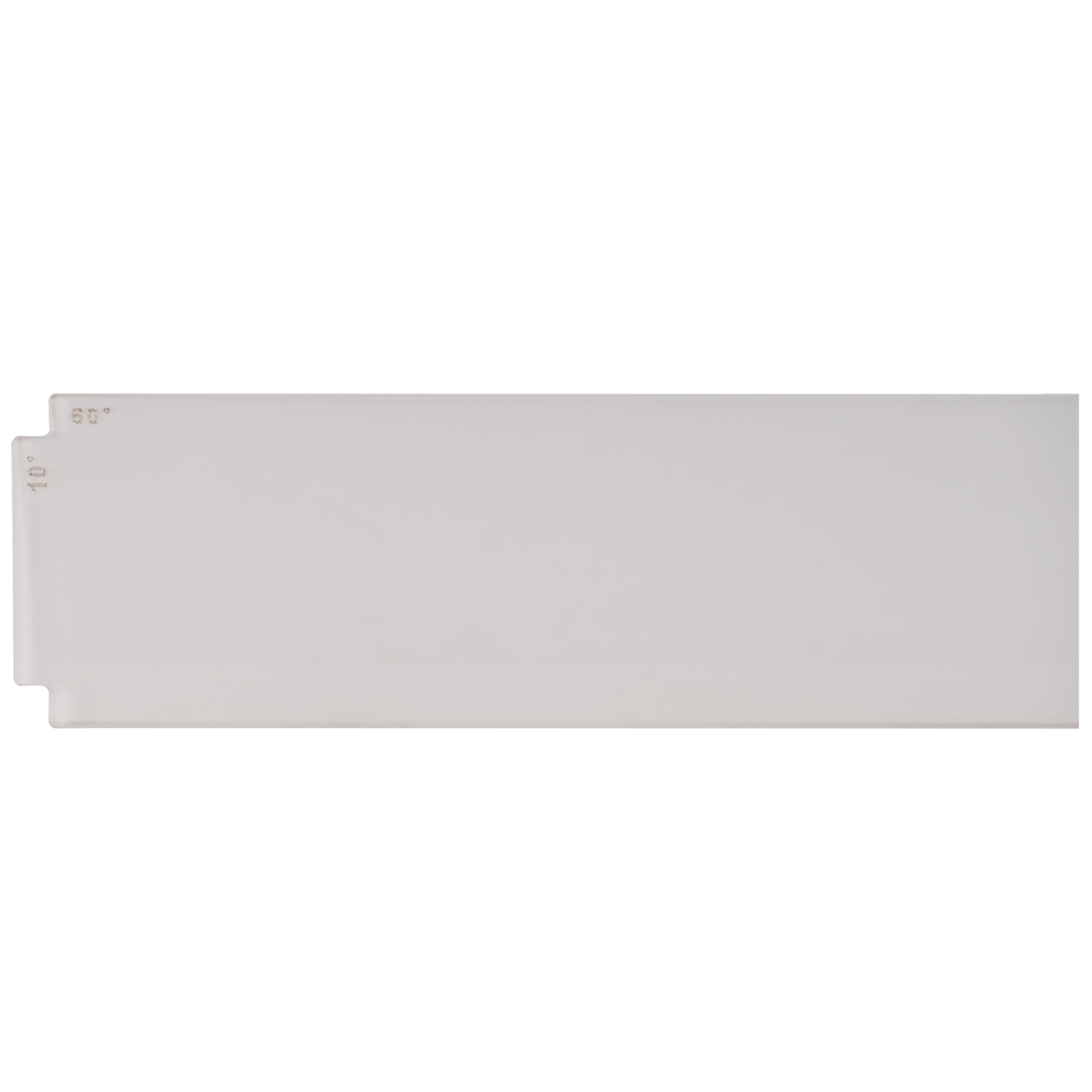

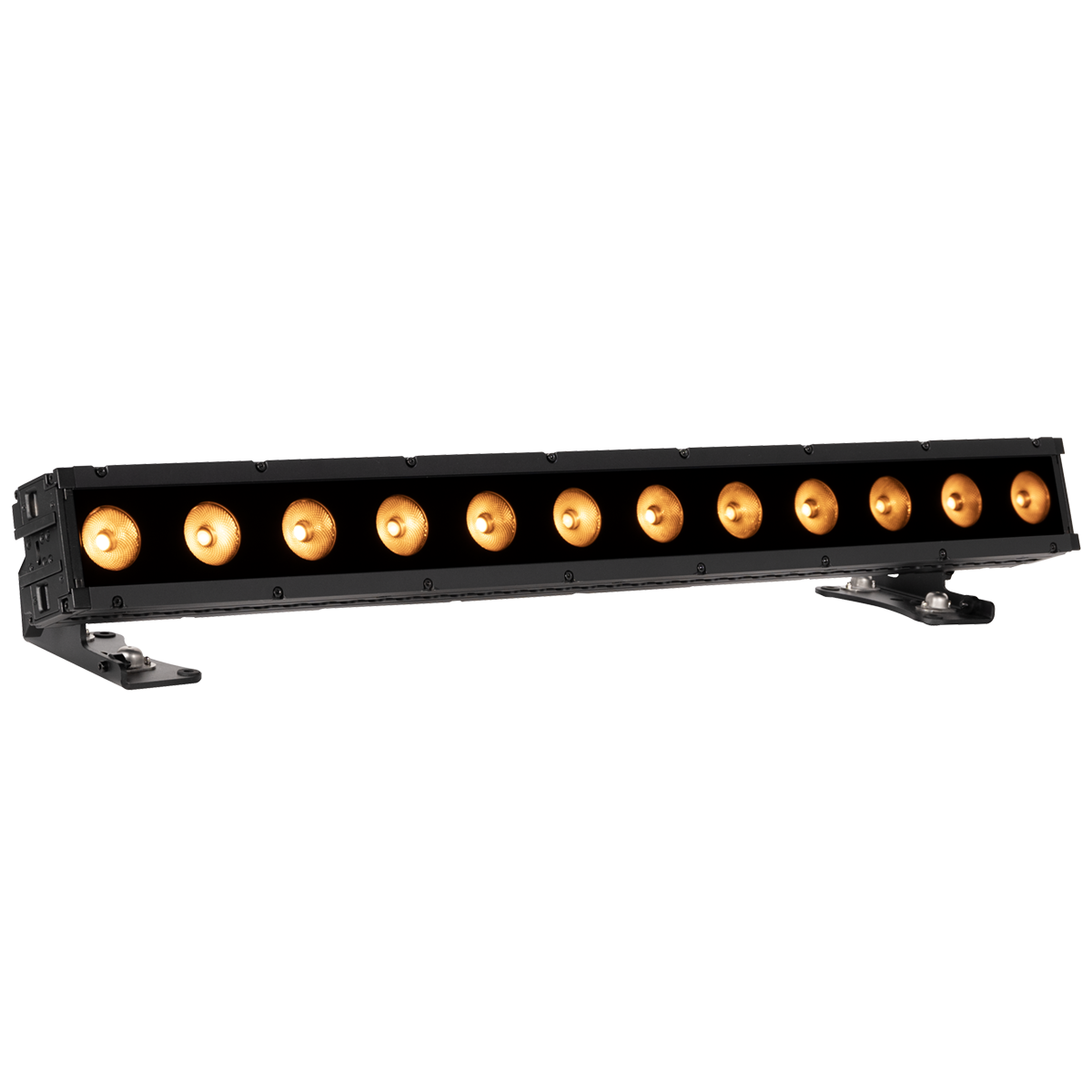

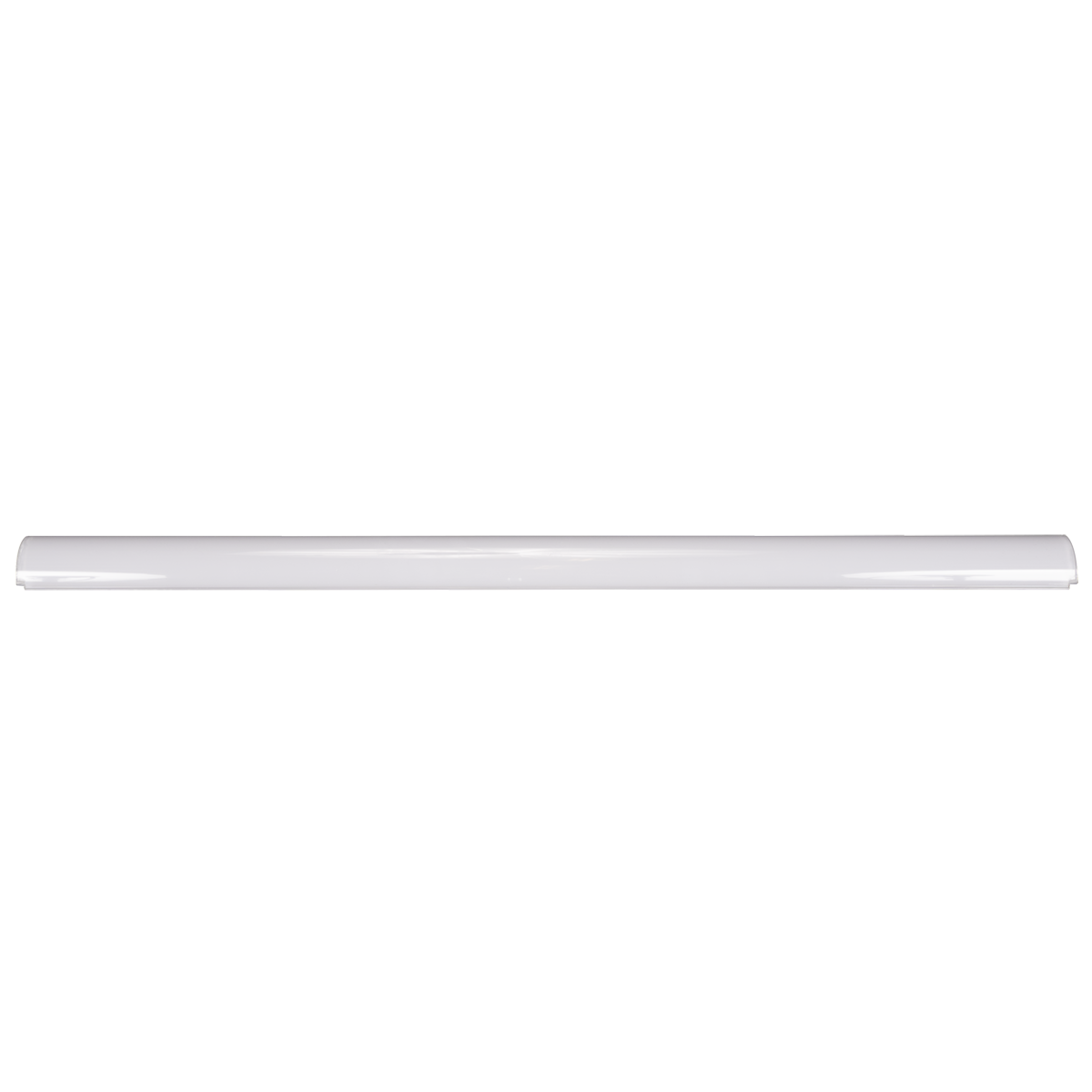

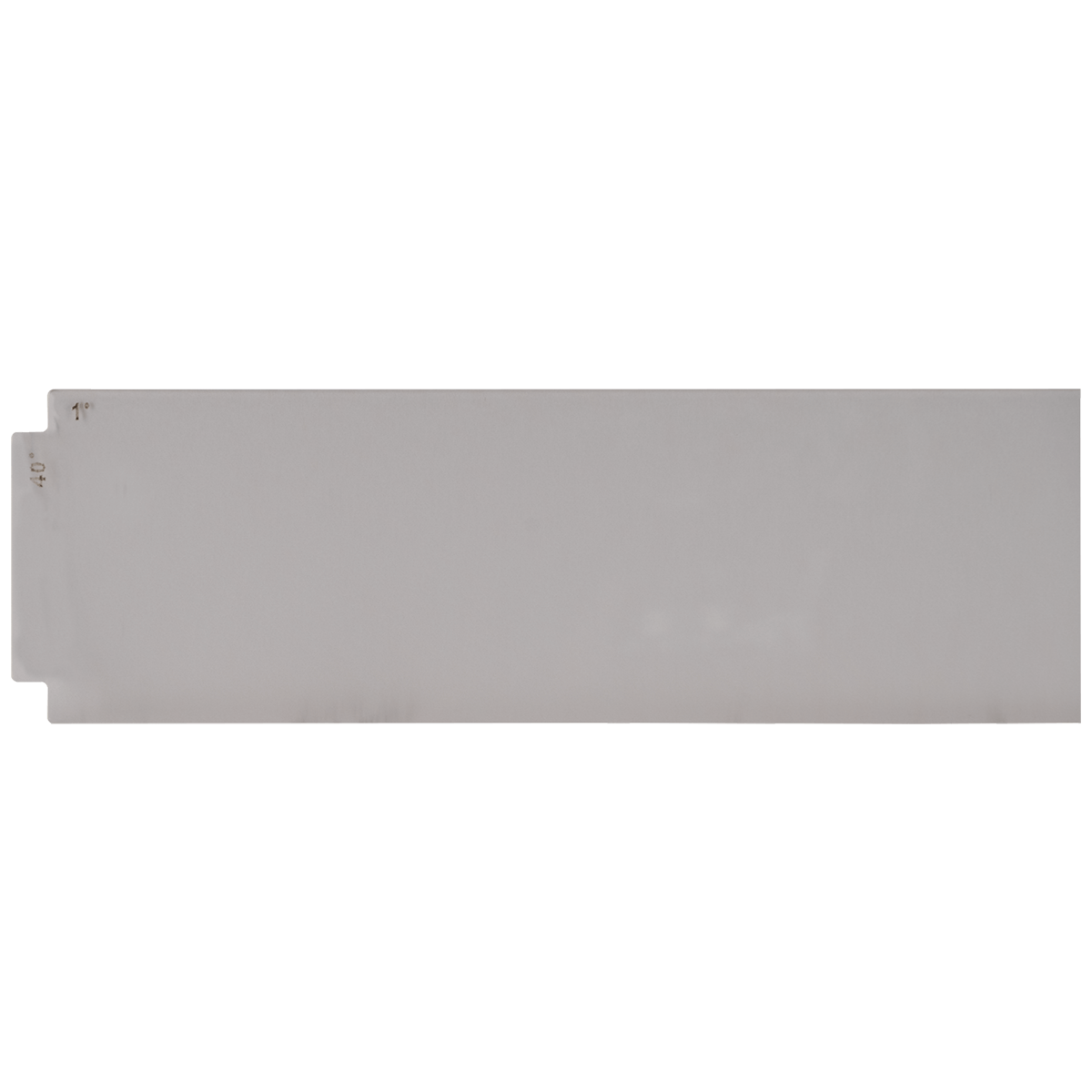

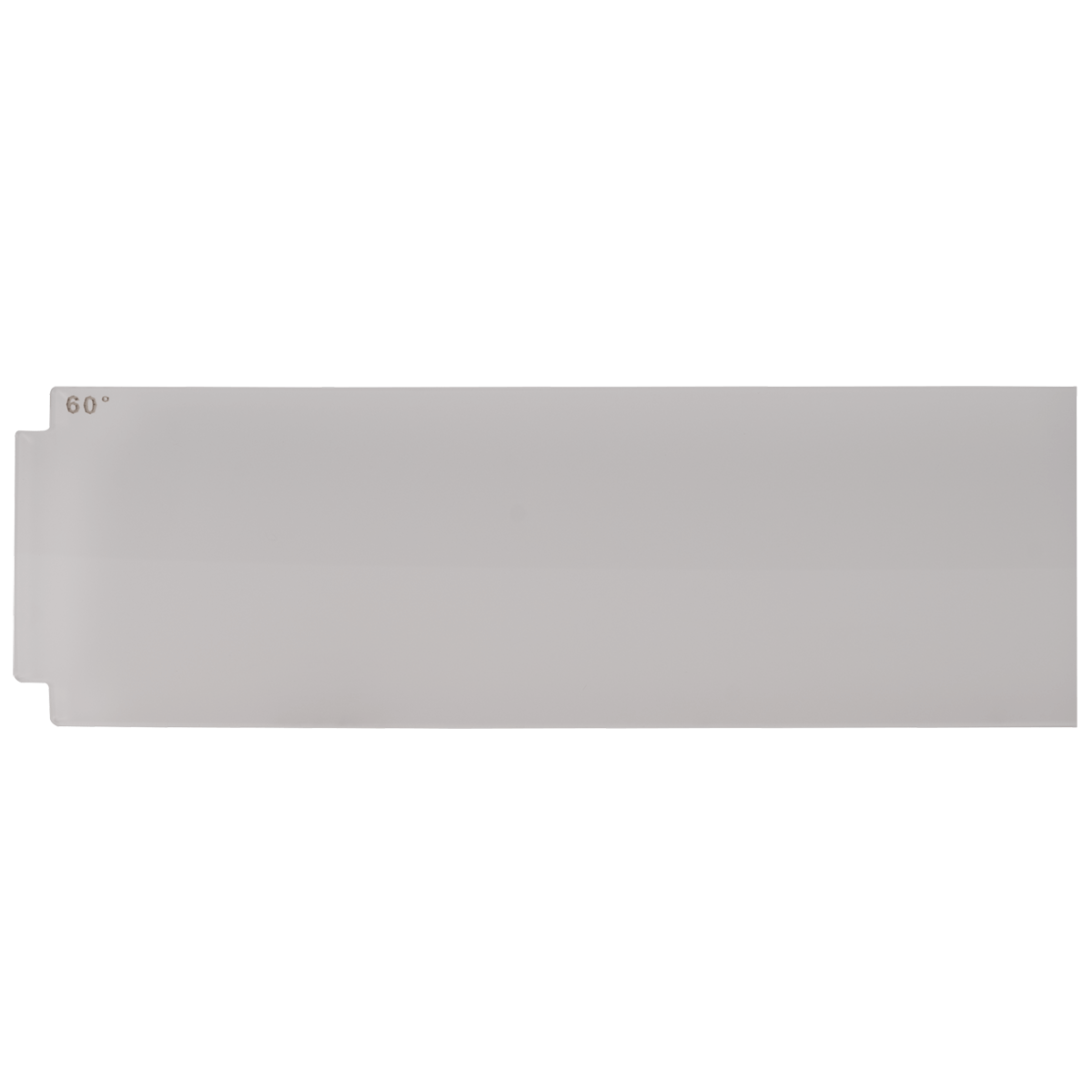

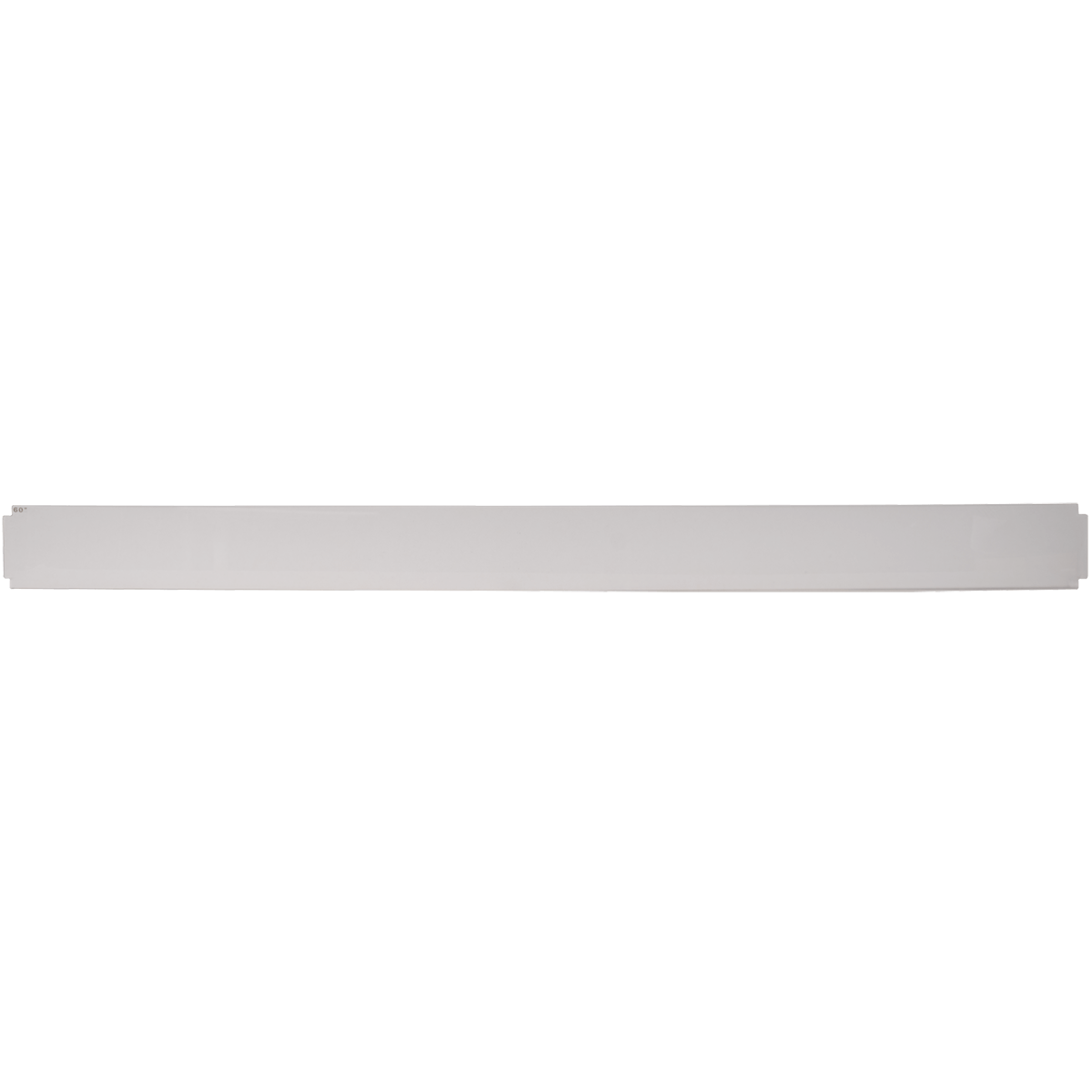

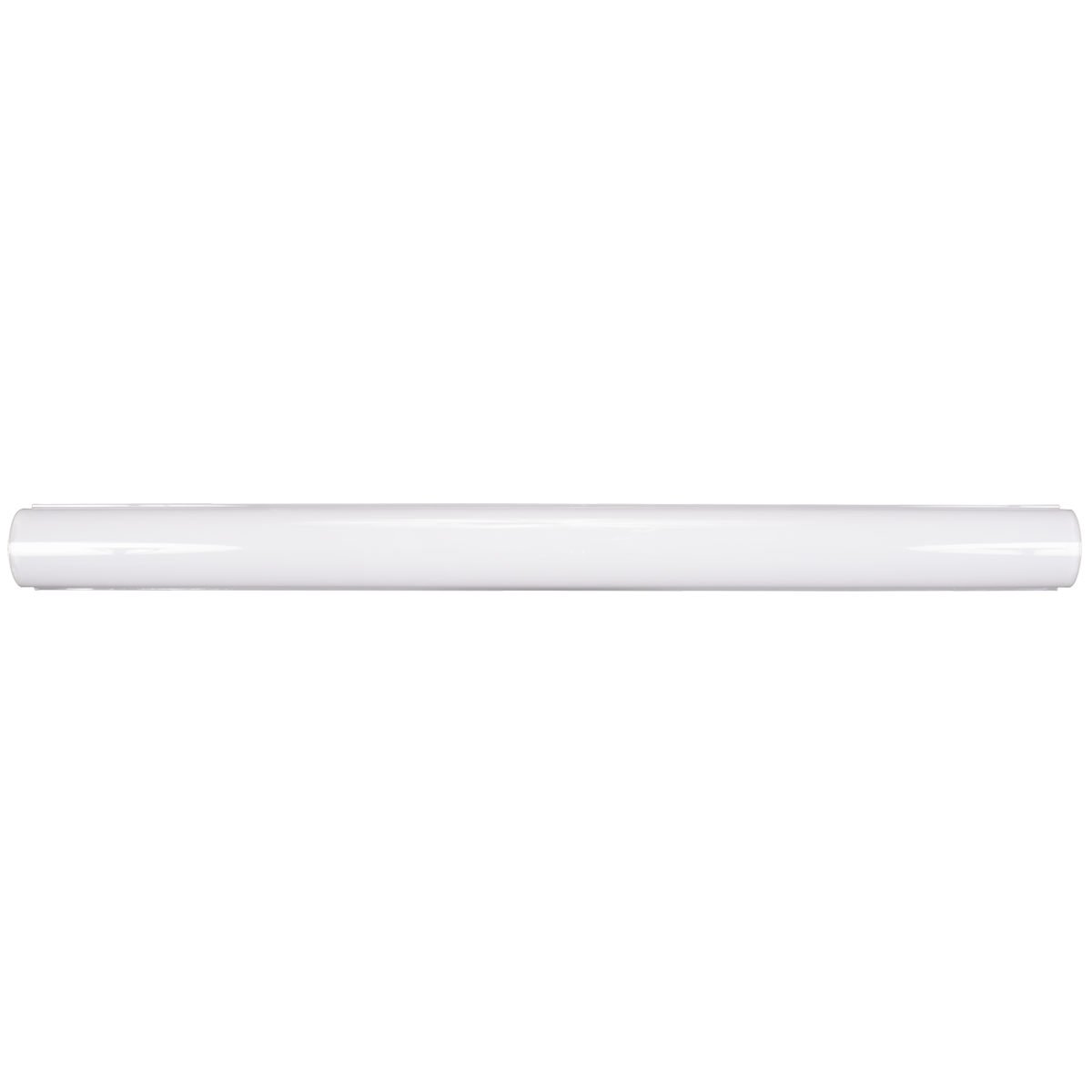

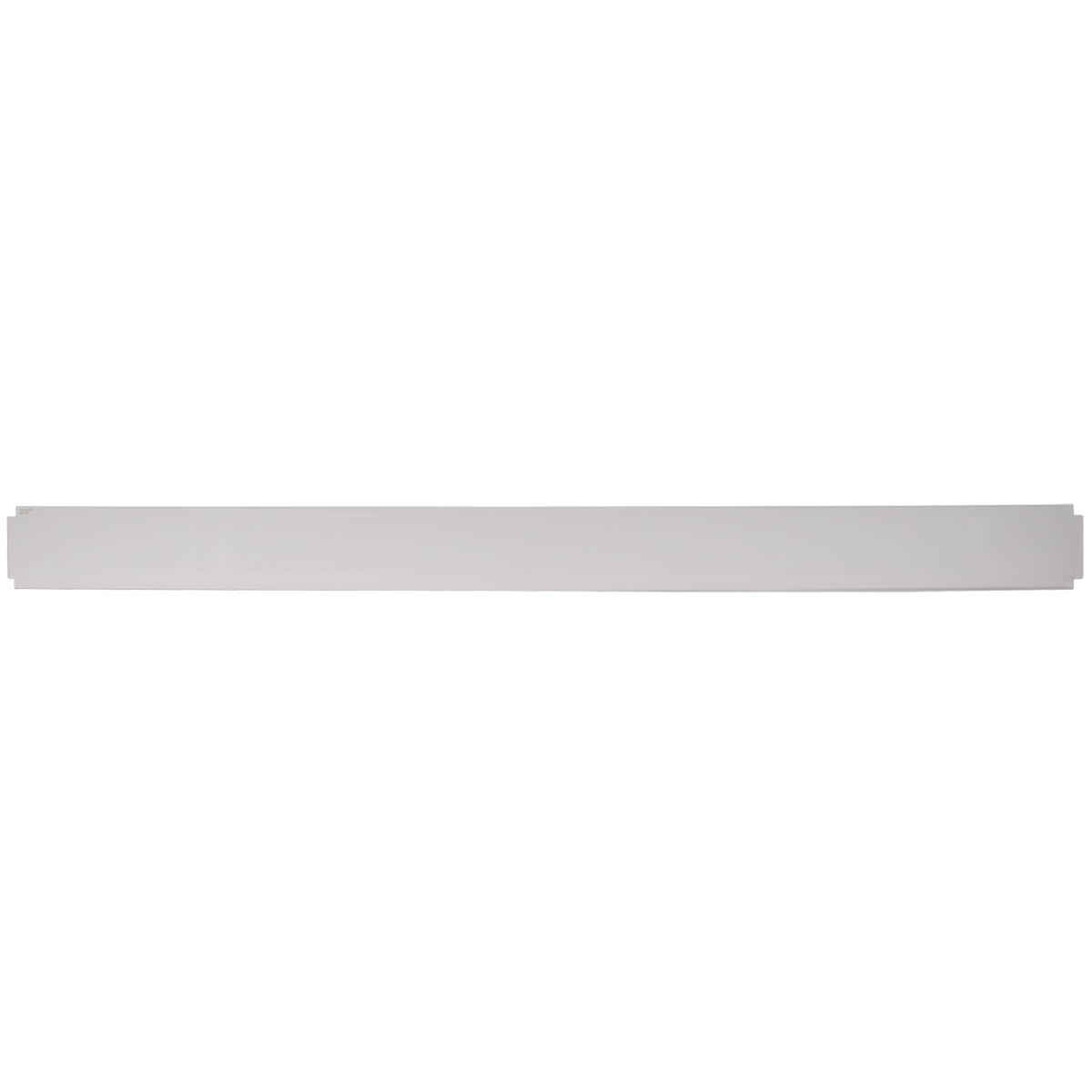

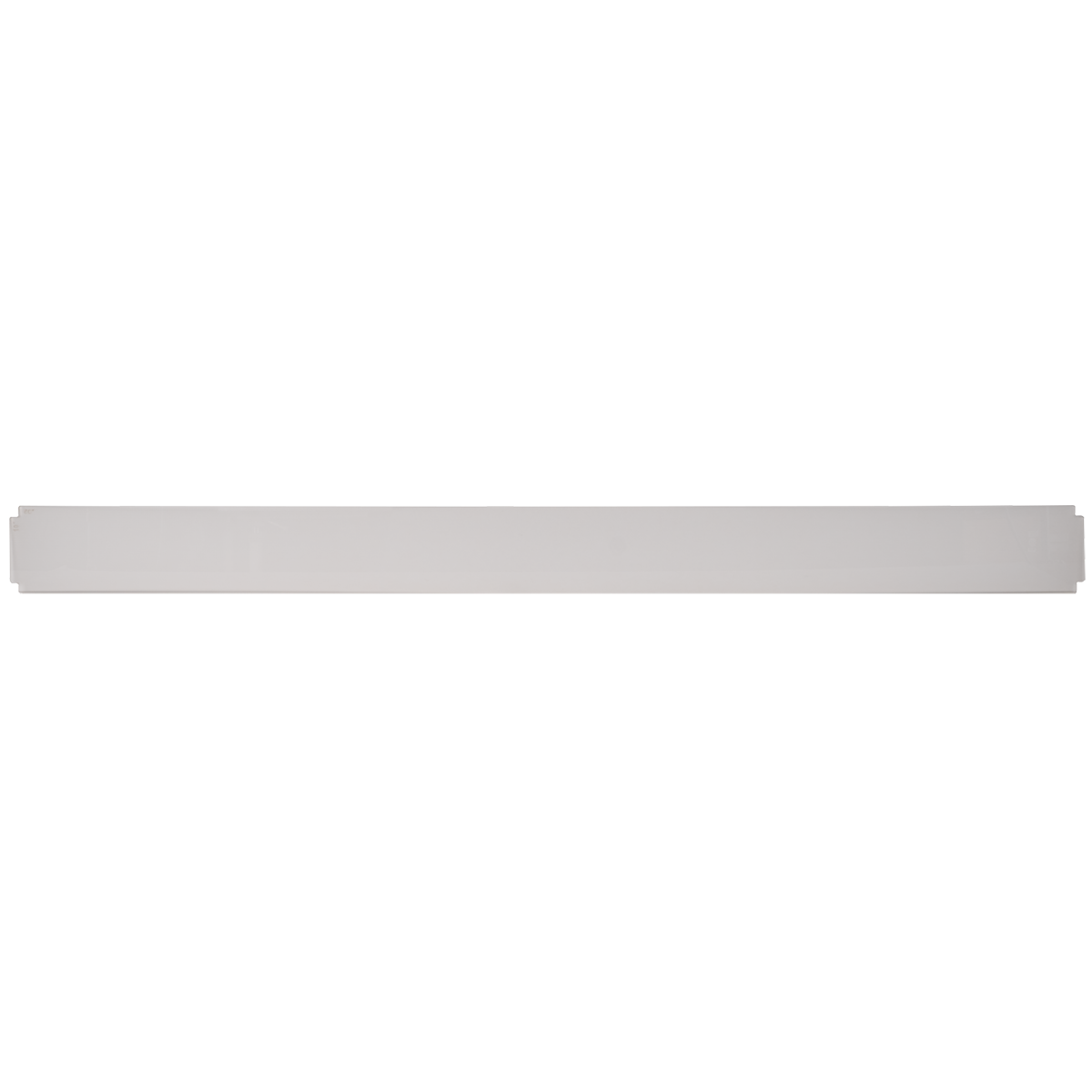

The meter-long SIX+ BAR L houses 12 RGBLA+UV LEDs and packs a punch at over 9000 lumens. With fully variable color temperature adjustment (2400K - 8500K), CMY emulation, and a virtual gel library, designers have immediate access to a diverse LED color array, including beautifully mixed whites. A time-efficient SixBar emulation mode ensures perfect color matching and DMX control with existing SixBar fixtures. The integrated accessory slot accommodates the included frost filter, with optional ND filters and other optics available. The fixture also ships with an included glare shield for wall wash applications.

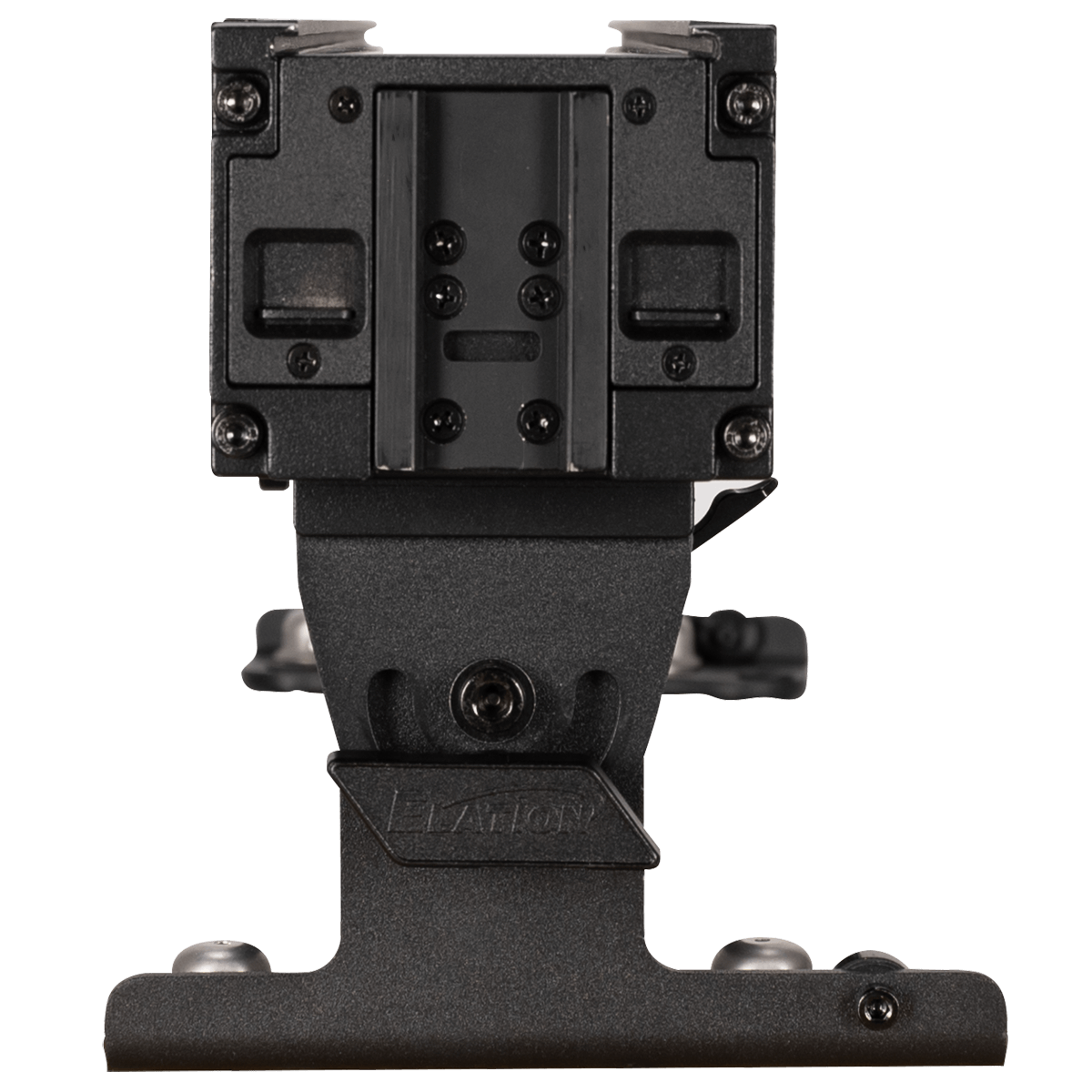

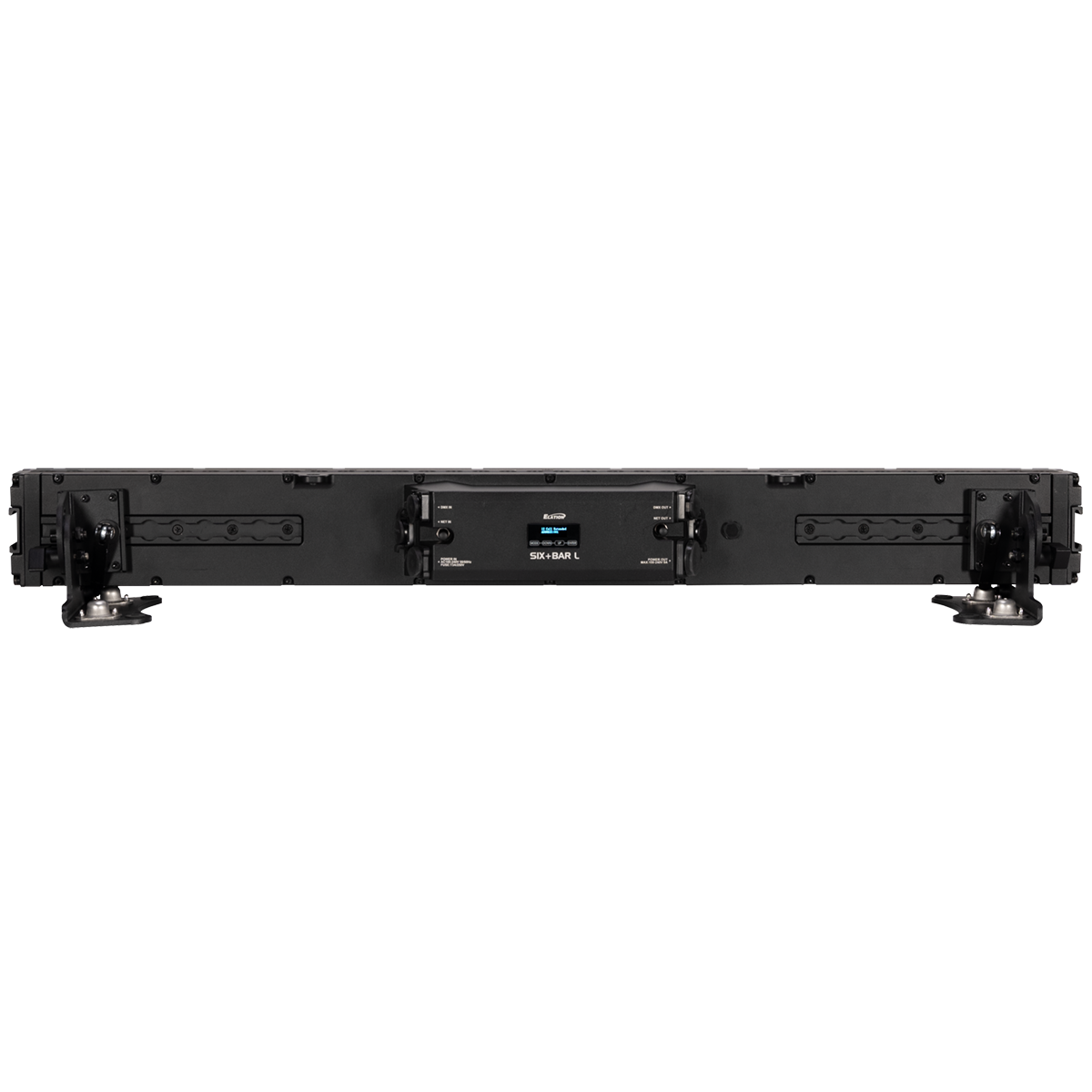

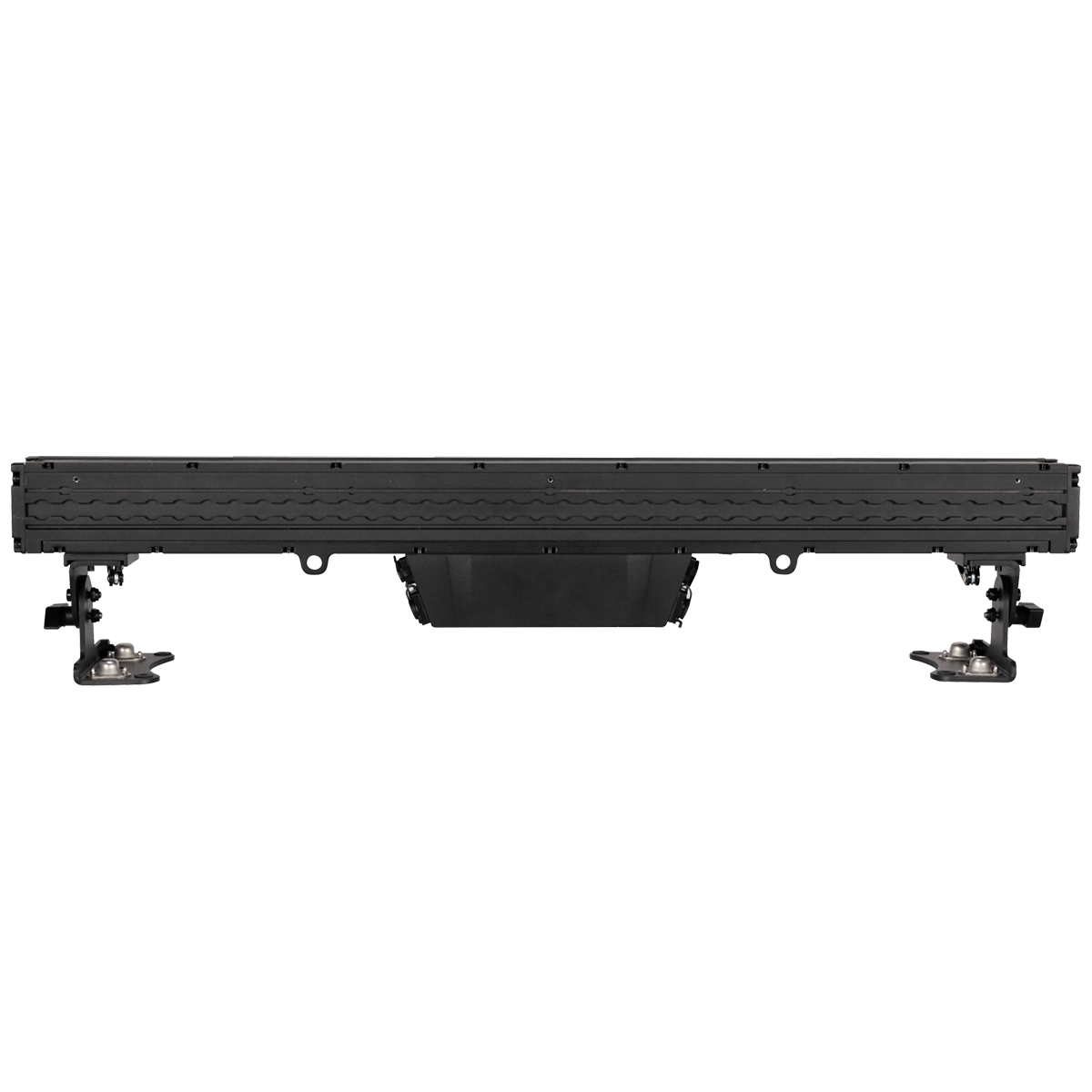

Designed for ultimate flexibility, the SIX+ BAR L's innovative housing allows for end-to-end interconnection and includes integrated L track on three sides for flexible mounting and positioning. Trunnions designed for attachment to the L track can be fixed at multiple points to optimize positioning around objects or obstacles.

Ideal for a large variety of productions and easily integrated into installation applications, the SIX+ BAR L serves as a highly versatile wash light, uplight, wall/cyc wash, accent light, direct view pixel strip and more. Wrapped in a durable, fully IP65-rated housing, the fixture is suitable for any environment, indoors or outdoors, and the C4-M marine grade coating ensures protection against the harshest environments, even salty coastal air. Its fanless convection cooling guarantees silent operation, making it ideal for noise-sensitive environments.

Controllable via DMX/RDM, Art-Net, sACN, and KlingNet protocols, the SIX+ BAR L also features proprietary Aria x2 wireless device management for simplified system setup and maintenance.

Do more with LED batten lighting and set your creative spirit free with the SIX+ BAR L!

• (12) 20W RGBLA+UV LED Array
• 9,325 Lumens, 92.3 CRI
• Extra Large 50mm Lenses
• Beam Angle: 20° (Frost Filter Included)
• Full Pixel Control
• Completely Fanless Cooling
• Integrated L Track for Flexible Mounting

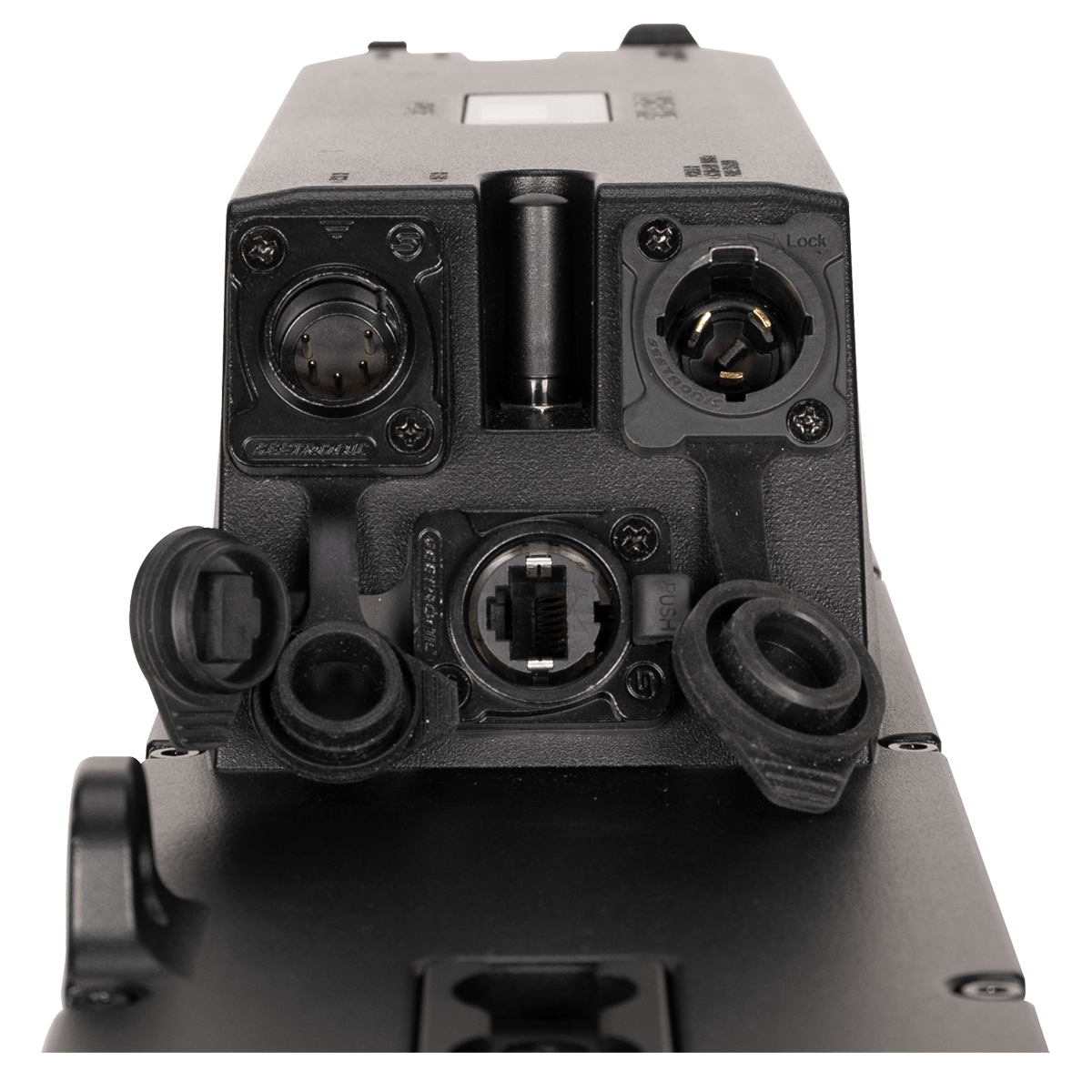

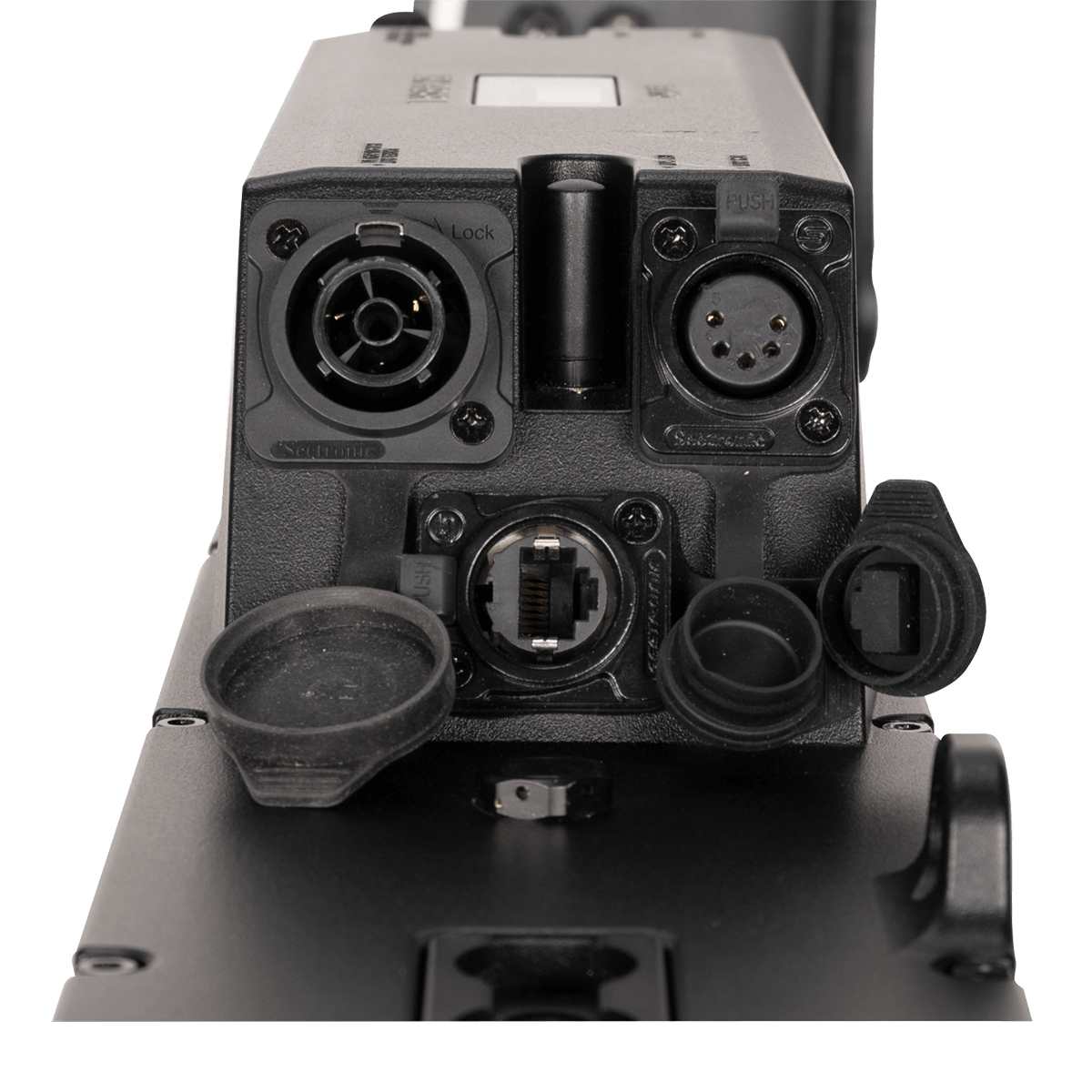

• Unique End-to-End Interconnection System
• Art-Net, sACN and KlingNet Support
• IP65 Rated
