SIXBAR 1000 IP
Discontinued
12x 12W RGBAW+UV LED IP65 Batten Fixture
SIXBAR 1000 IP is a professional-grade lighting solution.
SIXBAR 1000 IP
Sale price$0.00
SIXBAR 1000 IP

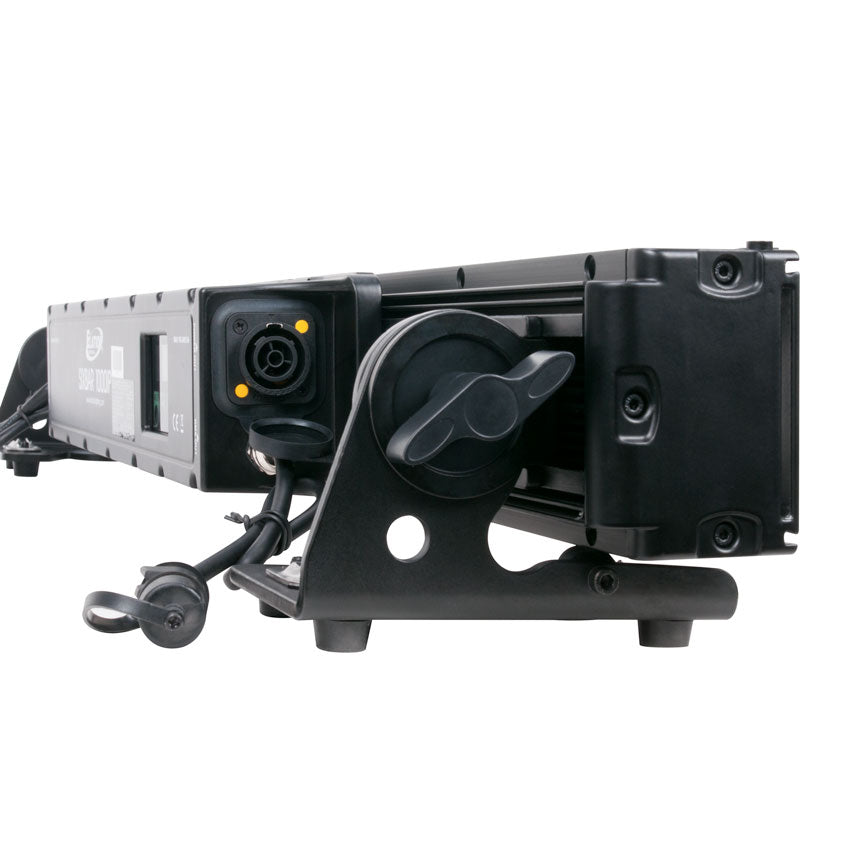

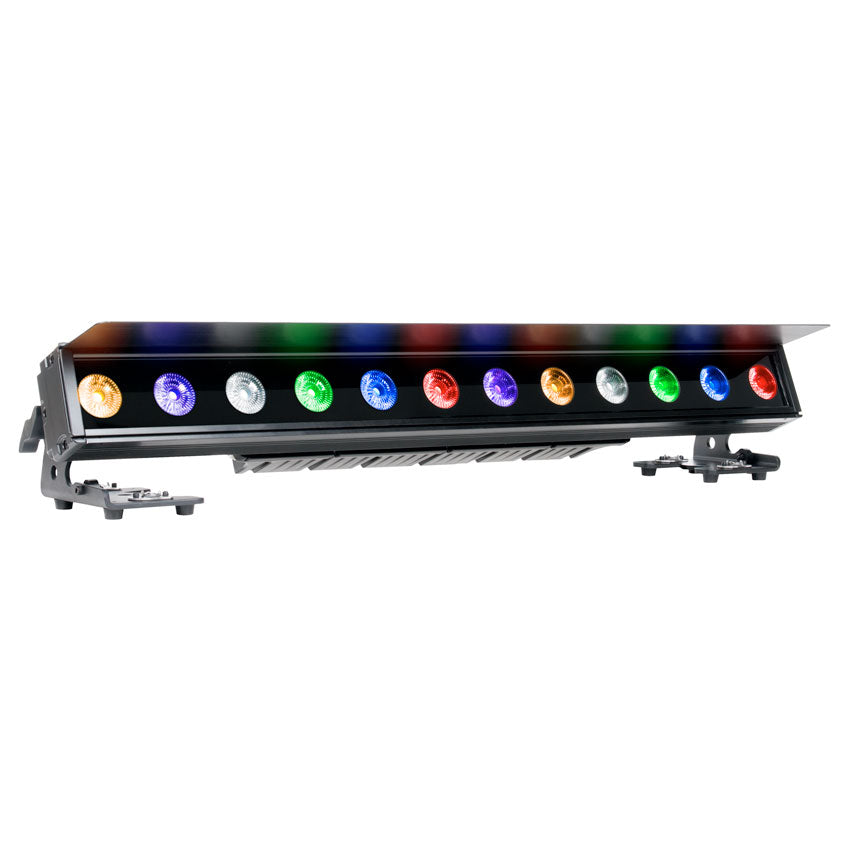

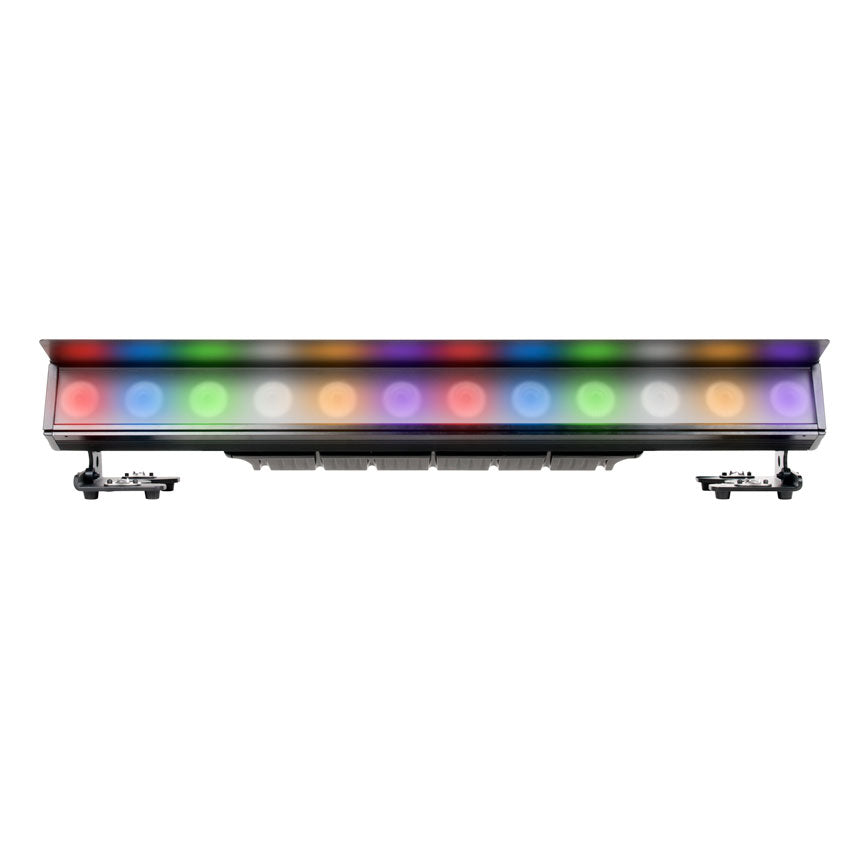

The IP65 rated SIXBAR 1000 IP™ features (12) 12W 6-IN-1 RGBAW+UV LEDs, 25° beam angle, pixel control, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, RDM (remote device management) protocol support, IP rated DMX and power in/out connections, LCD menu display with 4 touch button control panel, dual adjustable rigging/floor stand brackets, glare shield and frost filter included, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).
IP65 Rated
12 x 12W 6-in-1 RGBAW+UV LEDs
25° Beam Angle
Pixel Control
Rugged Die-Cast Aluminum Exterior
Glare Shield and (2) Lens Filters Included
; .
Specifications
SOURCE
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life**
PHOTOMETRIC DATA
7,149 LUX 664 FC @3.3’ (1m) (25° Full ON)
EFFECTS
Pixel Control
Strobe and Chase Effects
Variable and Selectable Dimming Curves
CONTROL / CONNECTIONS
(8) DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX In/Out
IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT (dimensions without Glare Shield)
Length: 33.6” (853mm)
Width: 5.6” (141.4mm)
Vertical Height: 4.7” (120.5mm)
Weight: 19.0 lbs. (8.6 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
145W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ITEMS
IP65 Locking Power Cable
Glare Shield
(2) Lens Filters
OPTIONAL ACCESSORIES:
8050000053 - Omega Bracket
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life**
**LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
7,149 LUX 664 FC @3.3’ (1m) (25° Full ON)
EFFECTS
Pixel Control
Strobe and Chase Effects
Variable and Selectable Dimming Curves
CONTROL / CONNECTIONS
(8) DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX In/Out
IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT (dimensions without Glare Shield)
Length: 33.6” (853mm)
Width: 5.6” (141.4mm)
Vertical Height: 4.7” (120.5mm)
Weight: 19.0 lbs. (8.6 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
145W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ITEMS
IP65 Locking Power Cable
Glare Shield
(2) Lens Filters
OPTIONAL ACCESSORIES:
8050000053 - Omega Bracket
FIRMWARE UPDATES
Current Version: V1.10
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
Vectorworks symbol
SIXBAR 1000 IP Parts & Service
Our SIXBAR 1000 IP Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your SIXBAR 1000 IP. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
