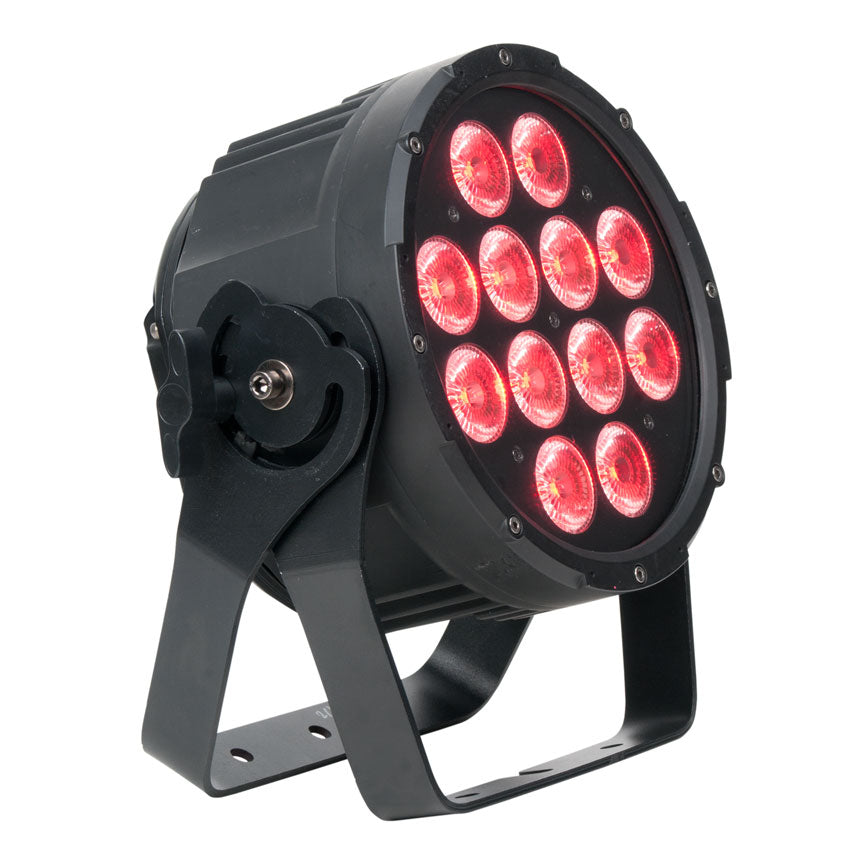

SIXPAR 200IP

SOURCE
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
22,250 LUX 2.067 FC @3.3’ (1m) (15° Full ON)

EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes

CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)

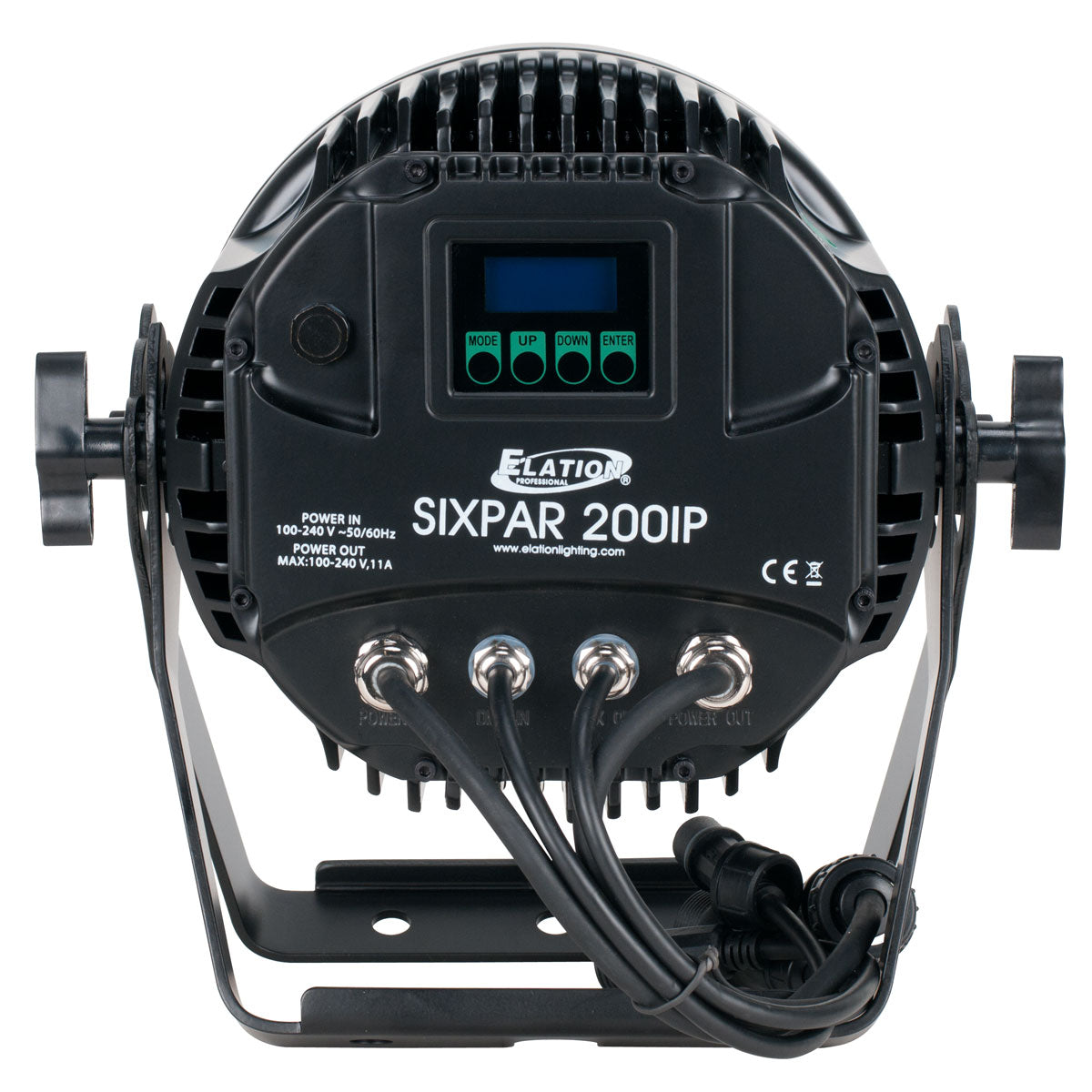

(4) Button Touch Control Panel
LCD Menu Display

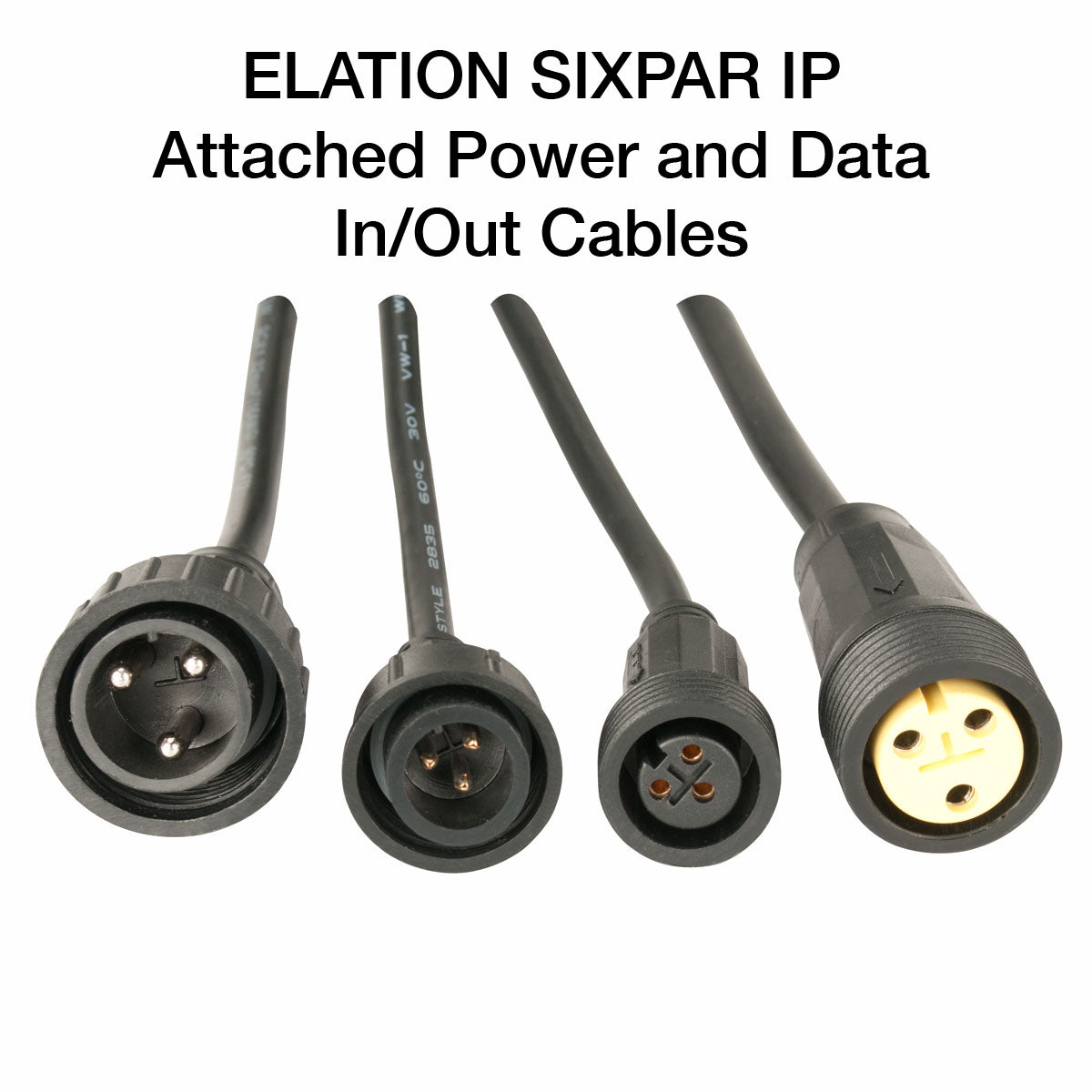

IP DMX In/Out
IP Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 12.3” (313mm)
Width: 6.2” (157mm)
Vertical Height: 11.8” (300mm)
Weight: 12.6 lbs. (5.7 kg)

ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
150W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm

APPROVALS / RATINGS
CE | cETLus | IP65

INCLUDED ITEMS

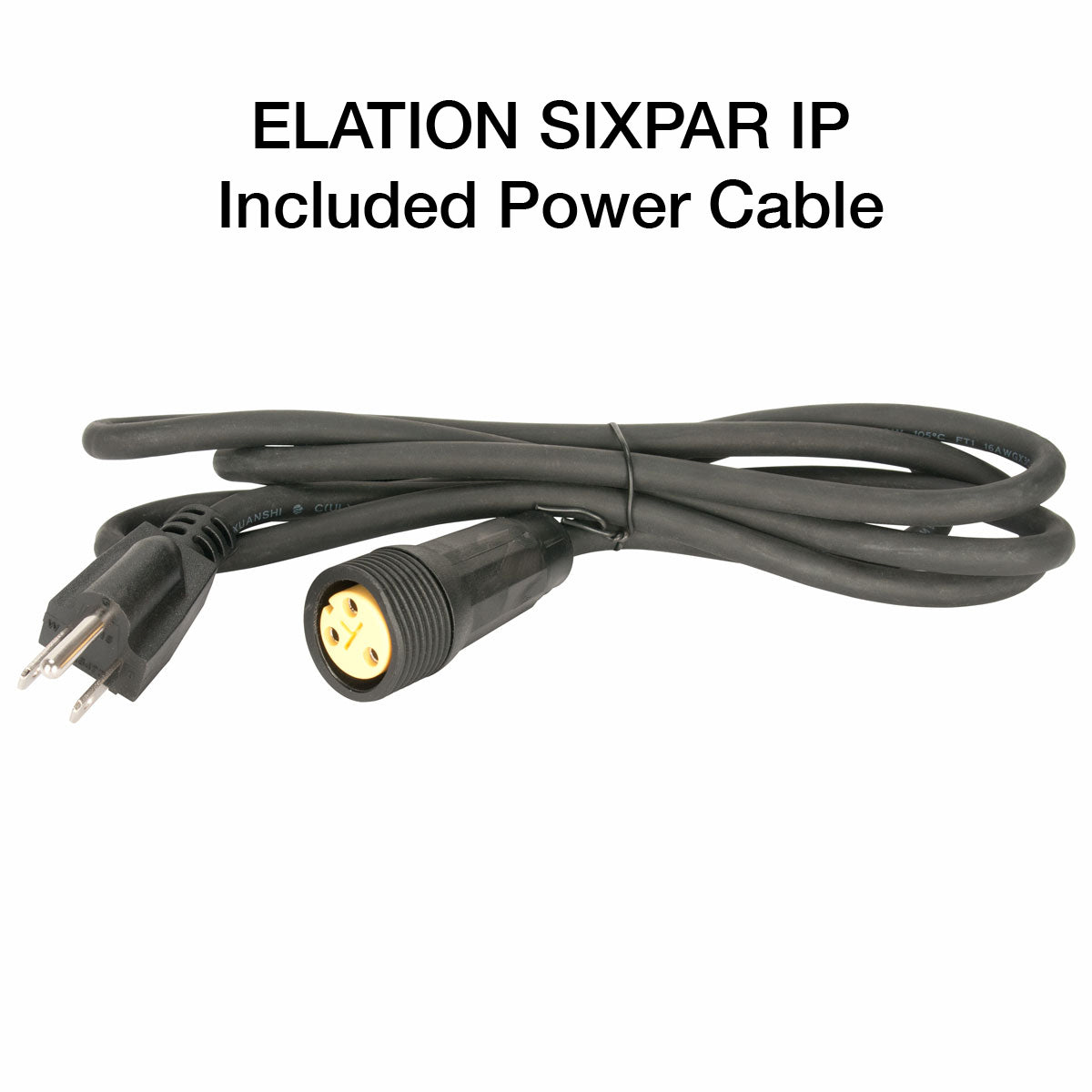

Male Edison to IP Female Power Cable 6,6 ft. (2m)

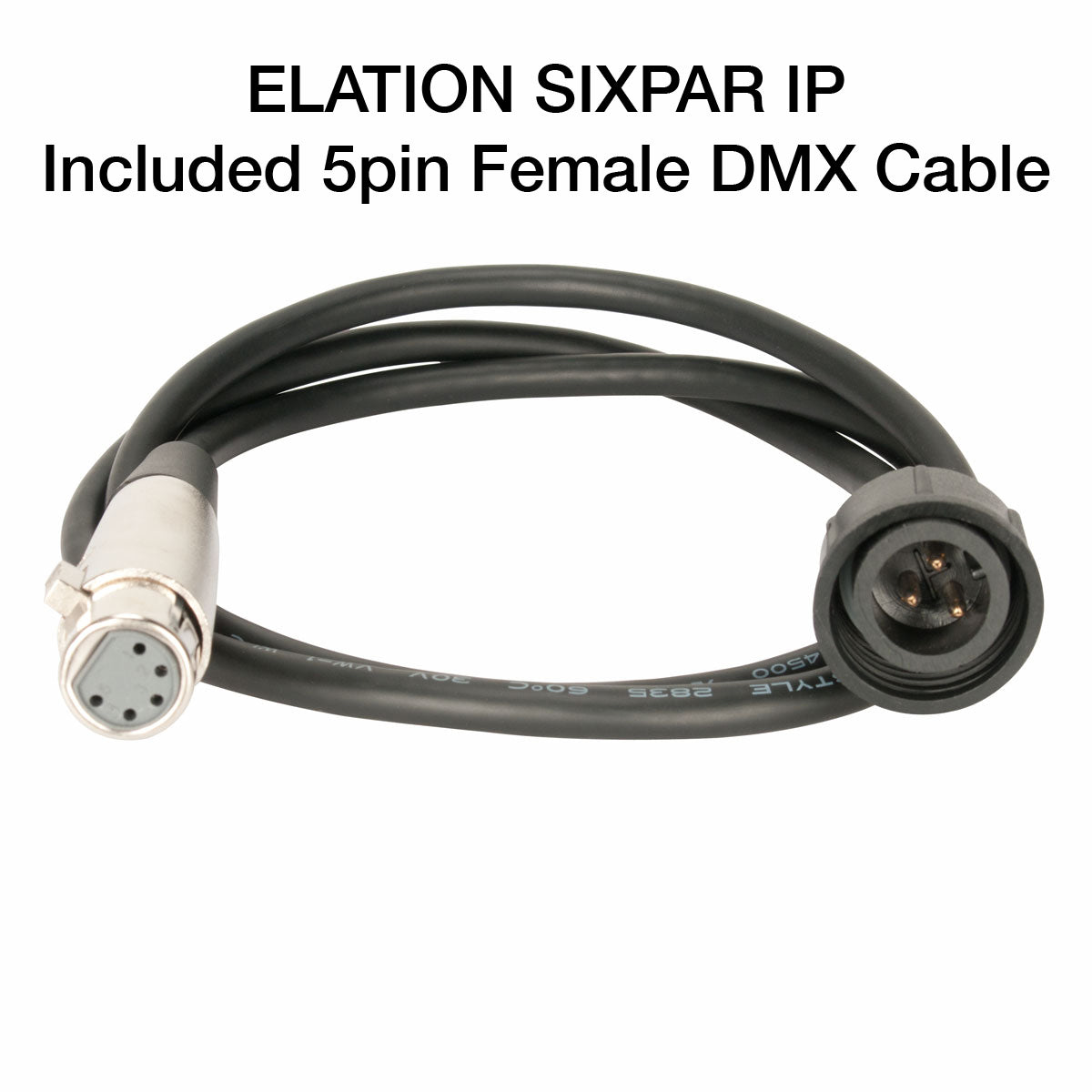

Male 5pin XLR to IP Female DMX Input Cable 3.3 ft (1m)

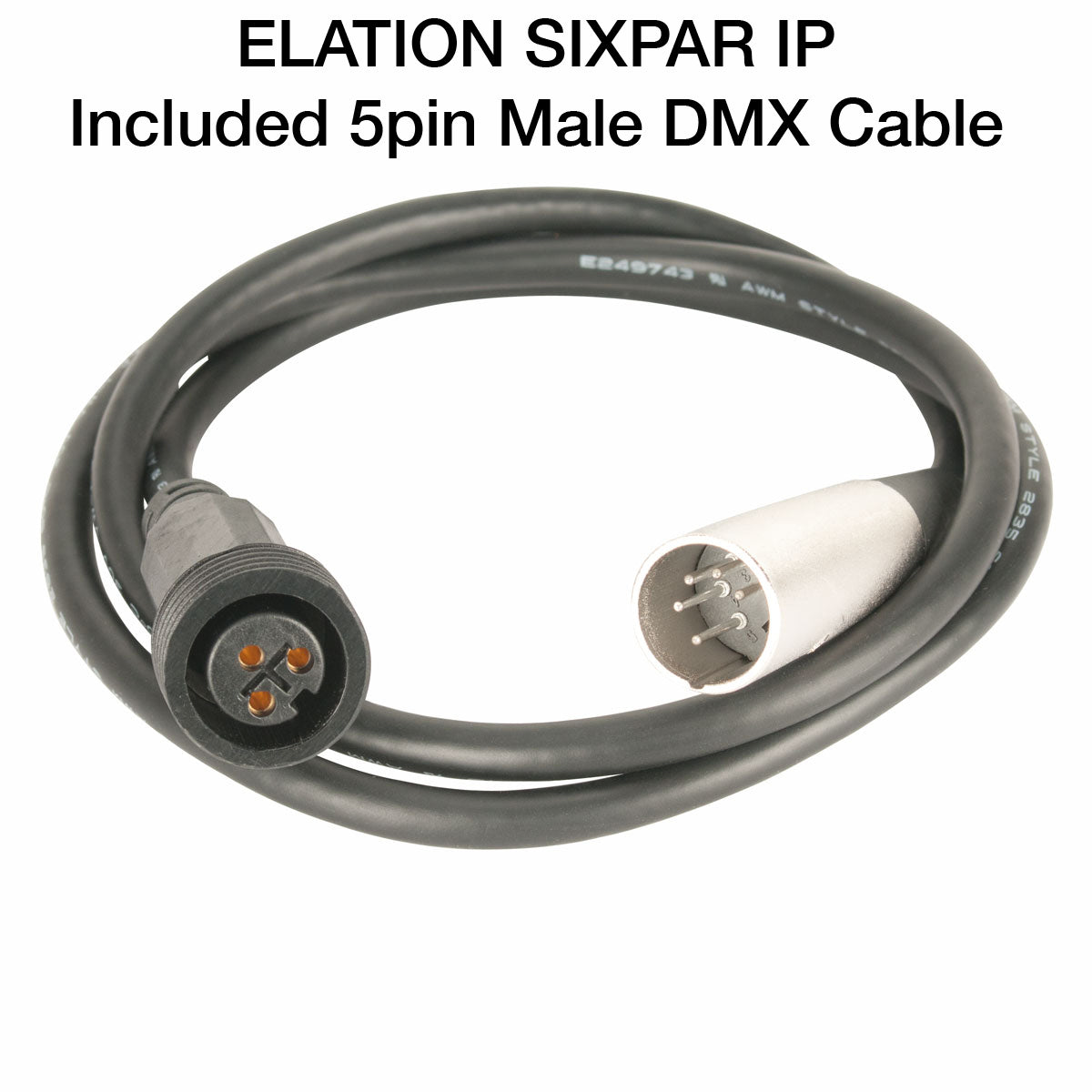

Female 5pin XLR to IP Male DMX Output Cable 3.3 ft (1m)

OPTIONAL ACCESSORIES:

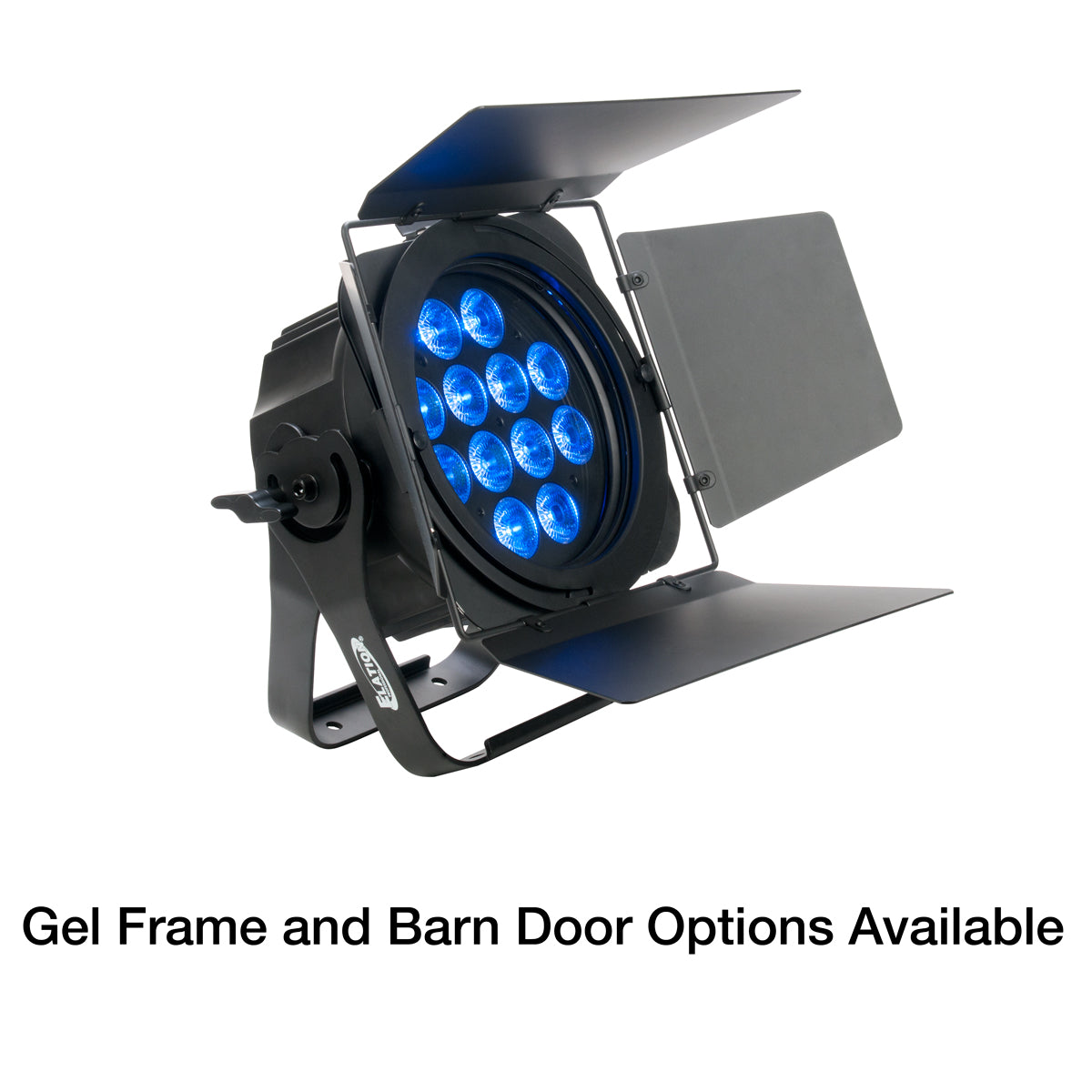

SIXPAR200/GFH - Gel Frame Holder Kit

SIXPAR/BD200 - Barn Door
NOTE: Gel Frame Holder Kit required to attach Barn Door.
(Sold separately)

SIXPAR/2MDLC - 6.6 ft. (2m) IP Data Link Cable

SIXPAR/2MPLC - 6.6 ft. (2m) IP Power Link Cable

SIXPAR/3MDLC - 9.8 ft. (3m) IP Data Link Cable

SIXPAR/3MDLC - 9.8 ft. (3m) IP Power Link Cable

SIXPAR/5MDLC - *SPECIAL ORDER* 16.4 ft. (5m) IP Data Link Cable

SIXPAR/5MPLC - *SPECIAL ORDER* 16.4 ft. (5m) IP Power Link Cable

SIXPAR/10MDLC - *SPECIAL ORDER* 32.8 ft. (10m) IP Data Link Cable

SIXPAR/10MPLC - *SPECIAL ORDER* 32.8 ft. (10m) IP Power Link Cable

SIXPAR/20MDLC - *SPECIAL ORDER* 65.6 ft. (20m) IP Data Link Cable

SIXPAR/20MPLC - *SPECIAL ORDER* 65.6 ft. (20m) IP Power Link Cable

SIXPAR/DIAC - Data IN IP Adapter Cable

SIXPAR/DOAC - Data OUT IP Adapter Cable

SIXPAR/PIAC - Power IN IP Adapter Cable

SIXPAR/POAC - Power OUT IP Adapter Cable

SIXPAR/TERMINATOR - DMX Terminator End Cap
