SNIPER PRO
SNIPER PRO is a professional-grade lighting solution.
SNIPER PRO
The Sniper PRO™ is a new and improved hybrid effects projector, scanner, and laser simulator featuring the new Philips™ MSD Platinum 14R 280W 7,800K 80CRI lamp. Capable of producing the same precise beam and laser like effects as its successful predecessor the Sniper 2R™, however now with 3X the output brightness. This enhanced version with increased speed, color and effect options, features an improved X / Y / Z rotation mirror system with focus, 12 dichroic colors with split colors, CMY color mixing, 20 static-stamped gobos, bidirectional animation, 3-facet, 8-facet, and linear rotating prisms, liquid sky, laser wave, and cone effects, internal pattern and control macros, 3/5pin DMX and powerCON TRUE1 in/out connections, (4) button control panel, 460W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
- 2.5° Laser Sharp Beam
- Improved High-Speed X / Y / Z Mirror System with Focus
- Bidirectional Animation
- 3-Facet, 8-Facet, and Linear Rotating Prisms
- Liquid Sky, Laser Wave, and Cone Effects
- Internal Pattern and Control Macros
Specifications
Philips MSD Platinum 14R™ 280W Lamp
2,000 Hour Average Lamp Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
84,330 LUX 7,834 FC @16.4’ (5m)
23,200 LUX 2,155 FC @32.8’ (10m)
10,270 LUX 954 FC @49.2’ (15m)
5,800 LUX 539 FC @65.6’ (20m)
3,700 LUX 344 FC @82.0’ (25m)
EFFECTS
Bidirectional Animation
3-Facet, 8-Facet, and Linear Rotating Prisms
Liquid Sky, Laser Wave, and Cone Effects
Pattern and Control Macros
COLOR
(12) Dichroic Colors + White and Split Colors
CMY Color Mixing
GOBOS
(20) Static-Stamped Gobos

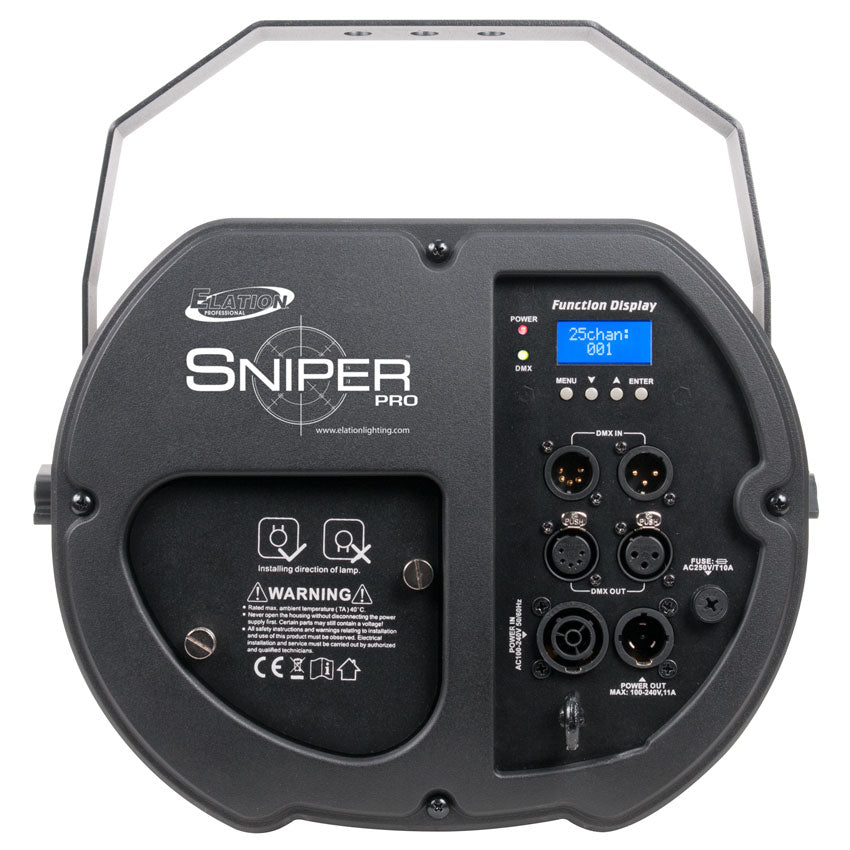

CONTROL / CONNECTIONS
(2) DMX Channel Modes (25 / 27)
4 Button Control Panel
LCD Menu Display
3/5pin DMX In/Out
Twist Lock Power In/Out
Power Linking Multiple Units
SIZE / WEIGHT
Length: 16.1” (408mm)
Width: 13.9” (353mm)
Vertical Height: 13.8” (351mm)
Weight: 29.0 lbs. (13.2kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
460W Max Power Consumption
Max Ambient Temperature 104°F (40°C)
APPROVALS / RATINGS
CE | IP20
INSTALLATION
Rigging: Integrated Yoke
Working Position: Any (360°)
INCLUDED ITEMS
Twist Lock Power Cable
OPTIONAL ACCESSORIES:
CLAMPS (click for more info)
PRO CABLES (click for more info)
DMX SOLUTIONS (click for more info)
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Photometrics
Specification sheet
User manual
Vectorworks symbol
