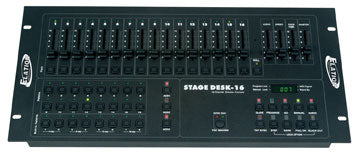

Stage Desk 16
Discontinued
16 CHANNEL DMX PROGRAMABLE DIMMING CONSOLE
Stage Desk 16
Sale price$0.00
Stage Desk 16
This product is distributed by authorized American DJ Dealers only – Click here for details
• Conventional dimming console
• 16 total DMX channels
• 8 built in Chases
• 16 programmable Chases- 100 steps each
• 16 individual channel faders
• 16 bump buttons
• Glide & Go functions
• Kill function
• Tap Sync button for speed / fade override
• Independent Speed & Fade control
• Master fader- assigned to all 16 channels
• Mix Chase function
• Full-On button for 100% momentary output to all 24 channels
• Bright LCD display
• Use in conjunction with the Elation; DP-DMX20L, CYBER PAK, UNI PAK, DP-DMX4B or DP-640
• Audio input and built in microphone for music sync functions
• Audio level fader
• Fog Machine input and trigger button- compatible with MB-1000, Stallion, Vapor-Flow, Fog-Storm 1200 & 1700
• One 3 Pin DMX XLR output
• Polarity switch (2-, 3+, / 2+, 3-)
• Midi In, Out & Thru connectors
• Foot control input
• Power: 120V. / 12V DC, 500mA. (Included) *Also available in 220V
• Dimensions (LxWxH): 8" x 19” x 3”
• Weight: 9 lbs
This product is distributed by authorized American DJ Dealers only – Click here for details
• Conventional dimming console
• 16 total DMX channels
• 8 built in Chases
• 16 programmable Chases- 100 steps each
• 16 individual channel faders
• 16 bump buttons
• Glide & Go functions
• Kill function
• Tap Sync button for speed / fade override
• Independent Speed & Fade control
• Master fader- assigned to all 16 channels
• Mix Chase function
• Full-On button for 100% momentary output to all 24 channels
• Bright LCD display
• Use in conjunction with the Elation; DP-DMX20L, CYBER PAK, UNI PAK, DP-DMX4B or DP-640
• Audio input and built in microphone for music sync functions
• Audio level fader
• Fog Machine input and trigger button- compatible with MB-1000, Stallion, Vapor-Flow, Fog-Storm 1200 & 1700
• One 3 Pin DMX XLR output
• Polarity switch (2-, 3+, / 2+, 3-)
• Midi In, Out & Thru connectors
• Foot control input
• Power: 120V. / 12V DC, 500mA. (Included) *Also available in 220V
• Dimensions (LxWxH): 8" x 19” x 3”
• Weight: 9 lbs
• Conventional dimming console
• 16 total DMX channels
• 8 built in Chases
• 16 programmable Chases- 100 steps each
• 16 individual channel faders
• 16 bump buttons
• Glide & Go functions
• Kill function
• Tap Sync button for speed / fade override
• Independent Speed & Fade control
• Master fader- assigned to all 16 channels
• Mix Chase function
• Full-On button for 100% momentary output to all 24 channels
• Bright LCD display
• Use in conjunction with the Elation; DP-DMX20L, CYBER PAK, UNI PAK, DP-DMX4B or DP-640
• Audio input and built in microphone for music sync functions
• Audio level fader
• Fog Machine input and trigger button- compatible with MB-1000, Stallion, Vapor-Flow, Fog-Storm 1200 & 1700
• One 3 Pin DMX XLR output
• Polarity switch (2-, 3+, / 2+, 3-)
• Midi In, Out & Thru connectors
• Foot control input
• Power: 120V. / 12V DC, 500mA. (Included) *Also available in 220V
• Dimensions (LxWxH): 8" x 19” x 3”
• Weight: 9 lbs
This product is distributed by authorized American DJ Dealers only – Click here for details
• Conventional dimming console
• 16 total DMX channels
• 8 built in Chases
• 16 programmable Chases- 100 steps each
• 16 individual channel faders
• 16 bump buttons
• Glide & Go functions
• Kill function
• Tap Sync button for speed / fade override
• Independent Speed & Fade control
• Master fader- assigned to all 16 channels
• Mix Chase function
• Full-On button for 100% momentary output to all 24 channels
• Bright LCD display
• Use in conjunction with the Elation; DP-DMX20L, CYBER PAK, UNI PAK, DP-DMX4B or DP-640
• Audio input and built in microphone for music sync functions
• Audio level fader
• Fog Machine input and trigger button- compatible with MB-1000, Stallion, Vapor-Flow, Fog-Storm 1200 & 1700
• One 3 Pin DMX XLR output
• Polarity switch (2-, 3+, / 2+, 3-)
• Midi In, Out & Thru connectors
• Foot control input
• Power: 120V. / 12V DC, 500mA. (Included) *Also available in 220V
• Dimensions (LxWxH): 8" x 19” x 3”
• Weight: 9 lbs
Specifications
- 16 user programs, 8 built-in programs
- MIDI compatible
- DMX-512 dimmer console
- Audio, Fade, and Speed control
- 16 Flash buttons
- Digital LCD display
- Sound Active with built in or external mic
- Fog Machine output
- DMX polarity switch
- 19" rackmount
- Tap Sync control
- Weight: 9 Lbs.
- Dimensions: 8"L x 19" W x 3" H
- Available in 120v and 220v
