TVL SOFTLIGHT DW

Name: TVL SOFTLIGHT DW
Brand: Elation
SKU: TVL551
Availability: InStock

Discontinued

Dynamic White LED Softlight Panel Fixture

TVL SOFTLIGHT DW is a professional-grade lighting solution.

UPC: 837874001785

SKU: TVL551

Replaced by

KL PANEL

TVL SOFTLIGHT DW

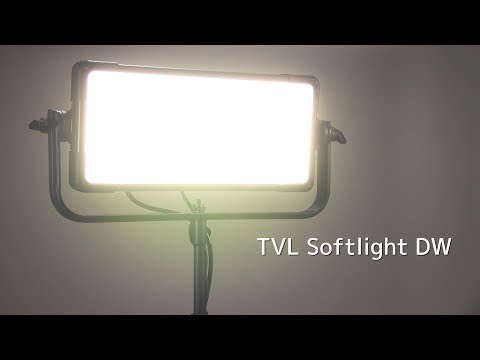

The TVL SOFTLIGHT DW™ is a softlight luminaire featuring (240) Cool White and (240) Warm White LEDs, a 115° beam angle, 8-leaf adjustable / removable barn doors, linear white color temperature range (3,200K - 5,600K), smooth 16bit dimming curve mode effects, adjustable LED refresh frequency and gamma brightness for flicker free operation for TV and FILM, 5pin DMX, RJ45 ethernet (Art-NET), and Locking IP65 Power connections, (4) button menu control panel, dimmer and color temperature rotary control dials, 180° reversible LCD menu display, and a multi-voltage universal auto switching power supply (100-240v). Optional SNAPGRID 40° light control grid available.

Dynamic White 115° Beam TVL Panel SoftLight
Linear White Color Temp Range (3,200K - 5,600K)
Smooth 16bit Dimming and Dimming Curve Effects
Dimmer and Color Temperature Rotary Control Dials
8-Leaf Adjustable / Removable Barn Doors Included
Adjustable LED Refresh Rate and Gamma Brightness
Flicker Free Operation for TV and FILM
Optional SNAPGRID 40° Light Control Grid Available

Specifications

SOURCE
(240) Cool White and (240) Warm White LEDs
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
>95CRI | 6,700 Total Lumens
575 LUX 53.4 FC @6.6 ft (2m) Full ON 4,200K >95CRI
580 LUX 53.9 FC @6.6 ft (2m) CW 5,600K >96CRI
564 LUX 52.4 FC @6.6 ft (2m) WW 3,200K >95CRI

EFFECTS
3,200K - 5,600K Linear Variable Color Temperature
Electronic Strobe and Variable Dimming Curve Modes

COLOR
Cool White / Warm White

CONTROL / CONNECTIONS
6 DMX Channel Modes (7 total channels)
4 Button Control Panel
2 Rotary Control Dials (Dimmer and Color Temperature)
Adjustable Refresh Rate (900-25,000 Hz)
Adjustable Gamma Brightness (2.0-2.8)
180° Reversible LCD Menu Display
5pin DMX In/Out

Stand Alone or Primary/Secondary Set Up
IP65 Locking RJ45 Ethernet Cable
Locking IP65 Power Cable In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 26.5” (673mm)
Width: 12.4” (315mm)
Vertical Height: 16.7” (425mm)
Weight: 18 lbs. (8.2 kg) (w/barn doors attached)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
99W Max Power Consumption
32F to 104°F (0°C to 40°C)

APPROVALS / RATINGS
CE | cETLus | IP20

Specifications and documentation subject to change without notice.
