TVL2000 II
TVL2000 II is a professional-grade lighting solution.
TVL2000 II

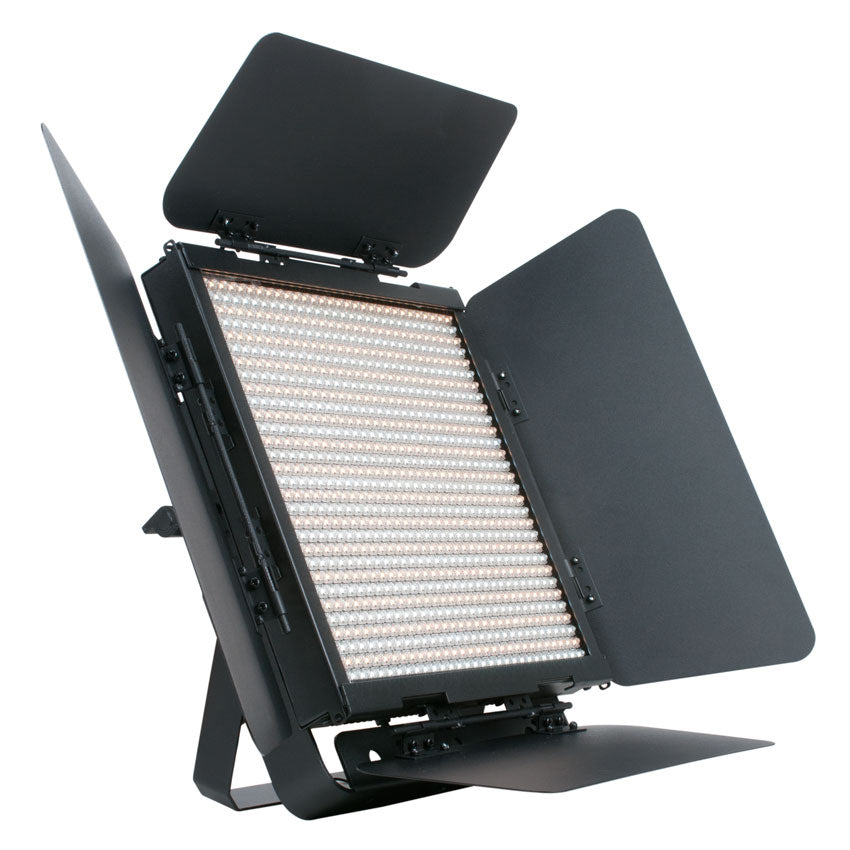

The new improved TVL2000 II™ features a low heat high CRI dynamic LED array panel consisting of 450 warm white and 450 cool white LEDs, variable manual and DMX controlled color temperature (3,200K - 6,500K) and dimming, adjustable barn doors, built-in magnetic gel/diffuser holder, flicker free operation for broadcast TV and FILM, 3 and 5 pin DMX in/out and linkable power in/out connections, (4) button (2) dial LCD display control panel, 90W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- Low Heat High CRI Dynamic LED Array Panel
- Variable Color Temperature Settings (3,200K - 6,500K)
- Adjustable Barn Doors

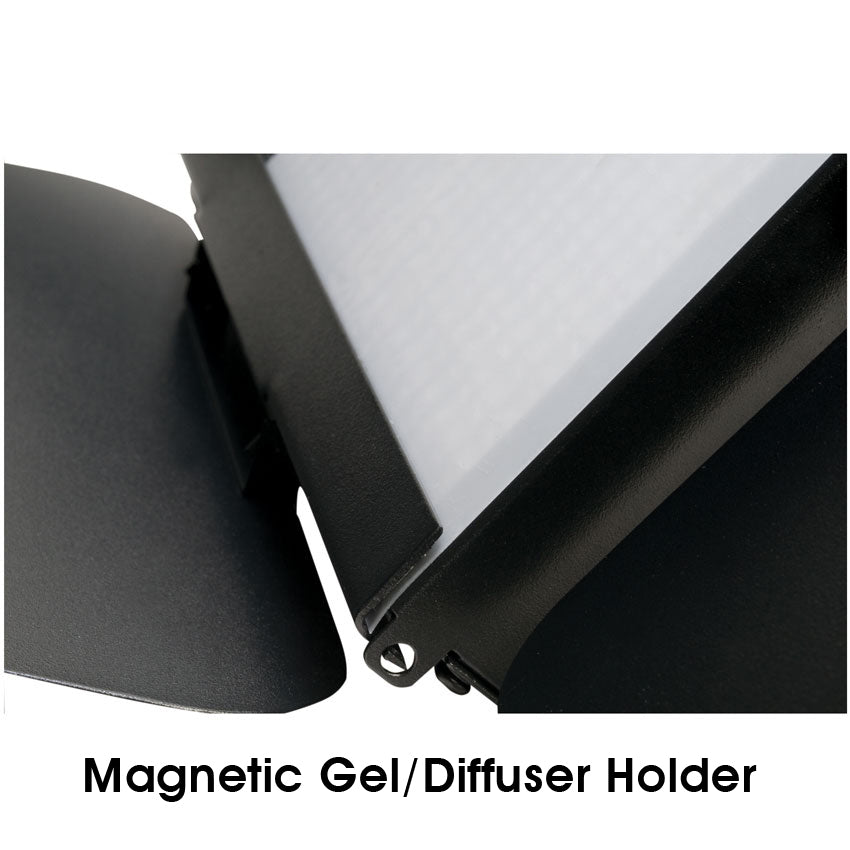

- Built-In Magnetic Gel/Diffuser Holder
- Manual and DMX Controlled Color Temp and Dimming
- Flicker Free Operation for Broadcast TV and FILM
- Multiple Unit Power Linking
Specifications
(450) Warm White + (450) Cool White LEDs
50,000 Hour Average Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
750 LUX 70 FC @6.6’ (2M) (30° Warm White 3,200K)
1300 LUX 121 FC @6.6’ (2M) (30° Cool White 6,500K)
2000 LUX 186 FC @6.6’ (2M) (30° Full On 4,500-5,000K)
EFFECTS
Variable Color Temperature (3,200K - 6,500K)
Electronic Dimming (0% - 100%)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (2/2/3)
Manual and DMX Color Temperature and Dimming

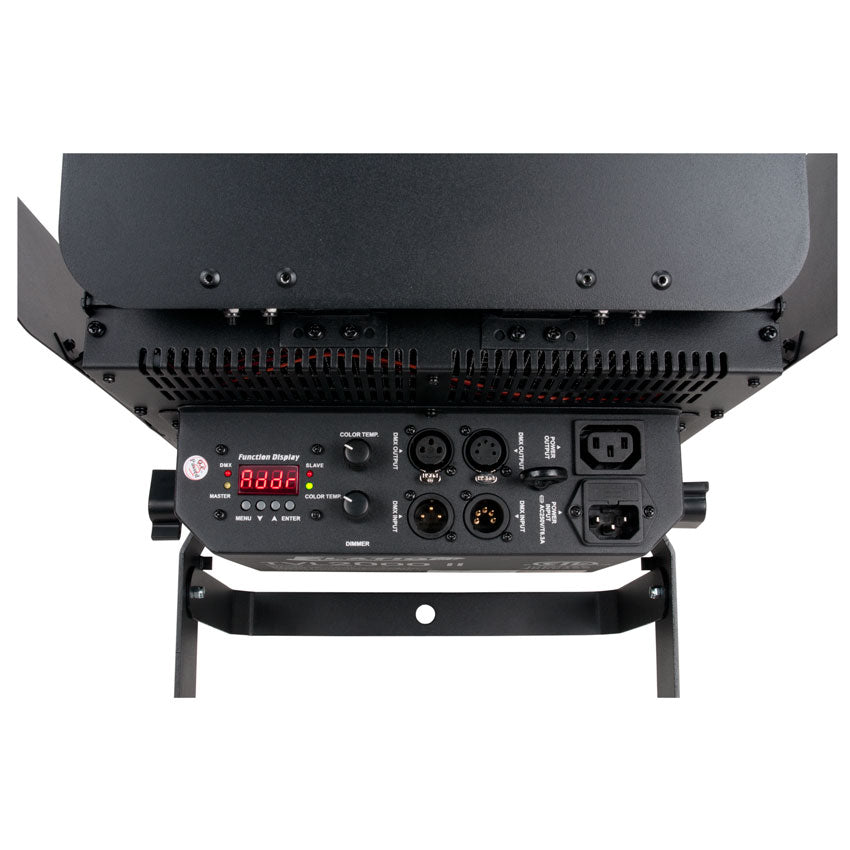

(4) Button and (2) Dial Control Panel
LCD Menu Display
3pin and 5pin DMX In/Out
Linkable Power In/Out
SIZE / WEIGHT
Length: 14.8” (376mm)
Width: 13.3” (337mm)
Vertical Height: 4.4” (113mm)
Weight: 15.0 lbs. (6.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
90W Max Power Consumption
INCLUDED ITEMS
90° Dual /Yoke Bracket
Power Cable
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
- TVL2000 II Photometric Data
- TVL2000 II Photometric Testing Report Cool White
- TVL2000 II Photometric Testing Report Full ON
- TVL2000 II Photometric Testing Report Warm White
Specification sheet
User manual
Vectorworks symbol
TVL2000 II Parts & Service
Our TVL2000 II Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your TVL2000 II. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
