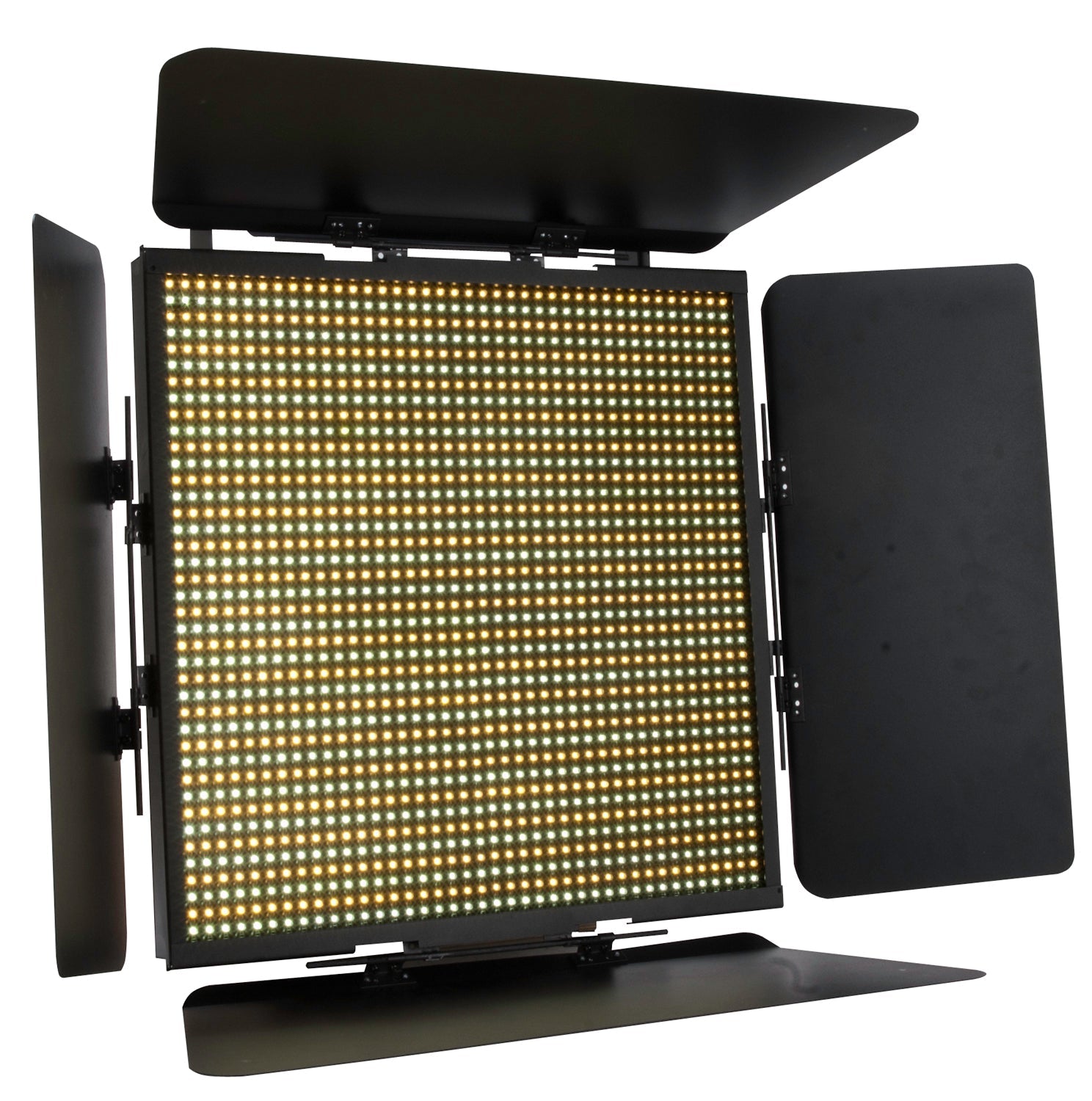

TVL4000 II
TVL4000 II is a professional-grade lighting solution.
TVL4000 II
The new improved TVL4000 II™ features a low heat, >90CRI, dynamic LED array panel consisting of 800 warm white and 800 cool white LEDs, 30° beam angle, variable manual and DMX controlled color temperature (3,200K - 6,500K) and dimming, adjustable barn doors, magnetic gel/diffuser holder, flicker free operation for broadcast TV and FILM, 3 and 5 pin DMX in/out and power in connections, (4) button (2) dial LCD display control panel, 160W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- Low Heat, >90CRI Dynamic LED Array Panel
- 30° Beam Angle
- Variable Color Temperature Settings (3,200K - 6,500K)
- Adjustable Barn Doors

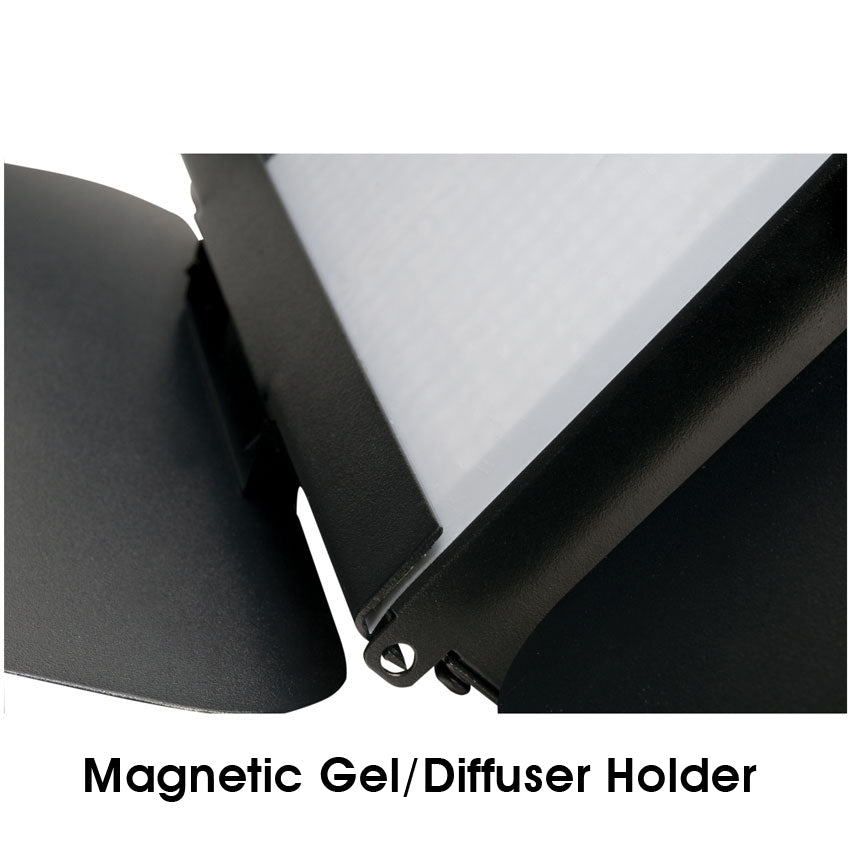

- Magnetic Gel/Diffuser Holder
- Manual and DMX Controlled Color Temp and Dimming
- Flicker Free Operation for Broadcast TV and FILM
Specifications
(800) Warm White + (800) Cool White LEDs
50,000 Hour Average Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
1500 LUX 139 FC @6.6’ (2M) (30° Warm White 3,200K)
1900 LUX 177 FC @6.6’ (2M) (30° Cool White 6,500K)
3400 LUX 316 FC @6.6’ (2M) (30° Full On 4,500-5,000K)
EFFECTS
Variable Color Temperature (3,200K - 6,500K)
Electronic Dimming (0% - 100%)

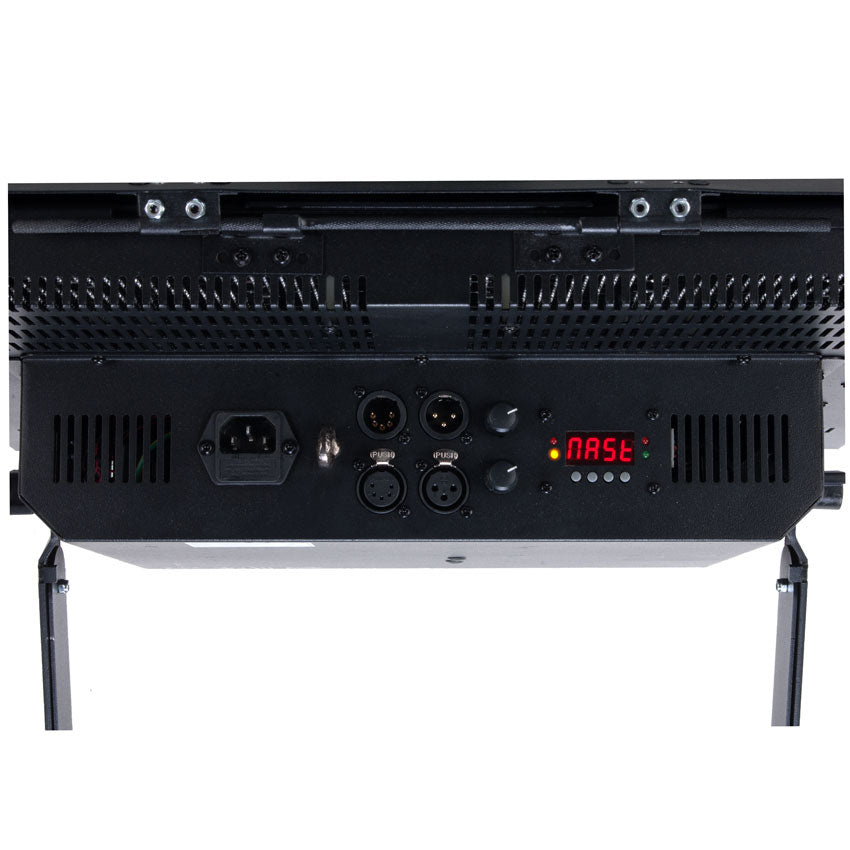

CONTROL / CONNECTIONS
(3) DMX Channel Modes (2/2/3)
Manual and DMX Color Temperature and Dimming
(4) Button and (2) Dial Control Panel
LCD Menu Display
3pin and 5pin DMX In/Out
Power In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 25.9” (658mm)
Width: 22.7” (576mm)
Vertical Height: 5.1” (130mm)
Weight: 27.0 lbs. (12 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
160W Max Power Consumption
TA: 40°C Max Ambient Temperature
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
