VBAR 270
VBAR 270 is a professional-grade lighting solution. Compact LED Color Wash The Alkalite, VBAR 270 is a versatile, compact and light weight, LED color wash for any indoor application. With lower power draw (30W), low heat emission and flicker-free operation the VBAR 270 is the perfect light tool to any stage setting.
VBAR 270
Compact LED Color Wash

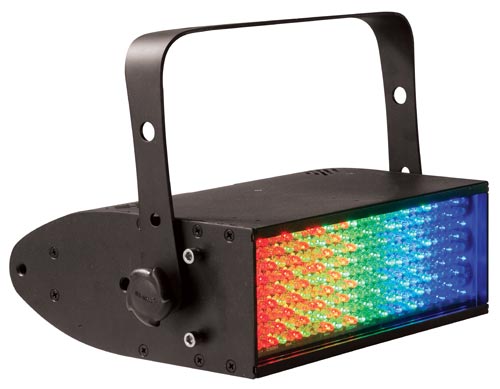

The Alkalite, VBAR 270 is a versatile, compact and light weight, LED color wash for any indoor application. This fixture features 270, 5mm LEDs with RGB color mixing allowing the user to achieve a vast array of colors. The VBAR 270 operates via DMX-512, Primary/Secondary or Auto Chase mode with 19 built-in color chase programs. The unit has a 15-degree beam angle, has a variable strobes function and may be electronically dimmed (0-100%). With lower power draw (30W), low heat emission and flicker-free operation the VBAR 270 is the perfect light tool to any stage setting.
- FEATURES:
- 270 x 5mm LED's - (90 Red, 90 Green, 90 Blue)
- Seamless RGB color mixing
- Infinite Color possibilities
- 15-degree beam angle
- 2024 LUX @ 1M / 570 LUX @ 2M
- Long Life L.E.D. (rated at 100,000 Hours)
- Low power consumption
- Low heat emissions
- Built-in Power Supply and DMX 512 Control
- Flicker-free operation for television and film (520Hz)
- Electronic Switching Power Supply (90-260V, 50/60Hz)
Specifications
CONTROL SPECIFICATIONS:
• USITT-DMX 512
• 5, 8, 11, 14, 20, 23 control channel modes

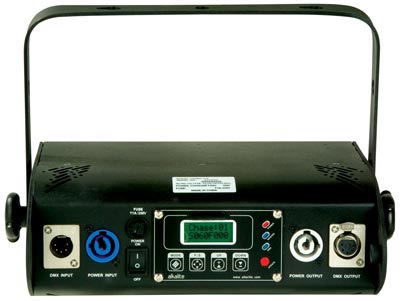

• LCD display with 4-button DMX control
• 5-pin XLR in/out
CONTROL FEATURES:
• 3 control modes: DMX (manual); Primary/Secondary; Auto Chase
• 19 pre-programmed chases
• Strobe effect
• 7 static colors with intensity control
• 0-100% Dimming
POWER SUPPLY:
• 100-240V AC, 50/60Hz (Multi-voltage)
• Neutrik Powercon for power connection
• Power Consumption: 30 watts
RIGGING:
• Mounting bracket
• Optional mounting bracket kits
DIMENSIONS amp; WEIGHT:
• (LxWxH): 10” x 3.75” x 8.5” / 250x93x212mm
• 8 lbs. / 3.3 kgs.
