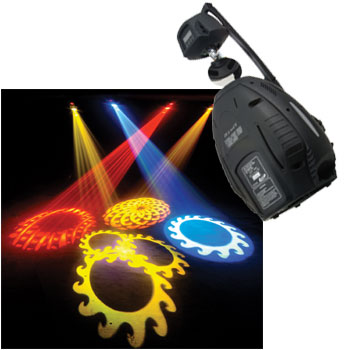

Vision Scan 575E
Discontinued
Vision Scan 575E is a professional-grade lighting solution. 575W PROFESSIONAL SCANNER CONTROL FEATURES • USITT DMX-512 (16-bit resolution) • Pan 170º/Tilt 80º • 16 DMX channels • 4 Digit L.E.D.
Vision Scan 575E
Sale price$0.00
Vision Scan 575E
575W PROFESSIONAL SCANNER
CONTROL FEATURES
• USITT DMX-512 (16-bit resolution)
• Pan 170º/Tilt 80º
• 16 DMX channels
• 4 Digit L.E.D. Display
• 3 pin XLR serial input/output
CONTROL FEATURES
• USITT DMX-512 (16-bit resolution)
• Pan 170º/Tilt 80º
• 16 DMX channels
• 4 Digit L.E.D. Display
• 3 pin XLR serial input/output
Specifications
OPTICAL SYSTEM
• Remote Focus via DMX
• High Output Luminous-Parabolic dichroic reflector
BEAM FEATURE
• 20º, 22º 24º Beam Angle
COLOR FEATURES
• 8 Colors + White
• UV filter
• Color Scroll
• Split Colors
GOBO FEATURES
• 16 Gobos on 2 wheels
• Convenient Slot-Lock gobo replacement system
• Gobo Shake Effect
• Gobo Scroll
• Wheel 1: 6 interchangeable Rotating/Indexing Gobos, 3 Lithographic, 1 Glass, 3 Metal
• Wheel 2: 7 interchangeable Static Metal gobos
• Gobo Size Wheel 1: 22mm x 23mm viewing x 4mm thickness
• Gobo Size wheel 2: 22mm x 23mm viewing metal only
EFFECT FEATURES
• 3-facet prism rotating in both directions at variable speeds
• Gobo Overlaying
SHUTTER/DIMMER FEATURES
• Mechanical Dimming 0-100%
• Mechanical High Speed shutter Pulse Effect
SPECIAL DMX-CONTROL FEATURES
• 16 pan/tilt preprogrammed movements via DMX
• Built-in Programs via DMX
• Pan/Tilt/Gobo/Color Prism set to Sound Active mode via DMX
STAND-ALONE FEATURES
• Sound activated built in programs
• Sensitivity knob
• Linkable up to 16 units
• Self Test Stand Alone settings
• Built-in Microphone with sensitivity knob
TECHNICAL SPECIFICATIONS
• Lamp: Phillips MSR-575/2 (575W, 7200ºK, 1000hrs)
• Dimensions: 13.75” x 15.5”W x 30.5”H
• Weight: 65lbs
• Fuse: 10A
• Voltage: 120V/220v (50/60Hz)
• Power Consumption: 700VA
• Fan cooled 1 axial fan
