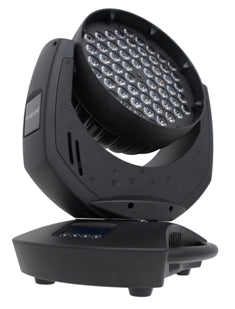

VOLKSLICHT

60 x 3Watt Luxeon Rebel RGB LED Compact Moving Head
Power consumption 180 VA (Watt)
Power Input ~100 ndash; 240V AC, 50-60 Hz (wide range input)
Fuse protection Micro fuse 5x20mm, T 4A
Max. Ambient 45deg;C (integrated overheating switch)
Mounting position fully operational whether it hangs or is mounted to the wall. It can also be operated while standing on the floor.

Additive Color mixing
LED Type 60x Luxeon Rebel High Power ndash; LEDs Lifetime 50.000h
RGB Model
21 Green LEDs, 21 blue LEDs, 18 Red LEDs,
wavelength optimized for a maximum presentable color space
White Model
42 cold white LEDs, 18 warm white LEDs
allow a continuously adjustable color temperature

Exchangeable optical carrier with 11deg; light distribution angle (24deg; optional)
Shutter / Dimmer
Strobe ndash; Effect with variable speed
between 1 ndash; 10 flashes per second, Random Strobe, Pulse Effects
Continuous Dimmer 0 ndash; 100%
DMX Control
Standard USITT DMX-512,
3 pole XLR;
[+] = Pin 3 [-] = Pin 2 [Ground] = Pin 1.
DMX- Addressing starts at the
DMX channel [001].
Weights and Measures
(WxLxH) 270 x 285 x 355mm
Weight: ~ 8 kg
