Decora Wall Plate DMX Out 5pin XLR

WP1DO is a professional-grade lighting solution. The NETRON WP1DO provides a 5pin DMX Output connector in a Decora insert plate. 3pin Phoenix, 3pin IDC and RJ45 ESTA compliant DMX are all provided to offer the most flexibility to system integrators. The NETRON WP1DO provides a 5pin DMX Output connector in a Decora insert plate.#160; Designed as a simple DMX passthrough it is easy to integrate into any DMX infrastructure.

UPC: 810008264263SKU: NWP001

Replaced By

Related Products

WP1DO

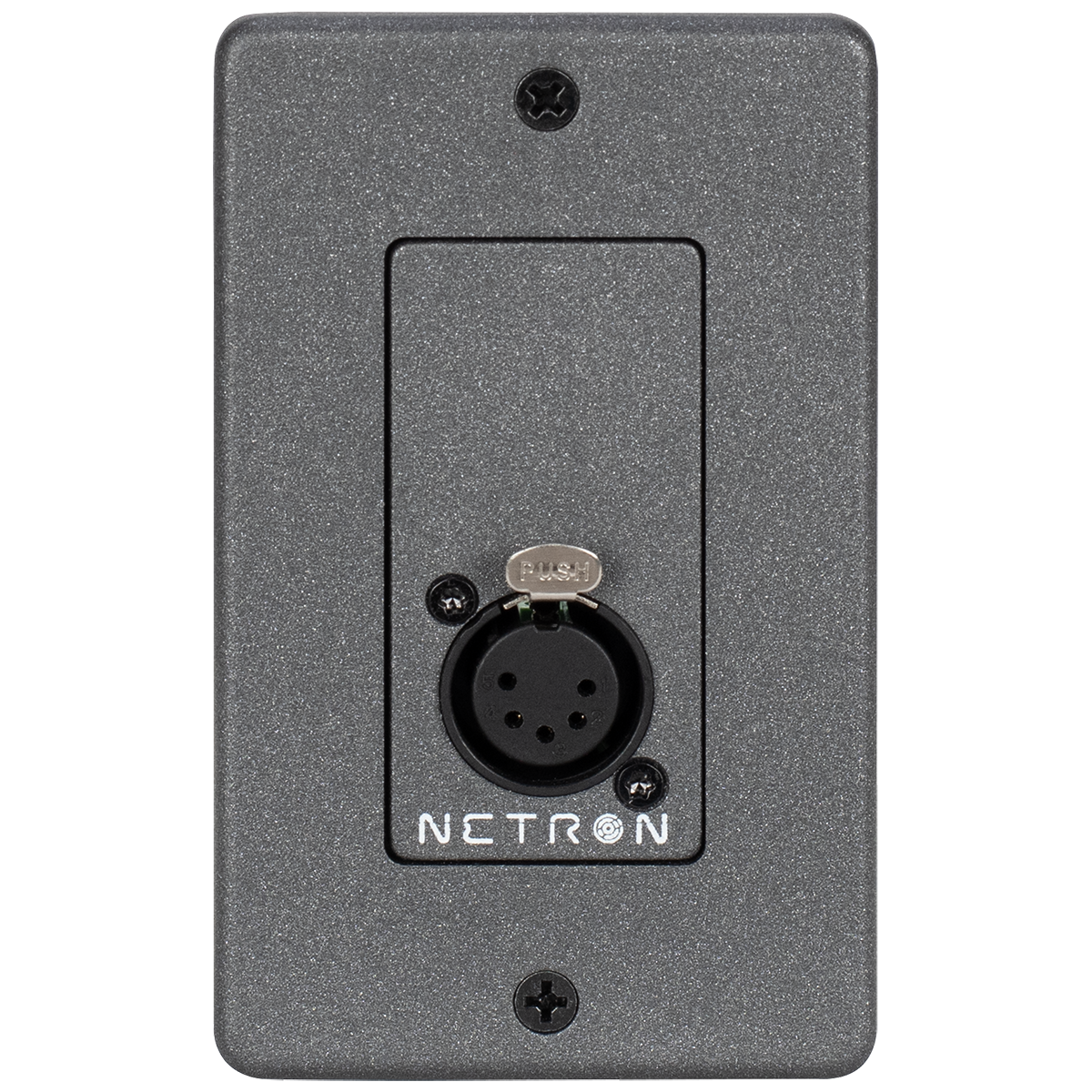

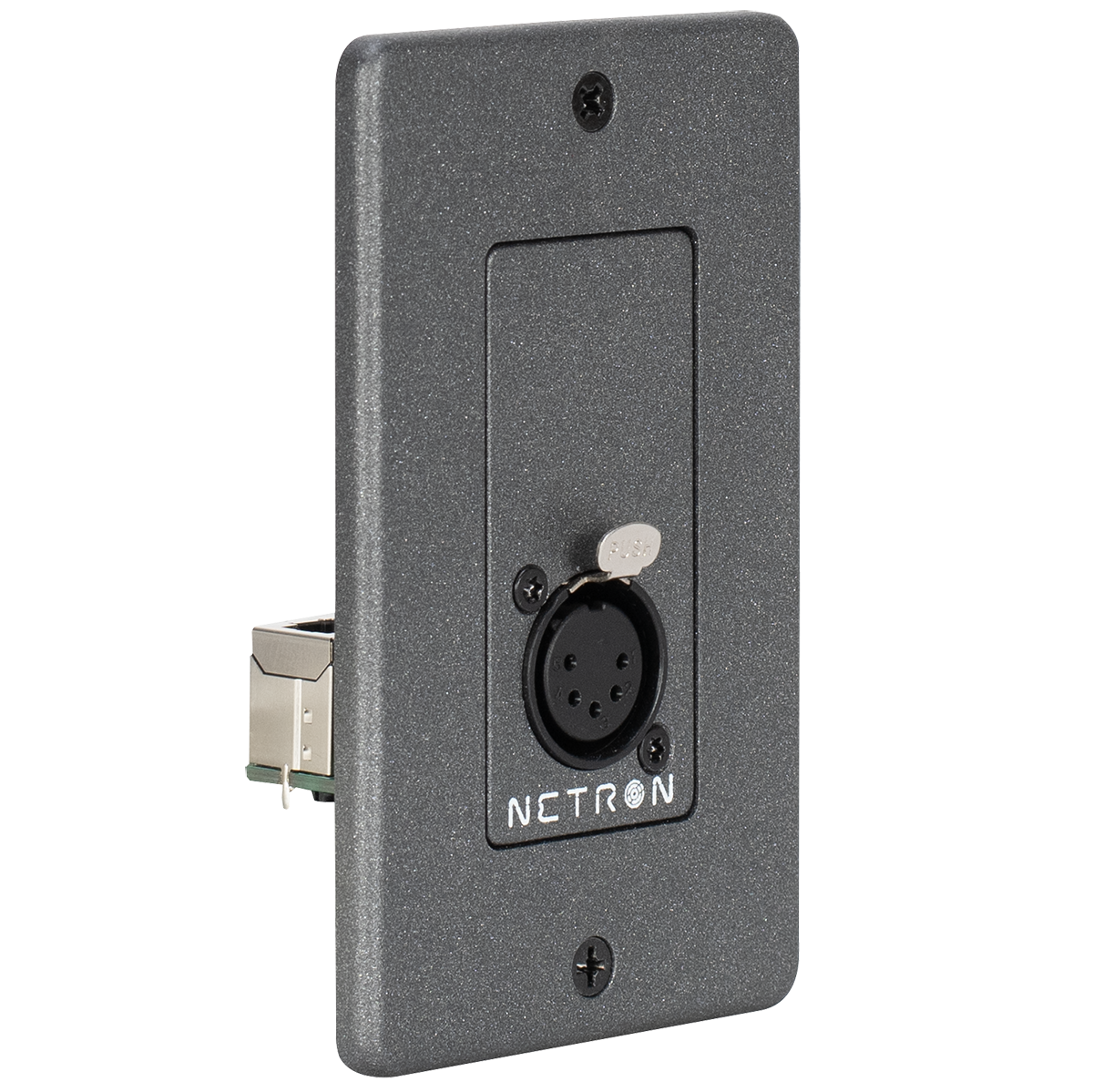

The NETRON WP1DO provides a 5pin DMX Output connector in a Decora insert plate.

Designed as a simple DMX passthrough it is easy to integrate into any DMX infrastructure. 3pin Phoenix, 3pin IDC and RJ45 ESTA compliant DMX are all provided to offer the most flexibility to system integrators.

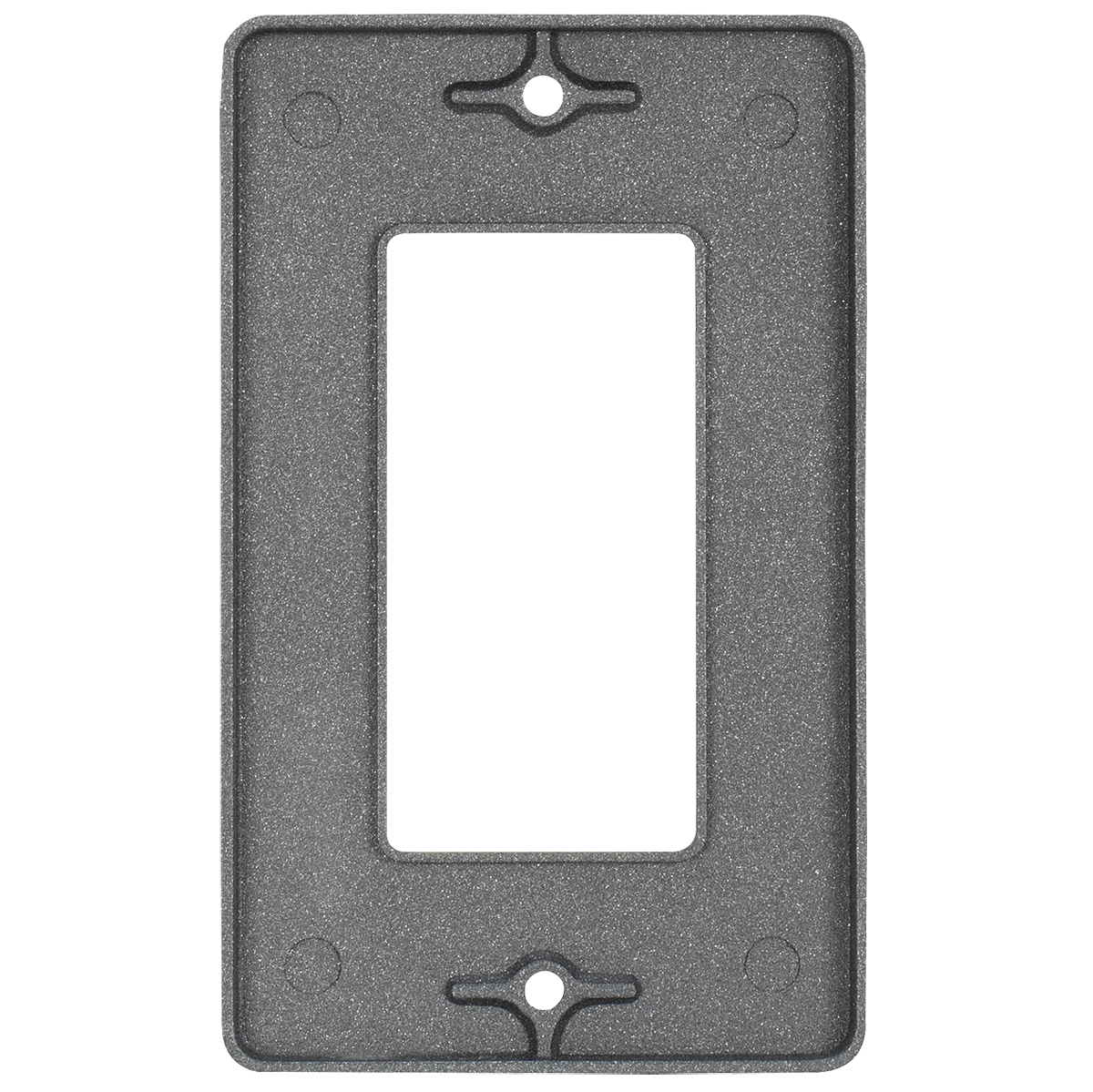

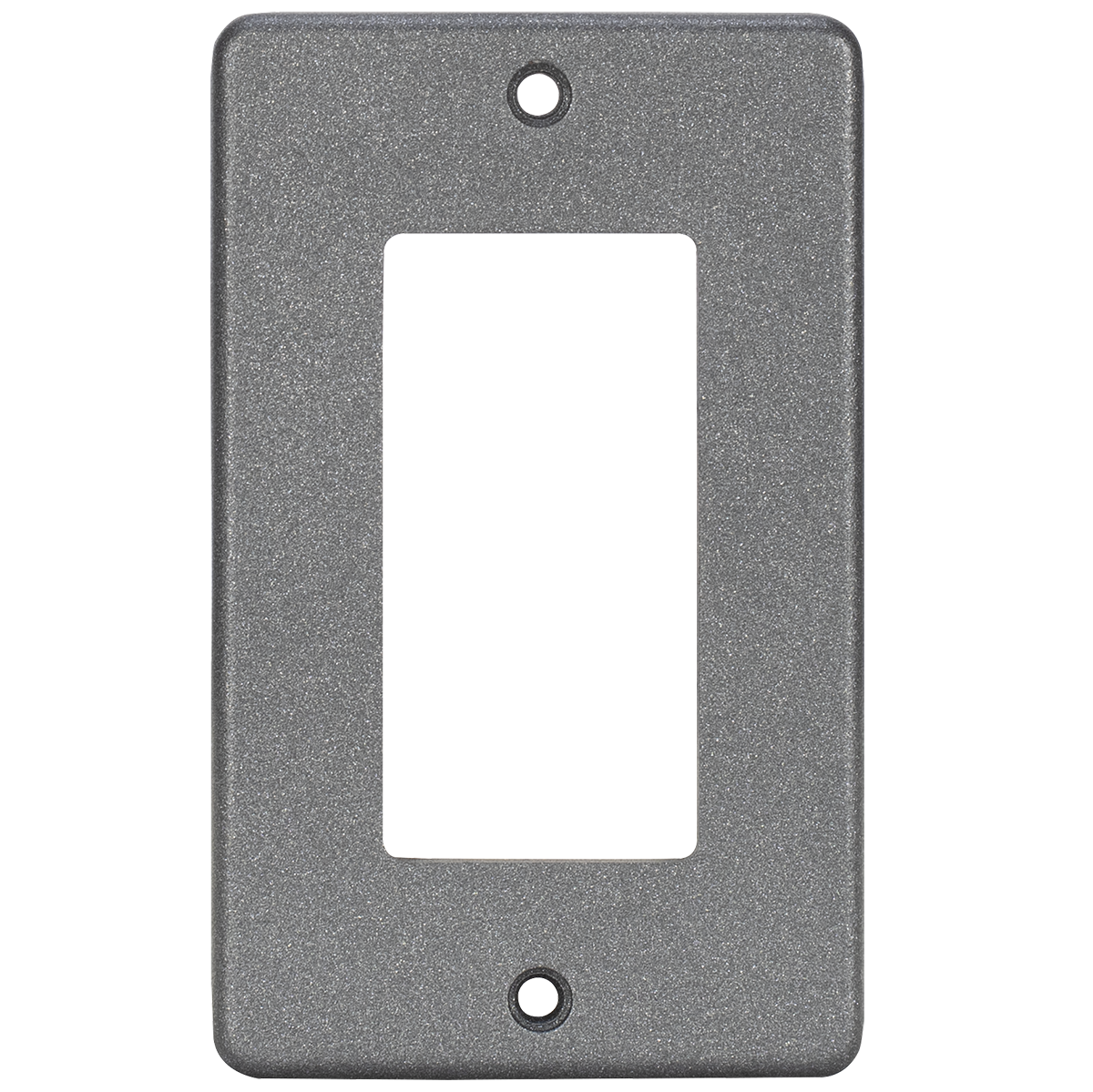

A matching NETRON Decora wall plate is included for a seamless and clean installation.

  • 1-Gang DMX Output connector
  • Terminal and RJ45 DMX input
  • Powder-coated aluminum
  • For technical details and documentation of NETRON devices please visit
  • https://obsidiancontrol.com/netron

Specifications

Mounting
In-Wall 1-Gang (US)

Connections
Front
(1) 5pin DMX Out

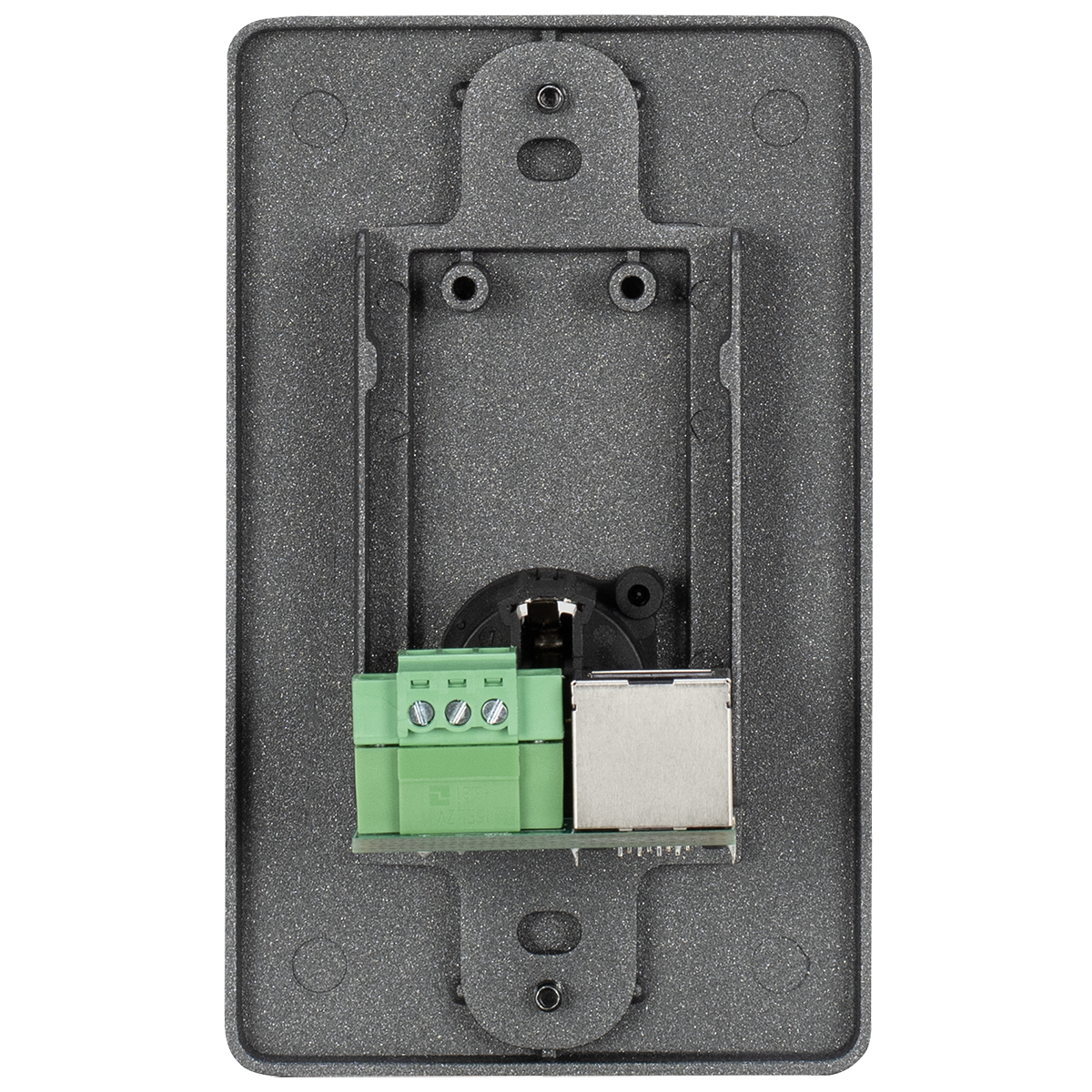

Back
(1) Terminal Block
(1) RJ45 DMX

Physical
1-Gang
Length: 2.3 in. (60mm)
Width: 1.64 in. (34.8mm)
Height: 4.3 in. (108.5mm)
Weight: 0.22 lbs. (0.1kg)

Approvals / Ratings
CE / CETLUS / UKCA / IP20

Included Items
Netron Decora 1-Gang wall plate
(1) Screw Terminal with security screws
(1) IDC Connector with security screws

Specifications and documentation subject to change without notice.
