Z-1020

Discontinued

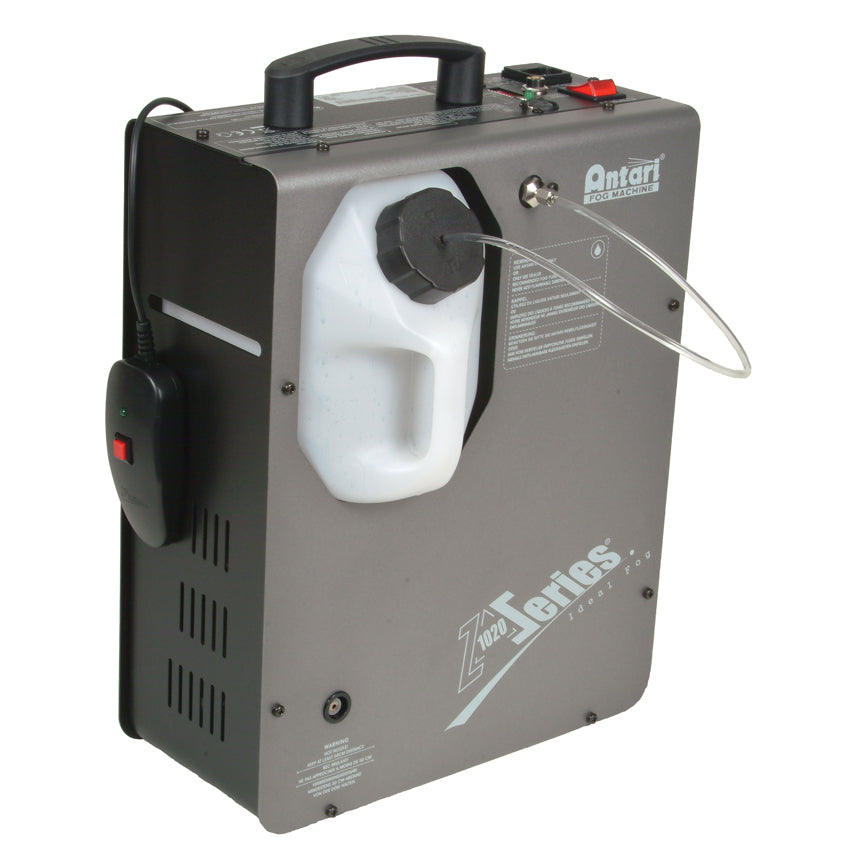

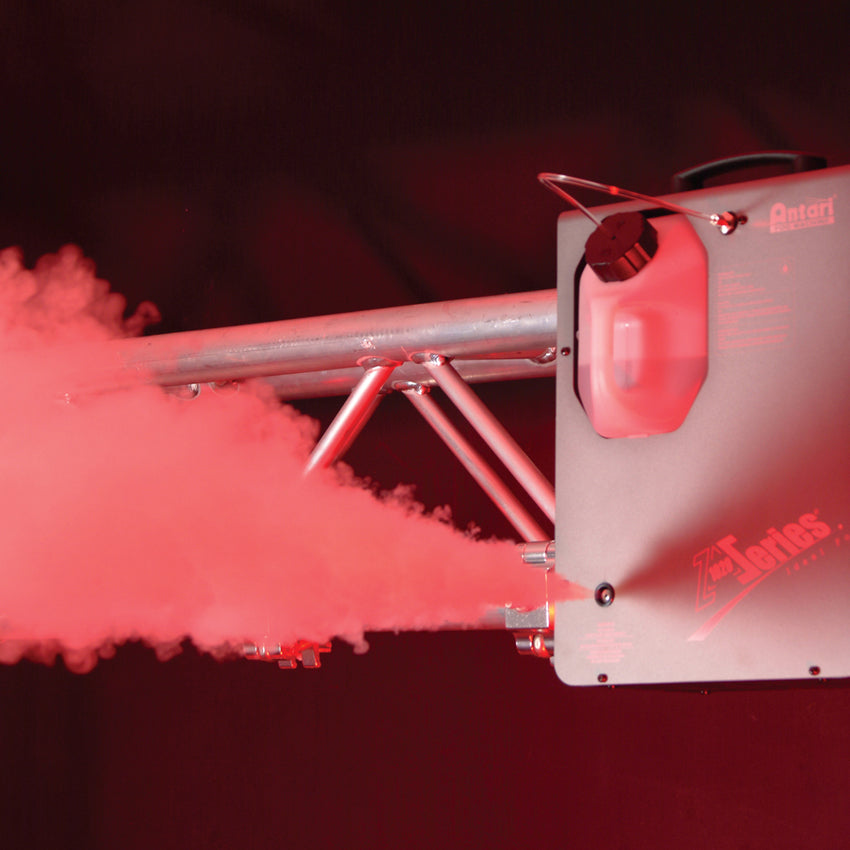

Z-1020 is a professional-grade lighting solution. The Antari Z-1020™ , is a totally new flat horizontal unit that is designed for specialized applications. The versatile Z-1020 is great for shows, productions, theme parks, haunted houses, weirdly configured venues, and special applications that cant use a traditional fog machine. The Z-1020 also includes an electronic low fluid detector with Thermal Cut-Off (TCO) which automatically cuts off the pump power and stops pumping when running-out of fluid.

UPC: 837874009293SKU: Z-1020

Z-1020

The Antari Z-1520 RGB™ features (22) RGB bright LEDs enhance the fog output produced by the Antari Z-1520, the evolutional successor of well-known Z-1020. W-2 remote allows four colors to be assigned to the remote, have access to the entire color pallet when used in DMX mode. One machine can satisfy the desire for both spectacular fog and lighting effects at the same time. Water-based fluid only.

Specifications

Power: AC120V / 60Hz

Output: 10,000 cu. ft/min

Tank Capacity: 2.5 Liter

Fluid Consumption Rate: 24 Min. / Liter (100% output)

Remote Included: Z-10 (Toggle Switch)

Weight: 22 lbs. (9.8 Kg)

DIMENSIONS
Length: 4.5” (370mm)
Width: 11.75” (295mm)
Height: 5.5” (135mm)

APPROVALS / RATINGS
CE | RoHs | cETLus



OPPTIONAL ACCESSORIES

Z-40 (Timer Remote) SKU# Z-40
Z-50 (Wireless Remote) SKU# Z-50



Specifications and documentation subject to change without notice.

Downloads

Brochure

User manual
