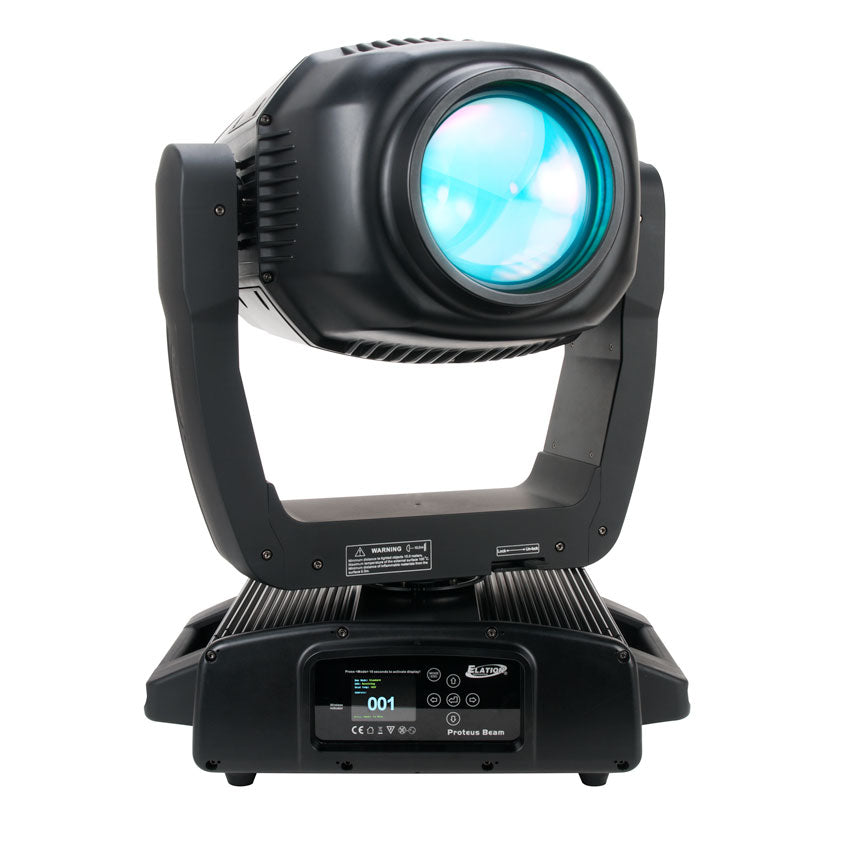

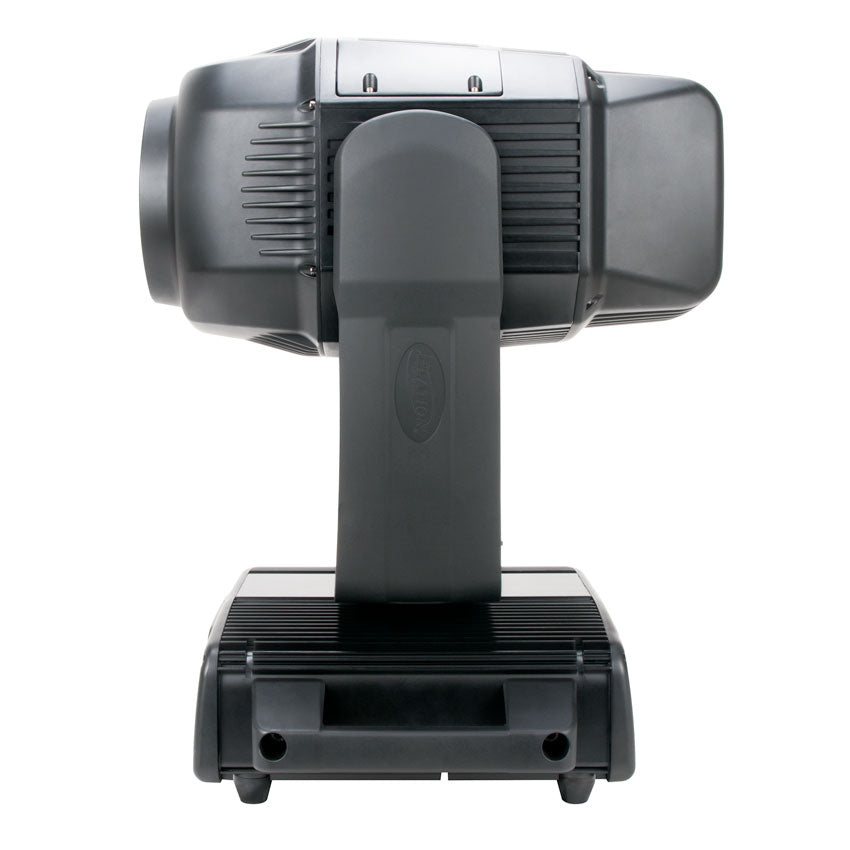

PROTEUS BEAM

Features

IP65 Rated Moving Head Beam Luminaire
Philips™ MSD Platinum 14R 280W 80CRI 7,800K Lamp
Precise 2.5° Beam Aperture and Advanced Optics
Revolutionary Internal Cooling System
Full CMY Color Mixing
13 Dichroic Colors including CTB, CTO, and UV
8 Rotating Interchangeable Metal and 13 Static-Stamped Metal Gobos
5 and 32 Facet Rotating Prisms and Frost Filter
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe
DMX, RDM, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver

Resources

Specifications Sheet

User Manual

Photometric Test Report

Photometric IES File

Gobos & Colors

DMX Traits

Dimensional Drawing

CAD Drawing

Vectorworks Symbol

Related Categories

Specifications

SOURCE

Philips™ MSD Platinum 14R 280W 80CRI, 7,800K

1,500 Hour Average LAMP Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

136,800 LUX 12,709 FC @49.2 ft (15m) 2.5°


EFFECTS

5 and 32 Facet Rotating Prism and Prism Macros

Frost Filter Hybrid Wash Effect

Motorized Focus and Auto Focus

High Speed Mechanical Shutter and Strobe


COLOR

13 Dichroic Colors including CTB, CTO, and UV

Full CMY Color Mixing


GOBOS

(8) Interchangeable Rotating / Indexing Metal Gobos

(13) Static-Stamped Metal Gobos


CONTROL / CONNECTIONS

(3) DMX Channel Modes (28 total channels)

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

8 / 16 Bit Resolution Adjustable Movement

DMX, RDM, Art-NET, and sACN Protocol Support

Elation E-Fly™ Internal Wireless DMX Transceiver

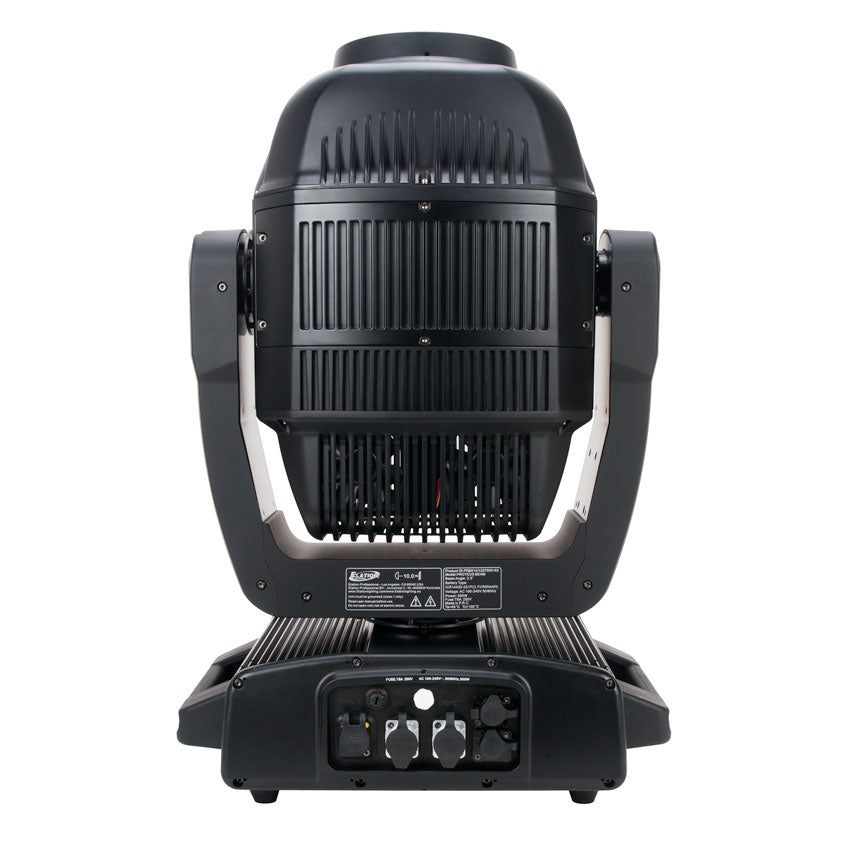

IP65 5pin DMX In/Out

IP65 RJ45 Ethernet In/Out

IP65 powerCON TRUE1 Power In

With Wired Digital Communication Network


SIZE / WEIGHT

Length: 17.1” (445mm)

Width: 17.87” (454mm)

Vertical Height: 26.77” (680mm)

Weight: 77.0 lbs. (35.0kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

500W Max Power Consumption

14°F to 113°F (-10°C to 45°C)


APPROVALS / RATINGS

CE | cETLus | IP65


FIRMWARE UPDATES

Current Version: V1.6.0

Click link below for software updates and technical support.

firmware@elationlighting.com


Specifications and documentation subject to change without notice.
