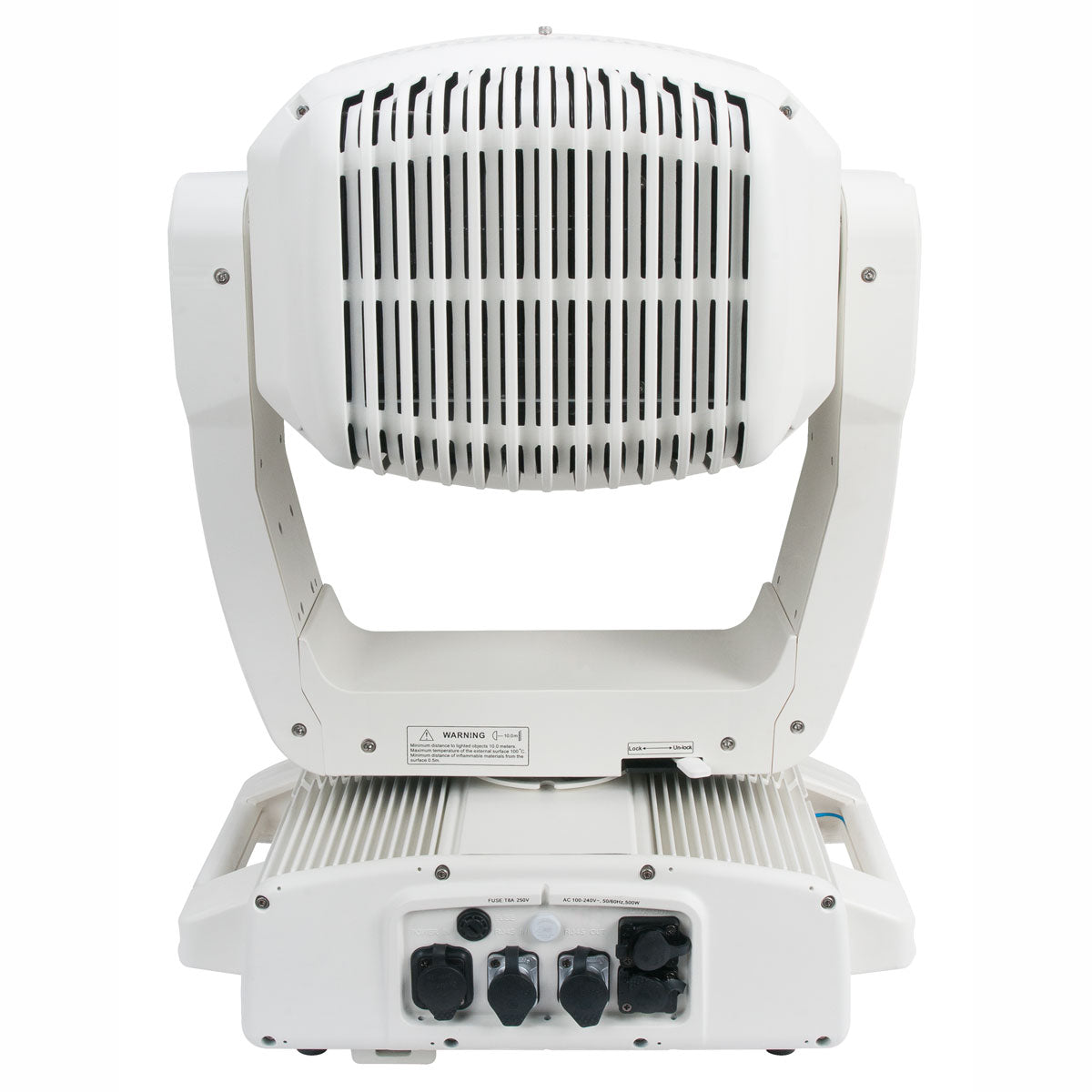

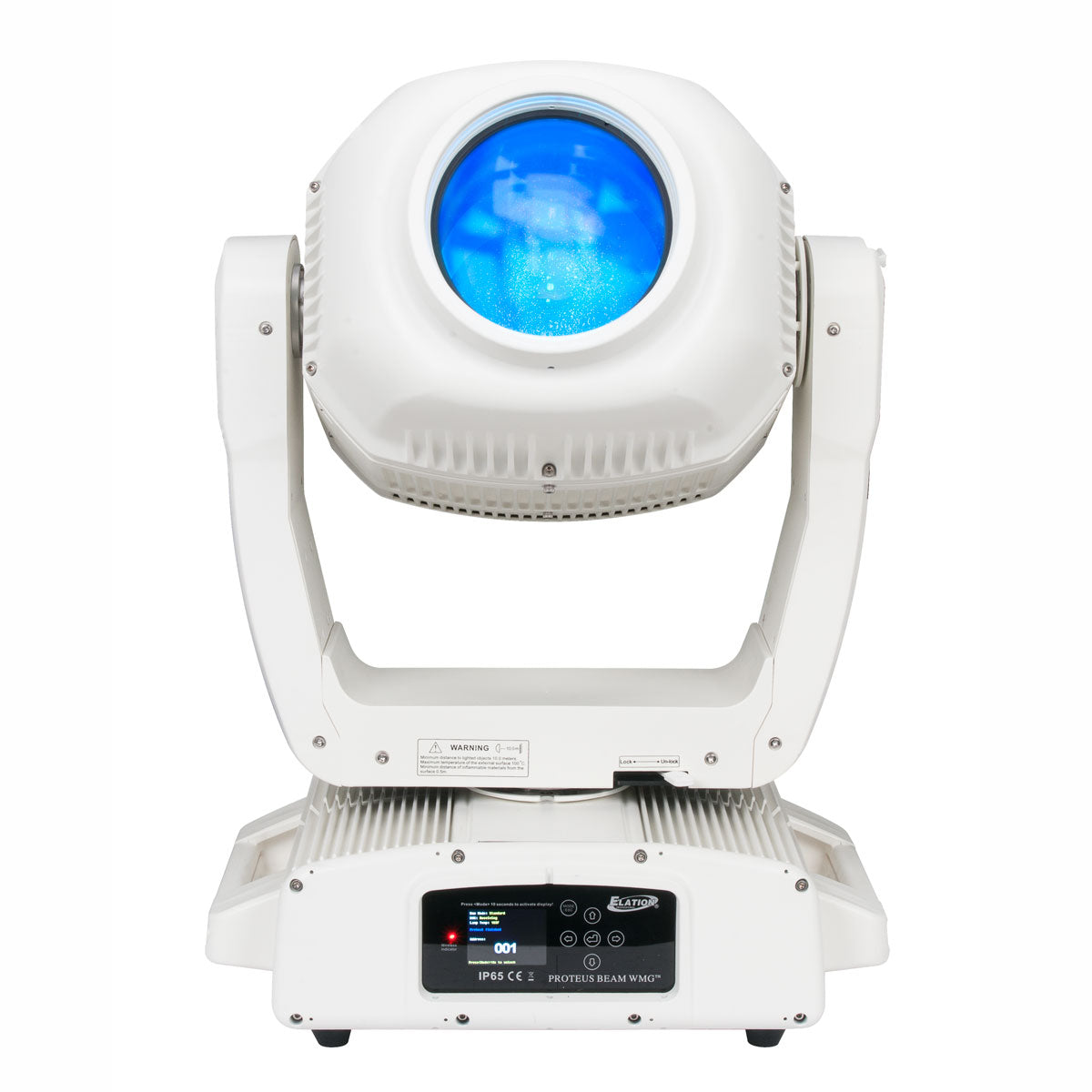

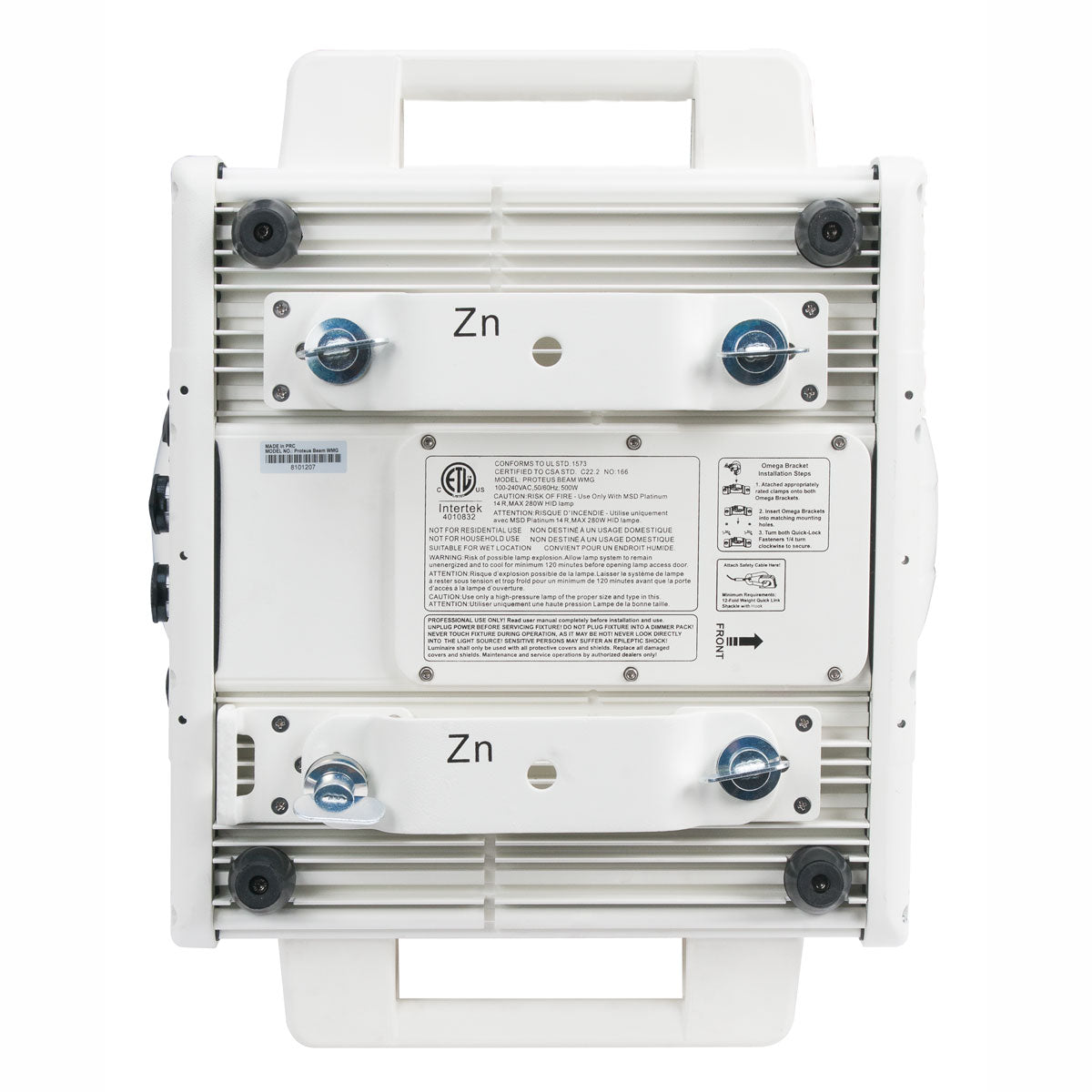

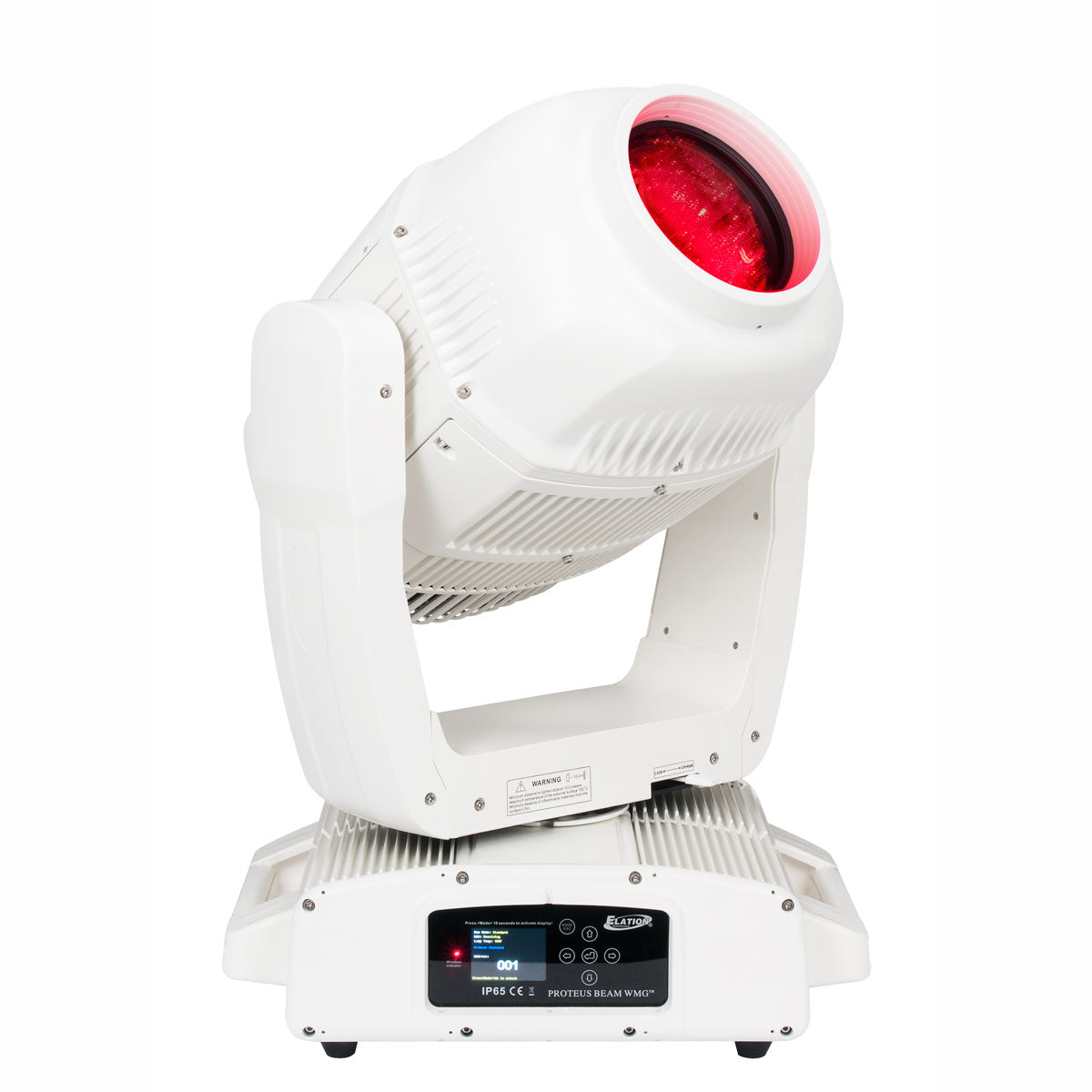

PROTEUS BEAM WMG

Features

IP65 Rated Moving Head Beam Luminaire
All White Exterior

Philips™ MSD Platinum 14R 280W 80CRI 7,800K Lamp
Precise 2.5° Beam Aperture and Advanced Optics
Revolutionary Internal Cooling System
Full CMY Color Mixing
13 Dichroic Colors including CTB, CTO, and UV
8 Rotating Interchangeable Metal and 13 Static-Stamped Metal Gobos
5 and 32 Facet Rotating Prisms and Frost Filter
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe
DMX, RDM, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver

Resources

User Manual

Photometric Test Report

Photometric IES File

Gobos & Colors

DMX Traits

Dimensional Drawing

CAD Drawing

Vectorworks Symbol

Specifications

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

136,800 LUX 12,709 FC @49.2 ft (15m) 2.5°


EFFECTS

5 and 32 Facet Rotating Prism and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Focus and Auto Focus
High Speed Mechanical Shutter and Strobe

COLOR

13 Dichroic Colors including CTB, CTO, and UV

Full CMY Color Mixing


GOBOS

(8) Interchangeable Rotating / Indexing Metal Gobos
(13) Static-Stamped Metal Gobos


CONTROL / CONNECTIONS

(3) DMX Channel Modes (28 total channels)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation E-Fly™ Internal Wireless DMX Transceiver
IP65 5pin DMX In/Out
IP65 RJ45 Ethernet In/Out
IP65 powerCON TRUE1 Power In
With Wired Digital Communication Network


SIZE / WEIGHT

Length: 17.1” (445mm)
Width: 17.87” (454mm)
Vertical Height: 26.77” (680mm)
Weight: 77.0 lbs. (35.0kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
500W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


APPROVALS / RATINGS

CE | cETLus | IP65



Specifications and documentation subject to change without notice.
