Features
IP65 Rated 3-in-1 Hybrid Beam, Spot, Wash Luminaire

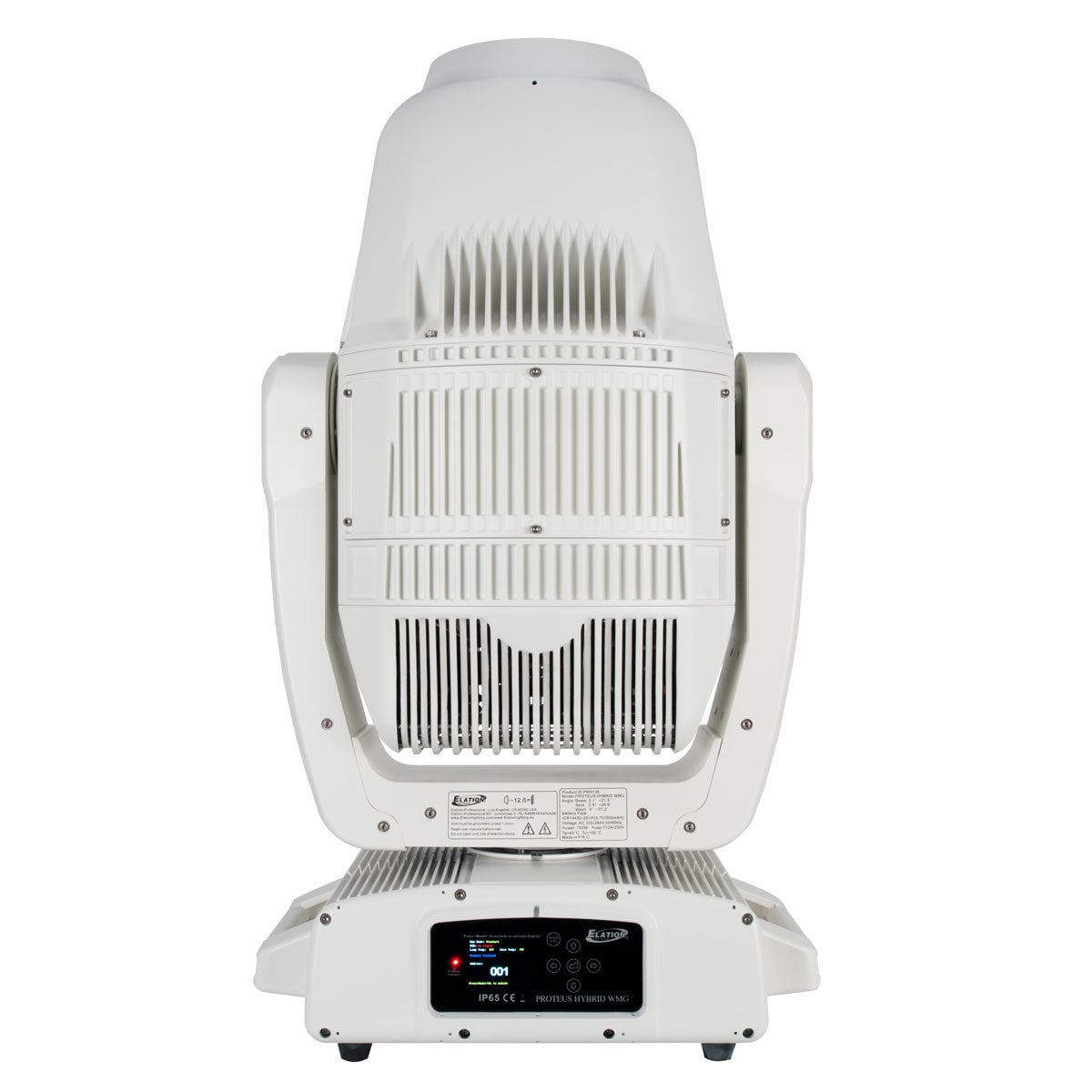

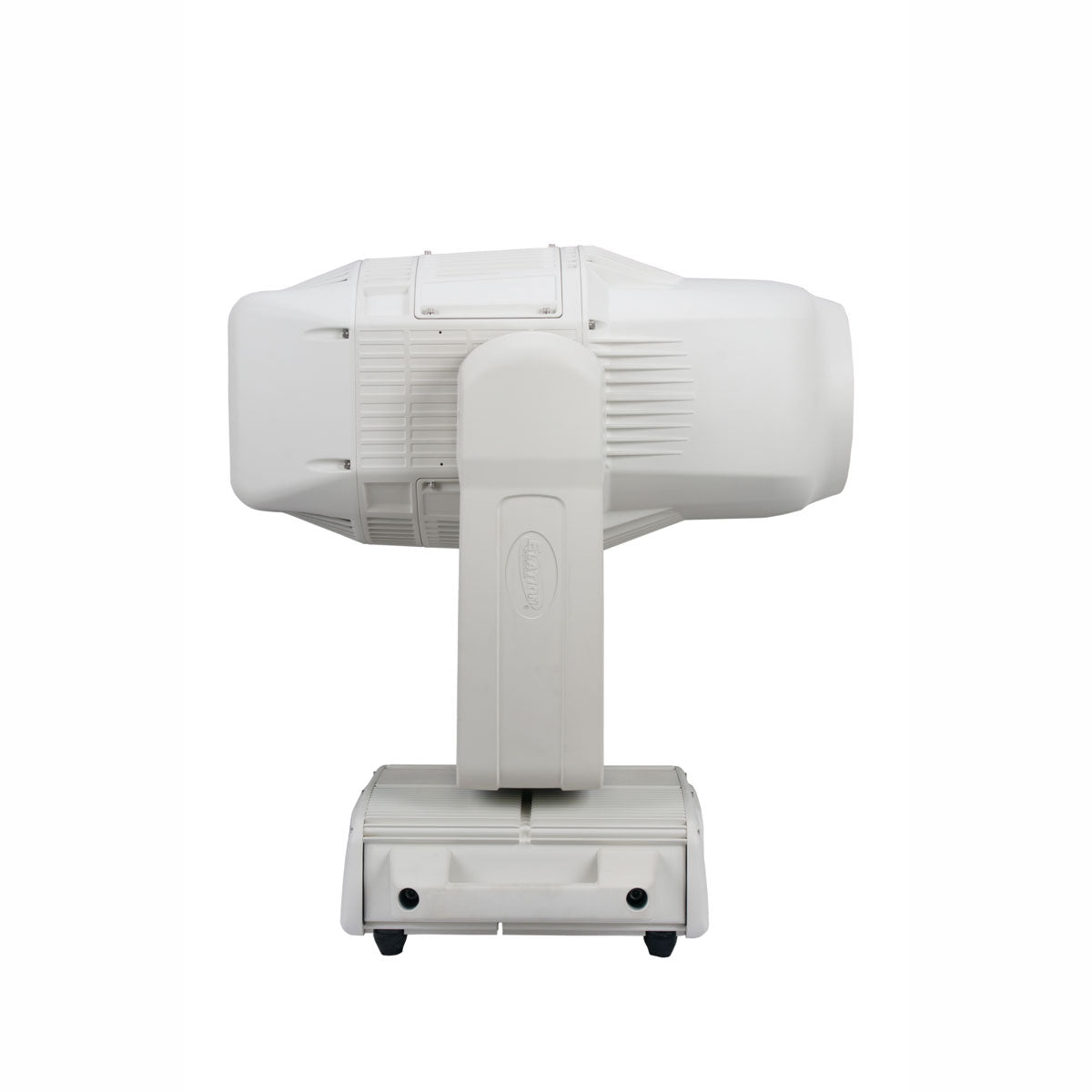

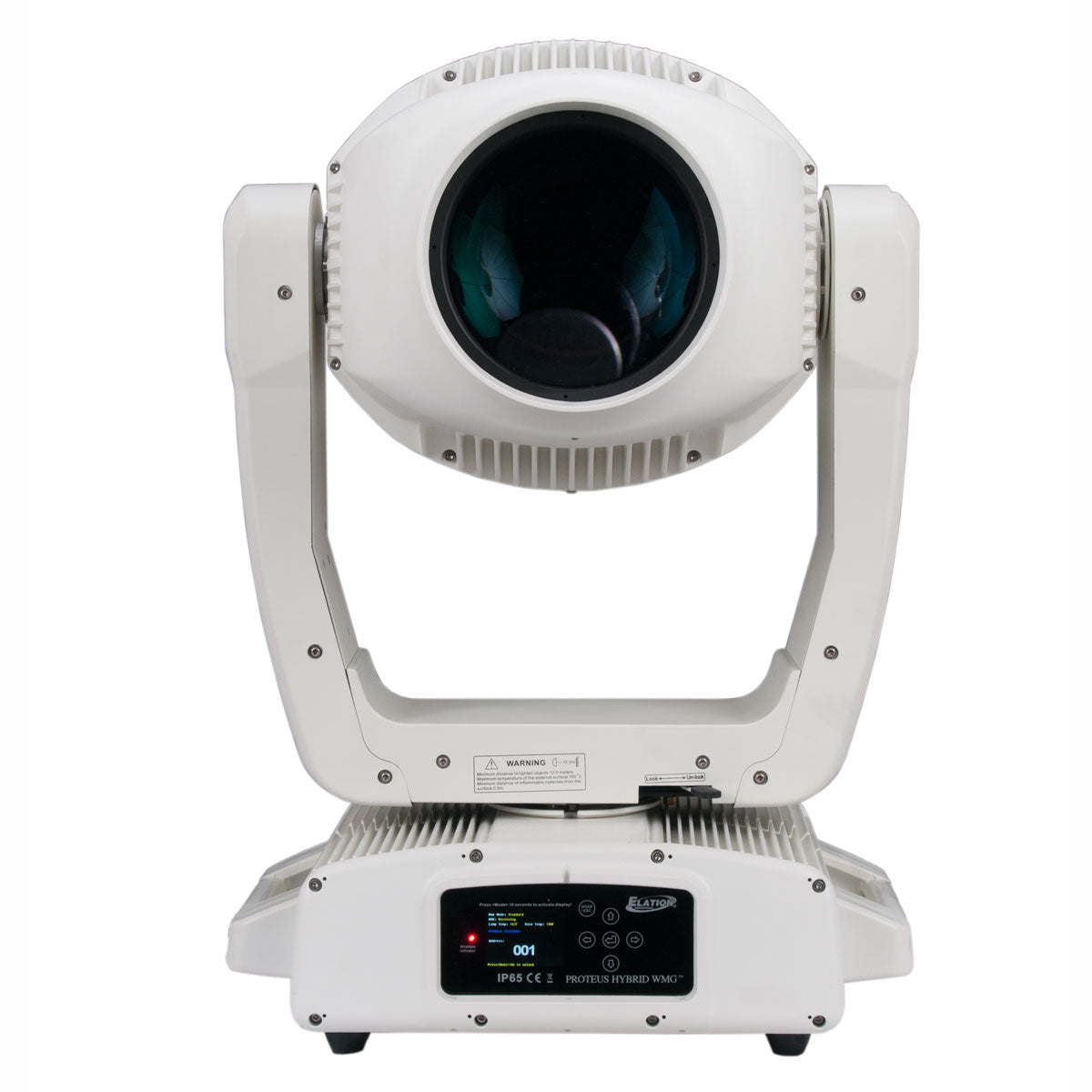

All White Exterior
Philips™ MSD 21R 470W 80CRI 8,000K Lamp and Advanced Optics

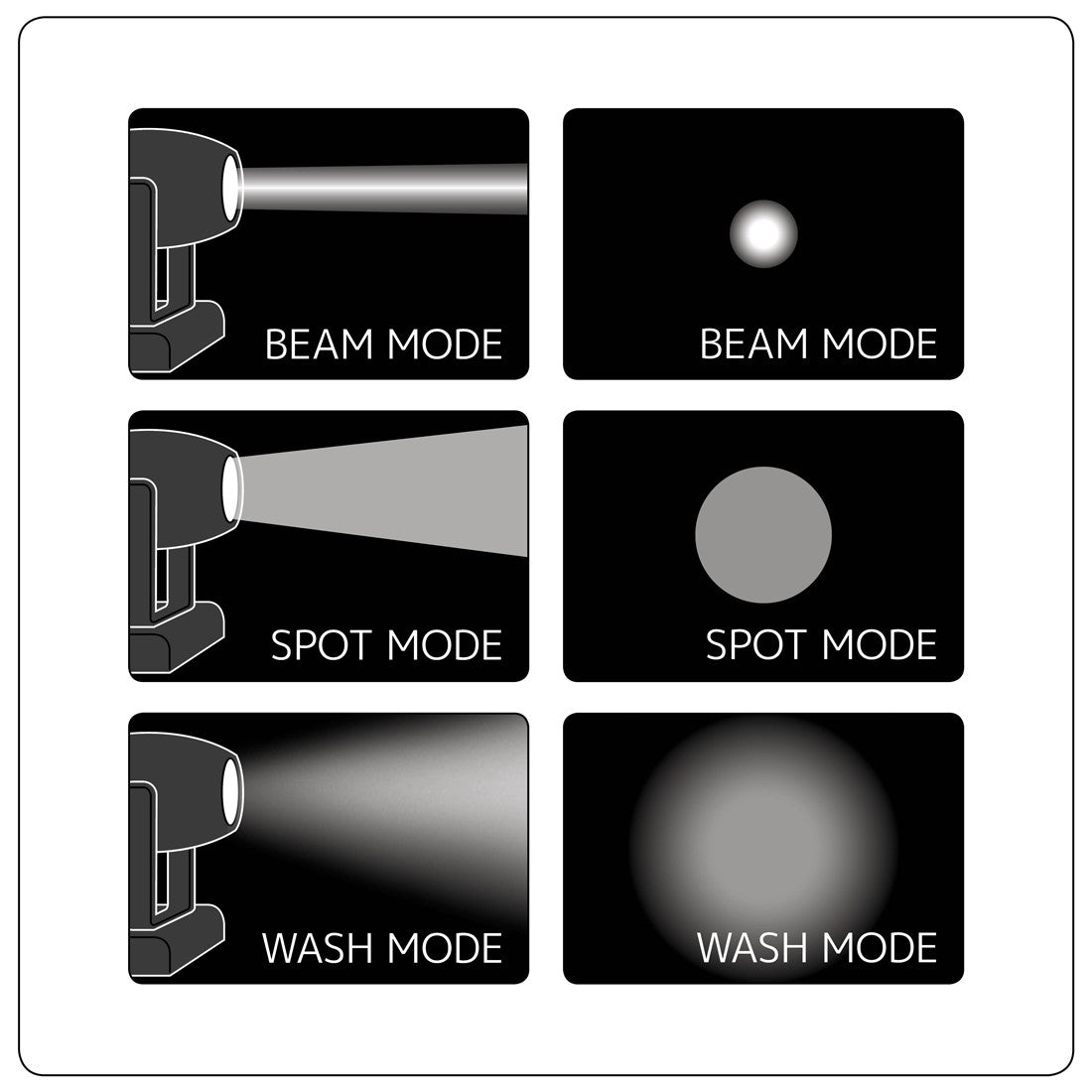

Motorized Zoom, Beam and Spot Modes
Advanced Internal Thermal Cooling System
Full CMY Color Mixing and Linear CTO Color Correction
14 Dichroic Colors Including CTB, CTO, and UV
8 Rotating Interchangeable and 14 Static-Stamped Metal Gobos
Full 360° Bi-Directional Animation Wheel
Rotating 8-Facet and Linear Prisms and Frost Filter
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe
DMX, RDM, Art-NET, and sACN Protocol Support
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
Gobo & Color Info
DMX/ RDM Traits
Drawings
CAD File
- Proteus Hybrid WMG - 3D Cad Drawing
- Proteus Hybrid WMG - Vectorworks Symbol
- Proteus Hybrid WMG - 2D Cad Drawing
Related Categories
Specifications
SOURCE
Philips MSD 21R 470W 8,000K Lamp
1,000 Hour Average LAMP Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
80CRI | 14,000 Lumens
13,375 LUX 1,243 FC @49.2’ (15m) (3.0° Spot)
233,000 LUX 21,646 FC @49.2’ (15m) (2.0° Beam)
11,500 LUX 1,068 FC @16.4’ (15m) (4.0° Wash)
Zoom Range
Beam 2.1° - 21.5°
Spot: 2.8° - 28.6°
Wash: 4° - 31.2°
EFFECTS
Full 360° Bi-Directional Animation Wheel
Rotating Prisms and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe
COLOR
14 Dichroic Colors Including CTB, CTO, and UV
Full CMY Color Mixing and Linear CTO Color Correction
GOBOS
8 Interchangeable Rotating / Indexing Glass Gobos
14 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
3 DMX Channel Modes (24 / 26 / 37)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver (optional)
IP65 5pin DMX In/Out
IP65 RJ45 etherCON In/Out
IP65 Locking Power In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 18.45" (465mm)
Width: 22.5" (572mm)
Vertical Height: 37.1" (805mm)
Center-to-Center Spacing: 26.4" (671mm)
Weight: 84.0 lbs. (38 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
