RackHog 4
RackHog 4

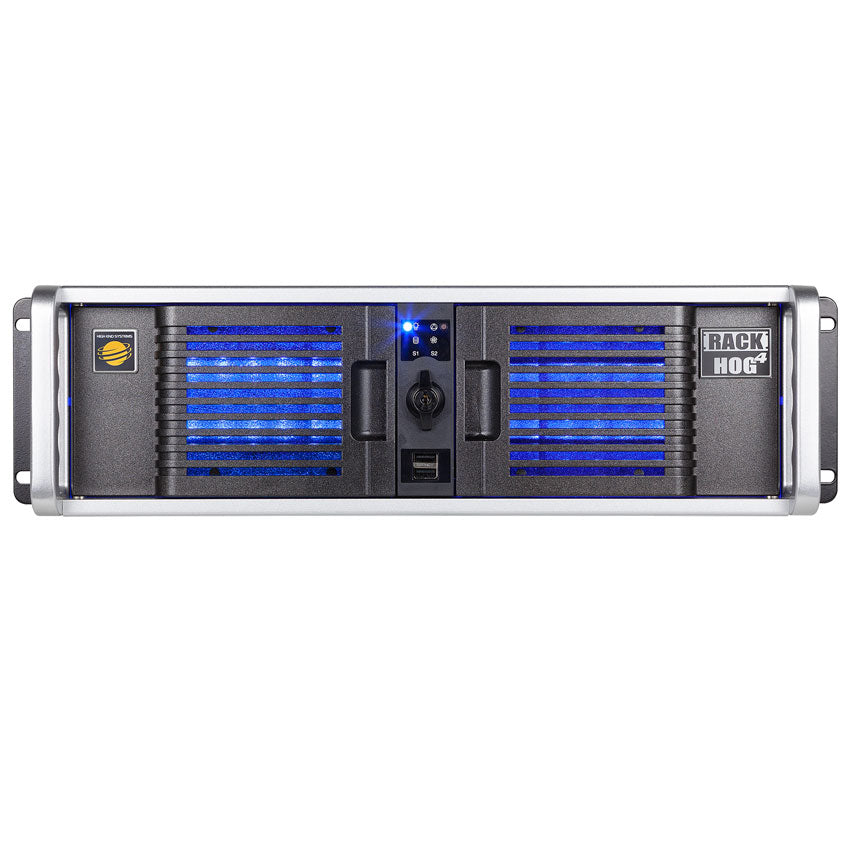

A Hog in a box! RackHog 4 has all the power of a Hog 4 console condensed into a 3U rack mount unit making it the ideal solution for fixed install applications such as cruise ships, theme parks, and architectural installations. RackHog 4 is also perfectly suited to operate as a backup to any Hog 4 family console.
Plug a Nano Hog 4 into the RackHog 4, add a touch screen and you have a powerful control system ready to take on any show. Perfect for those applications where permanent hardware interfaces are not necessary this Hog is perfect for program and leave situations.
RackHog 4, like the other consoles in the Hog 4 family, runs on Linux and is compatible with all of the same peripheral hardware. RackHog 4 has no limits, and is fully expandable in conjunction with DMX Processor 8000’s.
Features
Robust Hog 4 Operating Software
Unlimited Number of Simultaneous Crossfades
Built in DMX Processor 8000

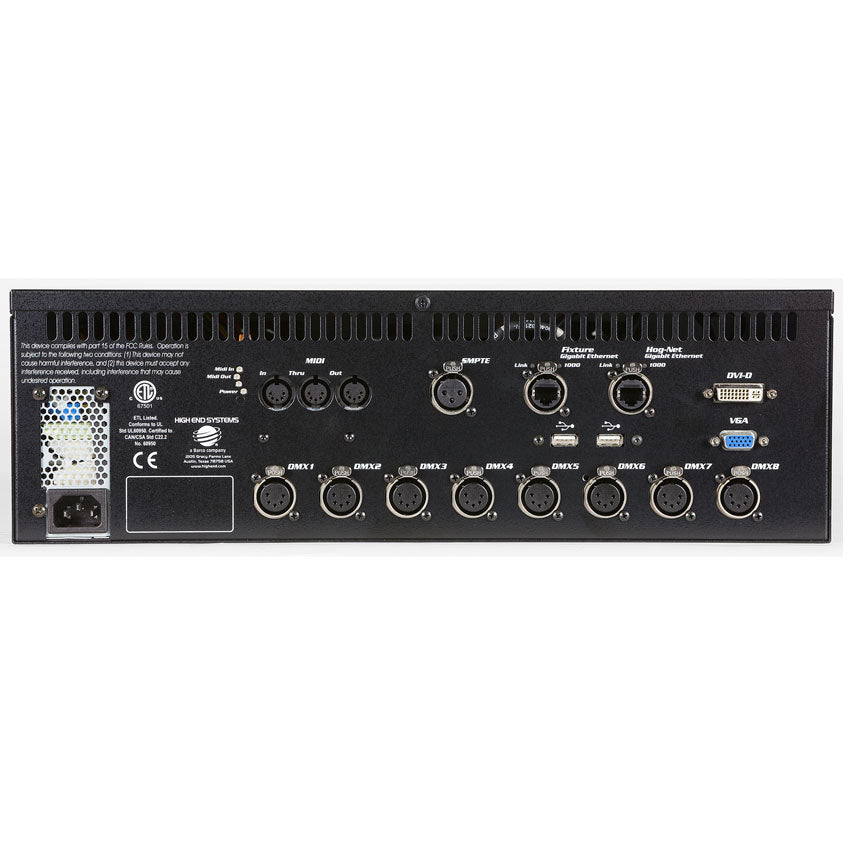

Hog-Net Ethercon Connector
Fixture-Net Ethercon Connector
(4) USB Ports for Wholehog Wings and External Touchscreens
Auto-Ranging Mains Input (90-250VAC)
Keyboard and Mouse Included
Solid State Hard Drive
Resources
Specification information
Guides/ Manuals
Drawings
CAD File
Related Categories
Specifications
CONNECTIVITY
Unlimited DMX channels and Art-Net and E1.3.1 (sACN) Universes via Ethernet DPs
Onboard MIDI Input/Output, MIDI Show Control and MIDI Time Code and LTC Input
Multiple LTC Inputs via Multiple SMPTE / LTC USB Widgets
Connectivity with Many Visualizers via Ethernet
Total Networking with Multiple Wholehog Console Systems
Remote Focus Capabilities via Open Sound Control
Connectivity to Remote Windows PC’s running Hog 4PC Software
Supports USB Playback and Expansion Wings
SIZE / WEIGHT
Length: 19.09” (485.03mm)
Width: 16.59” (421.5mm)
Vertical Height: 5.21” (132.36mm)
Weight: 21 lbs (9.52kg)
Specifications and documentation subject to change without notice.
