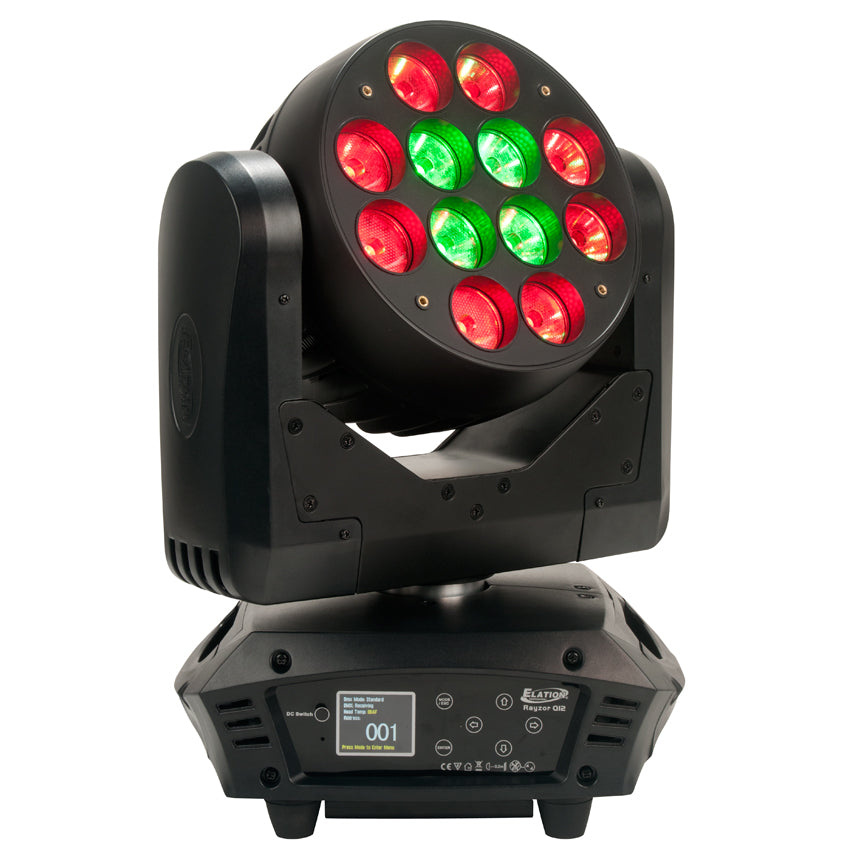

Rayzor Q12

Discontinued

Rayzor Q12 is a professional-grade lighting solution. The new Rayzor Q12 features (12) 15W Quad Color RGBW LEDs, high speed 16-bit resolution movement, color mixing, rainbow effect, a 7° to 14° field angle range, 6 zone chase effects, 8 auto program chase effects, flicker free operation for TV and Film, 5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

UPC: 837874016000SKU: RAY512

Rayzor Q12

The new Rayzor Q12 features (12) 15W Quad Color RGBW LEDs, high speed 16-bit resolution movement, color mixing, rainbow effect, a 7° to 14° field angle range, 6 zone chase effects, 8 auto program chase effects, flicker free operation for TV and Film, 5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v). Optional accessories for the Rayzor Q12 include a snoot lens cover and diffusion filter holder.
 The new Rayzor Q12 features (12) 15W Quad Color RGBW LEDs, high speed 16-bit resolution movement, color mixing, rainbow effect, a 7° to 14° field angle range, 6 zone chase effects, 8 auto program chase effects, flicker free operation for TV and Film, 5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v). Optional accessories for the Rayzor Q12 include a snoot lens cover and diffusion filter holder.

 FEATURES
 Pan: 540° / 630°/ 540° - 90° Offset
 Tilt: 270° / 240°
 High Speed Adjustable 16-Bit Resolution Movement
 6 Zone Chase Effects
 8 Auto Program Chase Macros

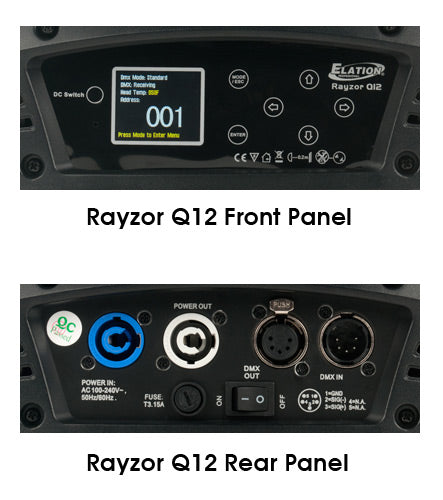

 6 Button Touch Control Panel
 Omega Bracket Mounting (2x 107mm)
 Flicker Free Operation for TV and Film
 Full Color 180° Reversible Menu Display
 Microphone for Sound Activated Programs
 Rechargeable Backup Battery for Menu Display
 Stand Alone Operation with Primary/Secondary Function
 Software Upload via Optional External DMX Accessary

Specifications

SOURCE
(12) 15W RGBW QUAD COLOR LED
100,000 Hours Average Life

PHOTOMETRICS
Max 5,840 LUX @5M
7° to 14° Field Angle Range

EFFECTS
Color Mixing
Rainbow Effect
Dimming: 0% - 100% + Blackout for All Four Colors
Strobe: 1 – 18 Flashes Per Second
Pulse Effect

CONTROL / CONNECTIONS
3 DMX Channel Modes (15/17/37)
5pin DMX In/Out
Locking Power In/Out

SIZE / WEIGHT
Length: 11.7” (295.5mm)
Width: 8.5” (214mm)
Vertical Height: 15.7” (397mm)
Weight: 22 lbs. (10kg)

ELECTRICAL / THERMAL
240W Max Power
AC 100-240V - 50/60Hz
-10°C/14°F to 45°C/113°F

APPROVALS / RATINGS
CE | cETLus | RoHs | IP20

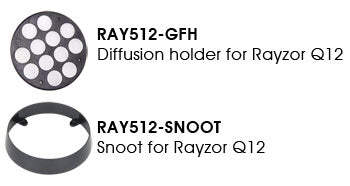

OPTIONAL ACCESSORIES:

RAY512-SNOOT - Snoot Lens Cover

RAY512-GFH - Diffusion Filter Cover

CLAMPS (click for more info)

PRO CABLES (click for more info)

DMX SOLUTIONS (click for more info)

Specifications and documentation subject to change without notice.
