Rayzor Q12 Zoom
Rayzor Q12 Zoom

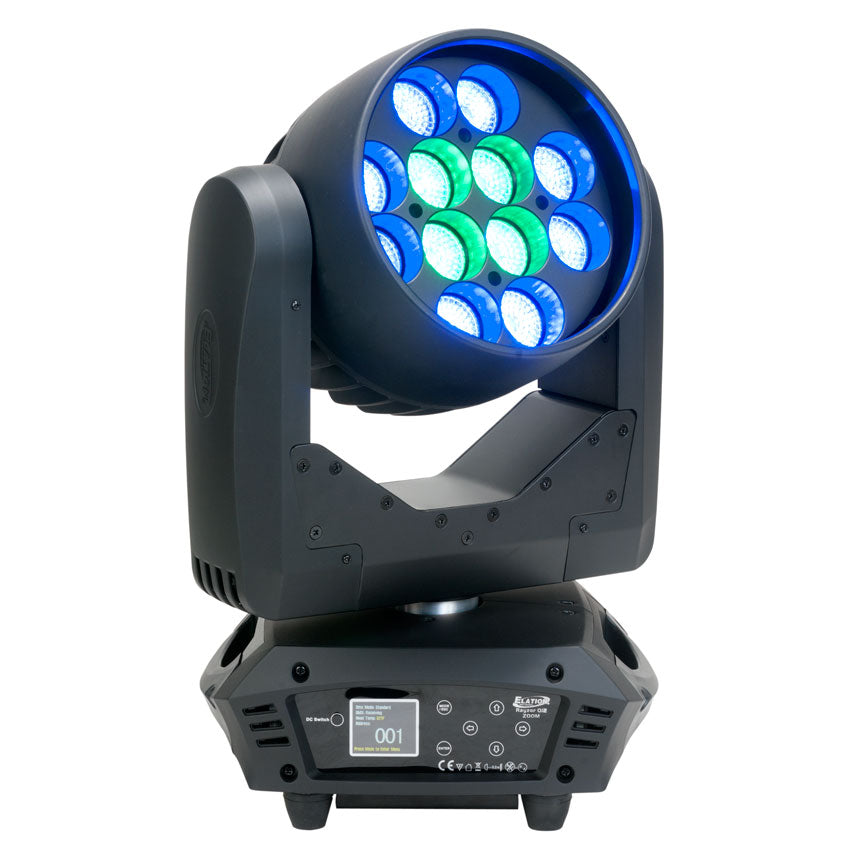

The new Rayzor Q12 Zoom™ is a compact and fast wash lluminare featuring (12) 15W Quad Color RGBW LEDs, 13° to 29° motorized zoom, RGBW color mixing and color macros, variable color temperatures (2,700K - 8,000K) and dimming modes, multiple pixel zone control and chase effects, 16bit 3-phase motors, 5pin DMX and powerCON in/out connections, RDM (remote device management), flicker free operation for broadcast TV and FILM, (6) button control full color 180° reversible menu display, 260W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
Features
Compact and Fast Zoom Wash LED Illuminare
13° - 29° Motorized Zoom
RGBW Color Mixing and Color Macros
Variable Color Temperatures (2,700K - 8,000K)
Variable Dimming Modes
Multiple Pixel Zone Control and Chase Effects
16bit 3-Phase Motors
RDM - Remote Device Management
Flicker Free Operation for Broadcast TV and FILM
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
PHOTOMETRIC DATA
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
- Rayzor Q12 Zoom Vectorworks 2014 Symbol
- Rayzor Q12 Zoom Vectorworks 2015 Symbol
- Rayzor Q12 Zoom Vectorworks 2016 Symbol
Related Categories
Specifications
(12) 15W Quad Color RGBW LEDs
100,000 Hour Average LED Life
PHOTOMETRIC DATA
Distance @8.2 ft (2.5m)
5,680 LUX 528 FC (13° Min Zoom Full ON)
3,200 LUX 297 FC (13° Min Zoom WHITE LEDs Full ON)
806 LUX 75 FC (29° Max Zoom Full ON)
470 LUX 44 FC (29° Max Zoom WHITE LEDs Full ON)
EFFECTS
Multiple Pixel Zone Control
Color Macro and Chase Effects
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Modes
COLOR
RGBW Color Mixing
Variable Color Temperatures (2,700K - 8,000K)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 20/ 28)
RDM (Remote Device Management)

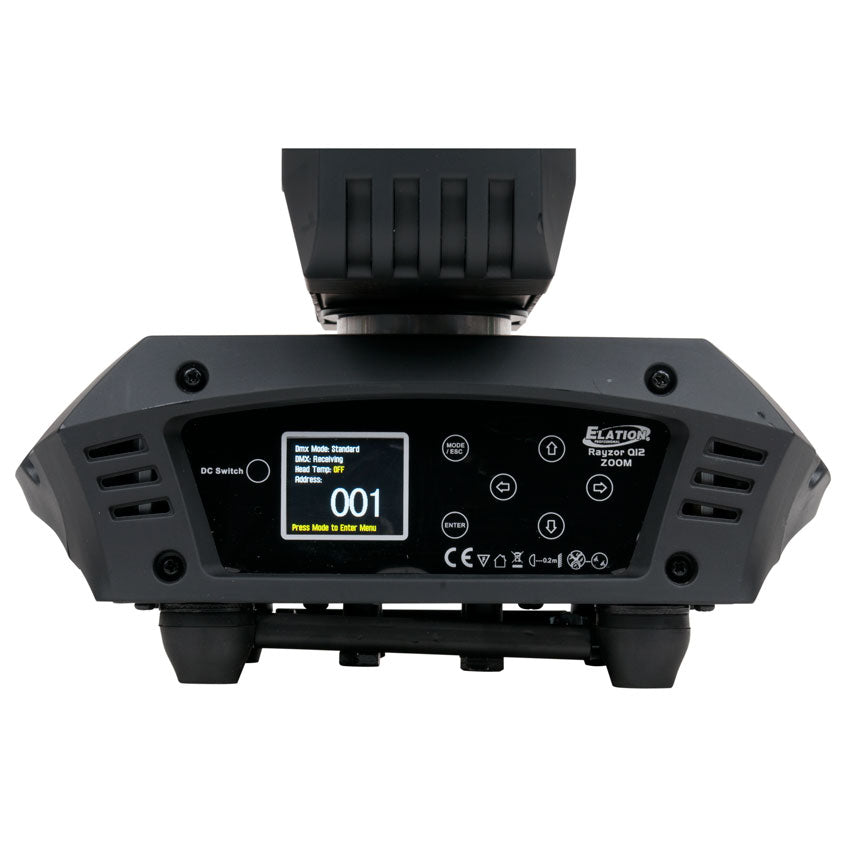

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit 3-Phase Motors
8 / 16 Bit Resolution Adjustable Movement
5pin DMX In/Out
powerCON Power In/Out
SIZE / WEIGHT
Length: 11.9” (302mm)
Width: 8.4” (214mm)
Vertical Height: 17.1” (434)
Weight: 23.0 lbs. (10.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
260W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)
APPROVALS / RATINGS
CE | IP20
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
Omega Brackets
5pin DMX Cable
Safety Cable
powerCON Cable
Specifications and documentation subject to change without notice.
