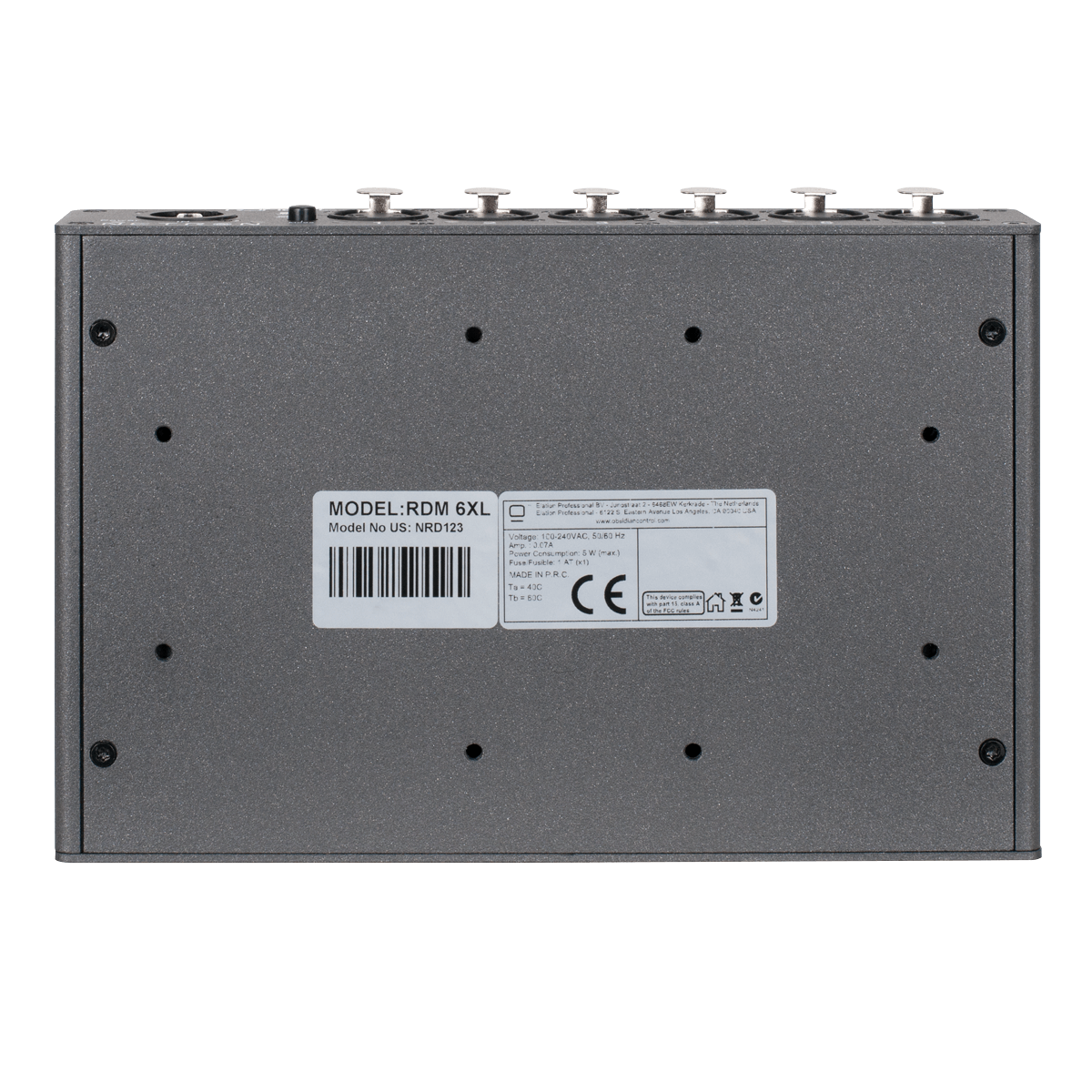

RDM 6XL
RDM 6XL

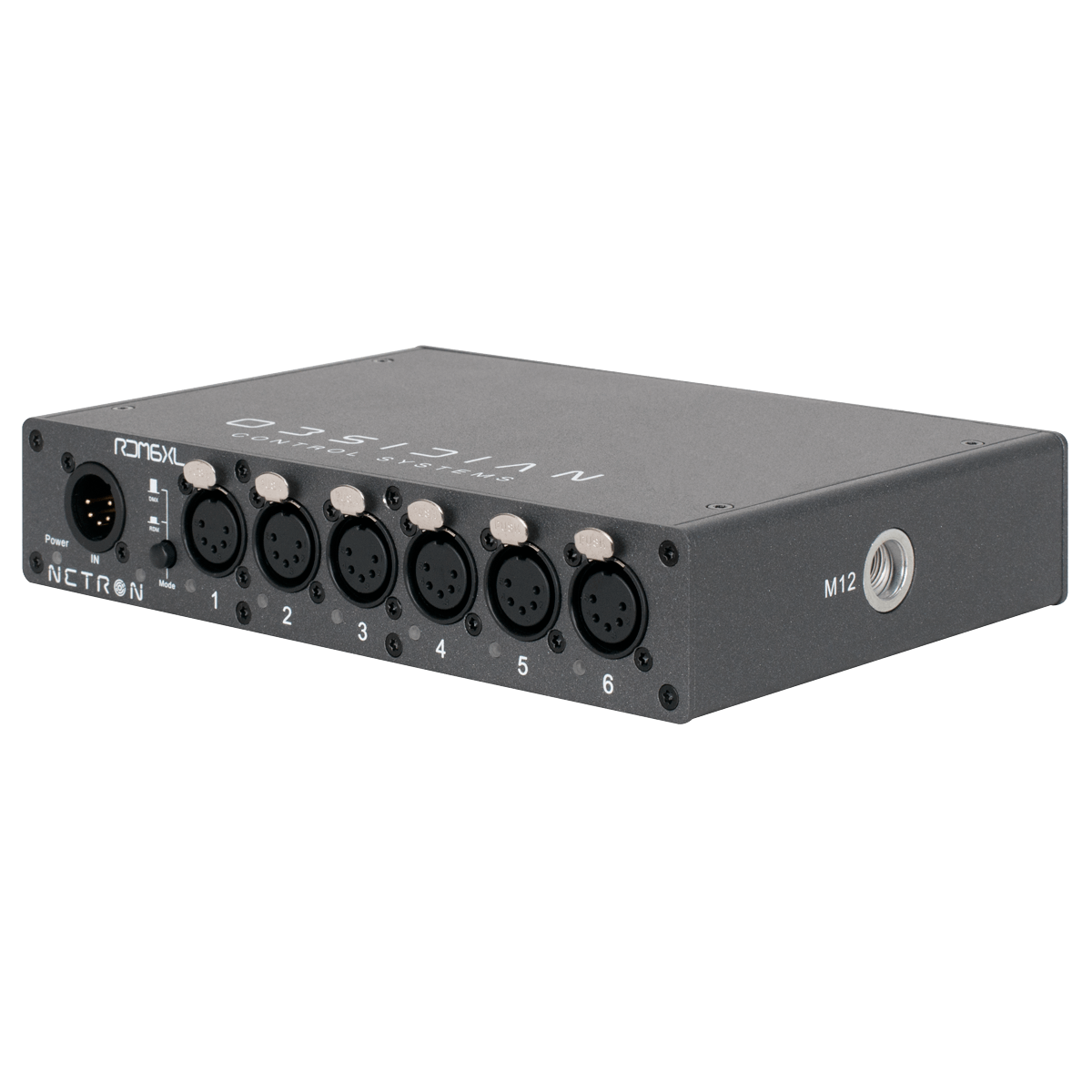

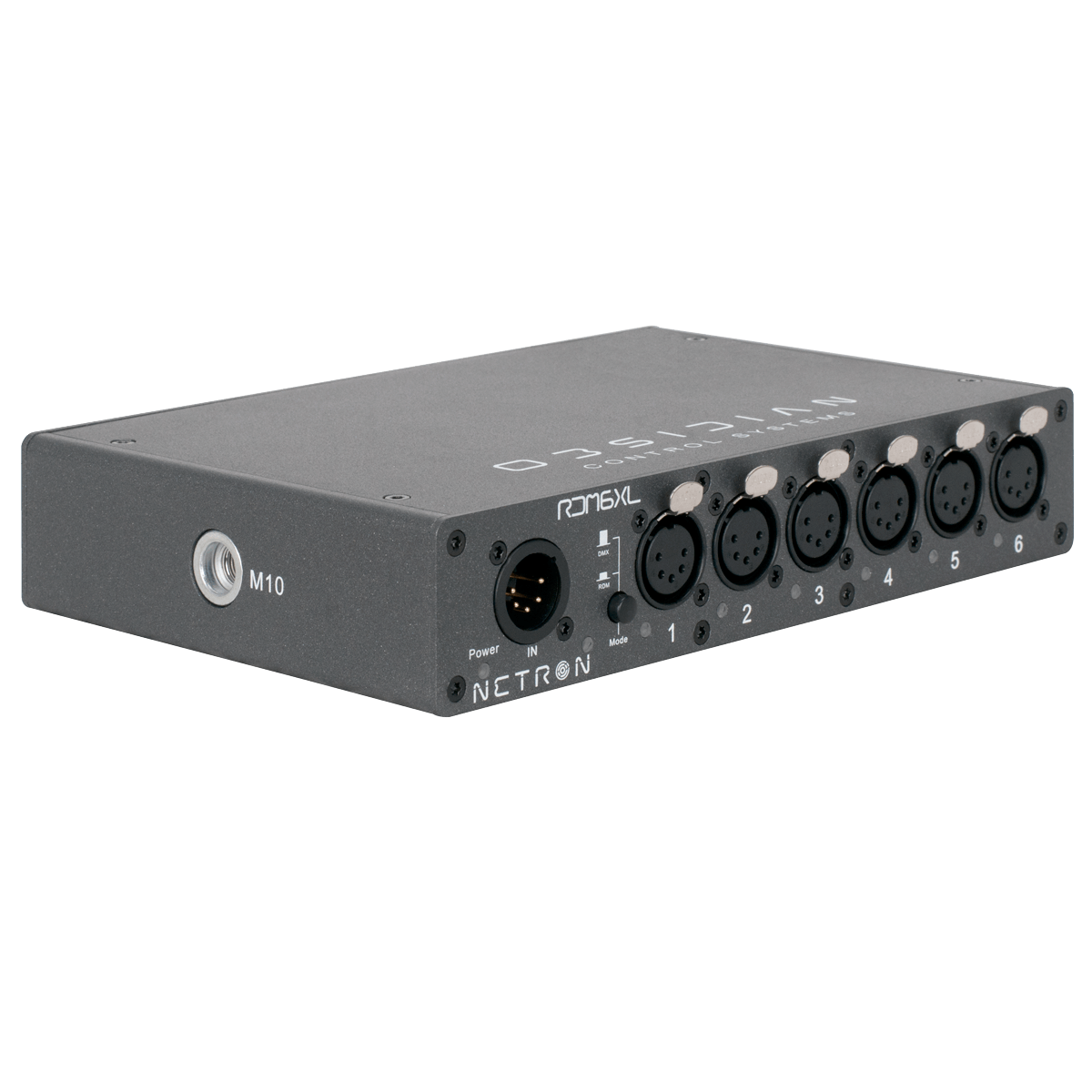

The Netron RDM 6XL is a rugged and compact DMX/RDM Splitter. Designed for live production and installations,it features six opto-isolated 5pin XLR outputs and flexible mounting options to cover any situation.
Features
Key Features
- (6) 5pin DMX outputs
- DMX and RDM compliant
- Optically isolated ports
- Power / DMX Through connectors
- Powder-coated aluminum ½ rack housing
Related Categories
Specifications
Mounting
Standalone

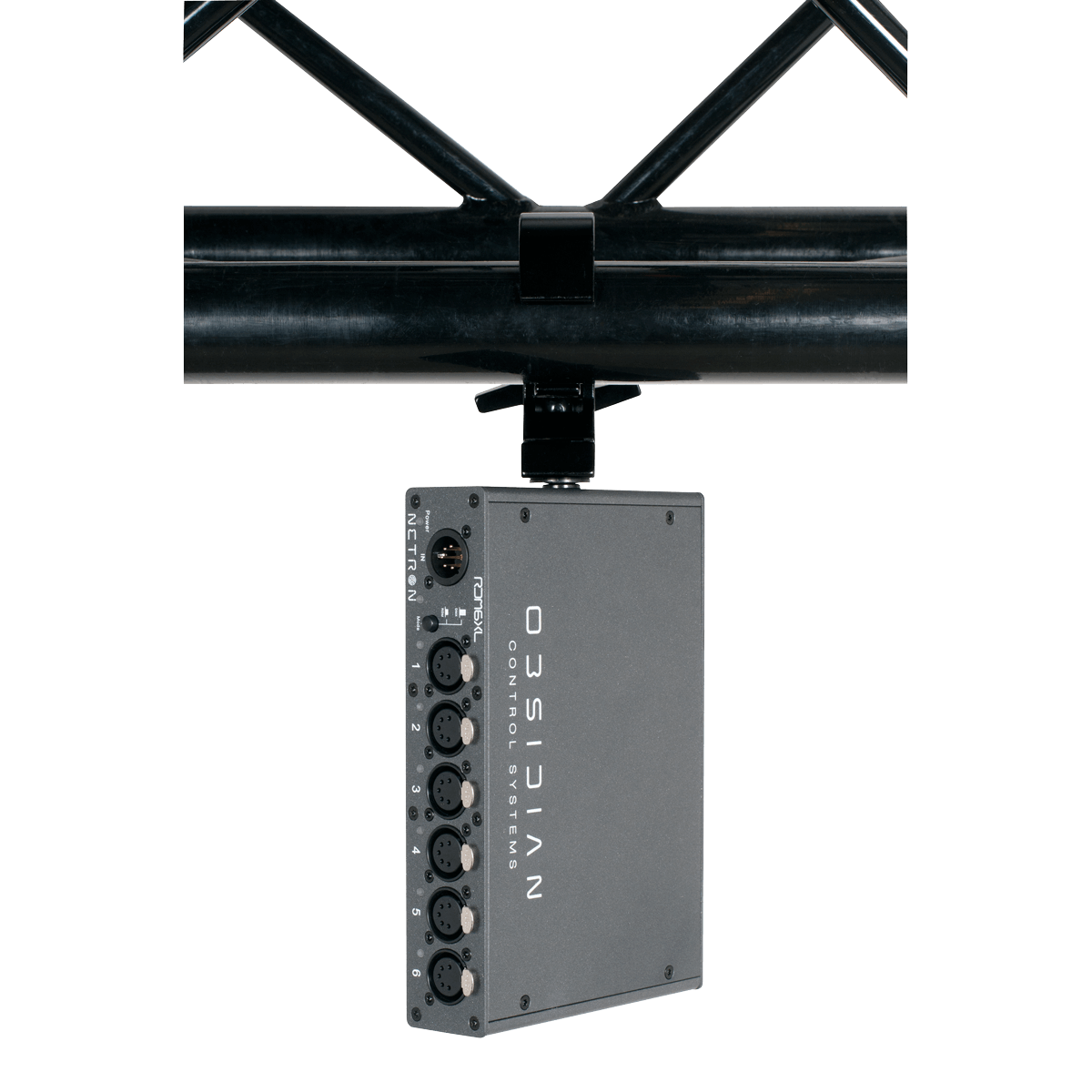

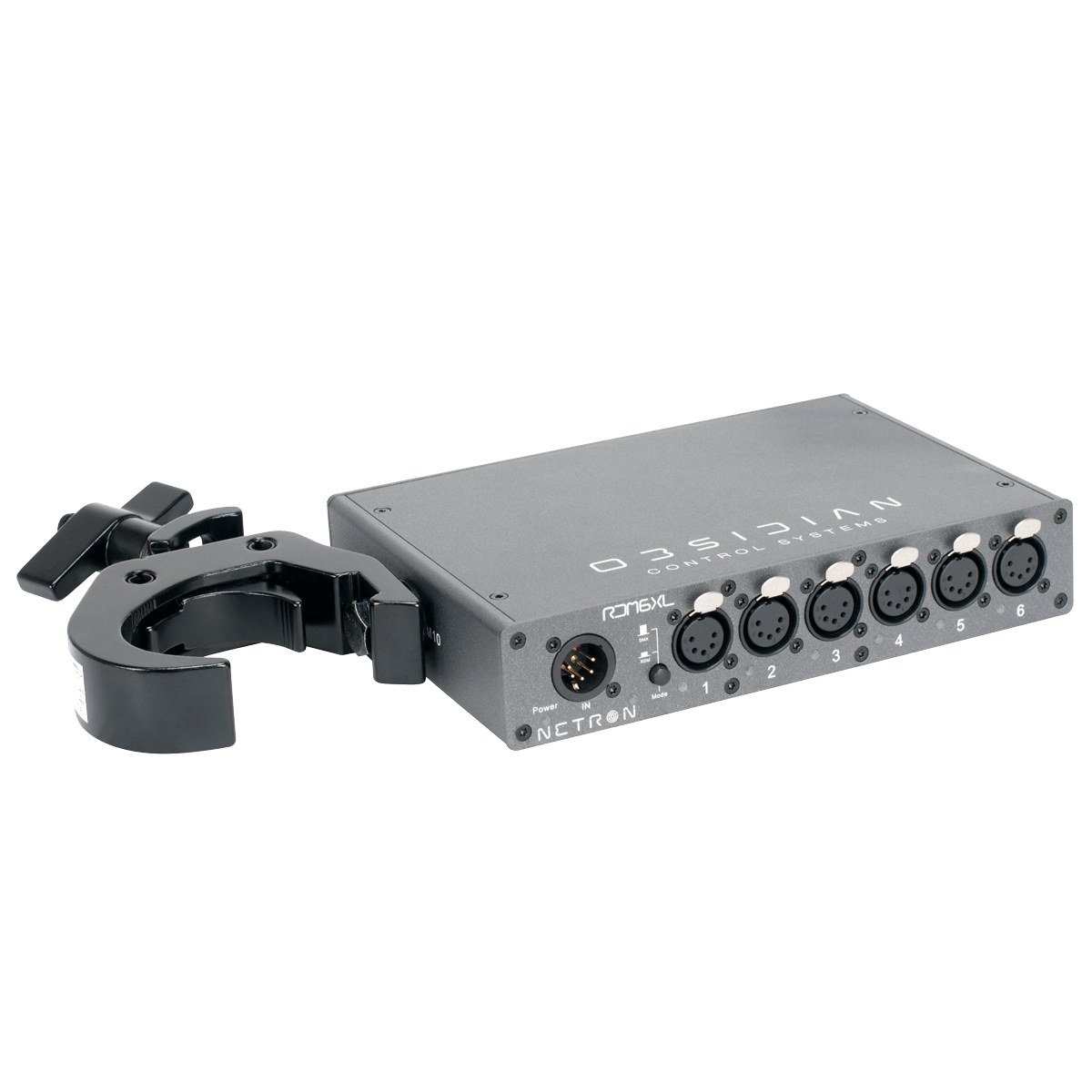

Truss-mount (M10 or M12 mounting hole)

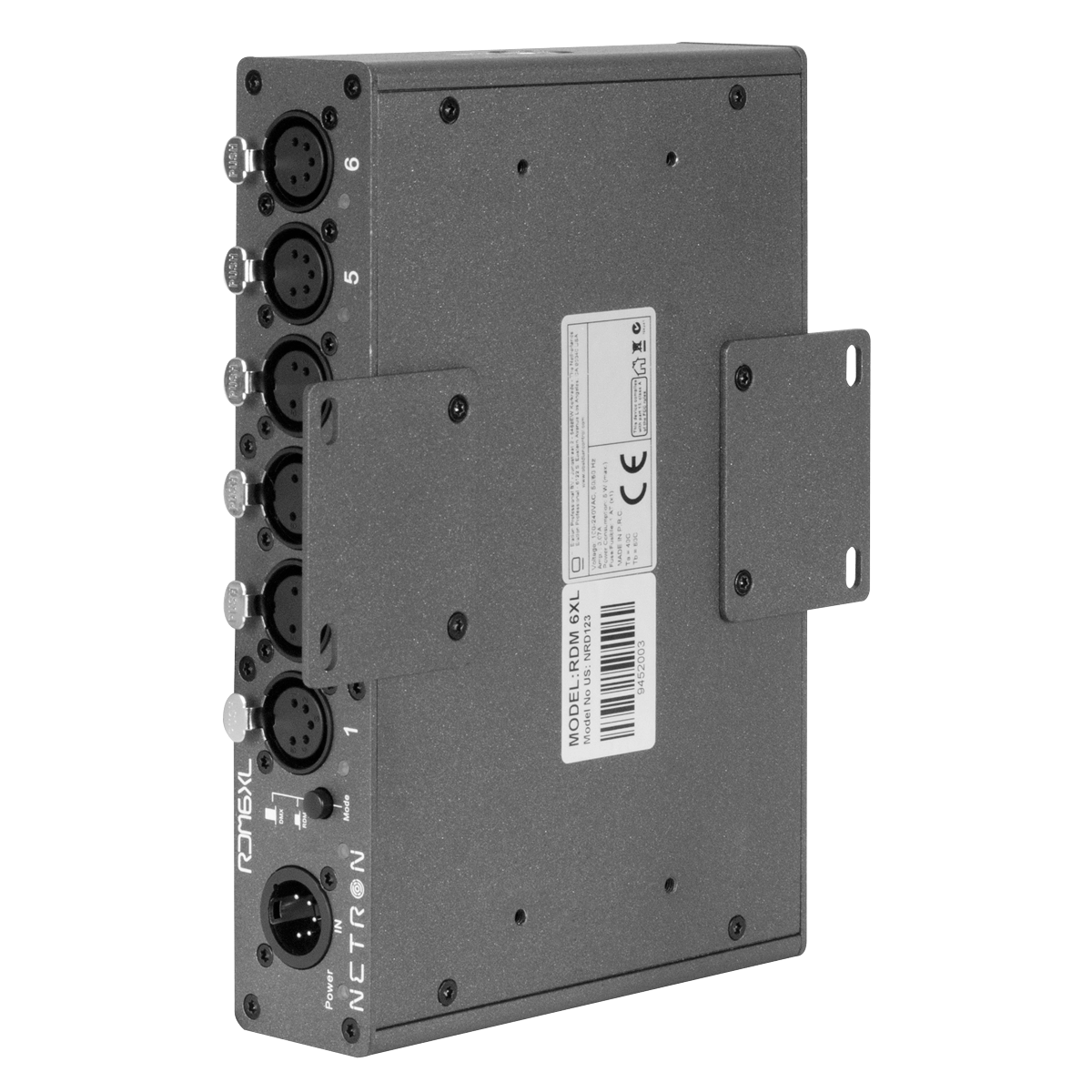

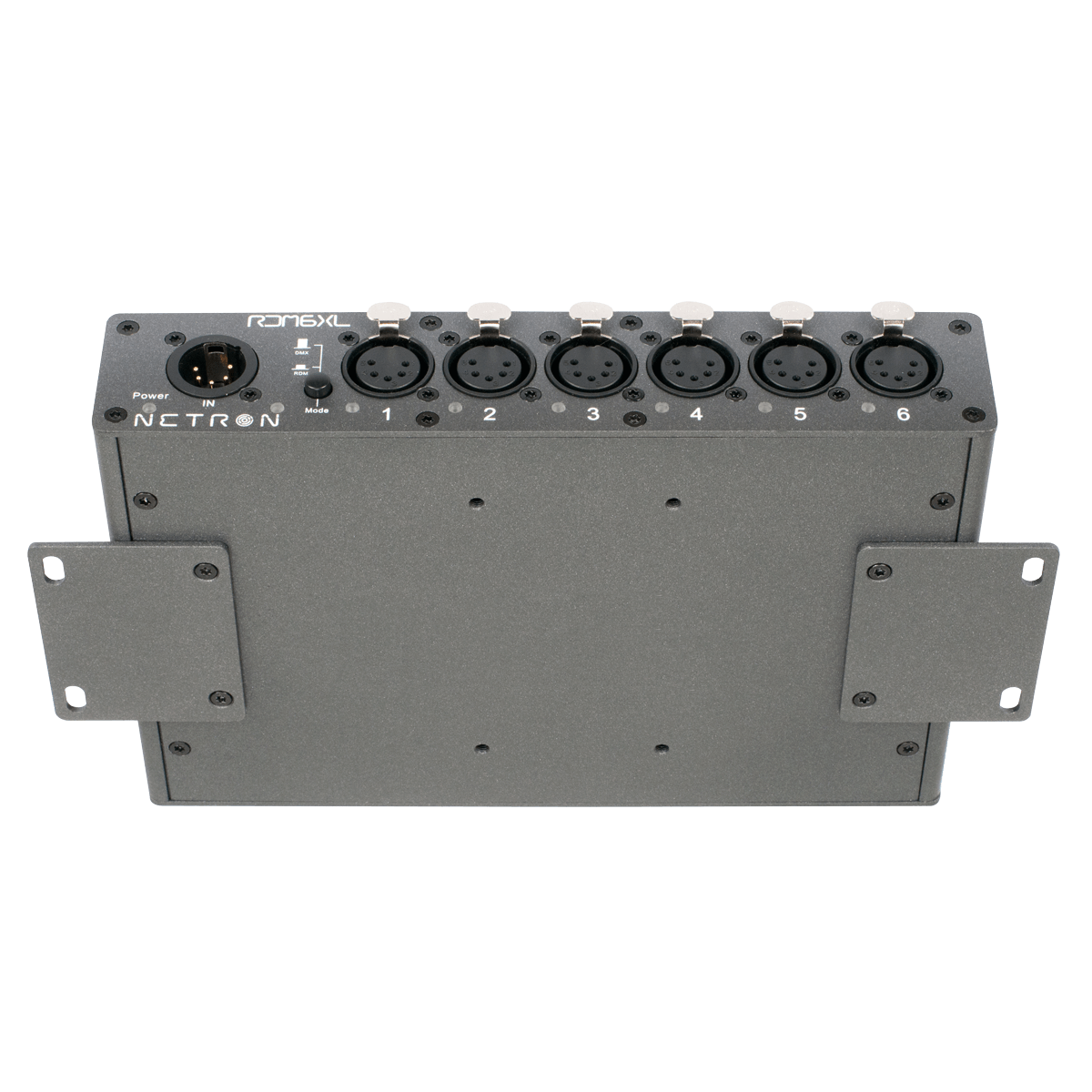

Wall-mount horizontal or vertical (included)

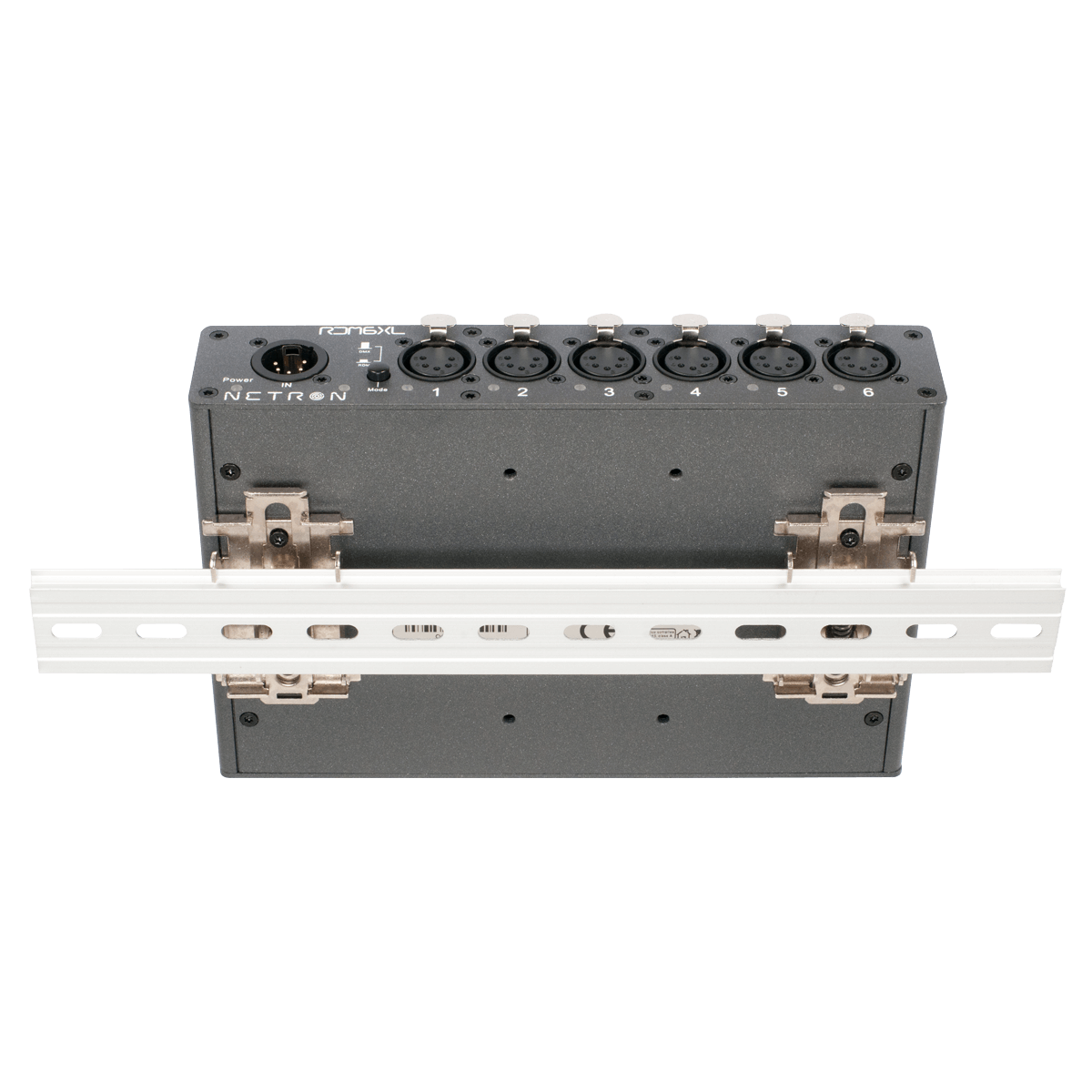

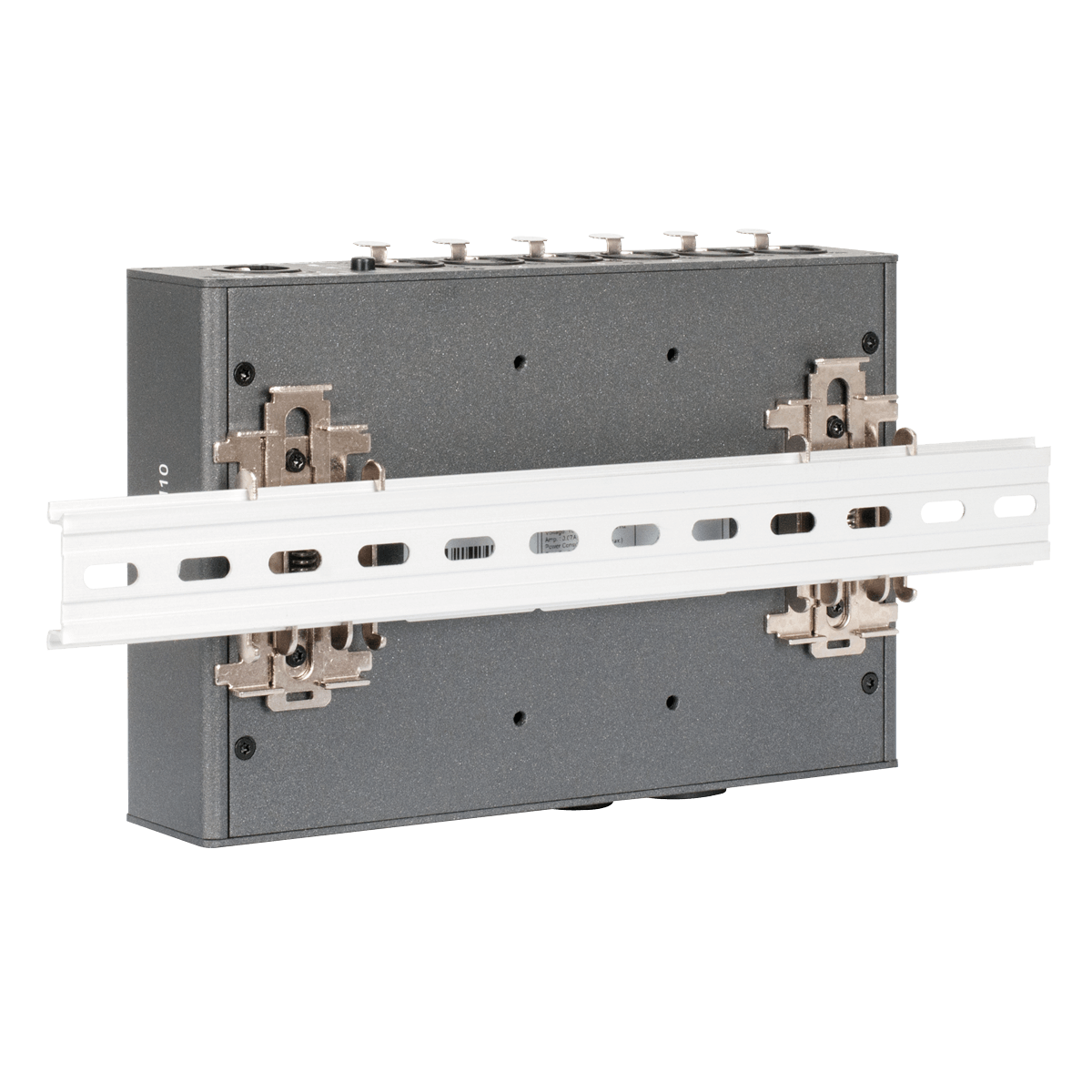

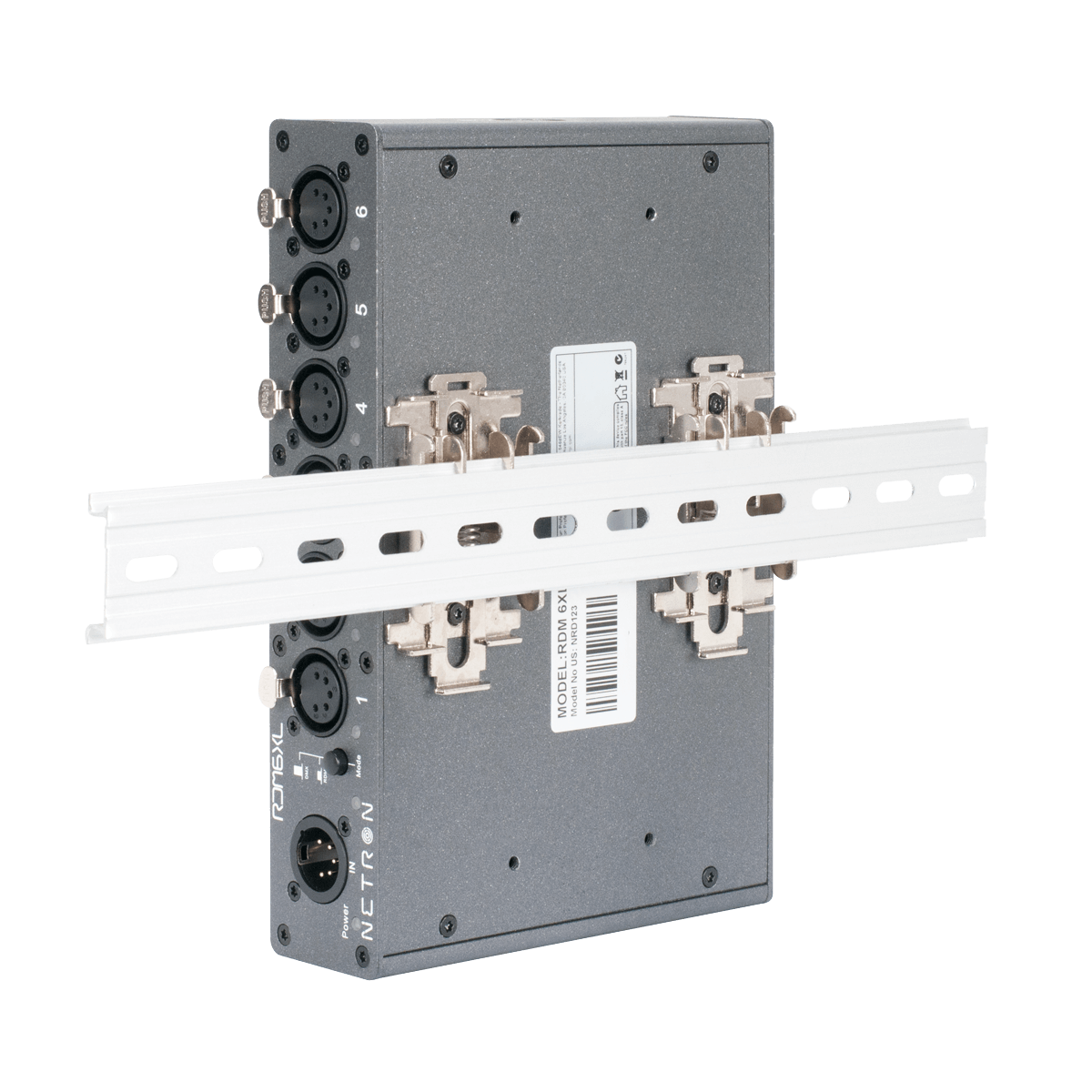

DIN Rail horizontal or vertical (included)

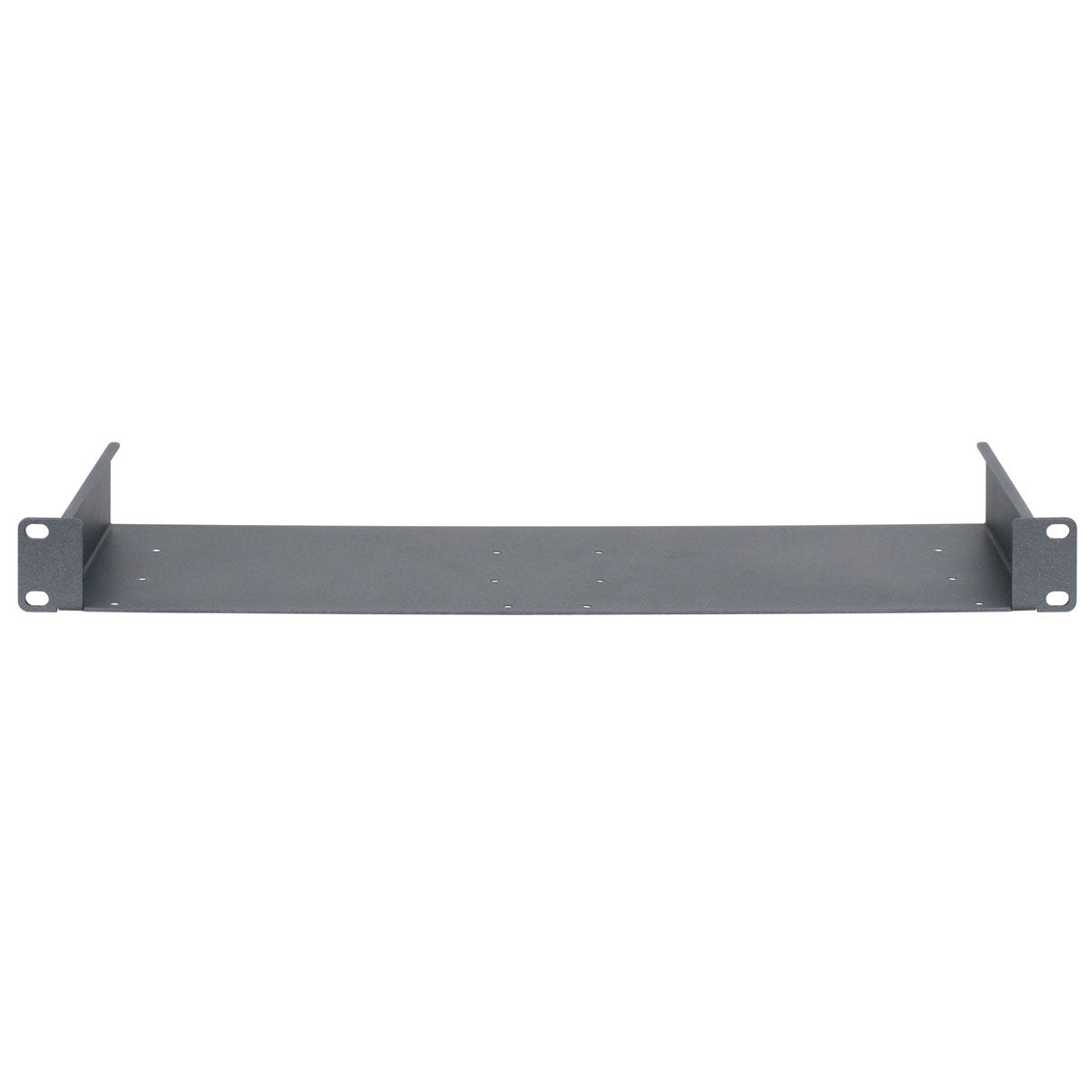

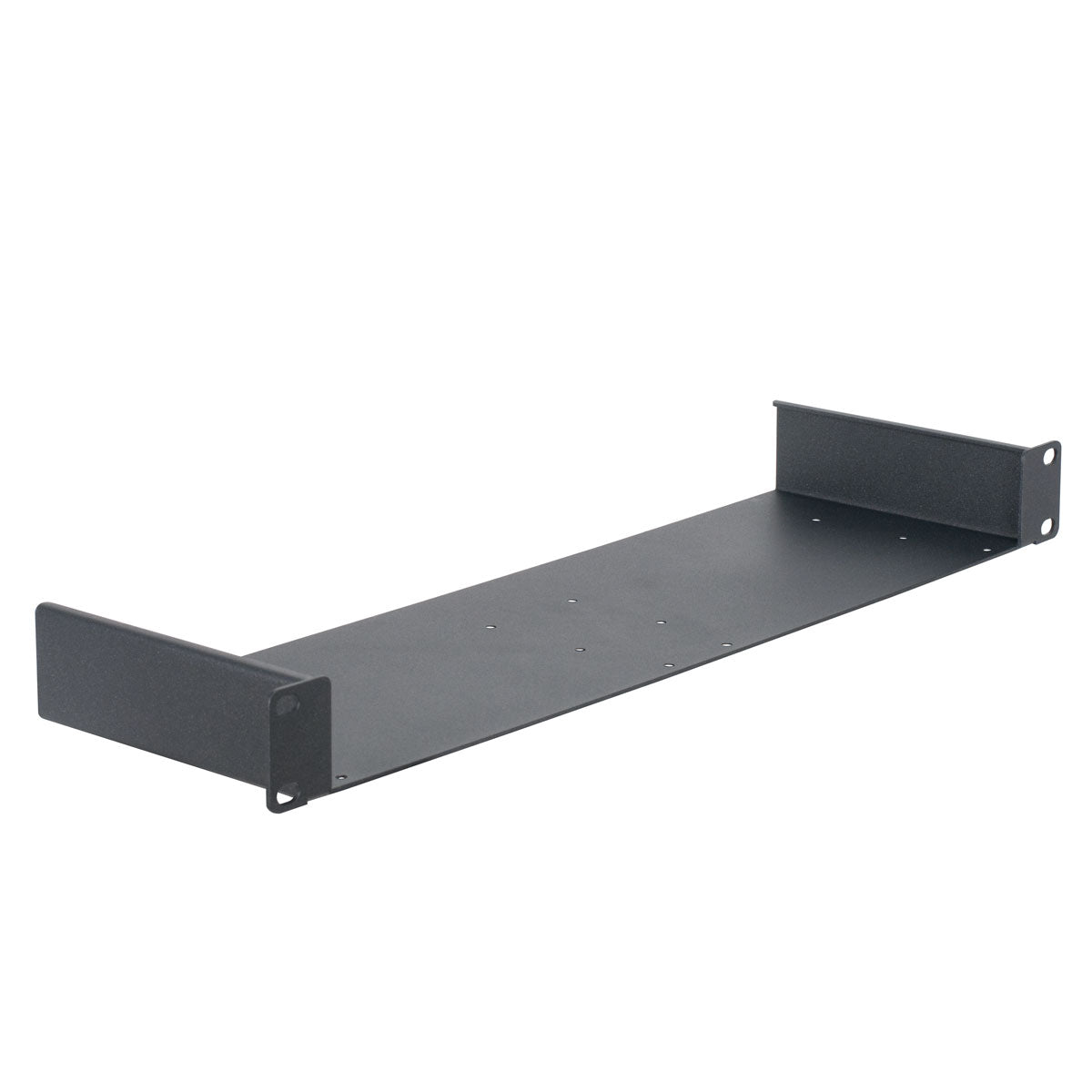

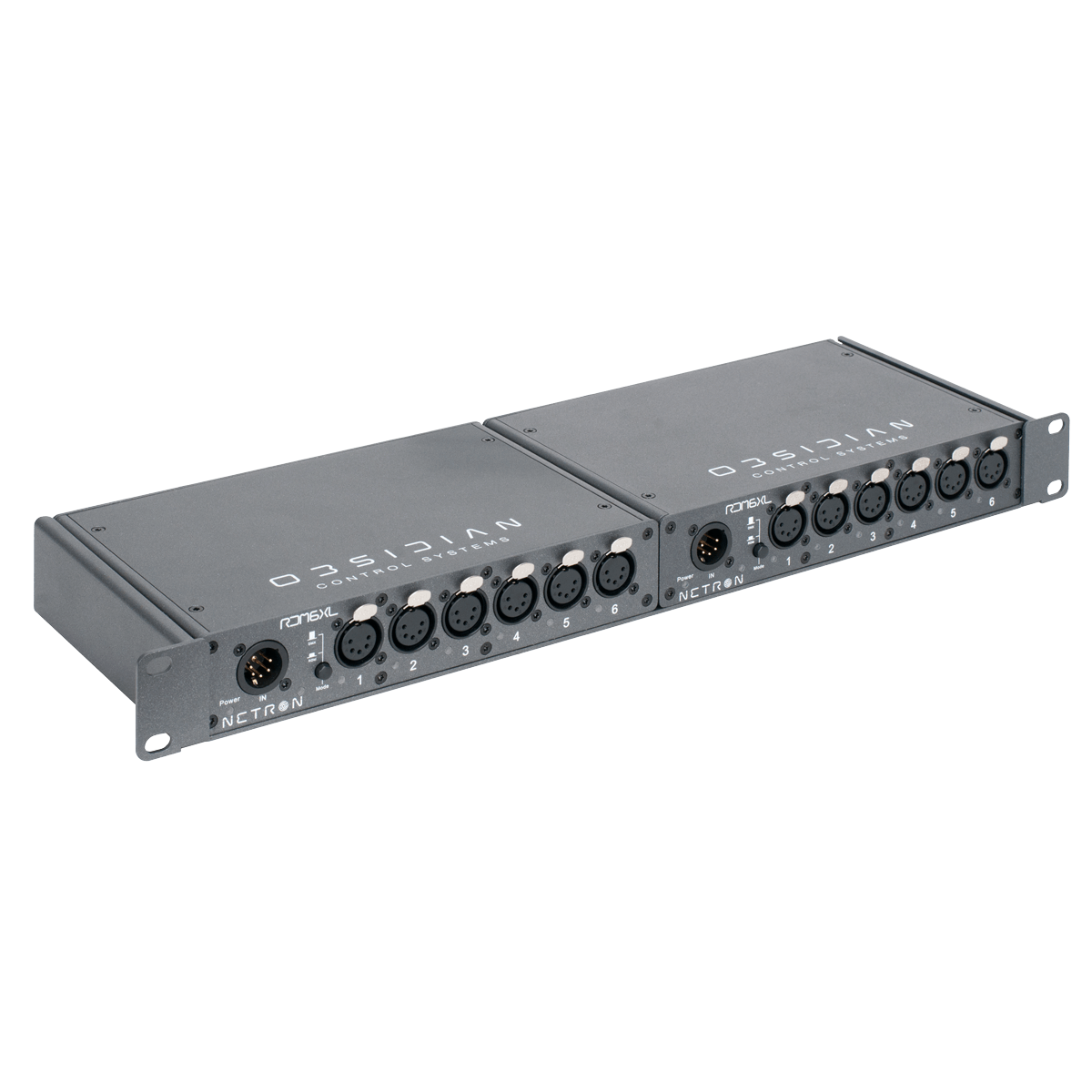

Rack-mount option (requires NET Shelf)
Truss-mount (M10 or M12 mounting hole)
Wall-mount horizontal or vertical (included)
DIN Rail horizontal or vertical (included)
Rack-mount option (requires NET Shelf)
Connections

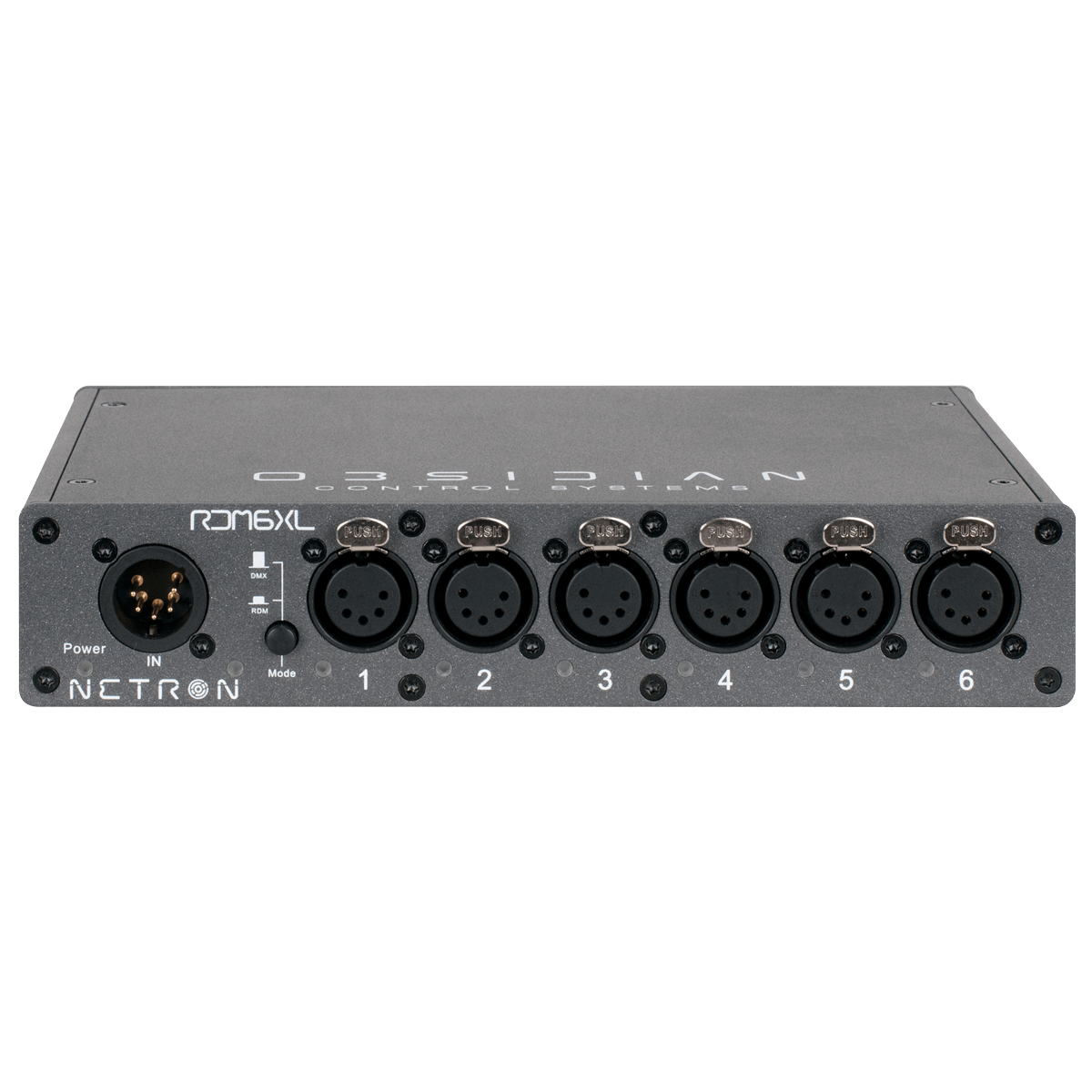

Front
5pin DMX Input
(6) 5pin Opto-Isolated DMX Outputs
RDM Enable
5pin DMX Input
(6) 5pin Opto-Isolated DMX Outputs
RDM Enable

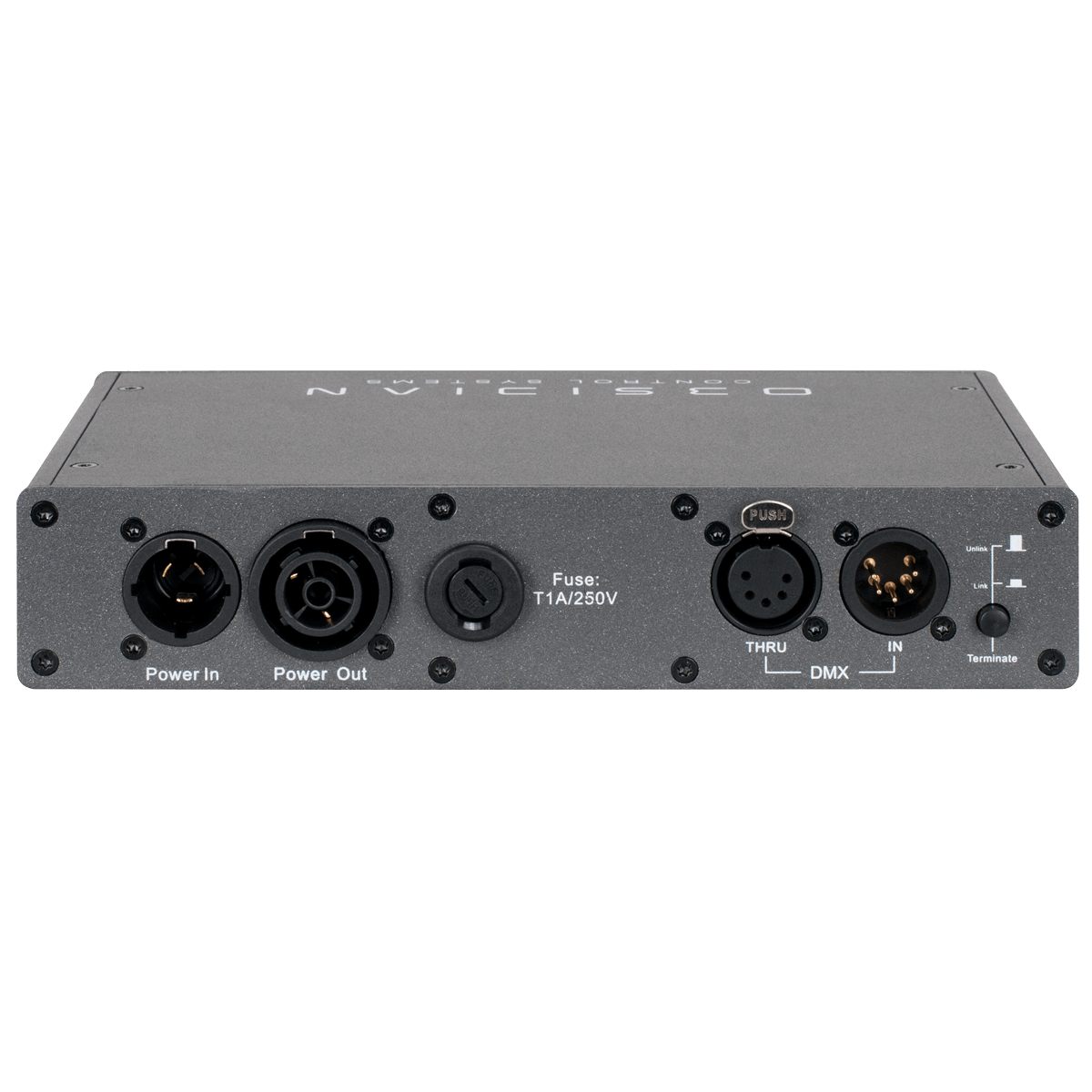

Back
5pin Ethernet DMX Input (parallel with front)
5pin Ethernet DMX Through
Terminate
Locking Power In/Thru
5pin Ethernet DMX Input (parallel with front)
5pin Ethernet DMX Through
Terminate
Locking Power In/Thru
Physical
Length: 215 mm (8.5 in.)
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)
Electrical
100-240 V nominal, 50/60 Hz, 10W
Included Items
1.5m Locking power cable (EU or US version)
(2) Wallmount plates
(2) DIN-Rail clamps
(2) Wallmount plates
(2) DIN-Rail clamps
APPROVALS / RATINGS
CE | cETLus | FCC | IP20
Specifications and documentation subject to change without notice.
