RDMS6
RDMS6
Discontinued
SKU# RDM664

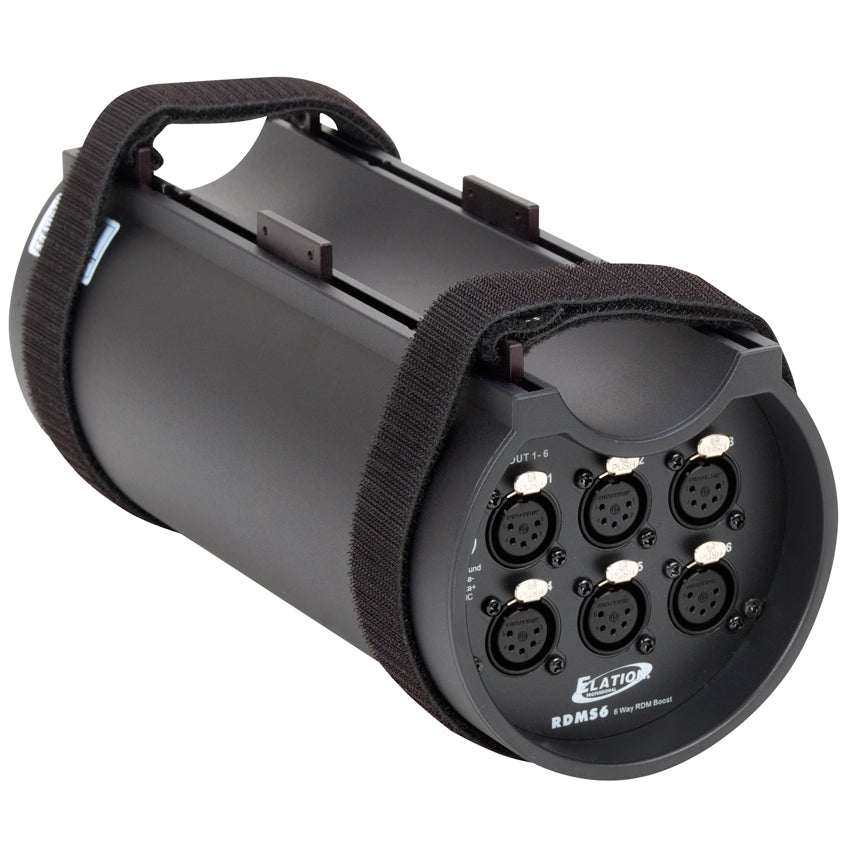

6-way RDM / DMX Truss Mount Data Splitter
FEATURES
RDM / DMX data splitter
Opto and electrical isolation between input and outputs
Meets RDM E1.20-2006 & USITT DMX-512 (1990) protocol standards
Each output features an independent driver to boost signal

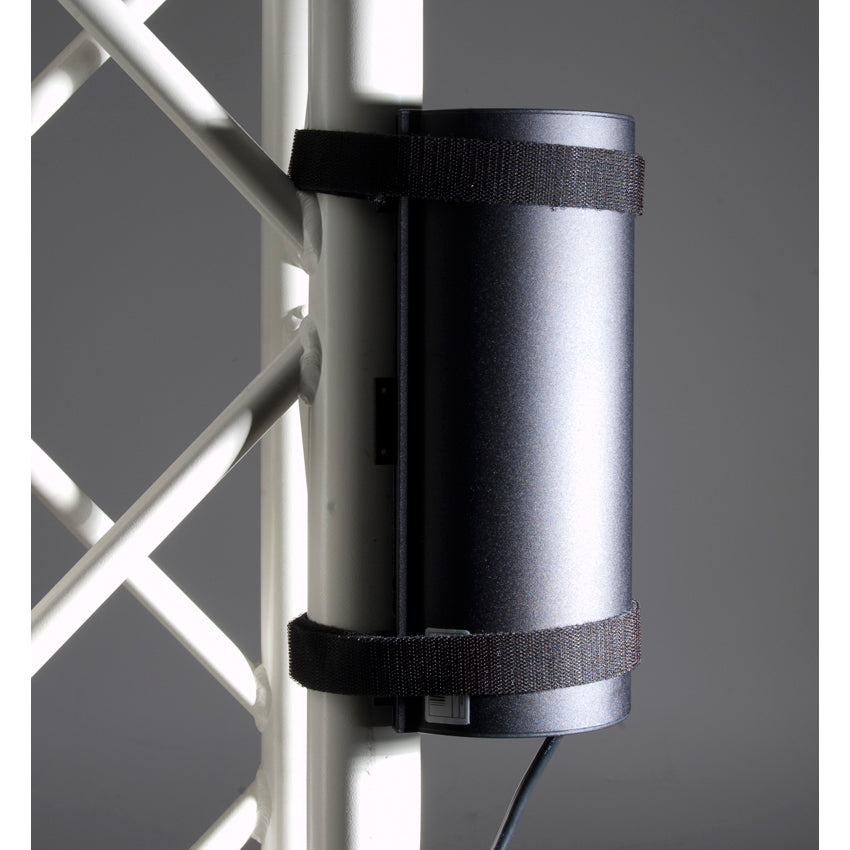

Includes 2 hook and loop straps for easy pipe mounting and a

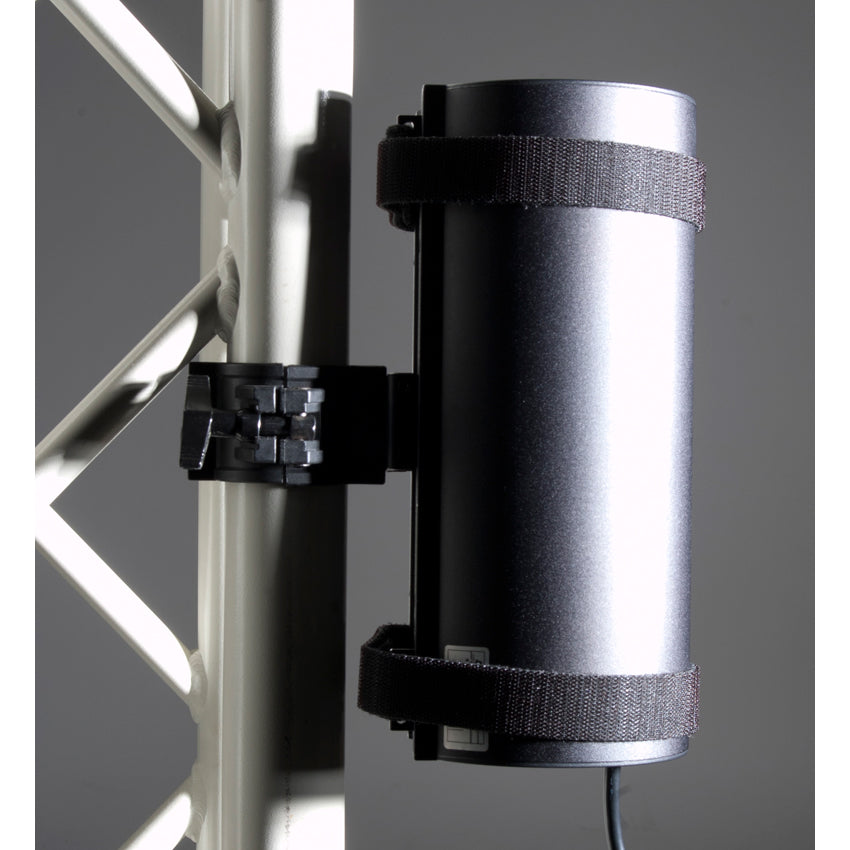

Clamp bracket for c-clamp truss mount

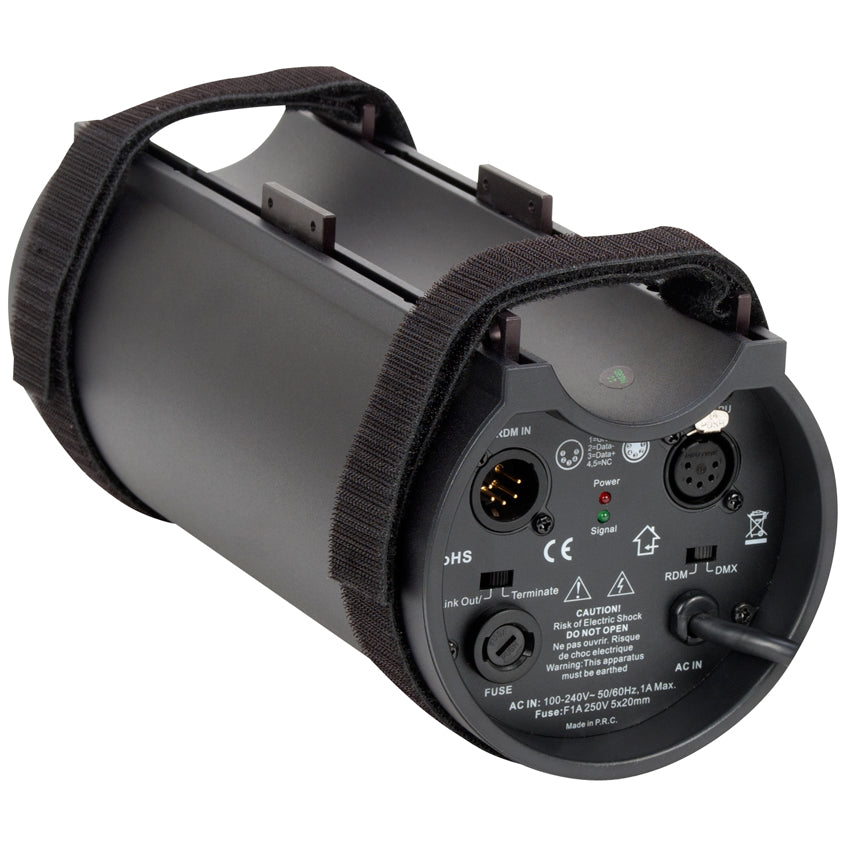

RDM/DMX switch and Linkout/Terminate switch for easy operation
Specifications
SPECIFICATIONS
POWER INPUT: 100-240VAC, 50/60Hz
FUSE: F1A, 250V , 5x20mm
OUTPUT: 5-pin XLR female socket x 6pcs.
DATA IN & THRU: 5-pin XLR connectors
HOUSING: Extruded aluminum
IP RATING: IP 20
CONTROL STANDARD: RDM E1.20-2006 & DMX-512 protocols
LISTING: RoHS, CE co mpliant
OPERATING TEMPERATURE: -10degC to +50degC
STORAGE TEMPERATURE: -20degC to +70degC
DIMENSIONS: 264mm x 120mm x 113mm (10.4” x 4.7” x 4.4”)
WEIGHT: 0.57kg. (1.3lbs)
OPTIONAL ACCESSORIES:
CLAMPS (click for more info)
PRO CABLES (click for more info)
Specifications and documentation subject to change without notice.
