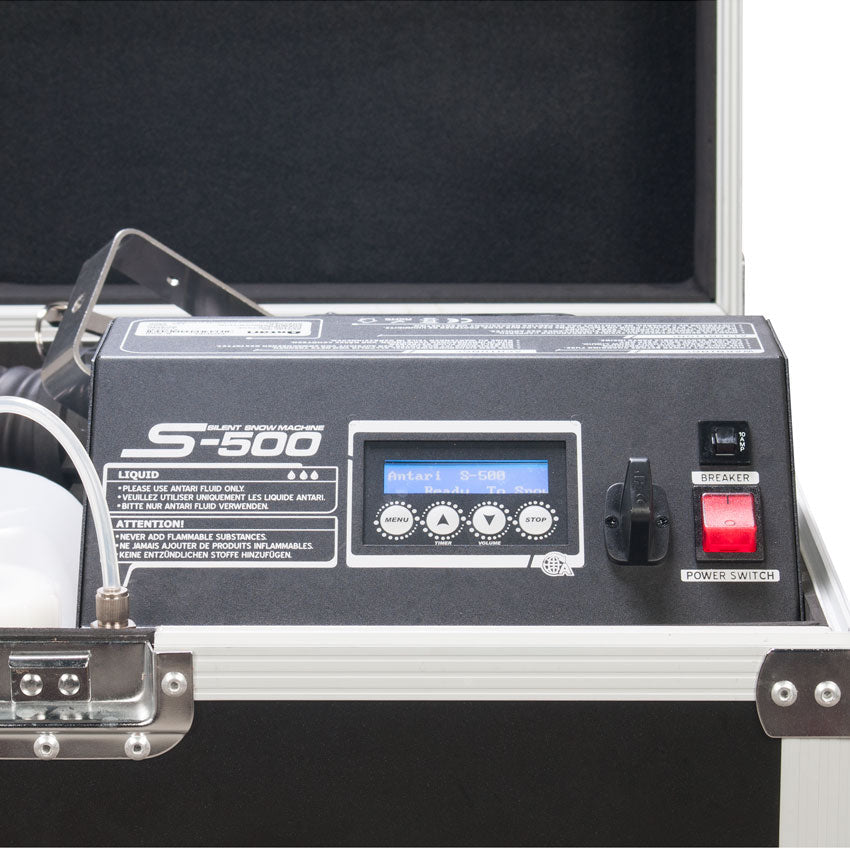

S-500XL Silent Snow Machine

Features

The Antari S-500XL™ is an enhanced version of the S-500large capacity “Silent” operation DMX controllable snow machine packaged with the following included accessories:

65.6 ft (20m) Air Hose and Nozzle
 Wireless DMX Control
 S-3 Wired Remote Control
 PM-1 Pan Motor

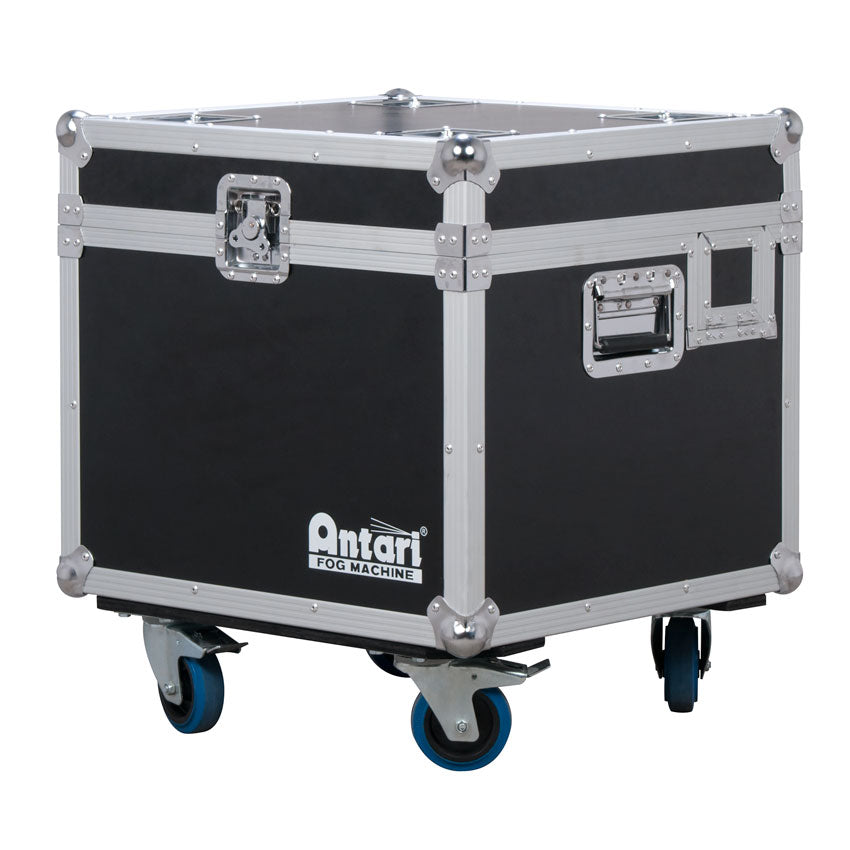

 The Antari S-500XL™, is housed in a durable road case with wheels and features a 5.2 gallon (20 Liter) capacity fluid tank, a 65.6 foot (20 meter) long air hose for easy rigging on a stand or truss, and adjustable wind volume and flow rates. The road case features a small access door for the air hose so can the case can closed when in use for "Silent" operation.


Resources

User Manual

Specifications

OUTPUT
 400 ml / min

 TANK CAPACITY
 5.2 gal (20 Liter)

 WORKING NOISE LEVEL
 66 db Full On @ 3.3 ft (1m)

 CONTROL / CONNECTIONS
 Wired Remote and Wireless DMX
 (2) DMX Channel Modes (1 / 2)
 3pin/5pin XLR In/Out
 powerCON In

 SIZE / WEIGHT
 Length: 22.3” (592mm)
 Width: 21.7” (551mm)
 Vertical Height: 25.6” (651mm)
 Weight: 82 lbs. (37.2 kg)

 ELECTRICAL
 AC120V / 60Hz
 1,200W Max Power Consumption

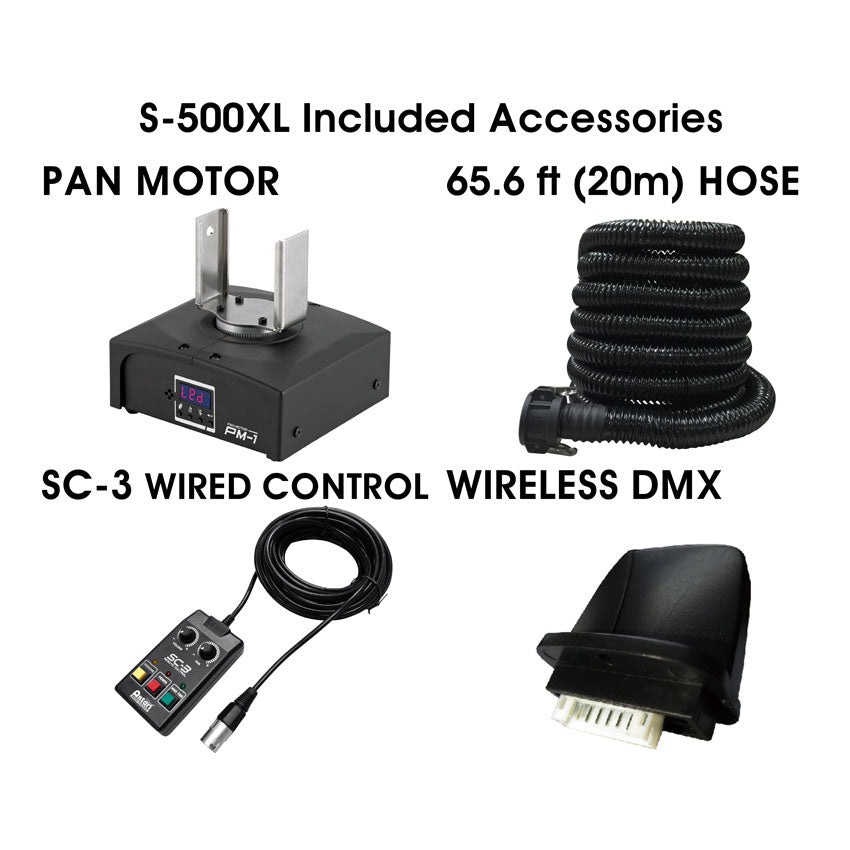

 INCLUDED ITEMS
 powerCON Cable
 5.2 gallon (20 Liter) Fluid Tank and Feed Tube
 65.6 ft (20m) Air Hose and Nozzle
 Wireless DMX Control
 S-3 Wired Remote Control
 PM-1 Pan Motor

 PM-1 PAN MOTOR SPECIFICATIONS
 120 Degree Pan Movement | LED Control Display with 4 Buttons
 Metal Chassis with Plastic Cover

 CONTROL / CONNECTIONS
 (2) DMX Channels | 3pin XLR DMX In/Out

 INCLUDED ITEMS
 Motor, Power Cord, Omega Bracket (for clamp mounting)

 SIZE / WEIGHT
 Length: 6.7” (169mm)
 Width: 6.1” (154mm)
 Vertical Height: 5.9” (151mm)
 Weight: 4 lbs. (1.8 kg)

 ELECTRICAL
 AC120-240V 50/60Hz
 11W Max Power Consumption




 OPTIONAL ACCESSORIES

 Wireless Remote Control Add On Kit - SKU# WTR-20




 Specifications and documentation subject to change without notice.
