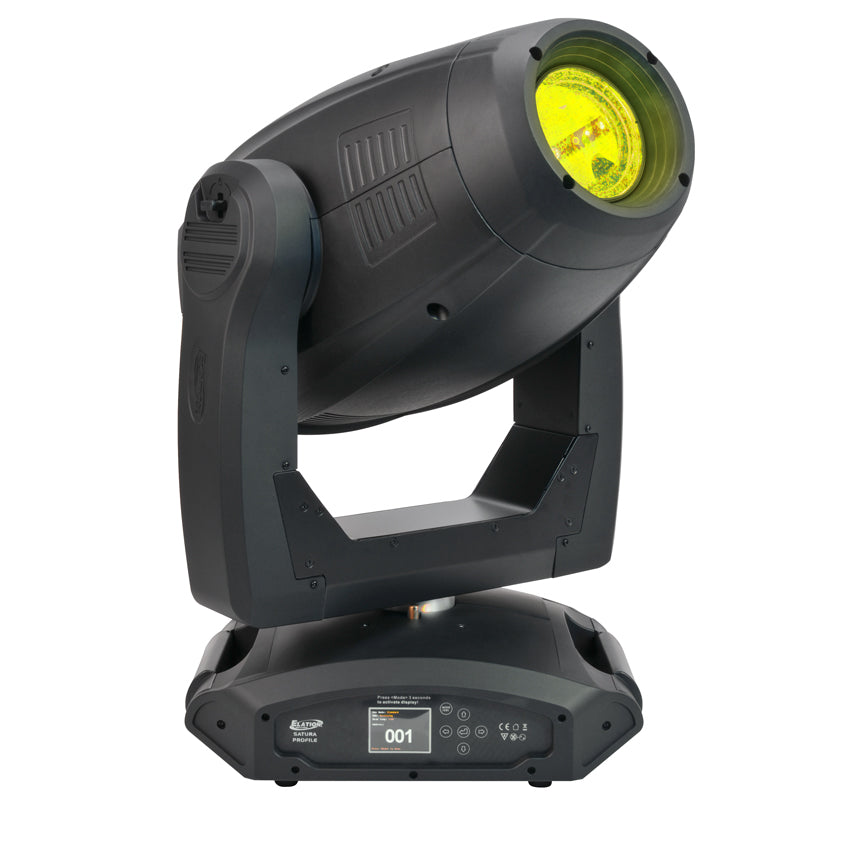

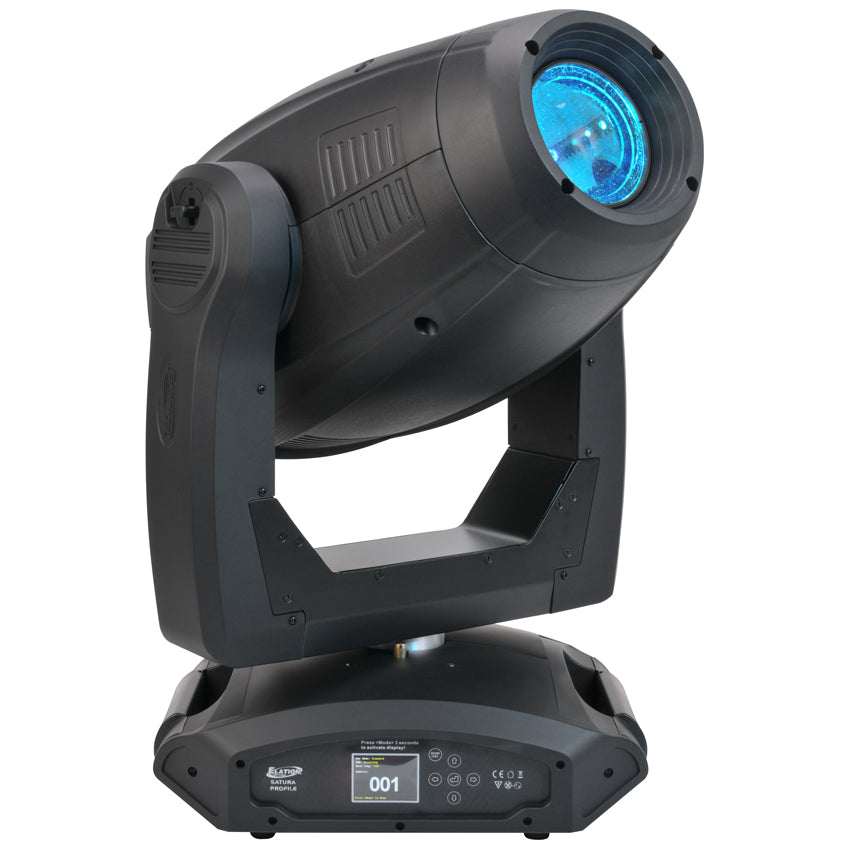

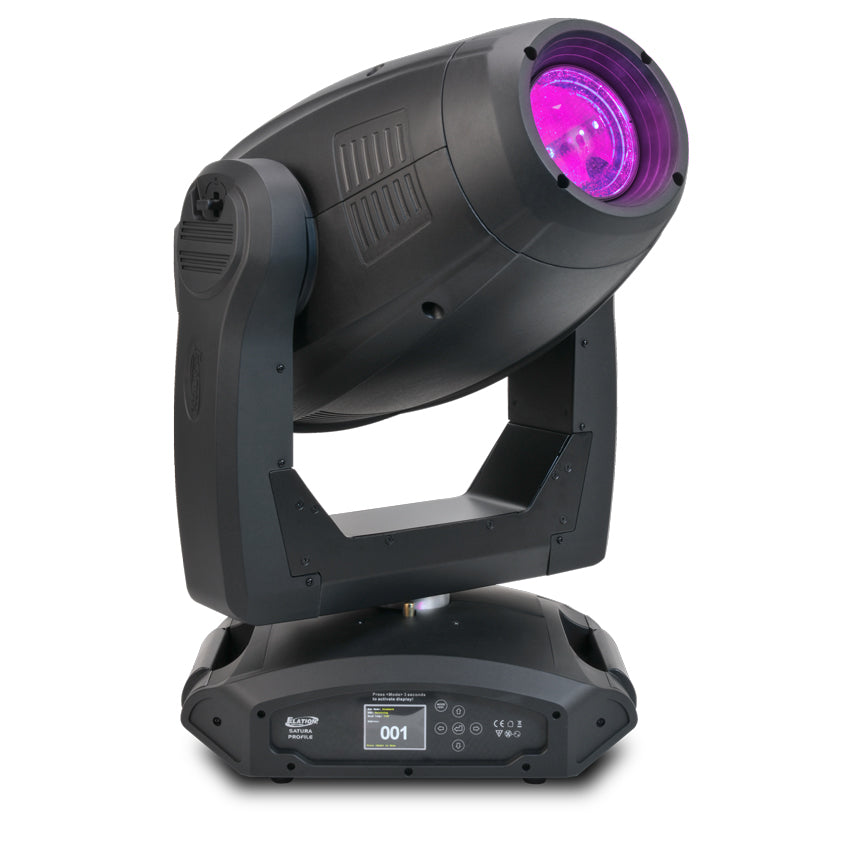

Satura Profile

Features

440W Cool White 20,000 Lumen LED Spot Luminaire
11° to 38° Motorized Zoom
Full CMY Color Mixing and CTO
7 Dichroic Colors
6 Rotating and 7 Static-Stamped Interchangeable Gobos

Optional 4 Static-Stamped Metal Gobo/Animation Wheel Kit
4-Blade Framing Shutter System
3-Facet Rotating Prism and Frost Filter
High-Speed Electronic Shutter and Strobe
Motorized Iris and Focus and Variable Dimming Curves
DMX, RDM, KlingNET™ and Art-NET Support
Low Heat, Quiet Operation, Hibernation Mode
Flicker Free Operation For Broadcast TV and FILM

Resources

Specifications Sheet

User Manual

Photometric Test Report

Photometric IES File

DMX Traits

Dimensional Drawing

CAD Drawing

Vectorworks Symbol

Related Categories

Specifications

SOURCE

440W Cool White 15,000 Lumen LED Engine

50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

15,000 Total Lumen Output

17,835 LUX 1,657 FC @16.4’ (5m) (Min Zoom)

2,182 LUX 203 FC @16.4’ (5m) (Max Zoom)



EFFECTS

11° - 38° Motorized Zoom

4-Blade Framing Shutter System

3-Facet Rotating Prism and Prism Macros

Frost Filter Hybrid Wash Effect

Motorized Zoom, Iris and Focus

High Speed Electronic Shutter and Strobe

Variable Dimming Curves

Animation Effect (Optional Kit Sold Separately)



COLOR

7 Dichroic Colors

Full CMY Color Mixing

Linear CTO Color Correction



GOBOS

(6) Interchangeable Rotating / Indexing Glass Gobos

(7) Interchangeable Static-Stamped Metal Gobos

(4) Interchangeable Metal Gobo/Animation Wheel*

*Optional Kit Sold Separately

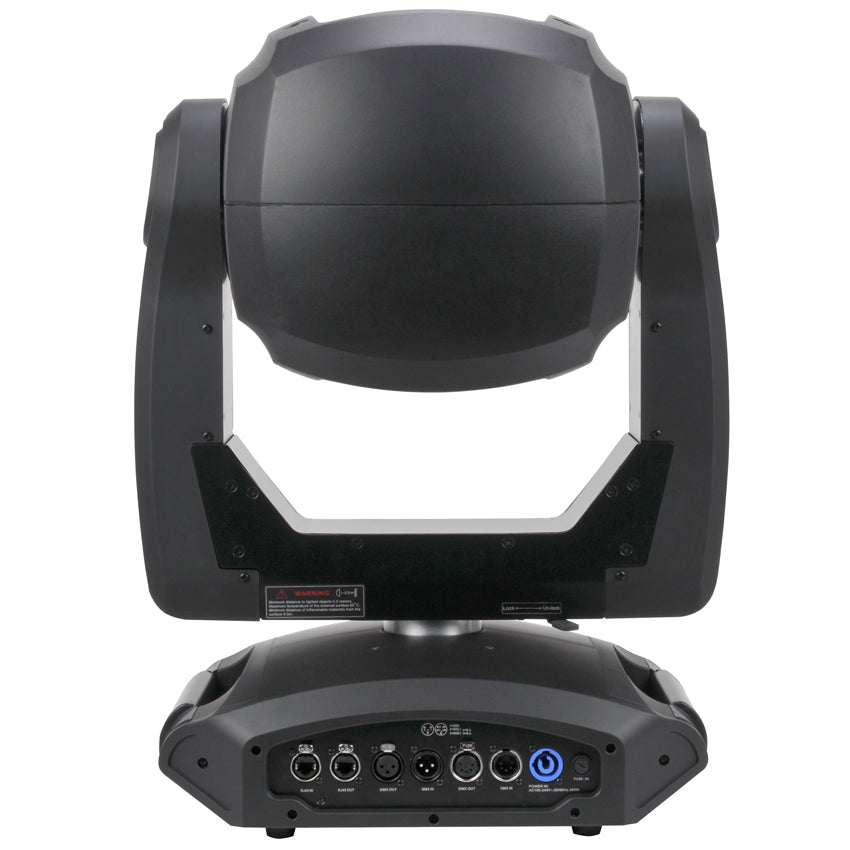

CONTROL / CONNECTIONS

(3) DMX Channel Modes (33 / 35 / 54)

RDM (Remote Device Management)

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

8 / 16 Bit Resolution Adjustable Movement

3pin and 5pin DMX In/Out

RJ45 Ethernet In/Out (KlingNET™ / Art-NET)

powerCON Power In

With Wired Digital Communication Network



SIZE / WEIGHT

Length: 17.7” (450mm)

Width: 20.7” (525mm)

Vertical Height: 29.3” (745mm)

Weight: 75.0 lbs. (34.0kg)



ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

650W Max Power Consumption

14°F to 113°F (-10°C to 45°C)



APPROVALS / RATINGS

CE | cETLus | IP20







Specifications and documentation subject to change without notice.
