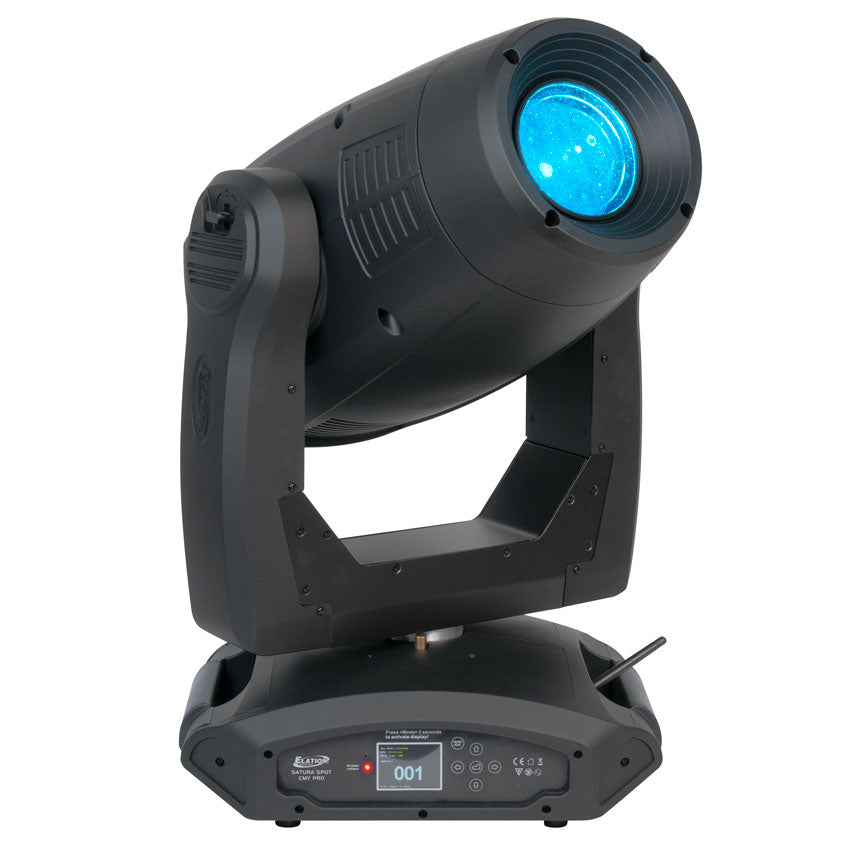

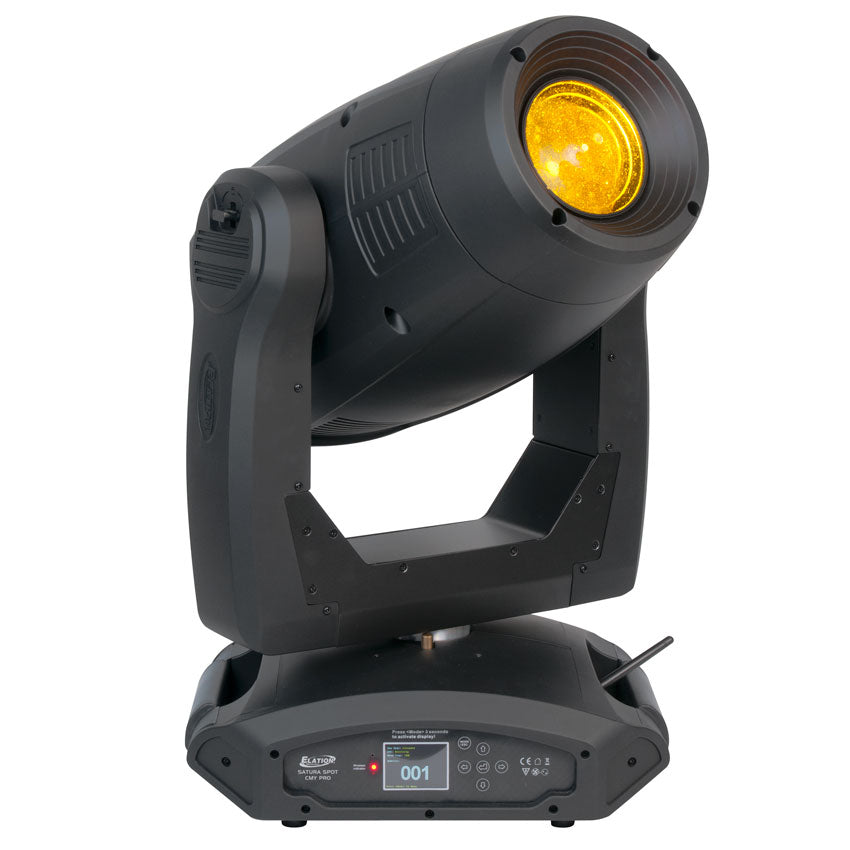

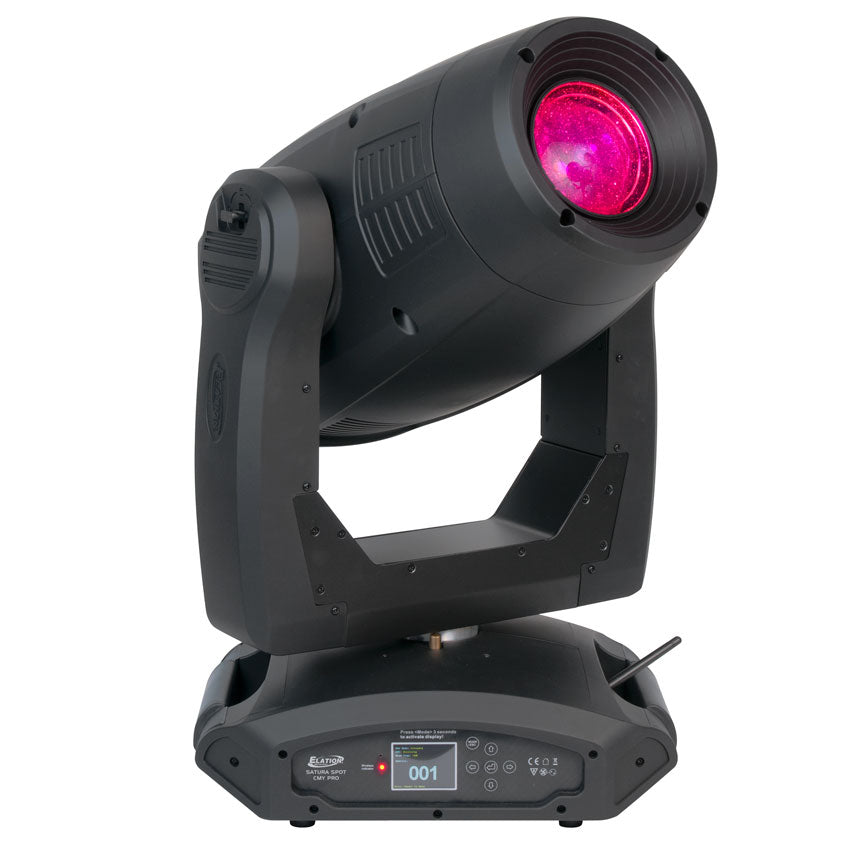

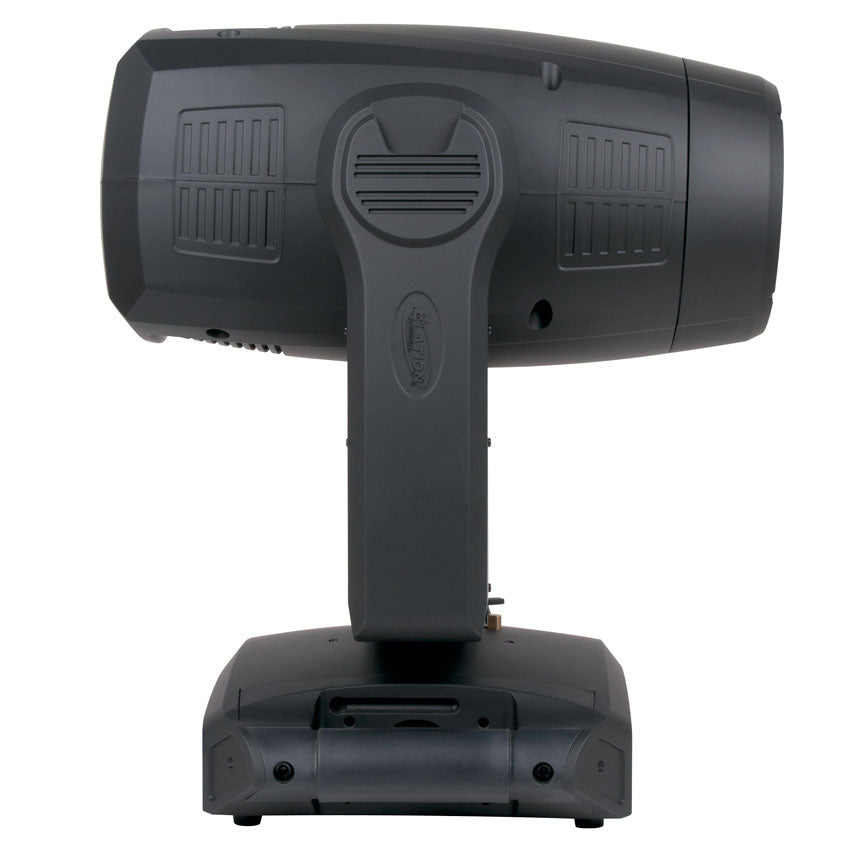

Satura Spot CMY PRO
Satura Spot CMY PRO
Discontinued
SKU# SAT500
The Satura Spot CMY™ is a high powered LED spot luminaire featuring a 320W LED engine delivering comparable color output to a 575W fixture, 11,700 total lumens output, 14° to 36° motorized zoom, CMY color mixing, 7 dichroic colors, 6 rotating interchangeable and 7 static-stamped gobos, 5 variable dimming curve modes, zoom, focus, and iris, 3-facet rotating prism,
Art-NET (DMX over Ethernet) support, 3 and 5 pin DMX, EtherCON (RJ45) in/out, and powerCON connections, an internal EWDMX wireless DMX receiver, (6) button control full color 180° reversible menu display, 500W max power consumption, and a multi-voltage universal auto switching power supply (100-204v).
Features
14° - 36° High Powered 320W LED Spot Luminaire
Comparable Color Output to a 575W Fixture
CMY Color Mixing and CTO Color Correction
Art-NET (DMX Over Ethernet) Support
Internal EWDMX Wireless DMX Receiver
Flicker Free Operation For Broadcast TV and FILM
Comparable Color Output to a 575W Fixture
CMY Color Mixing and CTO Color Correction
Art-NET (DMX Over Ethernet) Support
Internal EWDMX Wireless DMX Receiver
Flicker Free Operation For Broadcast TV and FILM
Resources
Specifications Sheet
User Manual
Photometric Data
DMX Traits
Dimensional Drawing
CAD Drawing
Vectorworks Symbol
Specifications
SOURCE
320W LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
11,700 Total Lumens, 8,000K
27,430 LUX 2,548 FC @8.2’ (2.5m) (14° Zoom Full ON)
4,735 LUX 440 FC @8.2’ (2.5m) (36° Zoom Full ON)
EFFECTS
Frost Filter
3-Facet Rotating Prism
Iris: 5% - 100%
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curve Modes
COLOR
7 Dichroic Colors + White (Open)
CMY Color Mixing + CTO
GOBOS
2 Gobo Wheels
6 Interchangeable / Rotating / Indexing Gobos
7 Static-Stamped / Indexing Gobos

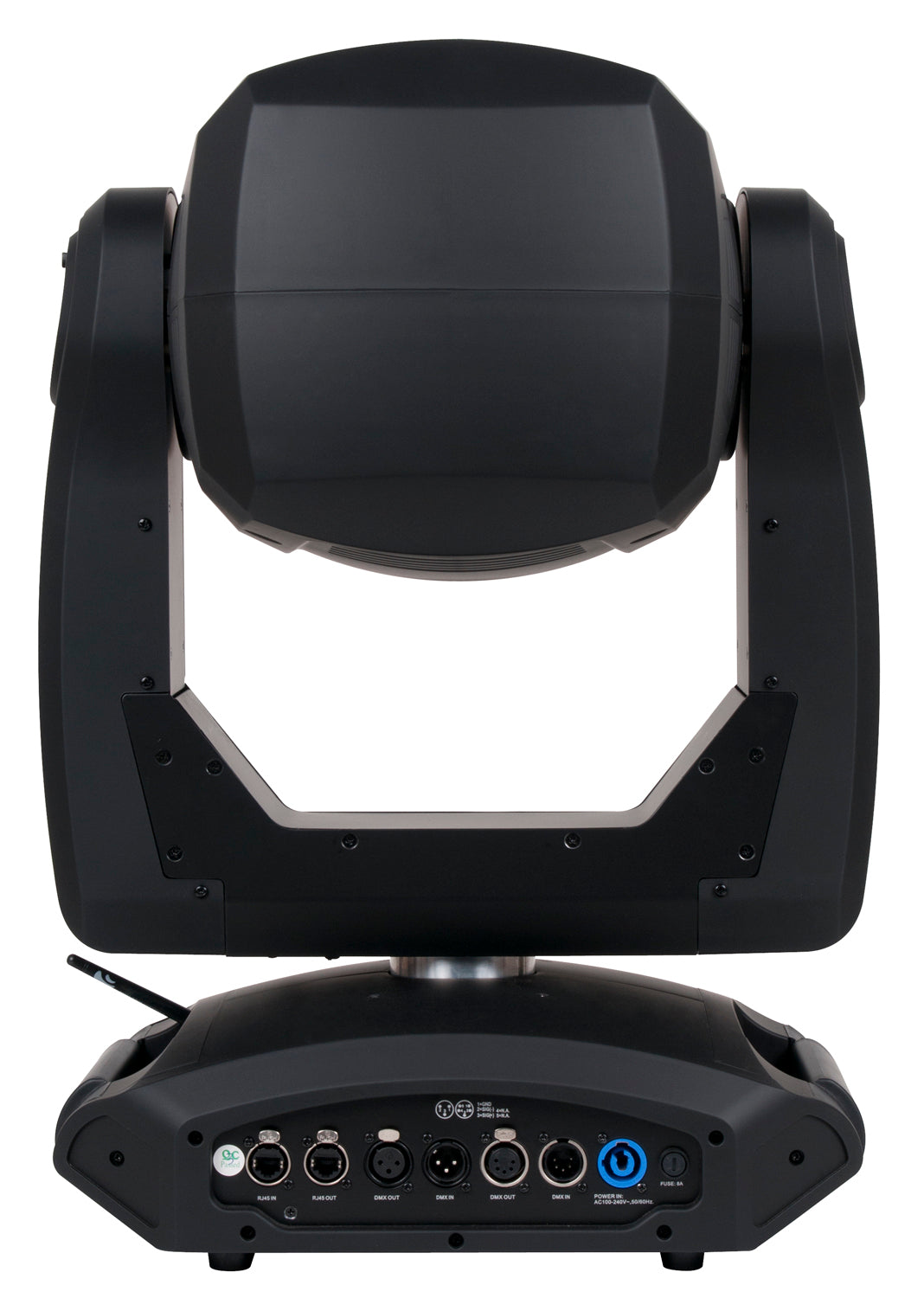

CONTROL / CONNECTIONS
(3) DMX Channel Modes (22 / 24 / 33)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin & 5pin DMX In/Out
etherCON (RJ45) In/Out (Art-NET)
powerCON Power In
SIZE / WEIGHT
Length: 20.0” (508mm)
Width: 16.9” (430mm)
Vertical Height: 28.6” (727mm)
Weight: 66.1 lbs. (30 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)
APPROVALS / RATINGS
CE | IP20
INCLUDED ITEMS
(2) Omega Brackets
(1) 3pin DMX Cable
(1) Safety Cable
(1) powerCON Cable
Specifications and documentation subject to change without notice.
