SIX+ PAR S
SIX+ PAR S
New!
7x 20W RGBLA+UV LED Par
SKU# SIX201

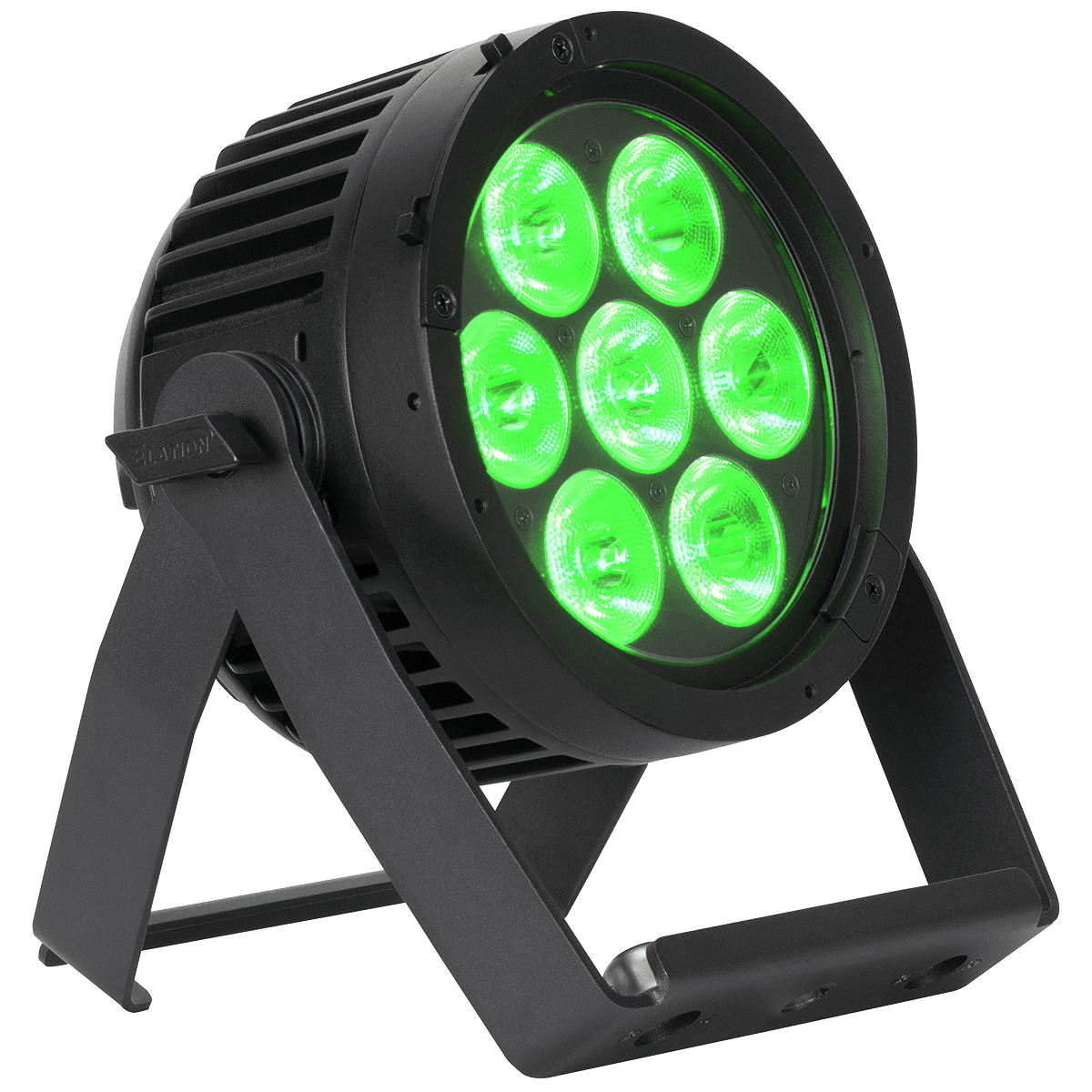

The SIX+ PAR S is a compact and rugged LED fixture that features (7) 20W RGBLA+UV LED’s, which produce an ultra-wide color spectrum and high quality of light while still offering up to 4300 lumens of output.. The optical system has been carefully engineered to offer an even distribution of light and color homogenization within the beam. This fixture has been designed to offer ultimate flexibility, use it indoors or out, it’s IP65 rating can handle any environment, and with it's C4-M marine grade coating, it's even safe in harsh costal environments. The fanless cooling system ensures silent operation allowing it to be installed in the most noise sensitive environments.
With a six color LED array, the SIX+ PAR S is able to offer outstanding color rendering capabilities with a high CRI of 91.7. This, paired with its remotely variably LED refresh frequency allows it to be easily integrated into any TV and Film application.
To expand the control capabilities on the SIX+ PAR S, precise color temperature control via a dedicated variable CCT control channel has been integrated. Programming a six-color LED fixture can be complicated so, a CMY emulation mode has been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included. This new fixture also includes our new Aria x2 wireless device management system for easy system maintenance and support.

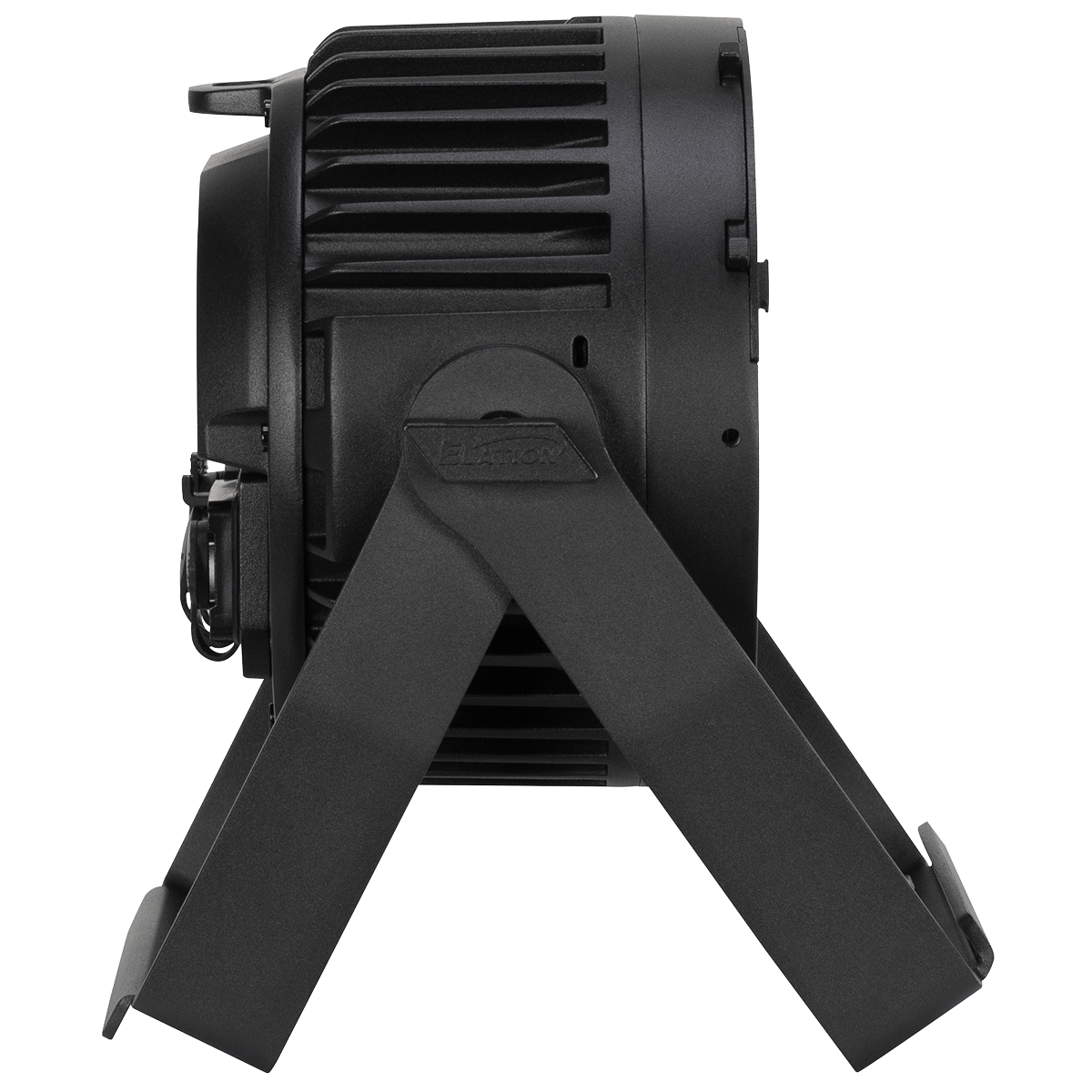

The IP65 housing includes a dedicated diffusion lens holder and the optional gel frame holder can accommodate industry standard 7.5” accessories. One 22° lens is included with the fixture, and other optional lenses are also available. The dual yoke design allows the fixture to be mounted on the floor or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver.
To ensure the SIX+ PAR S can be integrated seamlessly alongside original SixPar fixtures, great care has been taken to ensure that the new LED array colors match the original. A unique SixPar Emulation DMX mode has been developed, so that the new fixtures can be controlled with the same DMX mapping as the original. The color mixing has also been calibrated to virtually emulate the White LED included in the SixPar array and an output limit master setting has been added so your new lights don’t overpower any older fixtures in the rig.
The SIX+ PAR S is an ideal fixture for Theatre, Houses of Worship, Live Events, Themed Environments, Hospitality or Installations where high output, small form factor, simple design and easy deployability are required.
Features
(7) 20W RGBLA+UV LED Array
4300 Lumens, 91.7 CRI
12° Beam Angle, 20° Lens Included
Completely Fanless Cooling
16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Flicker Free Operation for TV and Film
Optional 7.5” Accessory Holder
IP65 Rated
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
Related Categories
Specifications
SOURCE
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
(7) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
4300 Total Lumen Output
CRI - 91.7
EFFECTS
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book

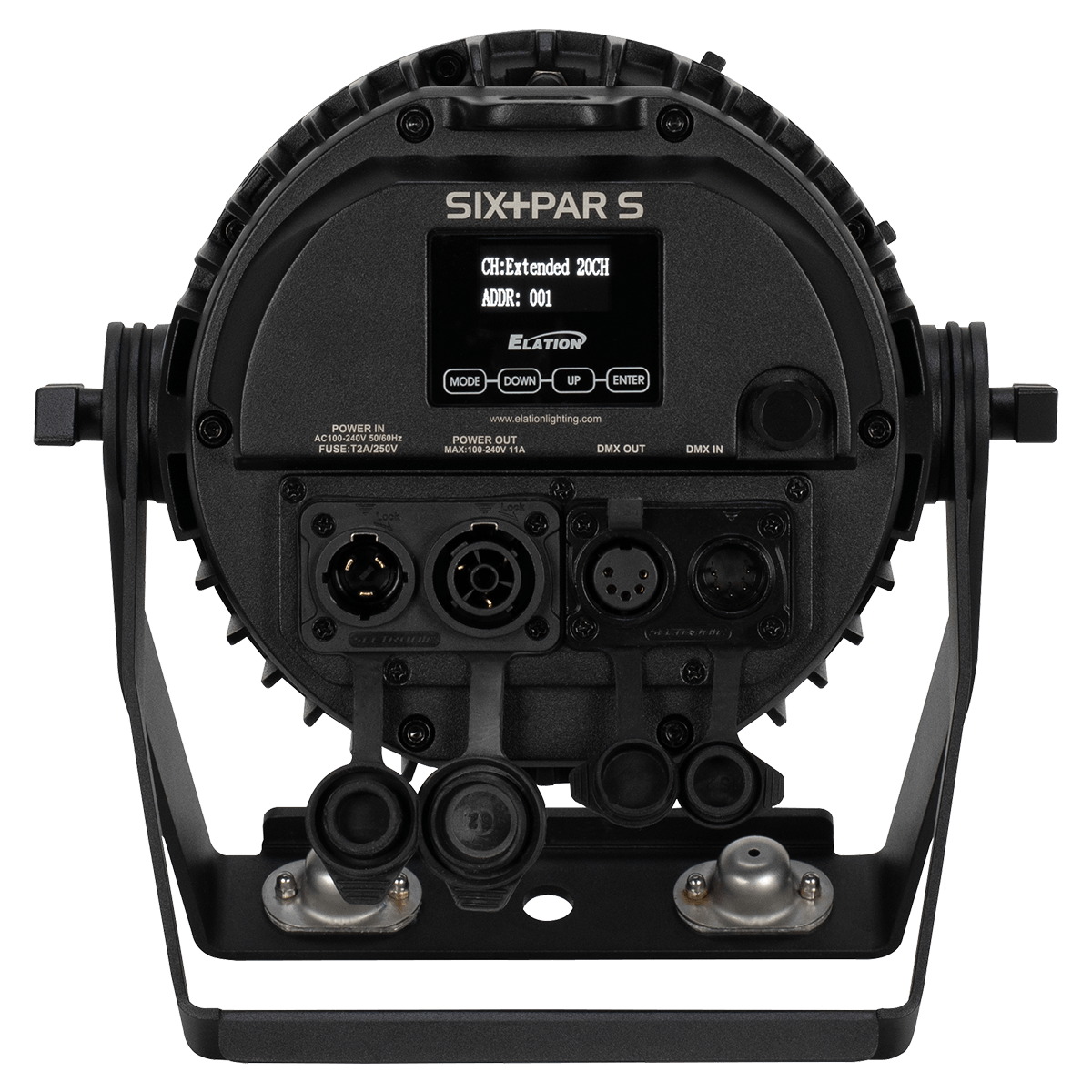

CONTROL / CONNECTIONS
9 DMX Channel Modes (1ch, 3ch, 9ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
4 SixPar Emulation DMX Channel Modes (6ch, 7ch, 8ch, 12ch)
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 7.4" (188mm)
Width: 9.7” (247.1mm)
Vertical Height: 9.1” (230mm)
Weight: 9.48 lbs / 4.30kg
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
100W Max Power Consumption
Power Thru Capacity: 12 units @110V, 28 units @240V
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 341
INCLUDED ITEMS

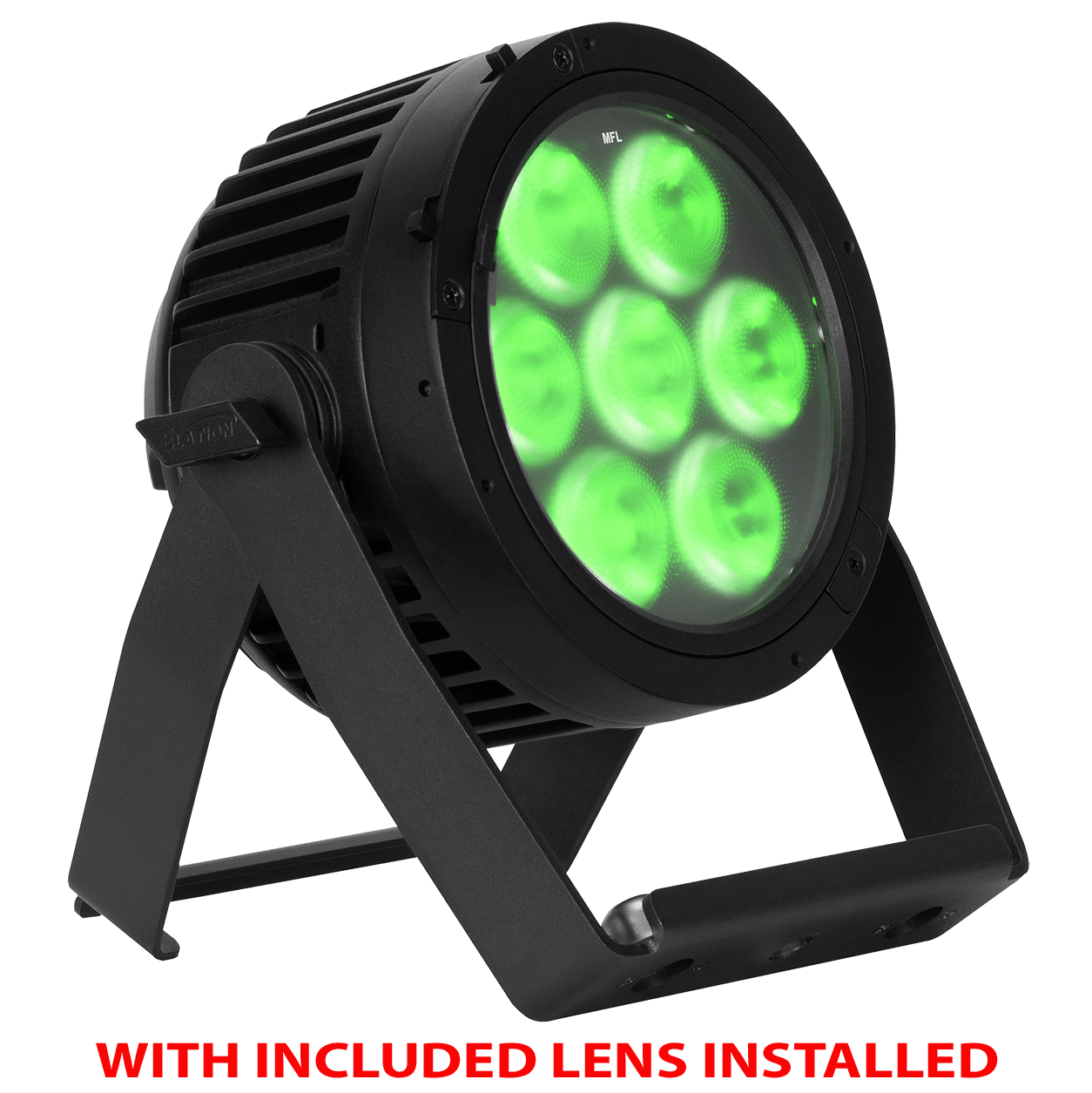

20° Lens
Safety Cable
IP65 Locking Power Cable
OPTIONAL ITEMS
60° Lens (SIX+S WFL)
100° Lens (SIX+S XFL)
1°x 40° Lens (SIX+S L140)
10°x 60° Lens (SIX+S L1060)
Gel Frame & Holder Kit (SIX+S GFK)
7.5" Barndoor (KLP959)
4 Wire Hardwire Installation Plate (HWP404)
2 Wire Hardwire Installation Plate (HWP202)
# 8050000053 - Omega Bracket
APPROVALS / RATINGS
CE | cETLus | UL | IP65c| FCC | UKCA
FIRMWARE UPDATE
Current Update: V1.0.3
Click HERE for software update
Specifications and documentation subject to change without notice.
