SMARTY HYBRID

Discontinued

280W Long Life Discharge Beam/Spot/Wash Hybrid Fixture

SMARTY HYBRID is a professional-grade lighting solution. The Smarty Hybrid™ is a compact full featured CMY color mixing spot, beam, and wash hybrid luminaire featuring the all new Philips™ MSD Platinum 200 Flex lamp with “FLEX” technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours.

UPC: 837874008555SKU: ESH253

SMARTY HYBRID

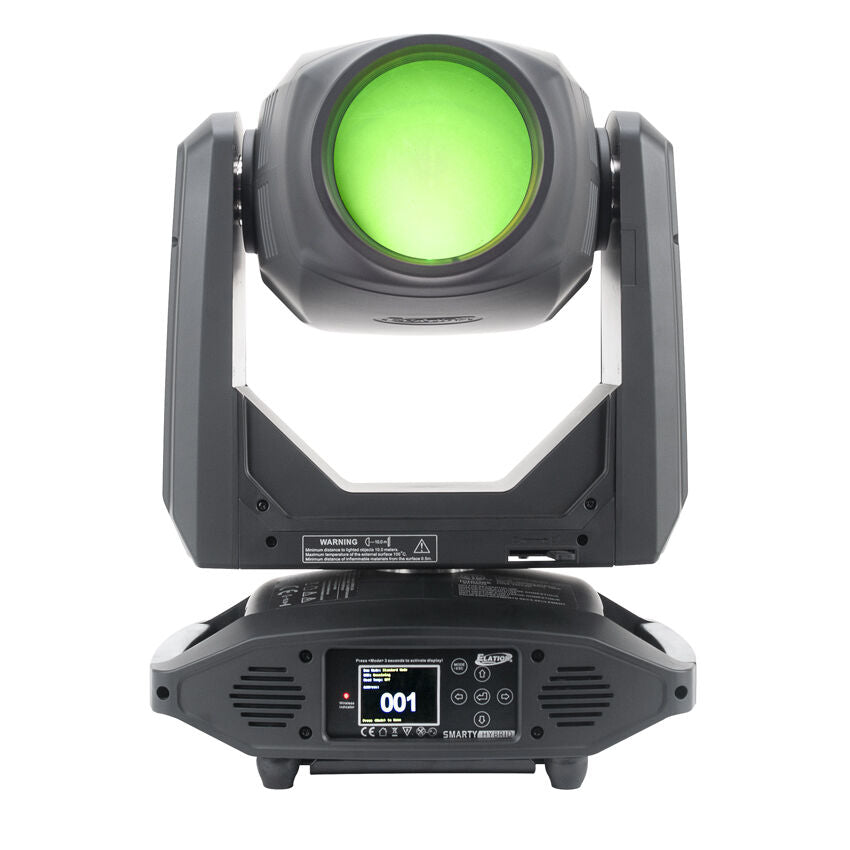

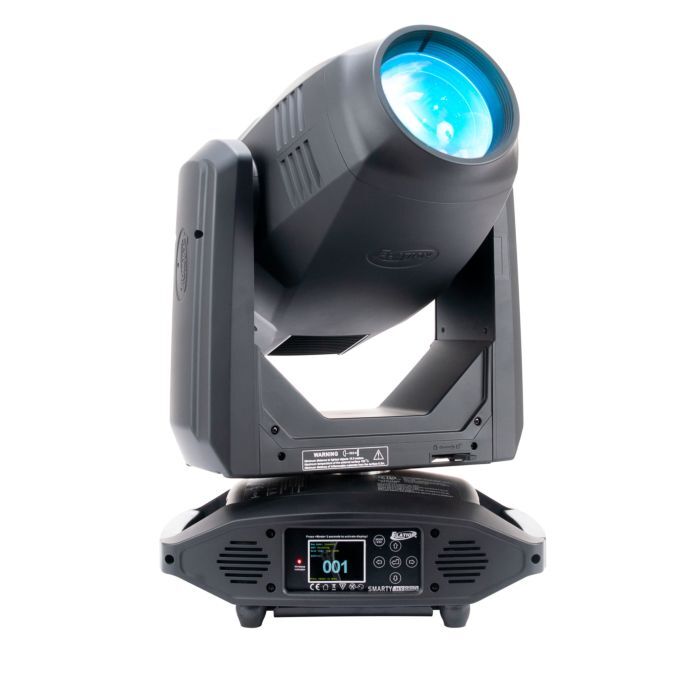

The Smarty Hybrid™ is a compact full featured CMY color mixing spot, beam, and wash hybrid luminaire featuring the all new Philips™ MSD Platinum 200 Flex lamp with "œFLEX"technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours. Features include 11,000 total lumen output, motorized zoom ranges of 1° to 18° in beam mode, 3° to 27° in spot mode, and 5° to 33° in wash mode, a full CMY color mixing system, a full frost filter for wash effects, 13 dichroic colors including a quad-color filter, CTB, CTO, and UV, 8 rotating"”interchangeable glass and 12 static-stamped metal gobos, a 16-facet and 5-facet linear independent rotating prisms, multiple CMY color, gobo, and prism macros, motorized focus with an auto-focus feature, high speed shutter and strobe, lamp hibernation mode, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, Elation's E-FLY™ internal wireless DMX transceiver, 5pin XLR, RJ45 etherCON, and Neutrik TRUE1 power in/out connections, full color 180° reversible LCD menu display with battery backup, a multi-voltage universal auto switching power supply (100-240V), and a comprehensive 2-year / 6,000 hour ultimate warranty**

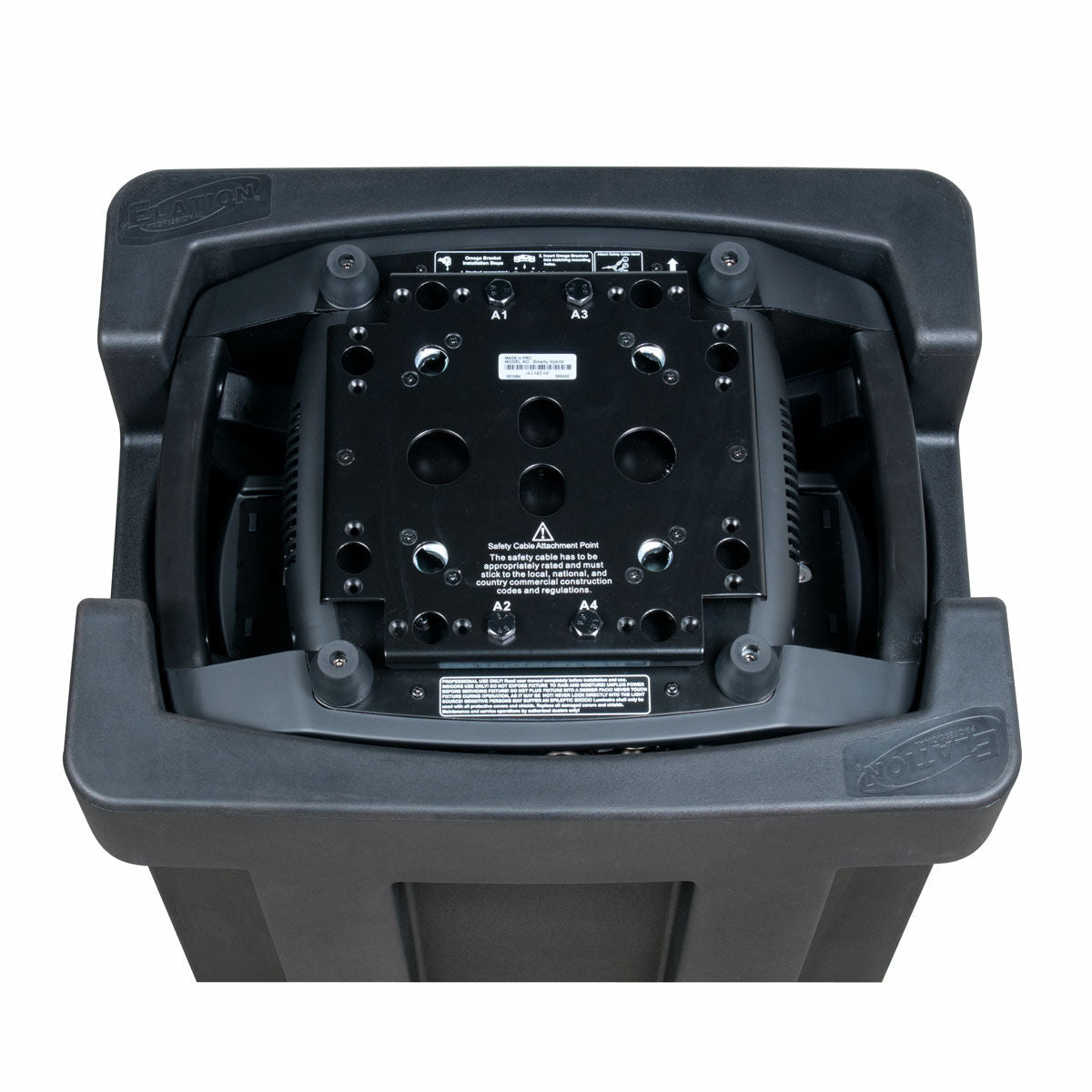

The Smarty Hybrid FIL fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into any custom sized flight case (not included), and provides enhanced impact protection during transport.


**First 2 Years of operation or 6,000 hours of use, whichever comes first, based on regular fixture/lamp maintenance.

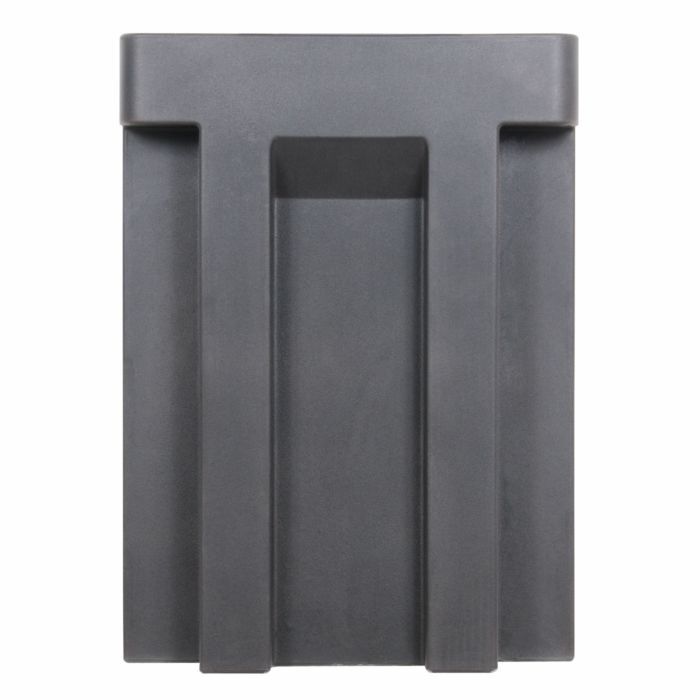

Custom fitted polyurethane foam insert. Fits easily fits into any custom sized flight case (not included), and provides enhanced impact protection during transport.

  • 3-in-1 Smart Hybrid Beam, Spot, Wash Luminaire
  • New Philips™ MSD Platinum 200 Flex Lamp
  • Up To 6,000 Lamp Hours*
  • FLEX Lamp Technology from 190 to 280W + Hibernation Mode
  • Motorized Zoom: 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash
  • Full Frost Filter for Wash Effects
  • Full CMY Color Mixing System
  • 13 Colors including Quad Color, CTB, CTO, and UV
  • 8 Rotating Interchangeable Glass Gobos
  • 12 Static-Stamped Metal Gobos
  • 16-Facet and 4-Facet Linear Rotating Prisms
  • Multiple CMY Color, Gobo, and Prism Macros
  • Motorized Focus with Auto-Focus Feature
  • DMX, RDM, Art-NET, and sACN Support
  • Elation's E-FLY™Internal Wireless DMX Transceiver
  • Ultimate Warranty** - Comprehensive 2 Years / 6,000 Hours
  • FIL (Foam In Lay)

Specifications

SOURCE

Philips™ MSD Platinum 200 Flex 280W Lamp

Up To 6,000 Hour Lamp Life*

*May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, Dimming, and Lamp Mode.


PHOTOMETRIC DATA

11,000 Total Lumen Output

128,426 LUX 11,931 FC @49.2’ (15m) (Min Zoom Beam)

135,108 LUX 12,552 FC @16.4’ (5m) (Min Zoom Spot)


EFFECTS

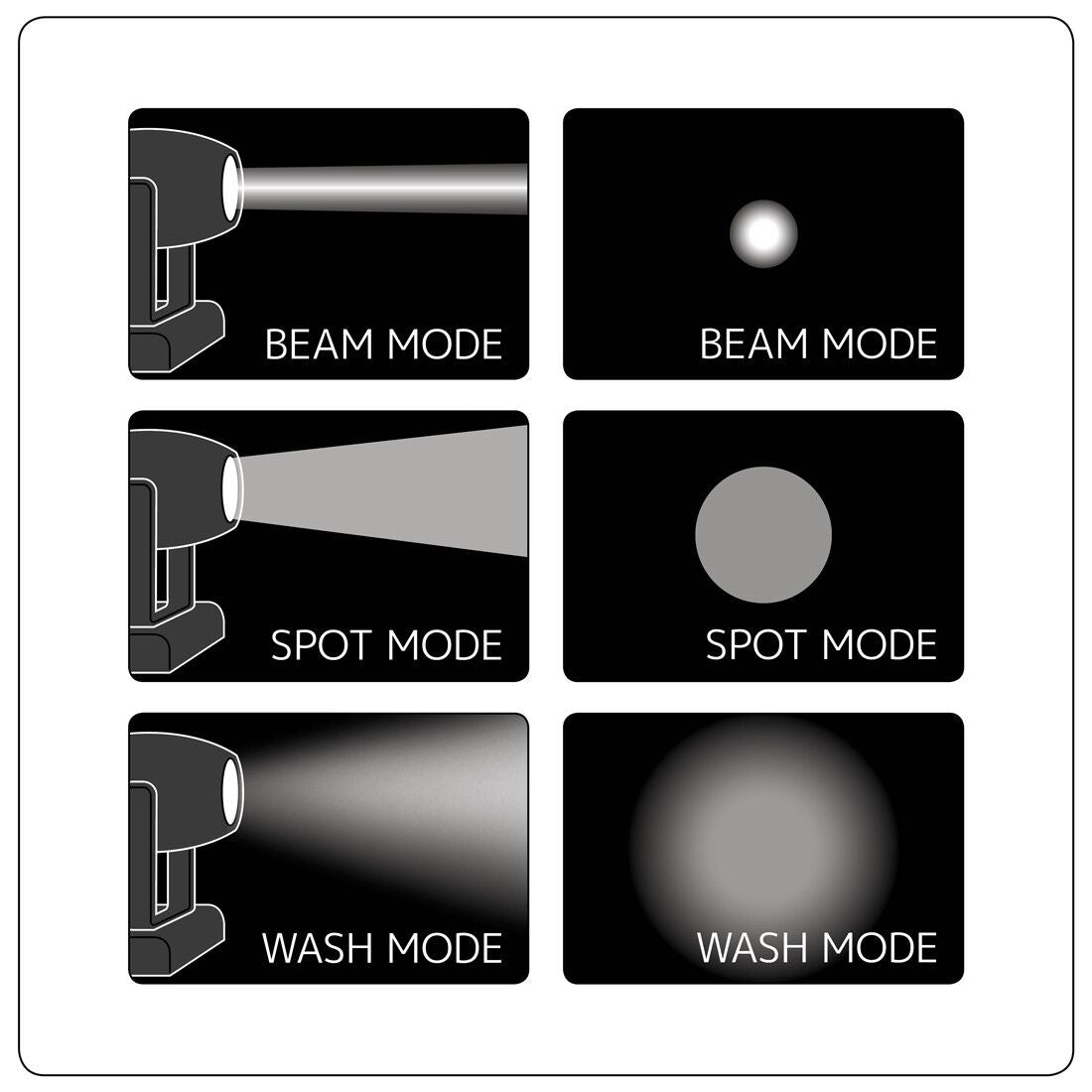

Beam, Spot, and Wash Modes

Motorized Zoom: 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash

Full Frost Filter for Wash Effects

16-Facet and 4-Facet Linear Rotating Prisms

CMY Color, Gobo, and Prism Macros

Motorized Focus with Auto-Focus Feature

High Speed Shutter and Strobe

Pan Angle: 540°/630°

Tilt Angle: 270°


COLOR

Full CMY Color Mixing System

13 Colors including Quad Color, CTB, CTO, and UV


GOBOS

2 Gobo Wheels

8 Interchangeable-Rotating / Indexing Glass Gobos

12 Static-Stamped Metal Gobos


CONTROL / CONNECTIONS

2 DMX Channel Modes (20/34 channels)

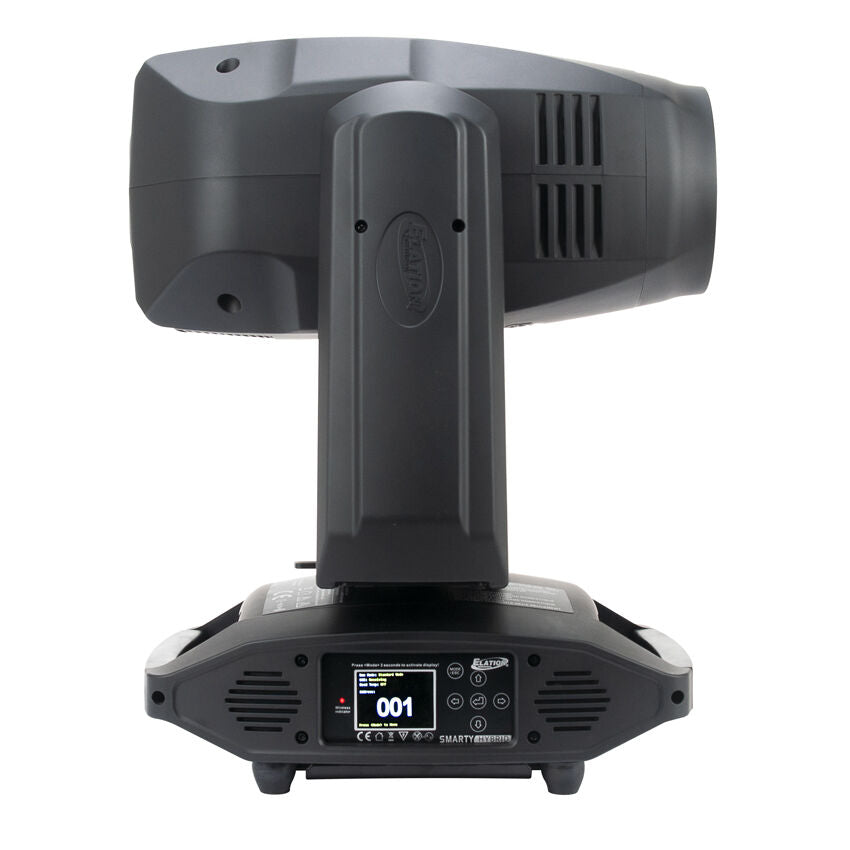

Full Color 180° Reversible LCD Menu Display

6 Button Menu Control Panel

16 Bit Resolution Adjustable Movement

DMX, RDM, Art-NET, and sACN Protocol Support

Elation E-FLY Internal Wireless DMX Transceiver

Hibernation Mode (Power Save)

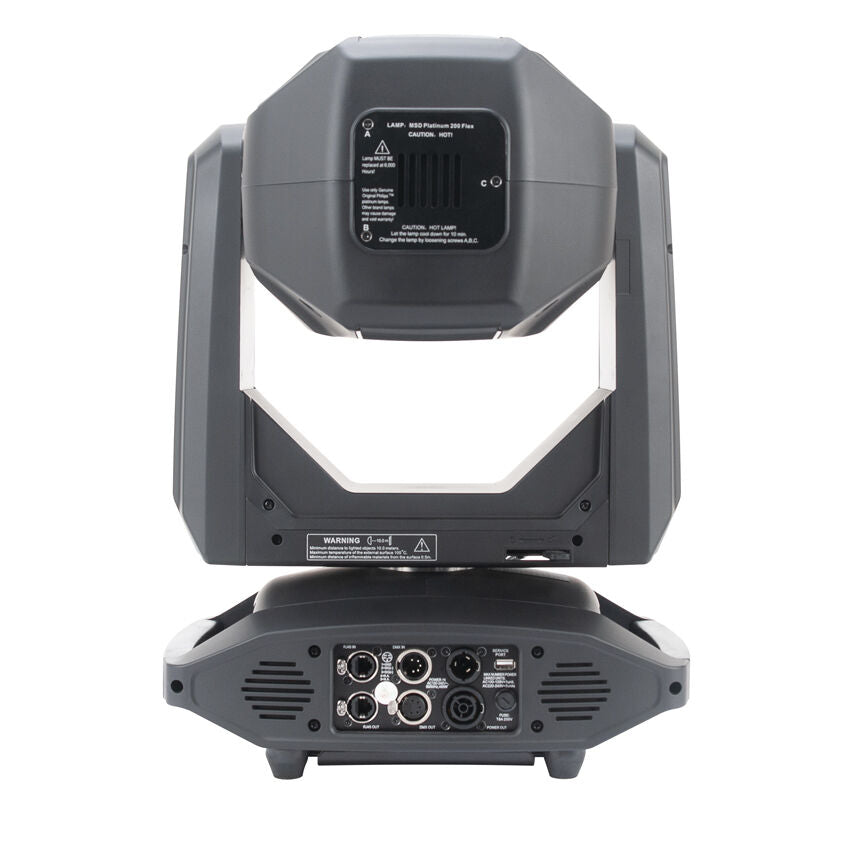

5pin DMX In/Out

RJ45 etherCON In/Out

Neutrik TRUE1 Power In/Out

With Wired Digital Communication Network


SIZE / WEIGHT

Length: 15.2” (385mm)

Width: 15.9” (405mm)

Vertical Height: 24.0” (610mm)

Center-to-Center Spacing 19.3in (490.8mm)

Weight: 49.0 lbs. (22.2 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

480W Max Power Consumption

14°F to 113°F (-10°C to 45°C)


APPROVALS / RATINGS

CE | cETLus | IP20


FIRMWARE UPDATES

Current Version: V1.4.1

Click HERE for software update



Specifications and documentation subject to change without notice.
