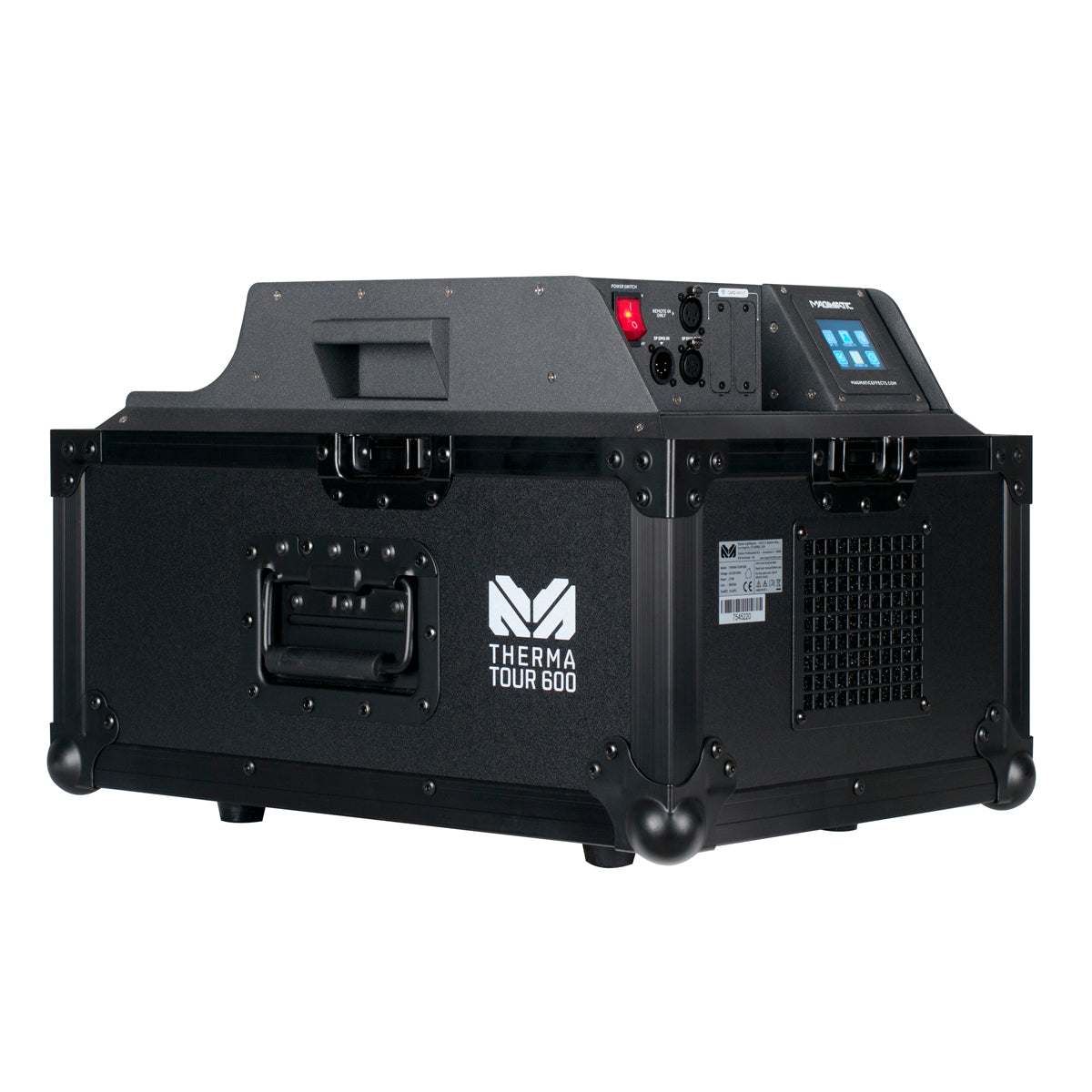

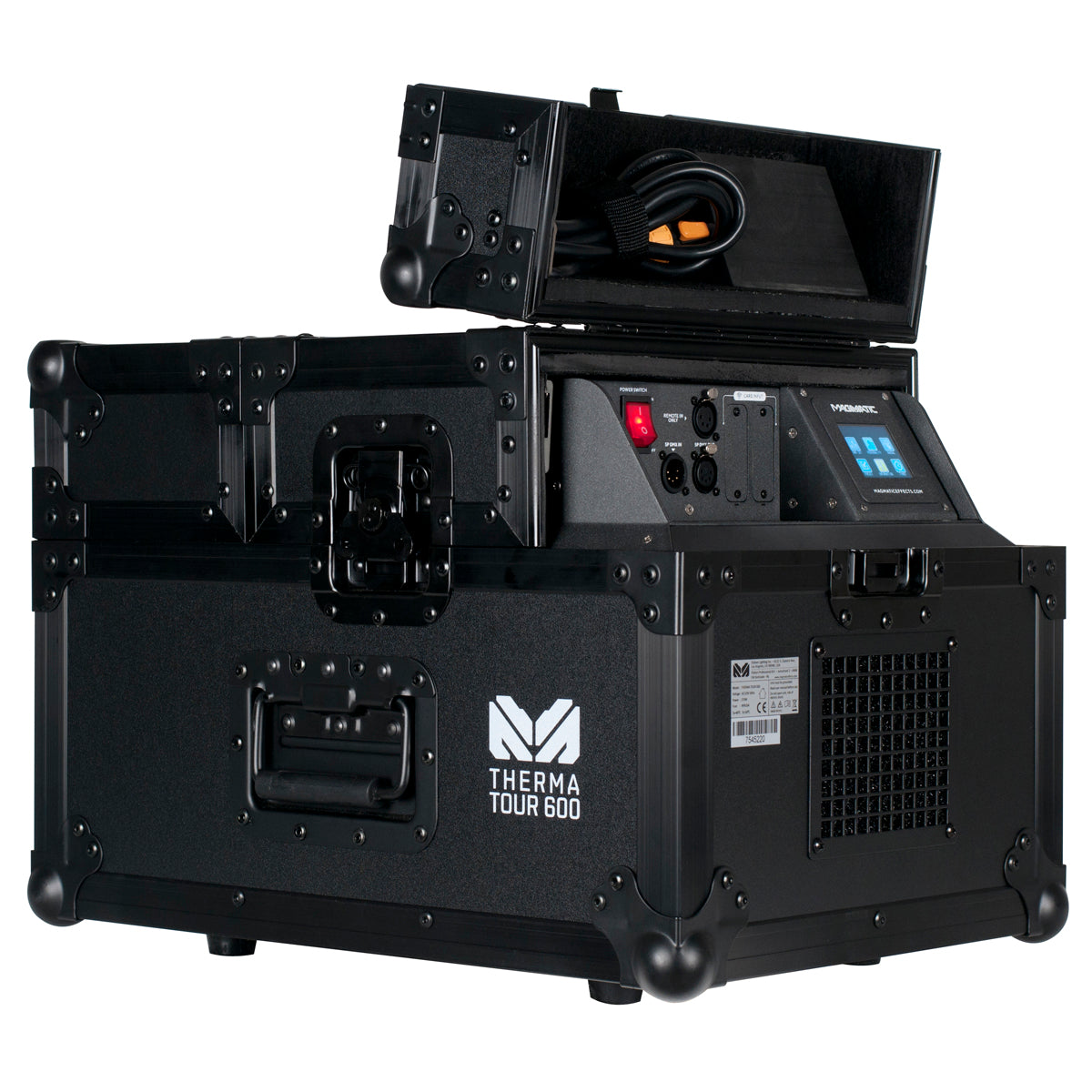

THERMA TOUR 600 - 350W OIL BASED-HAZER
SKU# TST613
The THERMA TOUR 600 is a premium haze effect generator that produces an exceptionally fine, long-lasting atmospheric haze that excels at revealing light beams and mid-air effects. The 350W THERMA TOUR 600 creates a safe, clean and odorless haze effect that leaves no residue. The perfect small-particle haze for highlighting light beams, the unit holds two liters of fluid for over 35-hours of run time with no warm up time required. Hang time is incredibly long at over 3 hours in an enclosed space! Compact yet ruggedly built to withstand the day in and day out rigors of on-the-road use, multiple control options include a wireless RF remote, MAGMATIC MAGFLY or Elation E-Fly wireless DMX, wired remote, MAGMATIC App, and manual, on-board, touch screen control.
Features
- 350 watt low power consumption
- Over 35 hours of run time
- Haze lasting up to 3 hours after machine is off

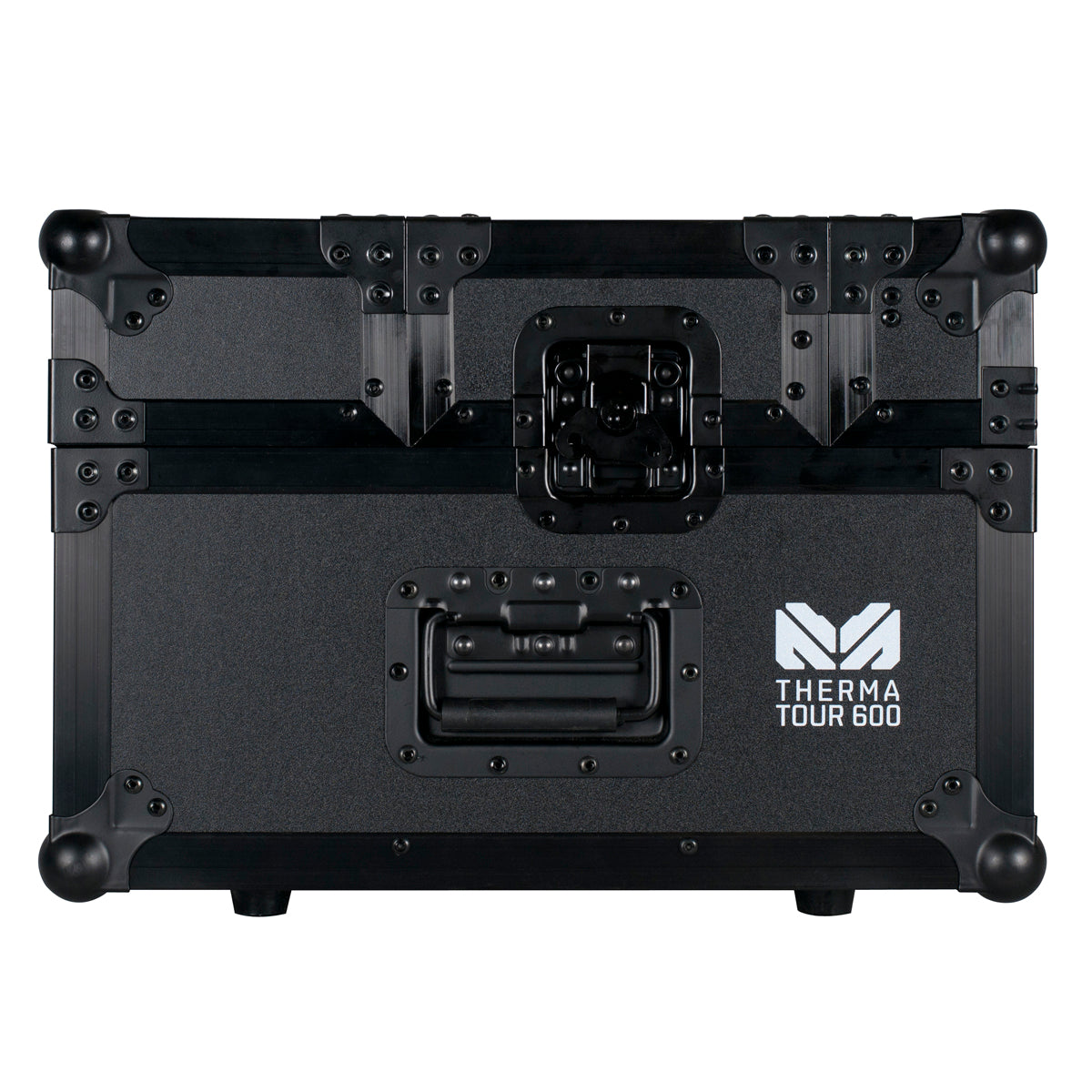

- Rugged mobile road case design
- Soundproof insulation for indoor use
Resources
Specification information
Guides/ Manuals
DMX/ RDM Traits
Drawings
CAD File
Related Categories
Specifications
PERFORMANCE
- Rated Power: 370W
- Max Output: 1,200 CFM* (cu ft/min.)
- Ready Time: Instant
- Fluid Capacity: 0.66043 Gallons (2.5 liters)
- Fluid Consumption: 0.033814 oz/min (1.0 ml/min) *approximate
COMPATIBLE FLUID
- Atmosity ARH (Oil Based Fluid)
- Atmosity AAH (Water Based Fluid)
CONSTRUCTION
- Advanced HPA (high pressure air) Pump Technology
- Energy Saving Mode with Auto-Clean Process
- Sealed Fluid Reservoir

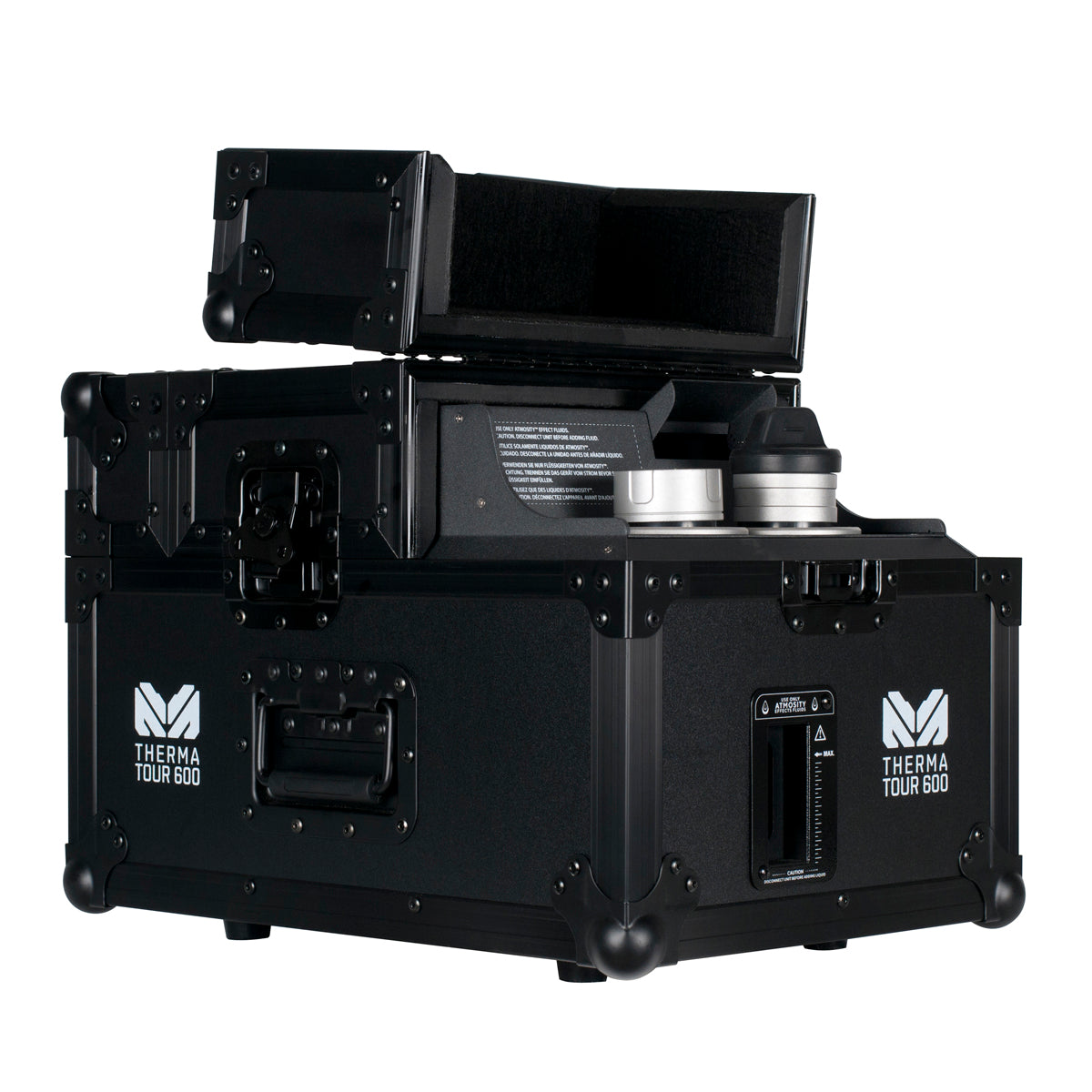

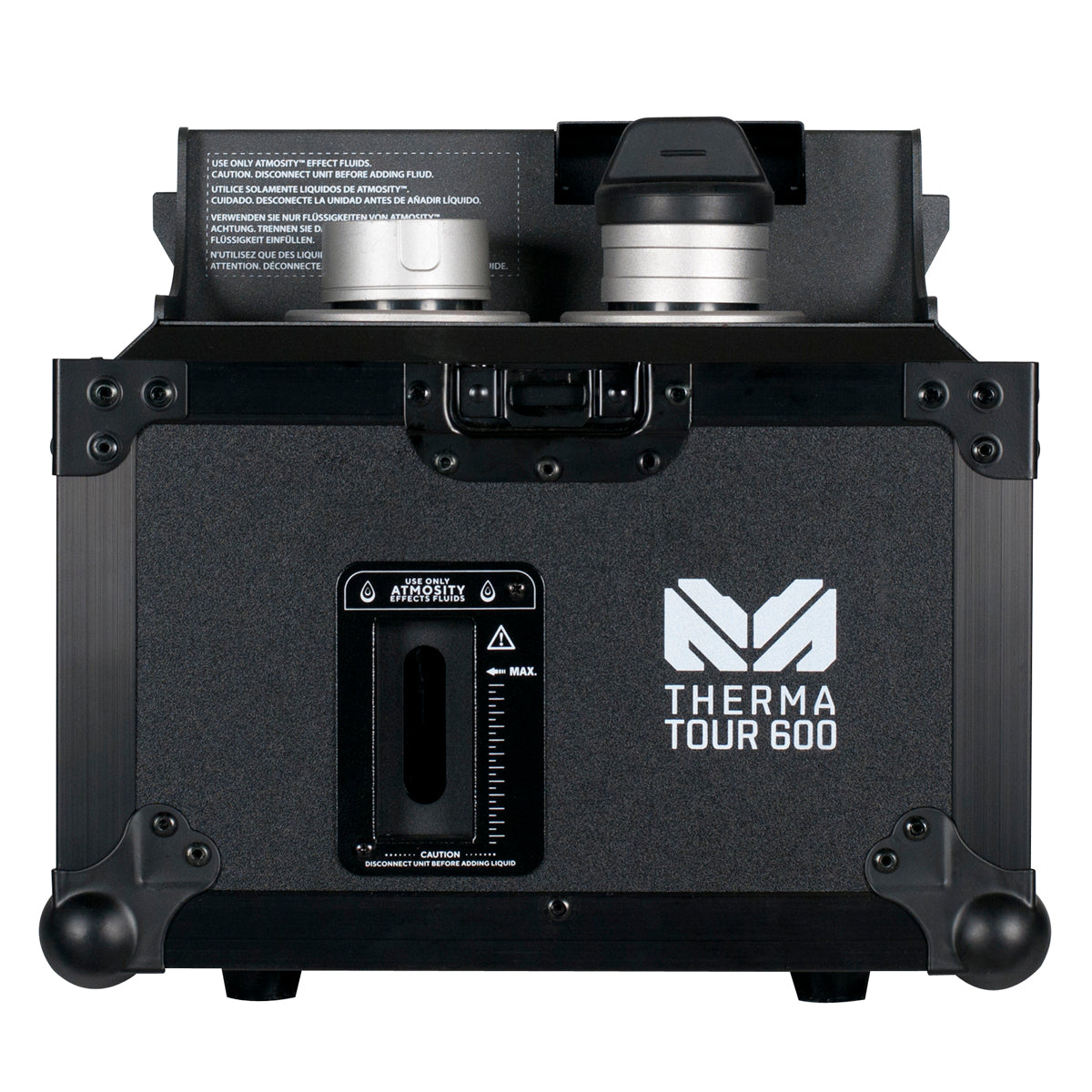

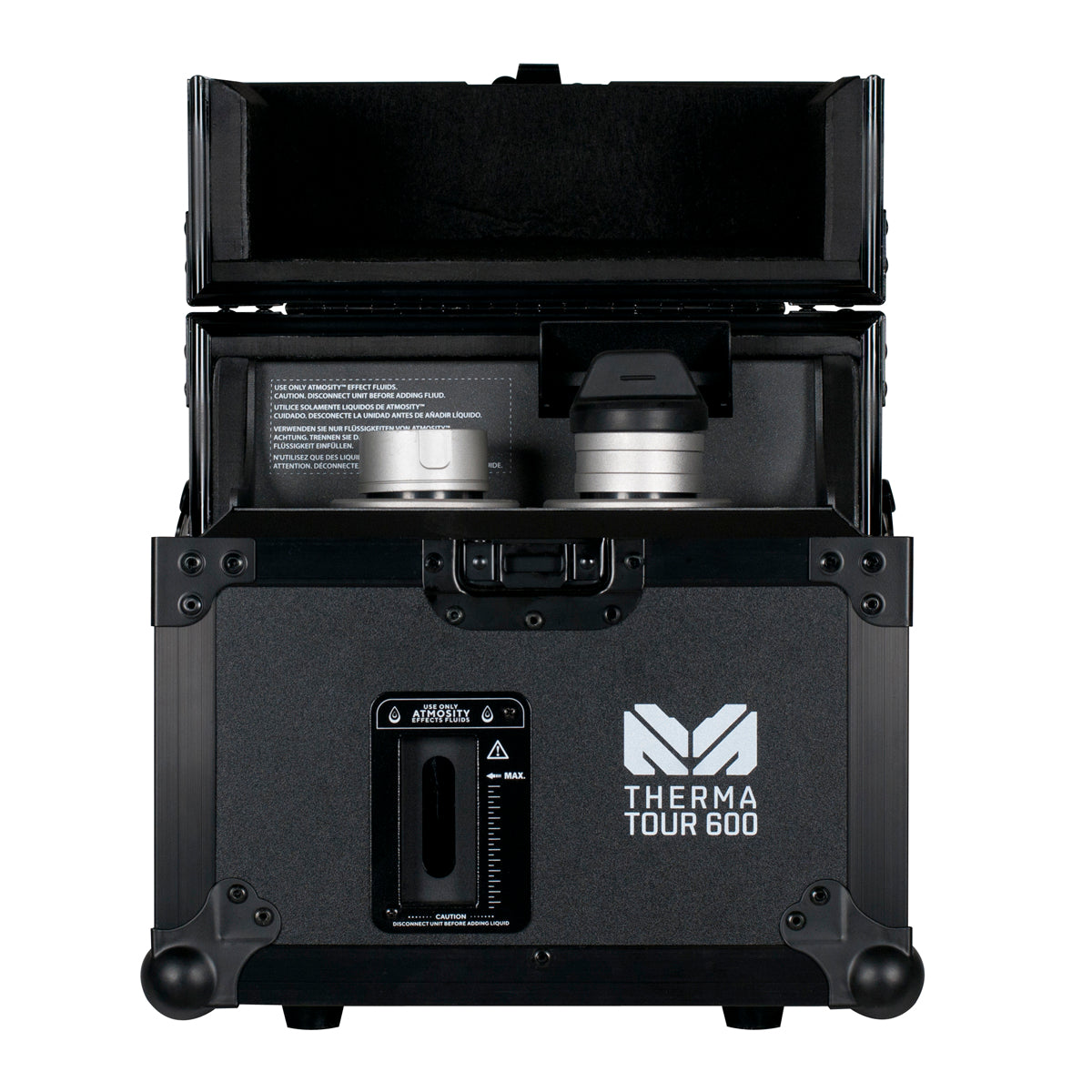

- External Visual Fluid Level Detection
- Compact Light Weight Mobile Design
CONTROL
- DMX Control Modes: 2 (1 & 3 Channel)

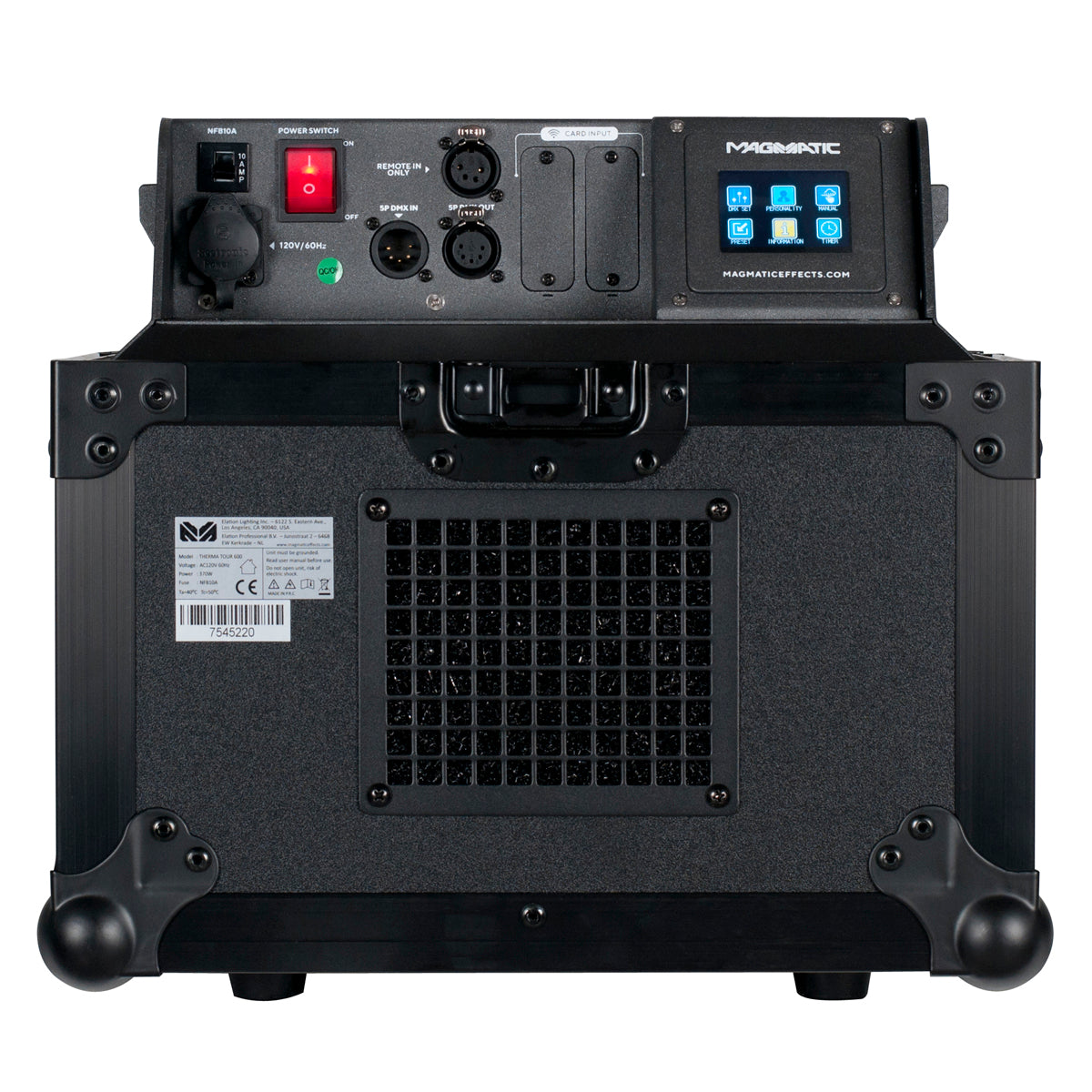

- Onboard LCD Touch Control Panel
- DMX-512 and RDM Protocol Support

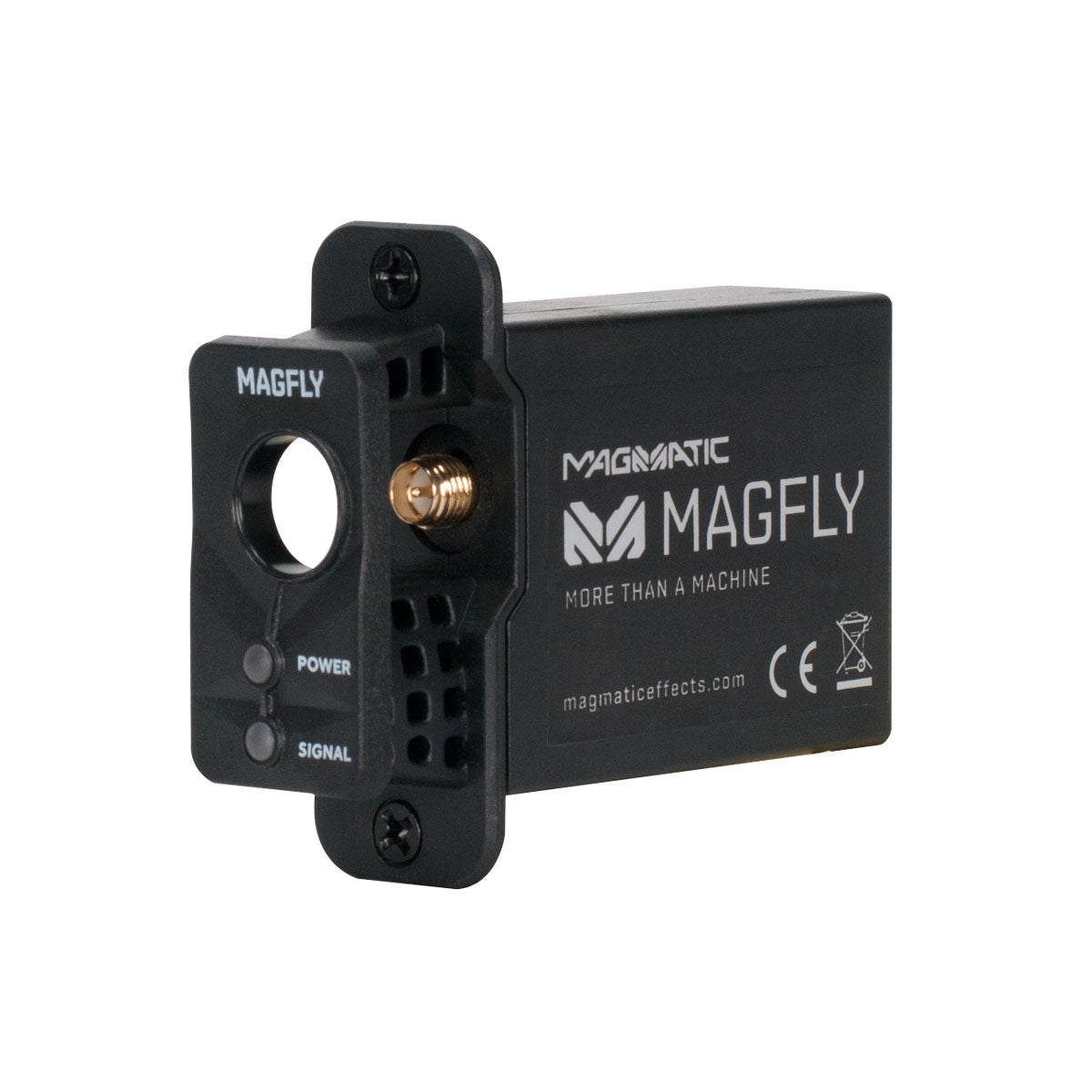

- Optional MAGFLY Wireless DMX Transceiver

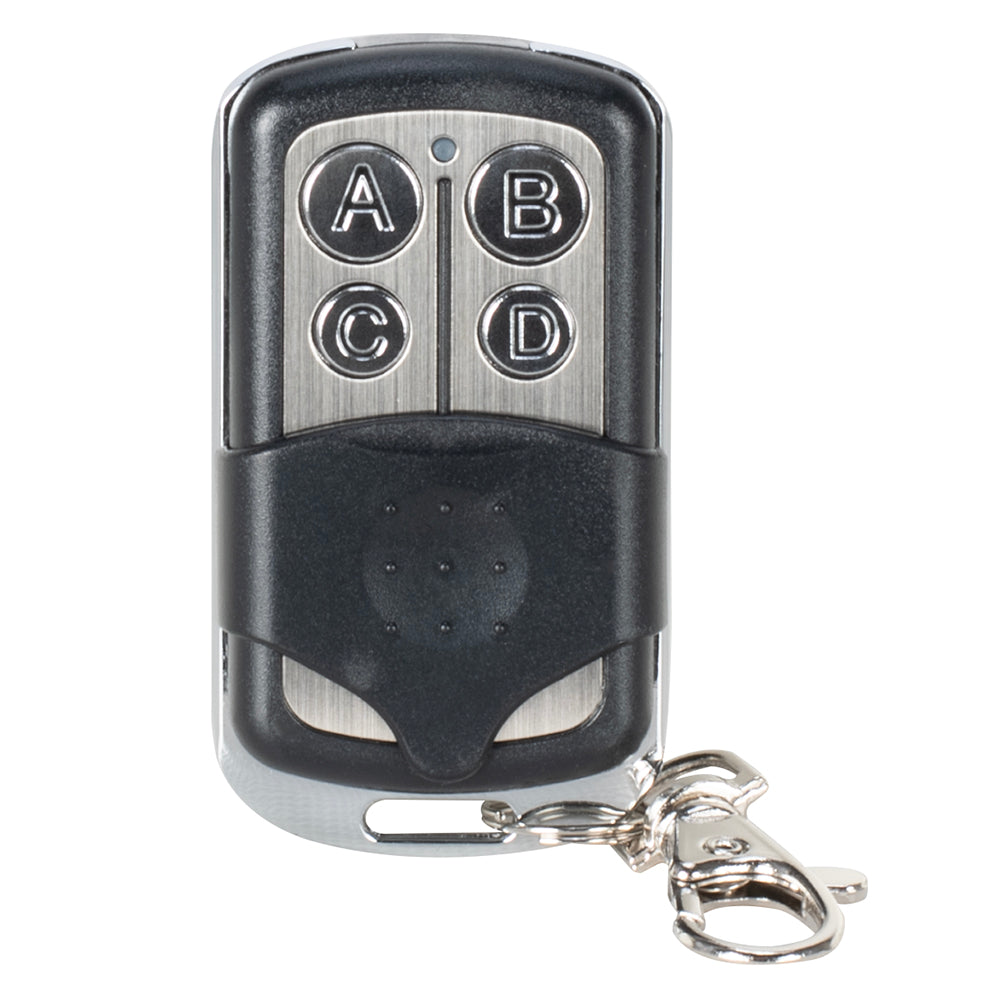

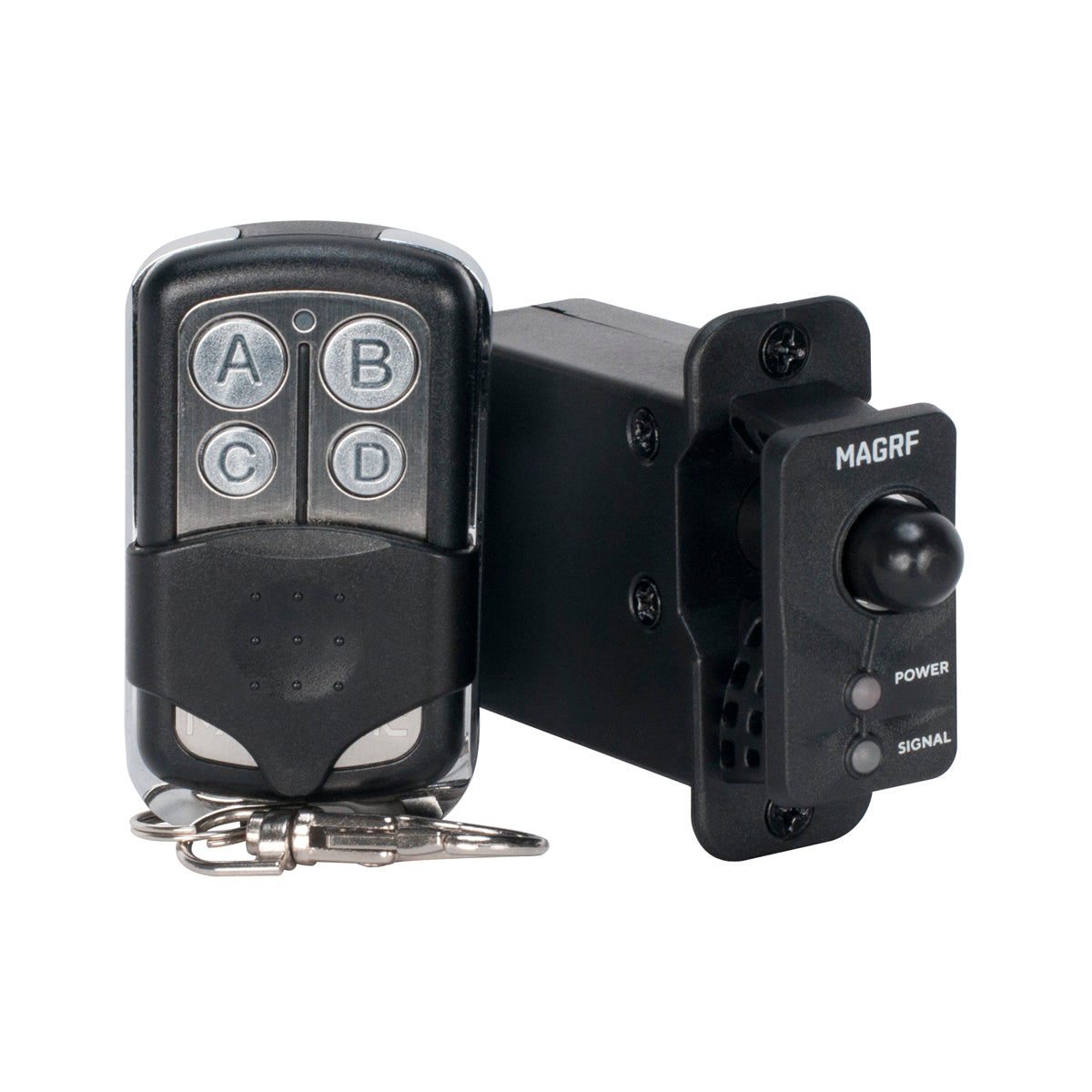

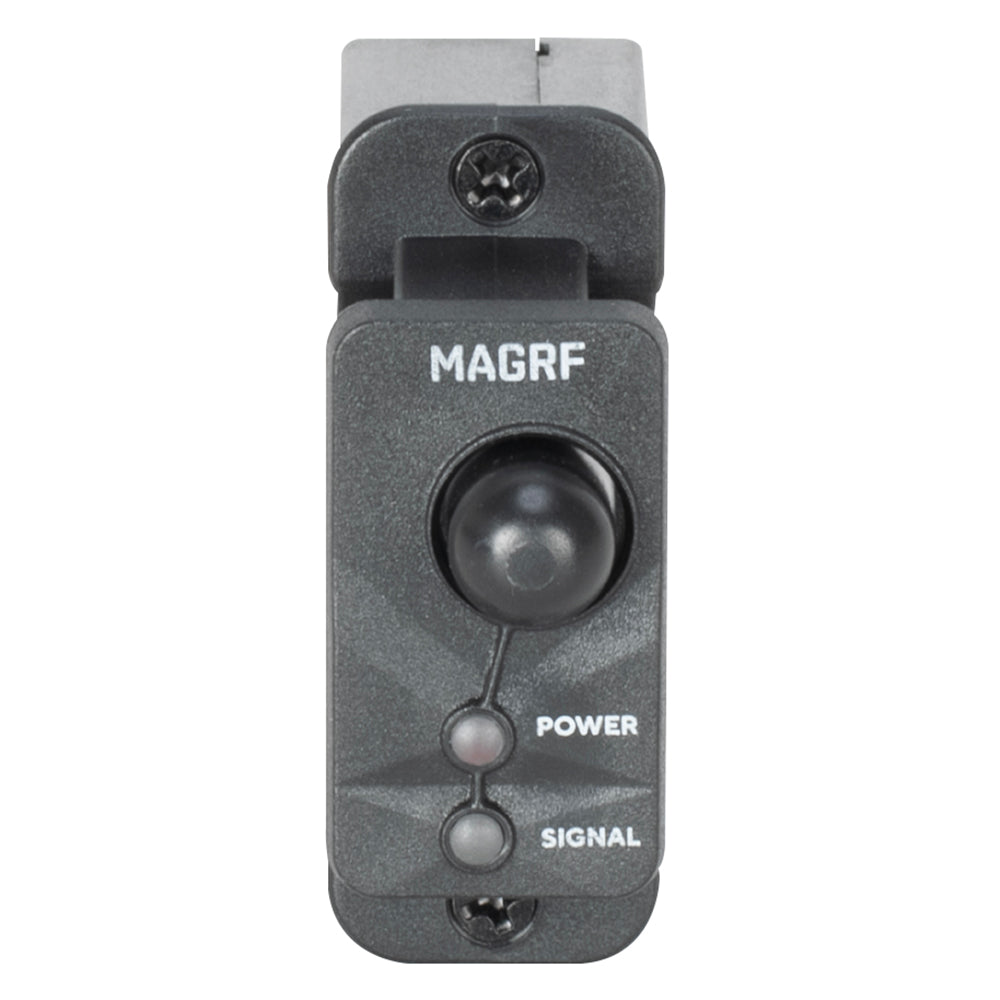

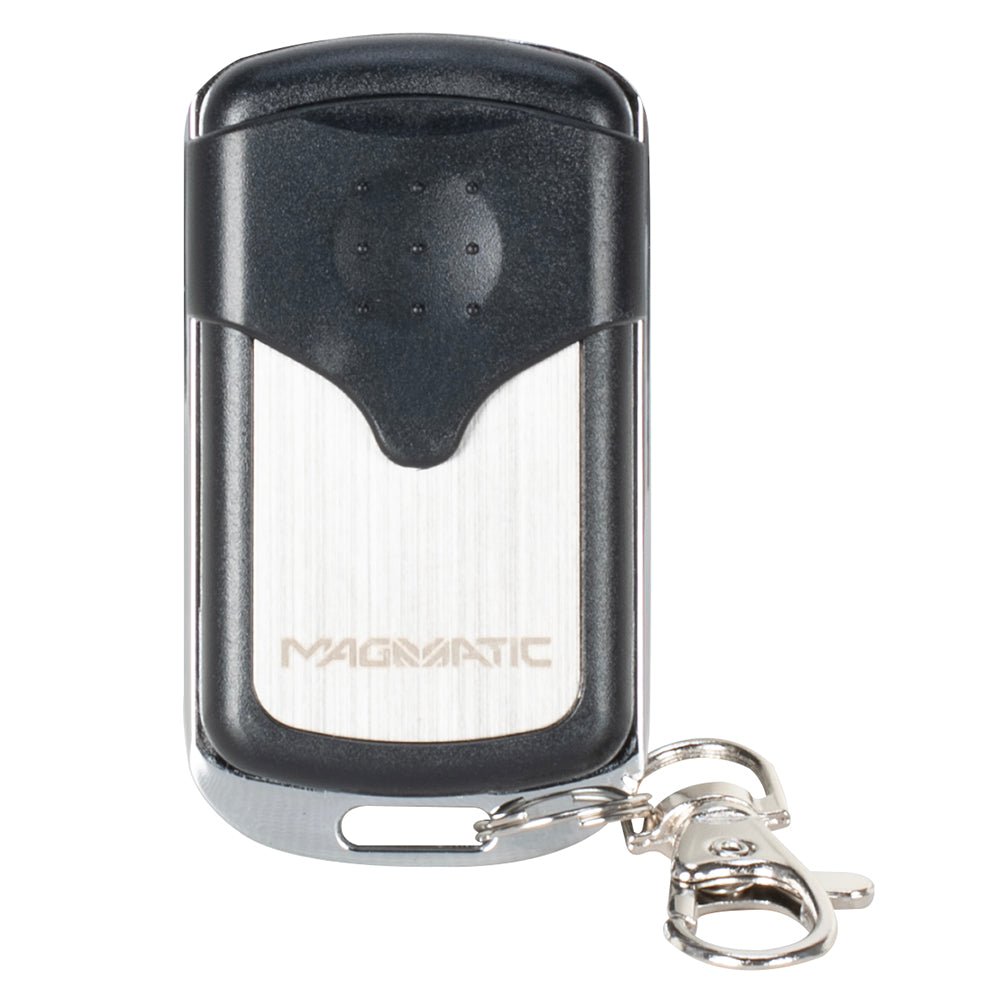

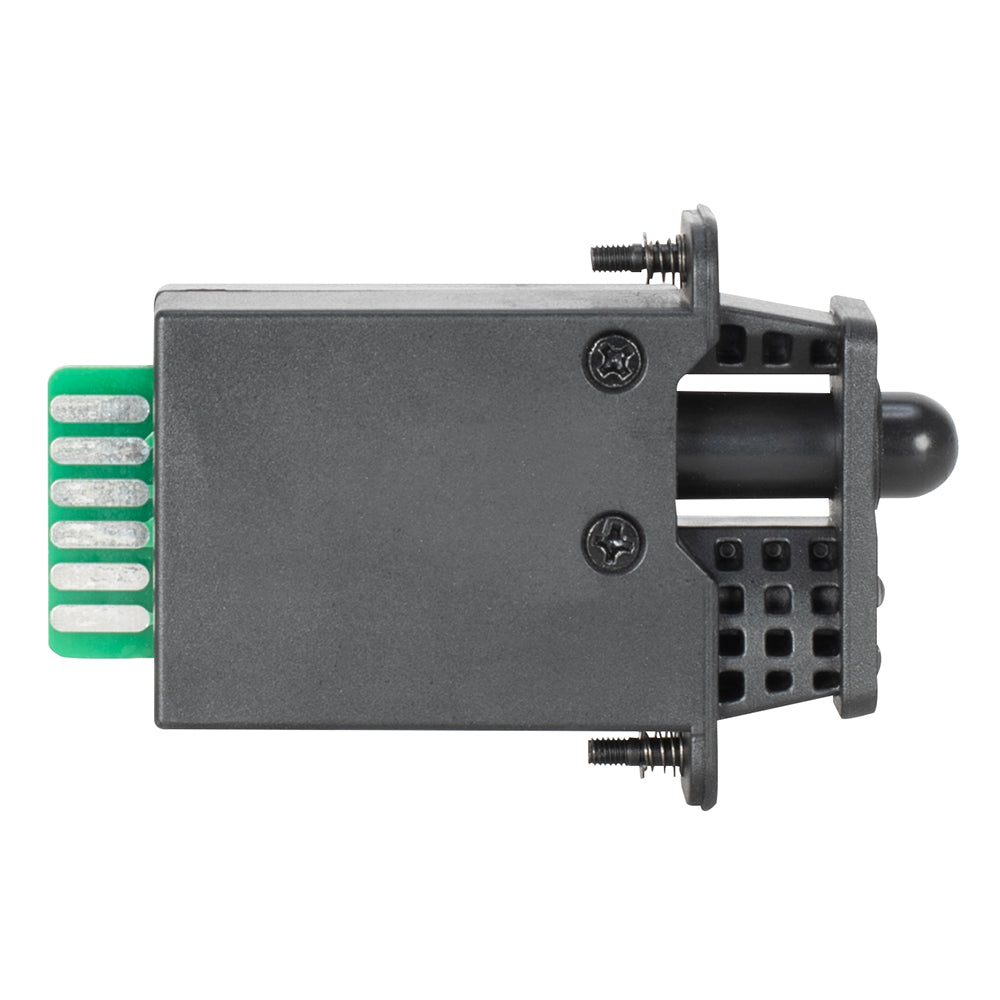

- Optional MAGRF Wireless and Wired Remotes

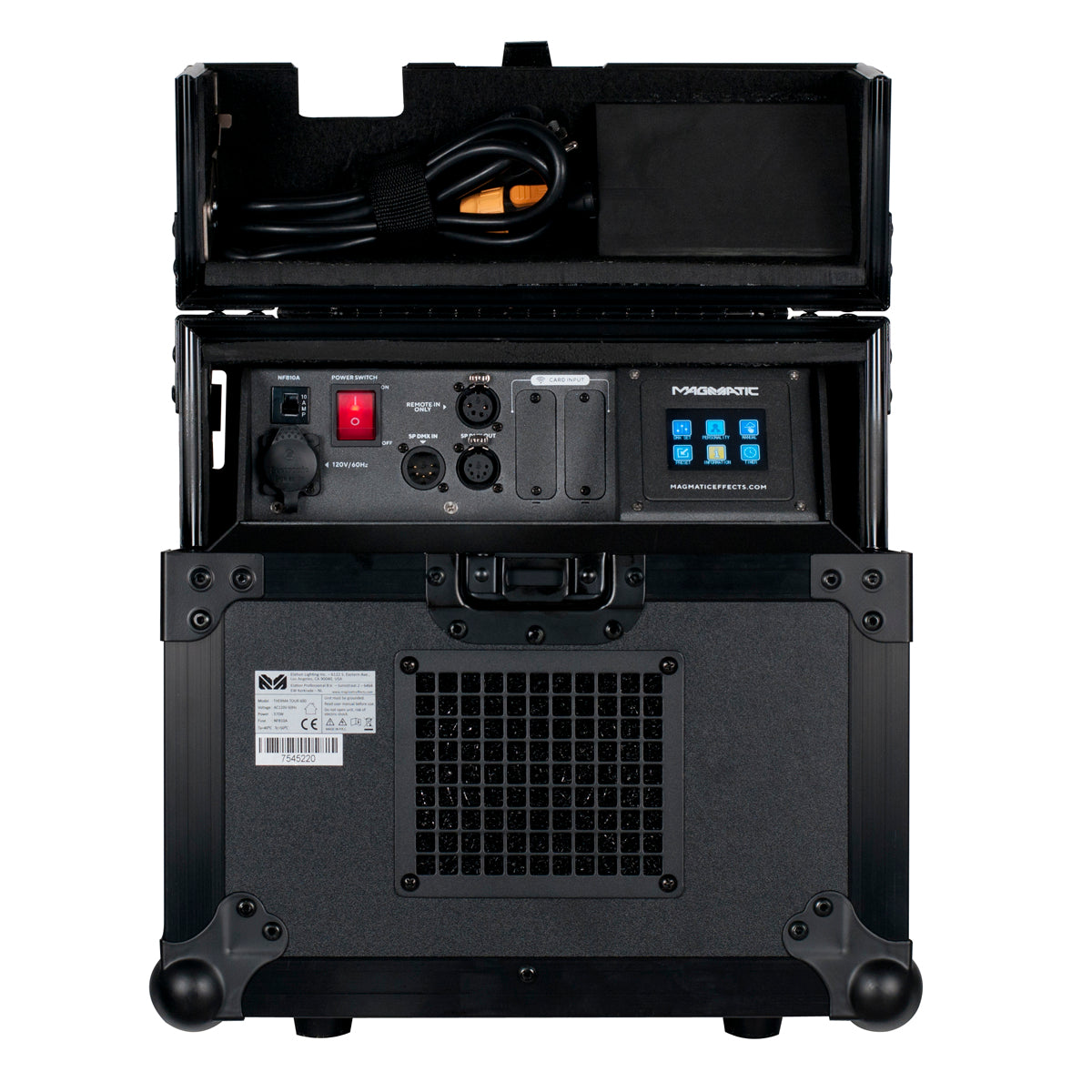

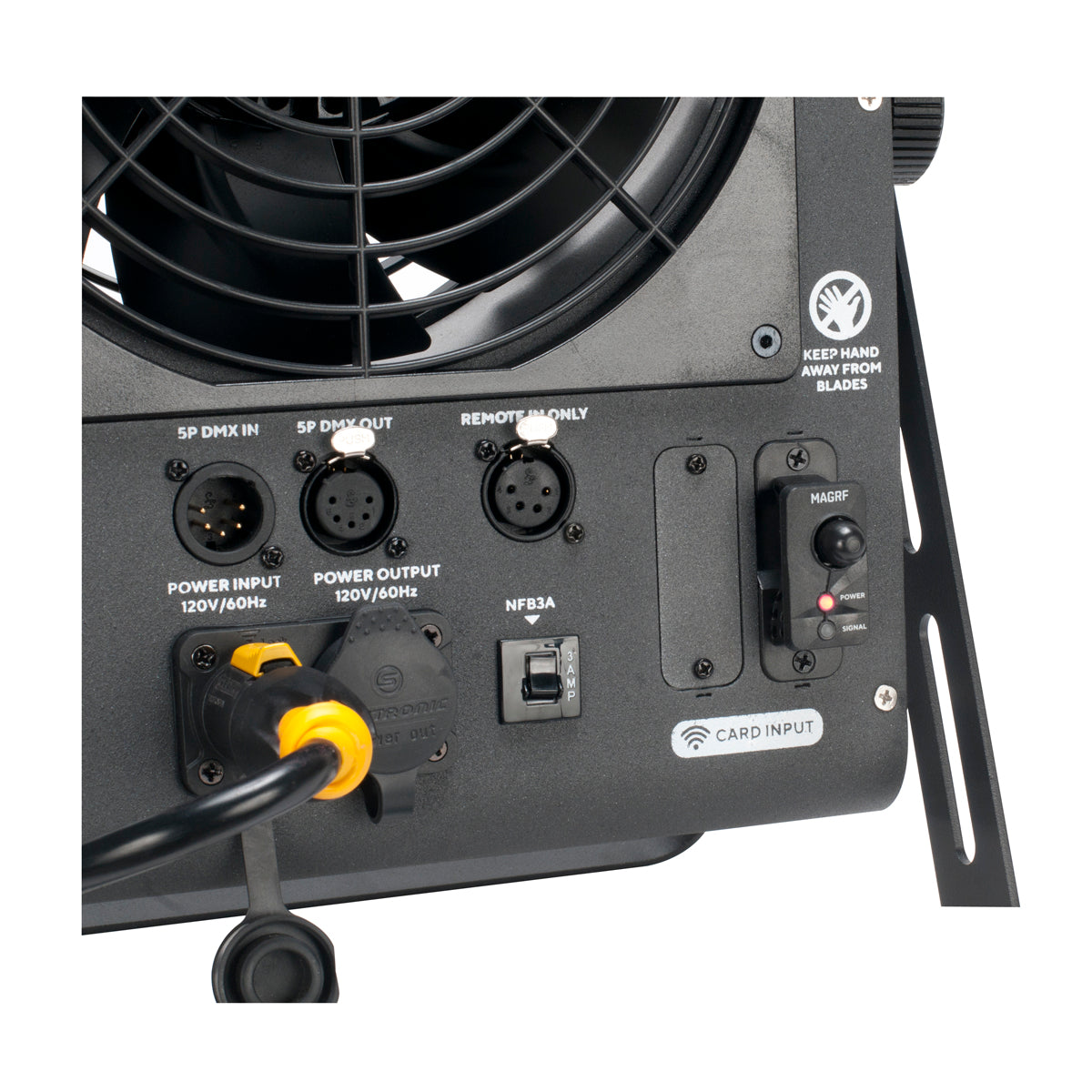

CONNECTIONS
- Locking 5pin XLR Connector In/Out
- IP65 Locking Power Connector In
- With Wired Digital Communication Network
SIZE / WEIGHT
- Length: 20.2 in. (514,1mm)
- Width: 14.7 in. (374.1mm)
- Height: 14.1 in. (365.1mm)
- Weight: 66 lbs. (30kg)
ELECTRICAL
- AC120V 60Hz (US Version)
- AC230V 50Hz (EU Version)
- 10A (NFB US Version)
- 5A (NFB EU Version)
- Max Power Consumption: 370W
THERMAL
- Maximum Ambient Temperature (Ta max) 104°F (40°C)
- Exterior Surface Temperature, Steady State: 122°F (50°C)
APPROVALS / RATINGS
- CE | cETLus | IP20 | UKCA
Specifications and documentation subject to change without notice.
