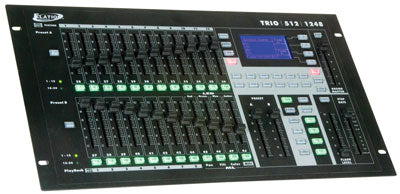

TRIO 1248
Features
Resources
Guides/ Manuals
- TRIO 1248 Flash Converter v1.0
- TRIO 1248 Cutsheet
- TRIO 1248 Profile Creator v1.06
- TRIO 1248 User Manual
- TRIO Software V1.218 & Fixture Profiles
Related Categories
Specifications
• 24 configurable faders
• 2 DMX universes
• Additional artNET output
• DMX input
• VGA monitor output option
• Built-in FX generator
• LCD step-by-step instruction
• DMX512 console allows for control of conventional lights, moving lights and LED’s.
• Six operation modes; Single Scene, Two Scene, Sub Master Moving Light, LED and Memory playback modes.
• 1152 recordable scenes (24 pages x 48 scenes) in sub master mode for conventional lights.
• 12 built in FX include movement for ML’s and color chases for LED’s.
• LCD display offers detailed information.
• 24 faders to control conventional, moving light and LED fixture channels
• Control 12 ML fixtures up to 40 channels each. 20 playbacks x 99 steps in Moving Light mode
• Control 12 LED (RGBA) fixtures. 20 playbacks x 99 steps in LED mode Memory playback mode allows for a combination of Sub Master, LED playback and Moving Light -playback
• Back lit buttons (by RGB LED’s) change color depending on their state
• Grand Master fader for total output control
• A & B fader’s for two scene operation
• USB Input for uploading and downloading data
• ArtNET for faster communication with compatible devices
• 3 pin XLR DMX Input to connect external console
• Two sets of 3 & 5 pin DMX Outputs
• On/Off Power Switch
• 9-12VDC 2A power supply (Included)

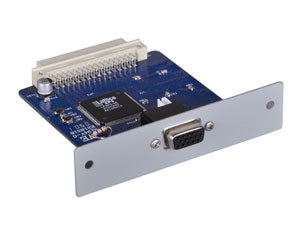

• 800x600 VGA monitor output (optional)
• Dimensions (HxWxL): 2.75“ x 19“ x 10.4“ / 70 x 482 x 264 mm
• Weight: 9 lbs. 4.5 kg.
