TVL F1CW
TVL F1CW

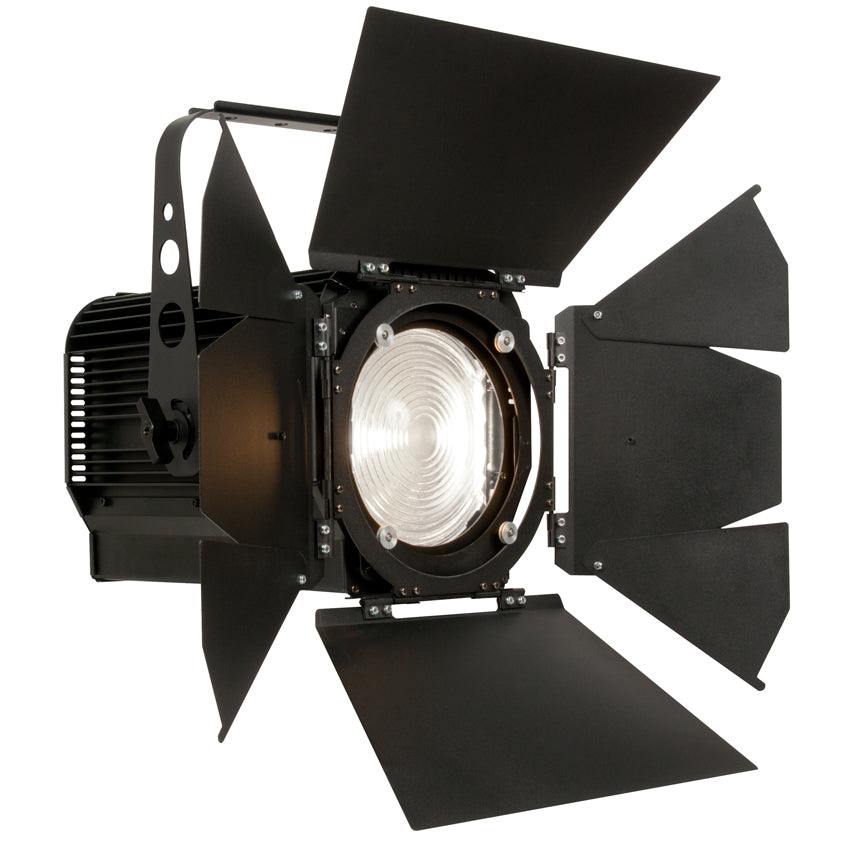

The TVL F1CW™ features a 100W Cool White 5,600K LED engine, motorized 12°-40° zoom, no noise thermo-optical cooling, DMX controlled dimmer and zoom, flicker free operation for TV and FILM, 5pin DMX in/out, powerCON, and (2) Ethernet (RJ45) connections, integrated yoke / handle, rotating barn door and gel frame included, 141W max consumption, and a multi-voltage universal auto switching power supply (100-240v). FEATURES 12° - 40° Motorized Zoom DMX Controlled Dimmer/Zoom Flicker FREE Operation for TV and FILM No Noise Thermo-Optical Cooling Technology Rotating Barn Door and Gel Frame Included
Features
Resources
Guides/ Manuals
- TVL F1CW Specification Sheet
- TVL F1CW Photometric IES Files
- TVL F1CW Dimensional Drawings
- TVL F1CW Photometric Data
- TVL F1CW 2D CAD
- TVL F1CW 3D CAD
- TVL F1CW Vectorworks 2014 Symbol
- TVL F1CW Vectorworks 2015 Symbol
- TVL F1CW Vectorworks 2016 Symbol
- TVL F1CW User Manual
Related Categories
Specifications
SOURCE
(1) 100W Cool White LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
High CRI = 95 / 34.64 Lm/W 5,600K (± 200K)
3,350 Max LUX @5M (12° Full On 5,600K)
EFFECTS
Zoom: 12° - 40°
Dimming: 0% - 100%

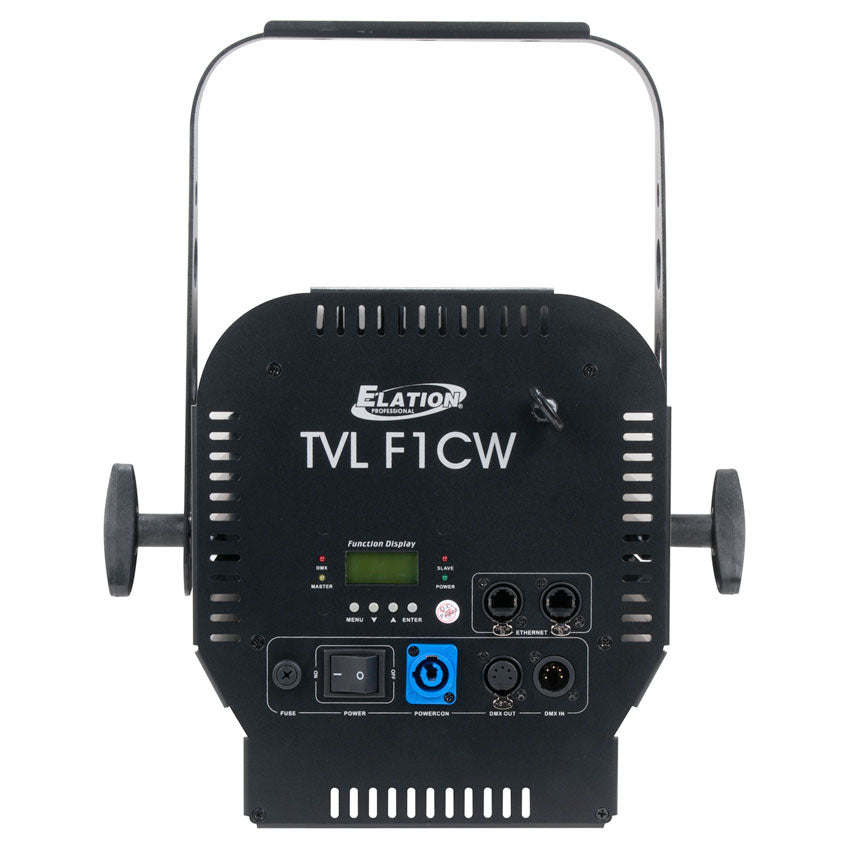

CONTROL / CONNECTIONS
4 Button Control LED Menu Display Panel
2 DMX Channels
5pin DMX In/Out
2 Ethernet (RJ45) Ports
powerCON Power In
SIZE / WEIGHT
Length: 20.4” (519 mm)
Width: 16” (407 mm)
Vertical Height: 17.4” (442 mm)
Weight: 35 lbs. (15.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
141W Max Power Consumption
40°C / 104°F Max Ambient Temperature
APPROVALS / RATINGS
CE | RoHs | IP20
INCLUDED ITEMS
Integrated Yoke/Handle
powerCON Cable

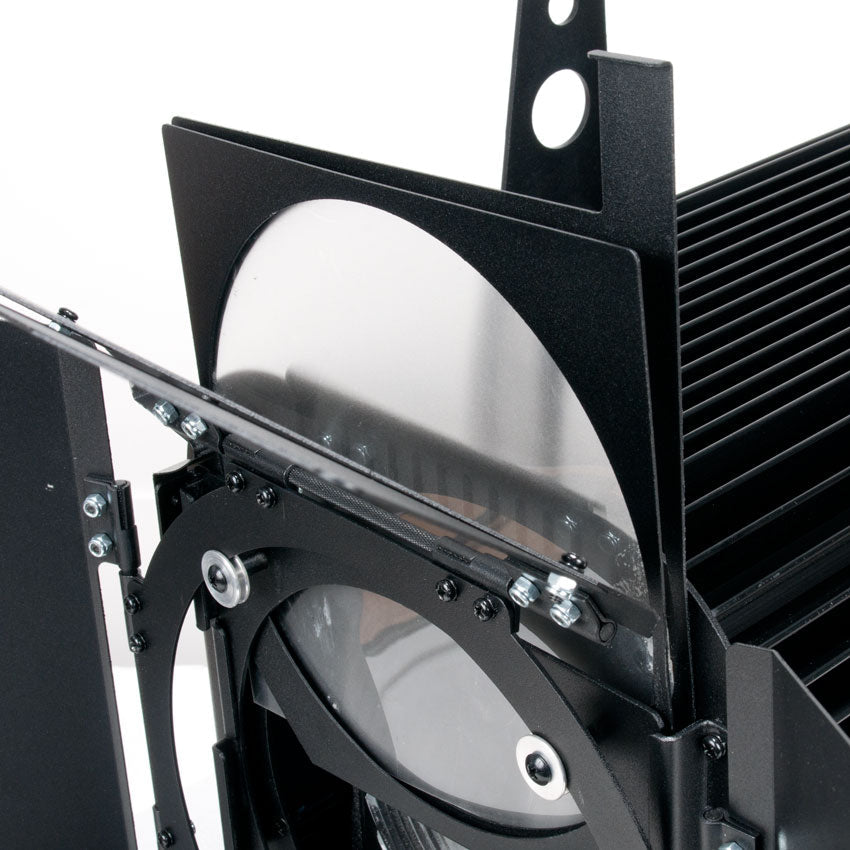

Rotating Barn Door
Gel Frame
OPTIONAL ACCESSORIES:
LSF FILTERS (click for more info)
CLAMPS (click for more info)
PRO CABLES (click for more info)
DMX SOLUTIONS (click for more info)
Specifications and documentation subject to change without notice.
