TVL2000 II
TVL2000 II

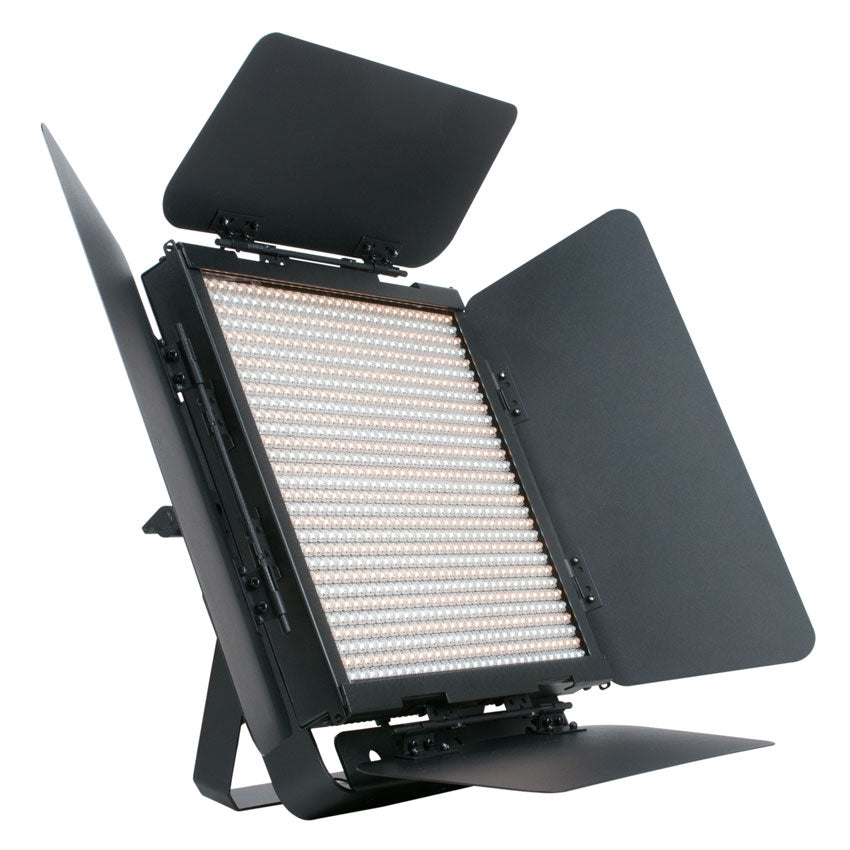

SKU# TVL601The new improved TVL2000 II™ features a low heat high CRI dynamic LED array panel consisting of 450 warm white and 450 cool white LEDs, variable manual and DMX controlled color temperature (3,200K - 6,500K) and dimming, adjustable barn doors, built-in magnetic gel/diffuser holder, flicker free operation for broadcast TV and FILM, 3 and 5 pin DMX in/out and linkable power in/out connections, (4) button (2) dial LCD display control panel, 90W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
Features
Low Heat High CRI Dynamic LED Array Panel
Variable Color Temperature Settings (3,200K - 6,500K)

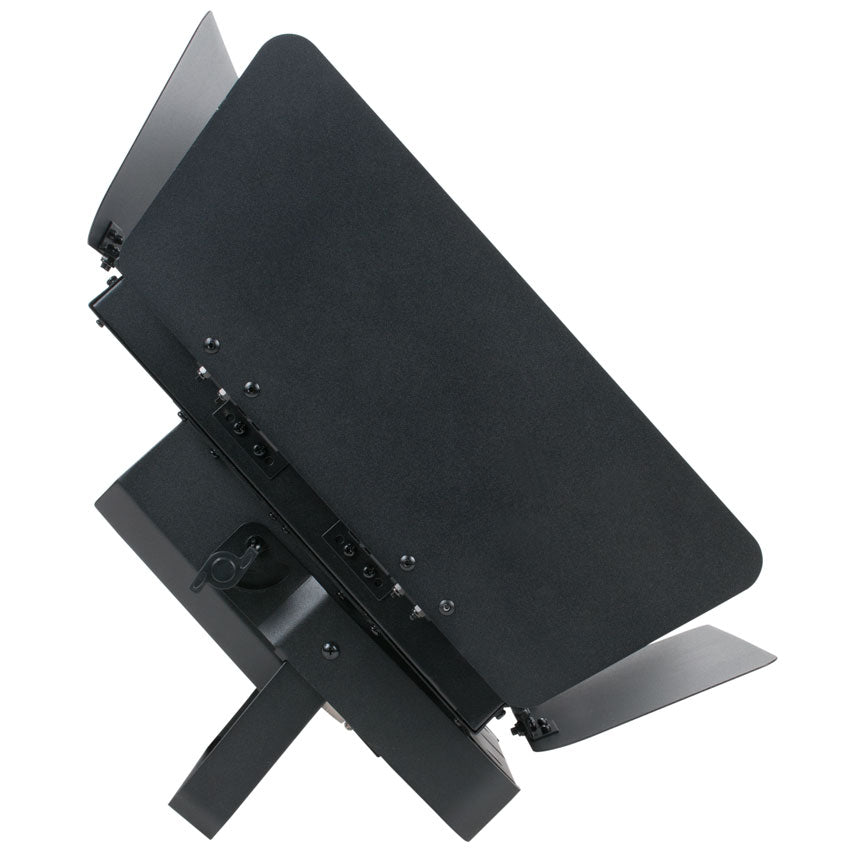

Adjustable Barn Doors

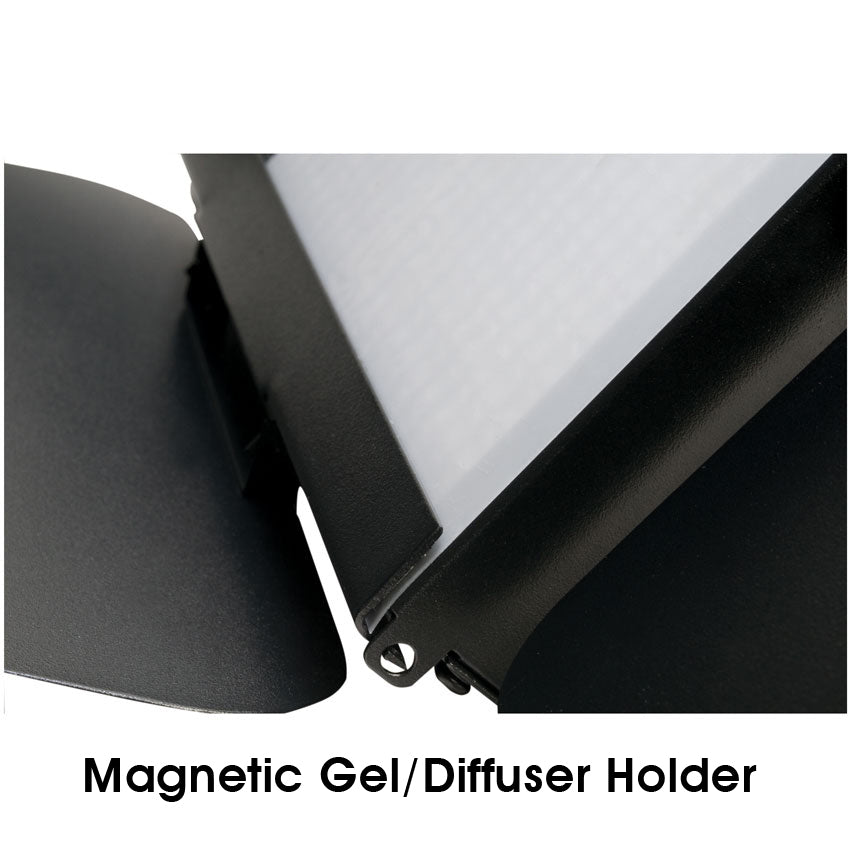

Built-In Magnetic Gel/Diffuser Holder
Manual and DMX Controlled Color Temp and Dimming
Flicker Free Operation for Broadcast TV and FILM
Multiple Unit Power Linking
Variable Color Temperature Settings (3,200K - 6,500K)
Adjustable Barn Doors
Built-In Magnetic Gel/Diffuser Holder
Manual and DMX Controlled Color Temp and Dimming
Flicker Free Operation for Broadcast TV and FILM
Multiple Unit Power Linking
Resources
Specifications Sheet
User Manual
Photometric Data
Photometric Test Report
- TVL2000 II Photometric Testing Report Cool White
- TVL2000 II Photometric Testing Report Full ON
- TVL2000 II Photometric Testing Report Warm White
Photometric IES File
DMX Traits
Dimensional Drawing
CAD Drawing
Vectorworks Symbol
Specifications
SOURCE
(450) Warm White + (450) Cool White LEDs
PHOTOMETRIC DATA
750 LUX 70 FC @6.6’ (2M) (30° Warm White 3,200K)
1300 LUX 121 FC @6.6’ (2M) (30° Cool White 6,500K)
2000 LUX 186 FC @6.6’ (2M) (30° Full On 4,500-5,000K)
EFFECTS
Variable Color Temperature (3,200K - 6,500K)
Electronic Dimming (0% - 100%)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (2/2/3)
Manual and DMX Color Temperature and Dimming

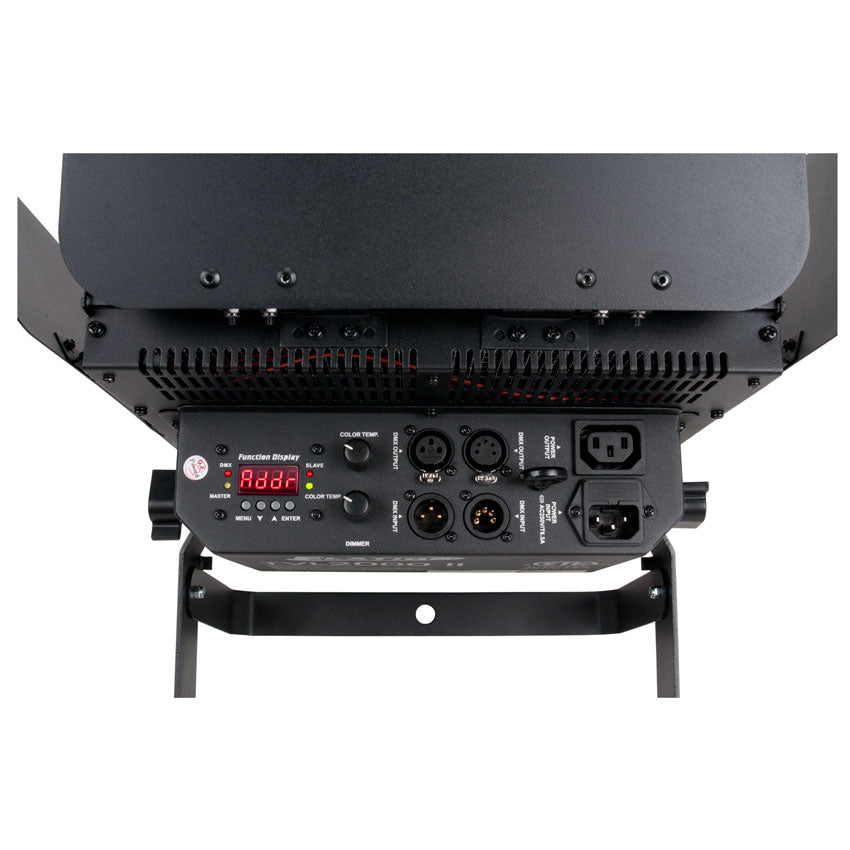

(4) Button and (2) Dial Control Panel
LCD Menu Display
3pin and 5pin DMX In/Out
Linkable Power In/Out
SIZE / WEIGHT
Length: 14.8” (376mm)
Width: 13.3” (337mm)
Vertical Height: 4.4” (113mm)
Weight: 15.0 lbs. (6.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
90W Max Power Consumption
INCLUDED ITEMS
90° Dual /Yoke Bracket
Power Cable
APPROVALS / RATINGS
CE | cETLus | RoHs | IP20
OPTIONAL ACCESSORIES:

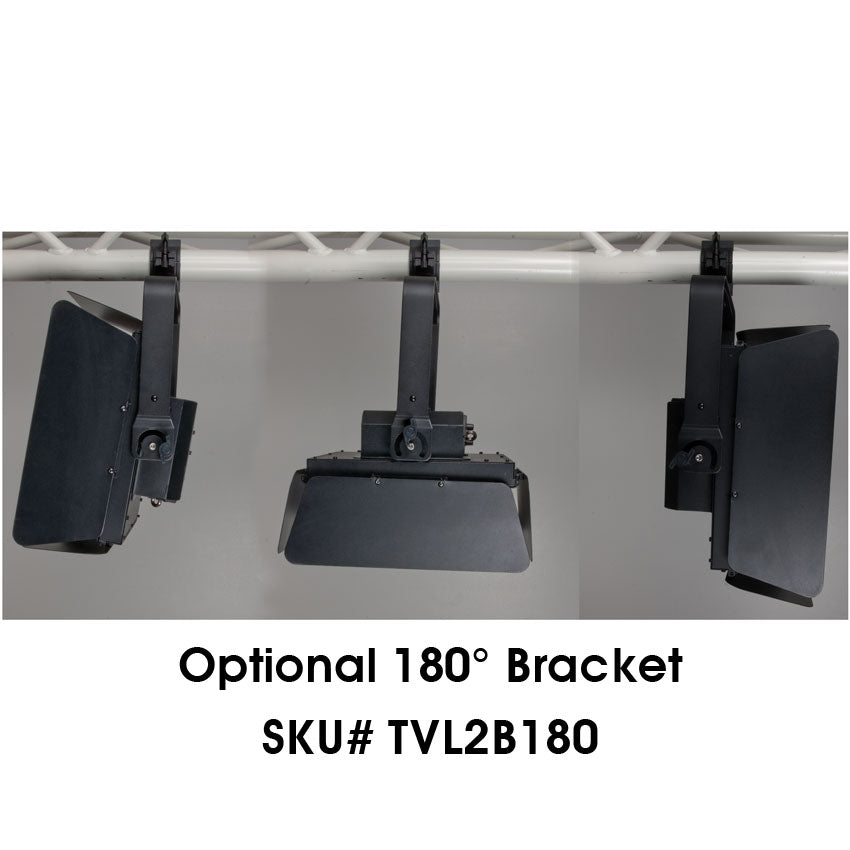

TVL2B180 180° Dual Yoke / Bracket
LSF FILTERS (click for more info)
ECCOM-10 POWER LINK CABLES (click for more info)
Specifications and documentation subject to change without notice.
