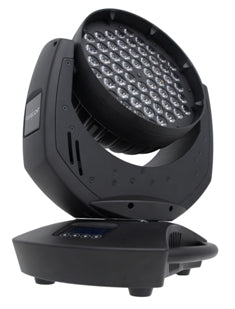

60 x 3Watt Luxeon Rebel RGB LED Compact Moving Head
 Power consumption 180 VA (Watt)
 Power Input ~100 – 240V AC, 50-60 Hz (wide range input)
 Fuse protection Micro fuse 5x20mm, T 4A
 Max. Ambient 45°C (integrated overheating switch)
 Mounting position fully operational whether it hangs or is mounted to the wall. It can also be operated while standing on the floor.
 Additive Color mixing
 LED Type 60x Luxeon Rebel High Power – LEDs Lifetime 50.000h
 RGB Model
 21 Green LEDs, 21 blue LEDs, 18 Red LEDs,
 wavelength optimized for a maximum presentable color space
 White Model
 42 cold white LEDs, 18 warm white LEDs
 allow a continuously adjustable color temperature
 Exchangeable optical carrier with 11° light distribution angle (24° optional)
 Shutter / Dimmer
 Strobe – Effect with variable speed
 between 1 – 10 flashes per second, Random Strobe, Pulse Effects
 Continuous Dimmer 0 – 100%
 DMX Control
 Standard USITT DMX-512,
 3 pole XLR;
 [+] = Pin 3 [-] = Pin 2 [Ground] = Pin 1.
 DMX- Addressing starts at the
 DMX channel [001].
 Weights and Measures
 (WxLxH) 270 x 285 x 355mm
 Weight: ~ 8 kg
