Z-390
Z-390
Discontinued
SKU# ANF390
Compare to its predecessor Z-380, the primary improvements and differences can be seen on Z-390 are :
-Z-390 comes with a 4-Liter fluid tank which helps reducing the times of refilling. Better for operations when the machine is rigged up in a higher location where refilling is more time-consuming.
-Due to the larger fluid tank, the Z-390’s body is slightly bigger.
-Z-390’s haze output is raised approximately 30% higher.
Specifications
PERFORMANCE:
Rated power: 1000W (120V), 1500W (240V)
Operating time: 8hrs at max. output
Warm-up time: 1.5 minutes (approx.)
Fluid consumption: 8 ml/min
Fluid tank capacity: 4L (1.06 gallon)
Ambient temp. range - 0 °C - 40 °C (32 °F-104 °F)
COMPATIBLE FLUID:
Antari FLG Heavy Fog Fluid
CONTROL:
DMX512 Protocol
DMX channels: 2 channels
On-Board Control: Manual, Timer
Wireless Remote (Optional)

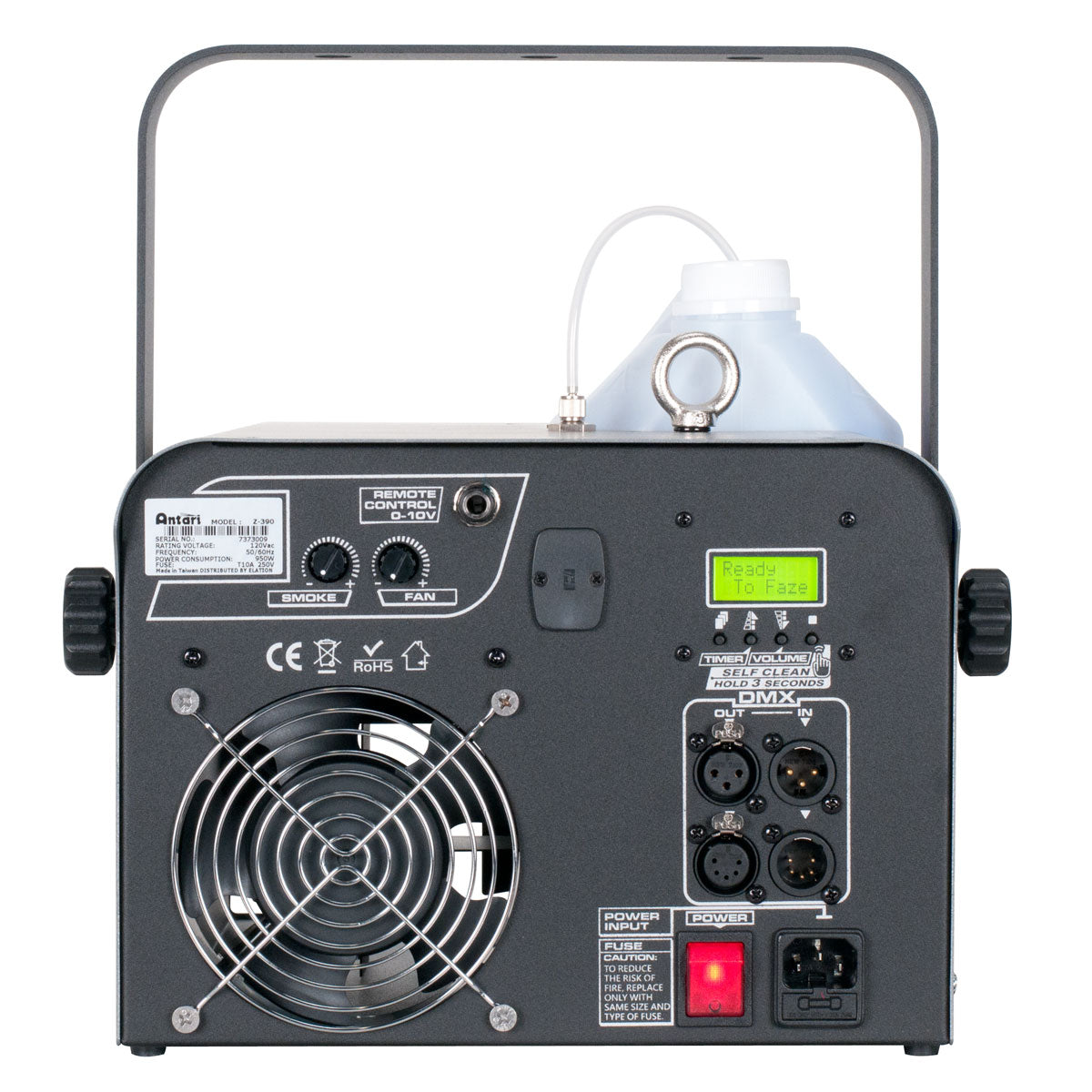

CONNECTIONS:
Power: IEC
Data Connectors: 3-pin XLR In/Out, 5-pin XLR In/Out
SIZE / WEIGHT:
Length: 14.49 in. (368 mm) / 14.49 in. (368 mm) with hanging bracket
Width: 10.93 in. (277.7 mm) / 10.93 (339.7) with hanging bracket
Vertical Height: 10.53 inch (267.4 mm) / 13.54 (343.9) with hanging bracket
Weight: 20.83lbs (9.45 kg)
ELECTRICAL:
Input voltage (US Model): AC 100-120V, 50/60Hz 8.5A
Input Voltage (EU model): AC 220-240V, 50/60Hz 6.5A
THERMAL:
Maximum Temperature Range: 0 °C - 40 °C (32 °F-104 °F)
OPTIONAL ACCESSORIES:
Z-3 Cable Remote
WTR-20
Specifications and documentation subject to change without notice.
