ZCL BAR Z300 IP
ZCL BAR Z300 IP

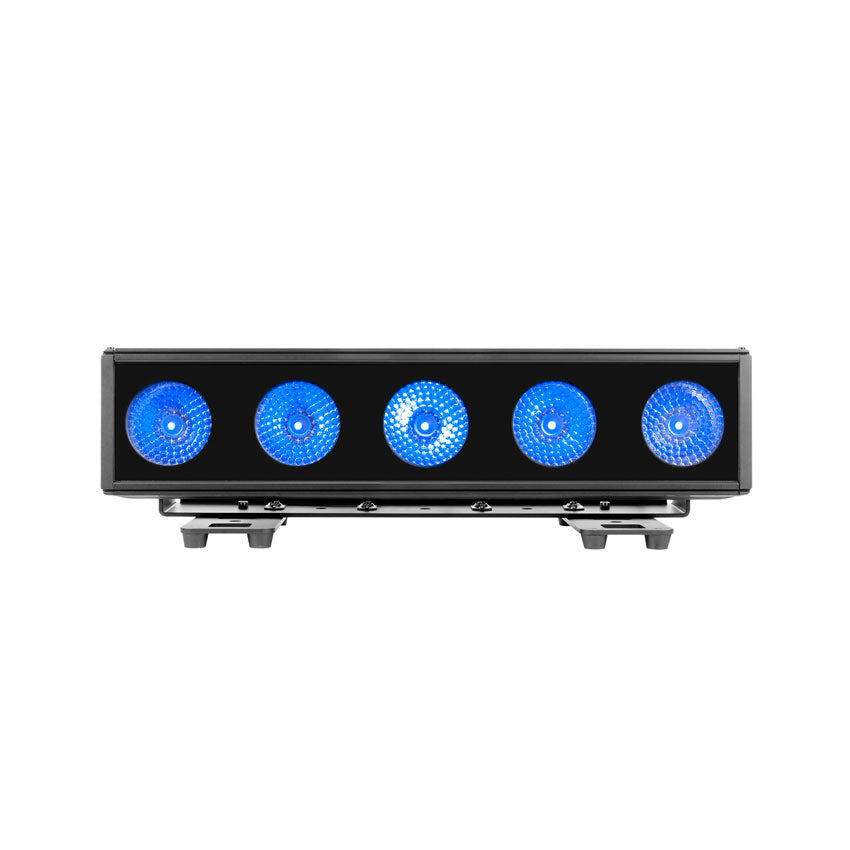

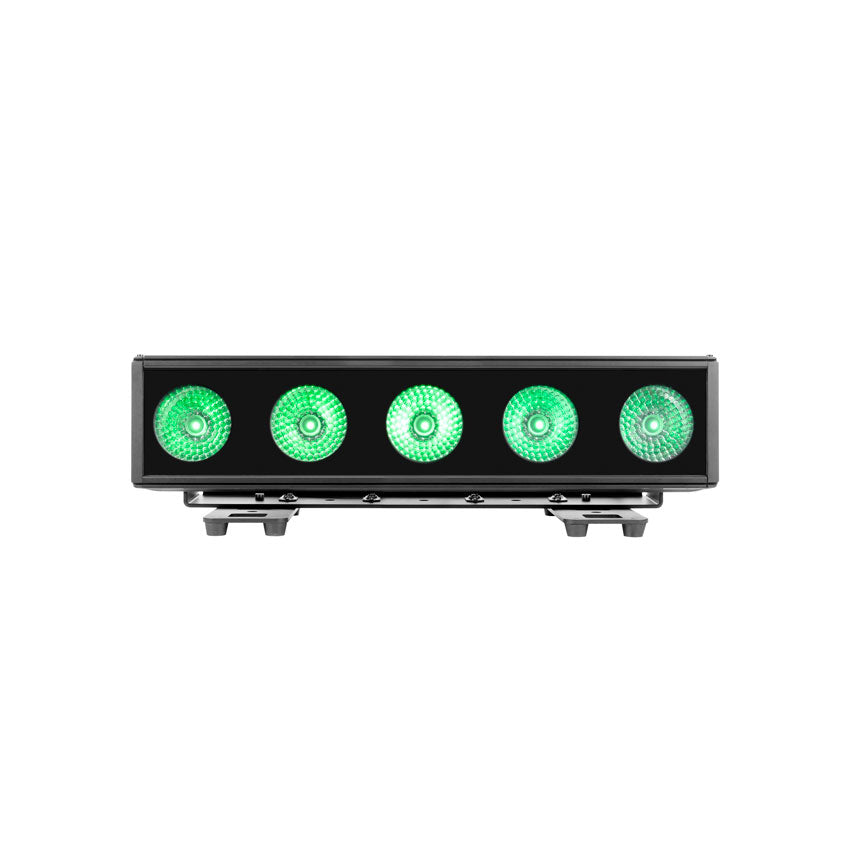

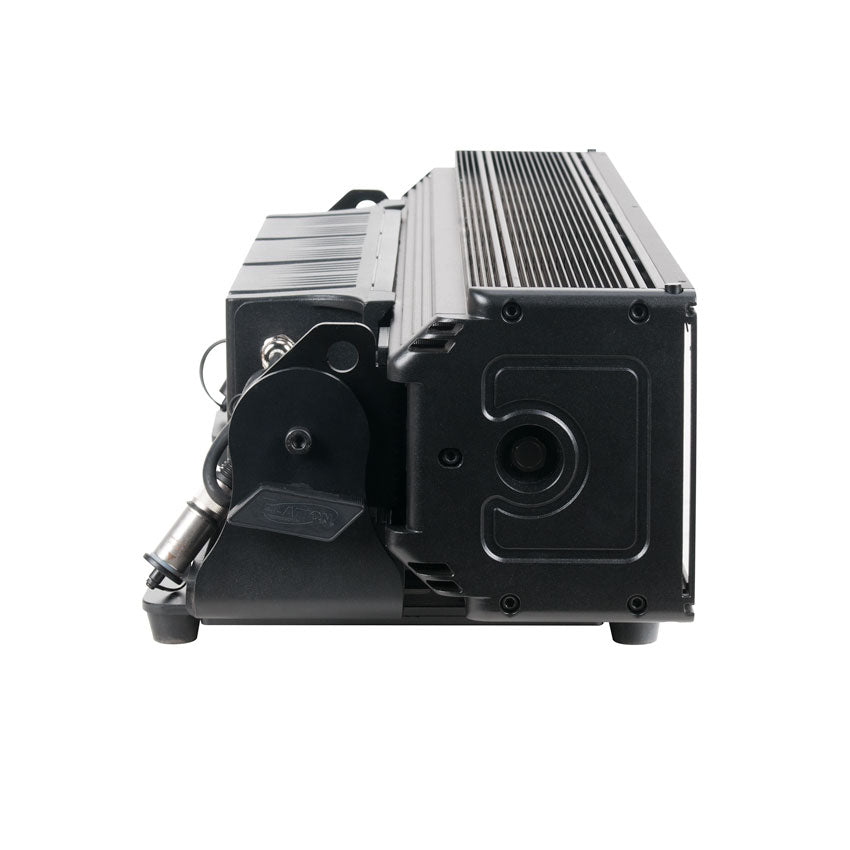

The ZCL BAR Z300 IP™ is a versatile IP65 rated bar effect luminaire with zoom, (5) individual 60W RGBW 4-in-1 LEDs, and the new advanced collimator optic lens which produces a sharp 4° color-changing beam from each lens. Features include 4° to 44° motorized zoom, strobe and selectable dimming curve effects, 64 color presets, 12 unique program macros, IP rated 5pin DMX and Locking Power Cbale in/out connections, LCD menu display with (4) touch button control panel, adjustable yoke with rotating floor stands, clamp rigging with optional omega brackets (not included), multiple unit power linking, rugged die-cast aluminum exterior, 2 frost filters and glare shield options included, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
Features
Versatile IP65 Rated Bar Effect Luminaire with Zoom
(5) 60W 4-in-1 RGBW LEDs
Sharp 4° Color Changing Beams
New Advanced Collimator Optic Lens
4° to 44° Motorized Zoom and Ful Pixel Control
Electronic Strobe and Selectable Dimming Curve Effects
DMX, RDM (Remote Device Management)
Flicker Free Operation for Broadcast TV and FILM
Rugged Die-Cast Aluminum Exterior

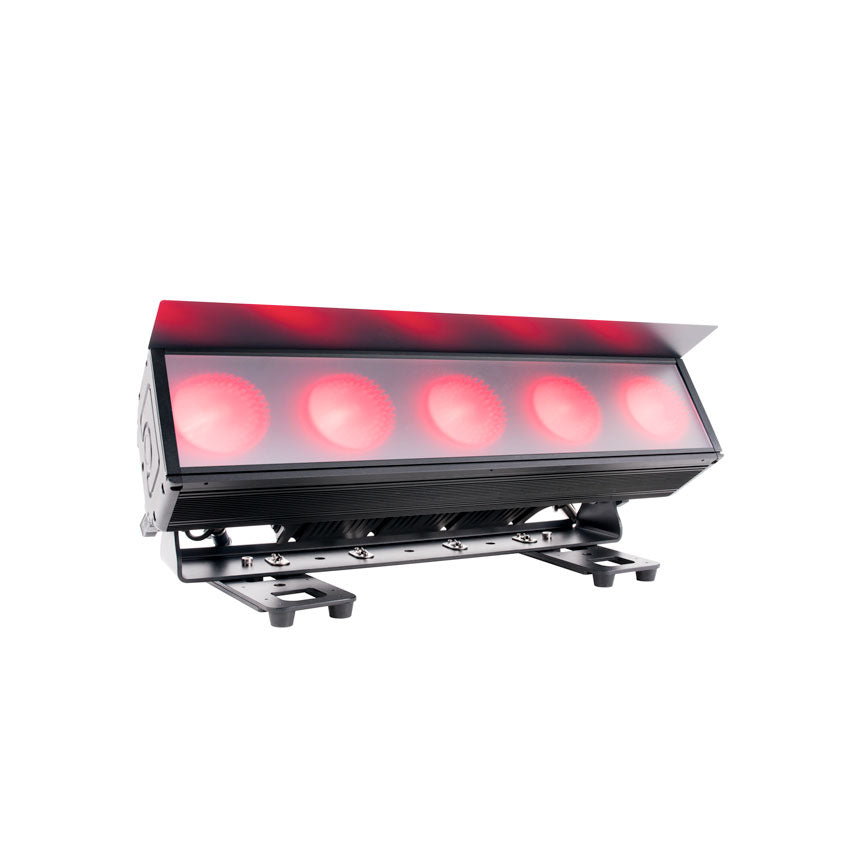

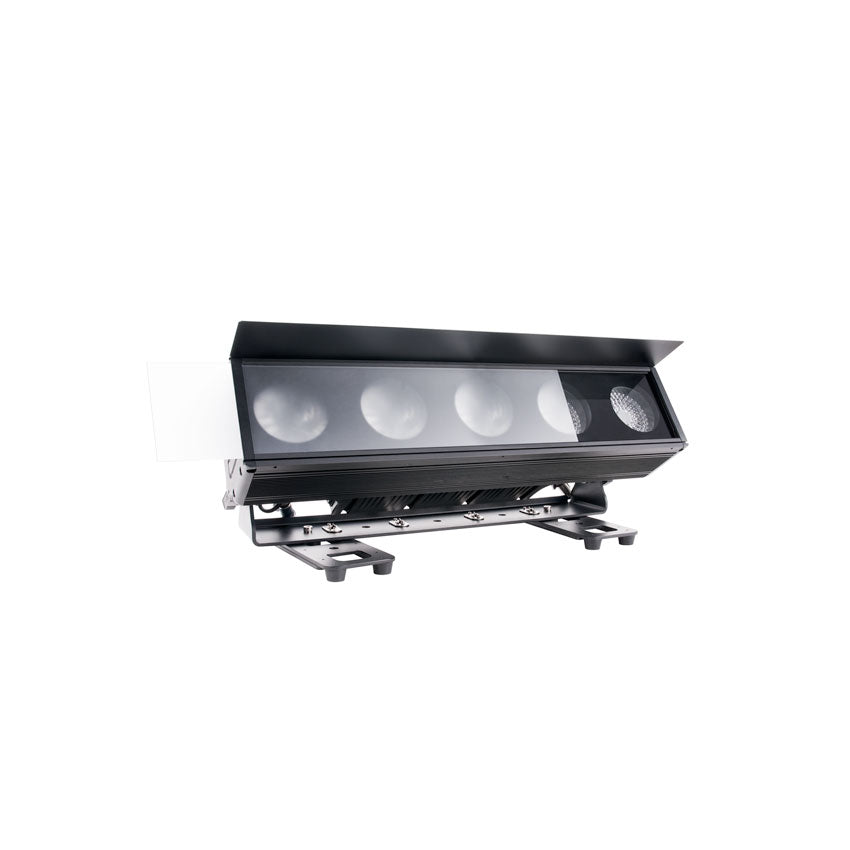

Glare Shield and Frost Filter Accessories Included
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
Specifications
(5) 60W RGBW 4-in-1 LED
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
36,436 LUX 3,385 FC @6.6' (2m) (4° Min Zoom)
3,100 LUX 288 FC @6.6' (2m) (44° Max Zoom)
COLOR
RGBW
EFFECTS

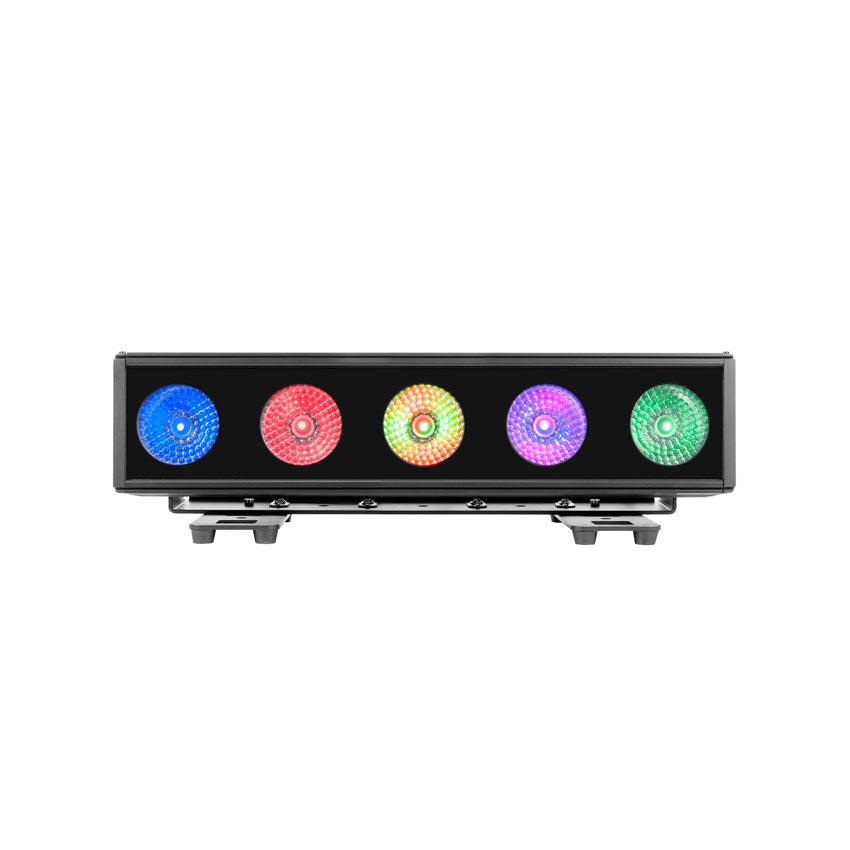

RGBW Color Mixing
Full Pixel Control and Pixel Flip
4° to 44° Motorized Zoom
64 Color Presets and 12 Unique Program Macros
Electronic Strobe and Selectable Dimming Curves
CONTROL / CONNECTIONS
(7) DMX Channel Modes (28 Total Channels)
RDM (Remote Device Management)

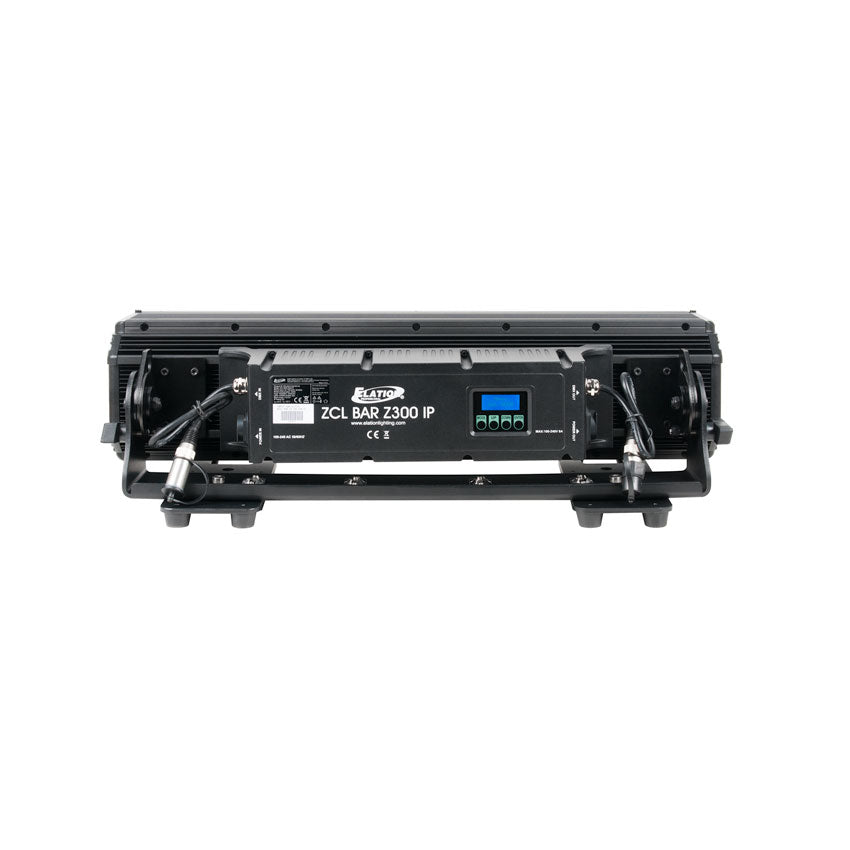

(4) Button Touch Control Panel
IP Rated 5pin DMX Whip Cables
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 26.4” (670mm)
Width: 6.2” (157.8mm)
Horizontal Height: 11.7” (297.6mm)
Weight: 43.0 lbs. (19.5 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
390W Max Power Consumption
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | RoHs | IP65
OPTIONAL ACCESSORIES:

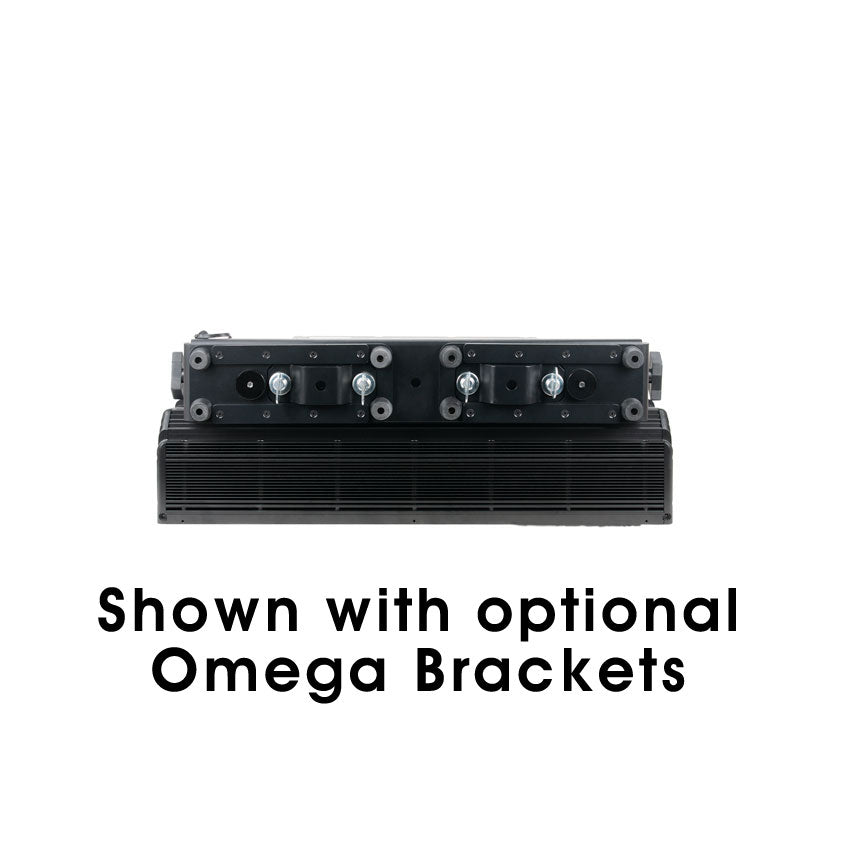

8050000053 - Omega Bracket
